YWXLight LED Strip USB Controller with 24 Keys IR Remote Control for 5050 RGB LED Strip

Description：
1.Work Voltage: DC 5V; 5V strip light must connect with 5V power supply.
2.The volts of the power supply must correspond to the volts of the strip light; If Very dim, only displays red color.Please check if the strip light volts is the same as the power volts.

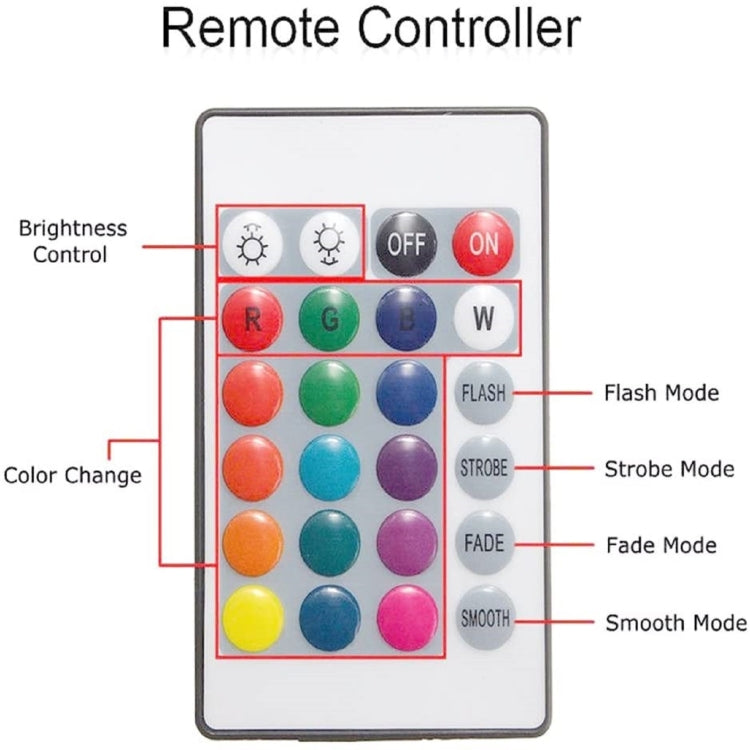

3.16 colors, adjustable brightness, On/Off, 5 Light Patters: Flash, Strobe, Fade, RGB Smooth-change, Static.16-Speeds Control in Flash / Strobe / Fade-change / RGB Smooth-change

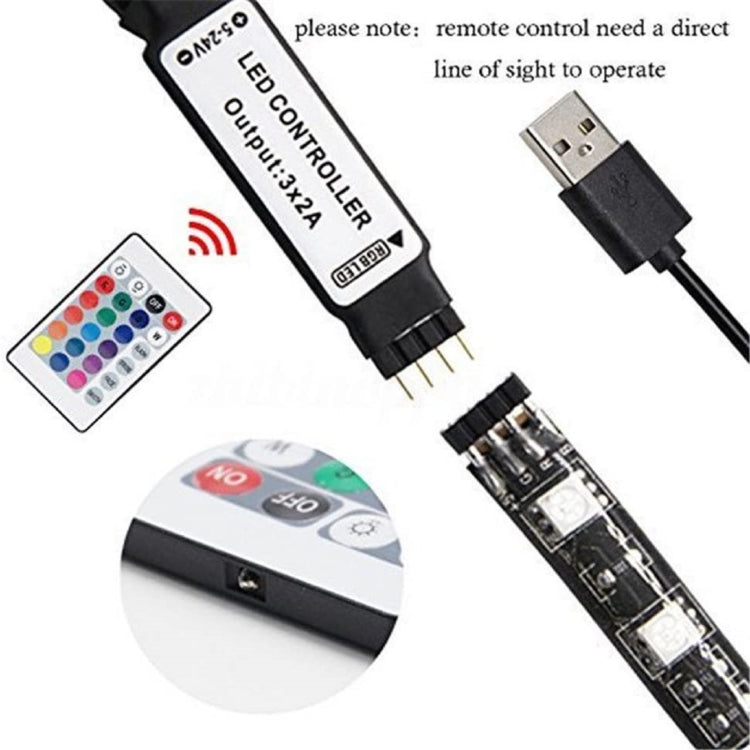

4.Easy to connect and convenient to control, remote distance with 10 meters. Connect the light strip with 4 pin plug on the one side,and plug it into the USB port that any one can drive it
5.Tips:Because the line order of each factory RGB light bar is not uniform, our controller line sequence is RGB. The problem that the controller does not correspond to the strip light can be solved. First, turn off the switch, then press the button in the lower right corner, the strip light will flash, then press the three keys RGB to adjust to the color you want, if it does not correspond for the first time, repeat it a few times

Specifications:
Working temperature: -20-60 Degrees Celsius
Suooly voltage: DC 5V
Remote control size: 8.5x5.2x0.8cm
RF controller length: 1m
Output: Three CMOS drain-open output
Connecting Mode: Common anode
Load current: 2A each color

Note:
1.Supply vlotage of this producr is DC 5V never connect to DC220V.
2.Never connect two wires directly in case of short circuit.
3.Lead wire should be connected correctly according to colors that connecting diagram offers.
4.Low voltage operation, can be compatibly use on any device of USB interface. Not for safety concerns.Please be sure of your power
adapter amps is suitable for your led strips.
5.The volts of the power supply must correspond to the volts of the strip light！If Very dim, only displays red color.Please check if the strip light volts is the same as the power volts.
