XNUCLEO-F103RB Development Kit, Comes with Common Used Peripheral Shields, OLED, RTC, AD/DA, Audio Codec, RS485, CAN ...
Overview
This development kit includes :

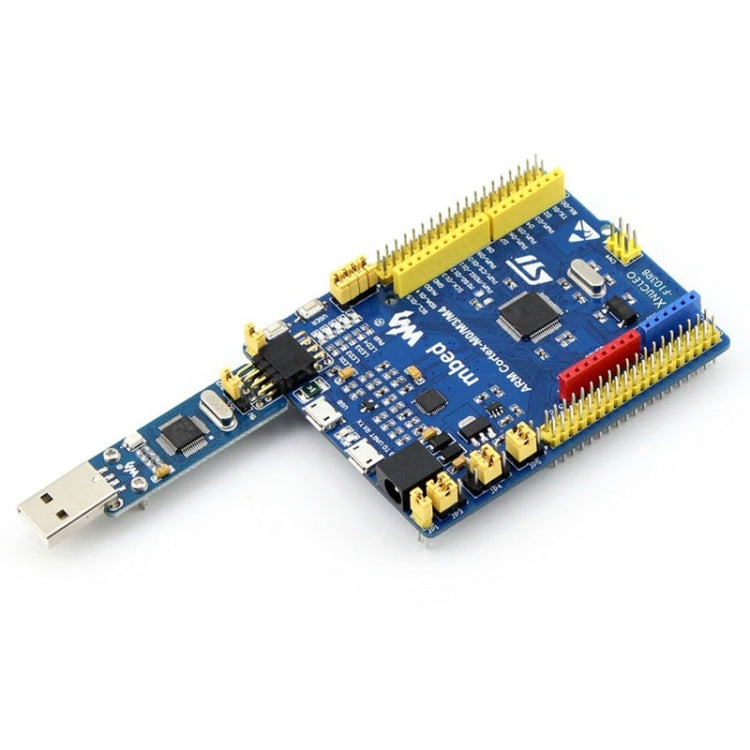

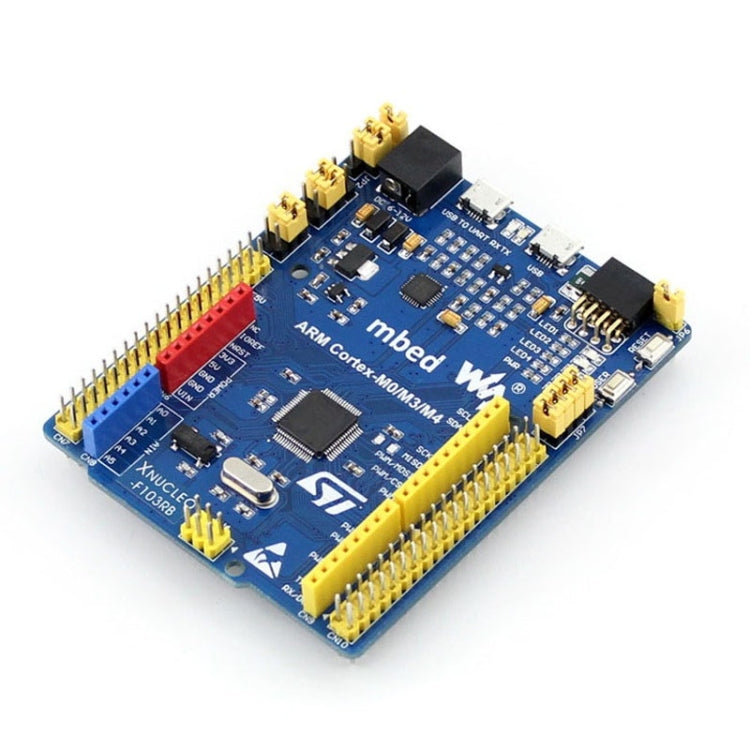

1. XNUCLEO-F103RB (STM32 Development Board, Supports Arduino, Compatible with NUCLEO-F103RB)

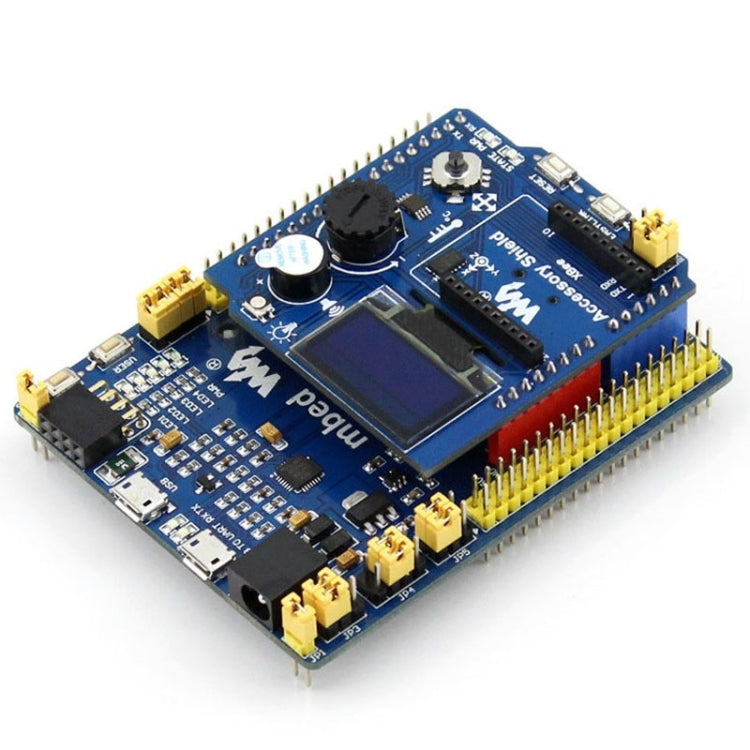

2. Accessory Shield (0.96inch OLED, high precision RTC, 3-axis accelerometer, temperature sensor, RGB LED, etc.)

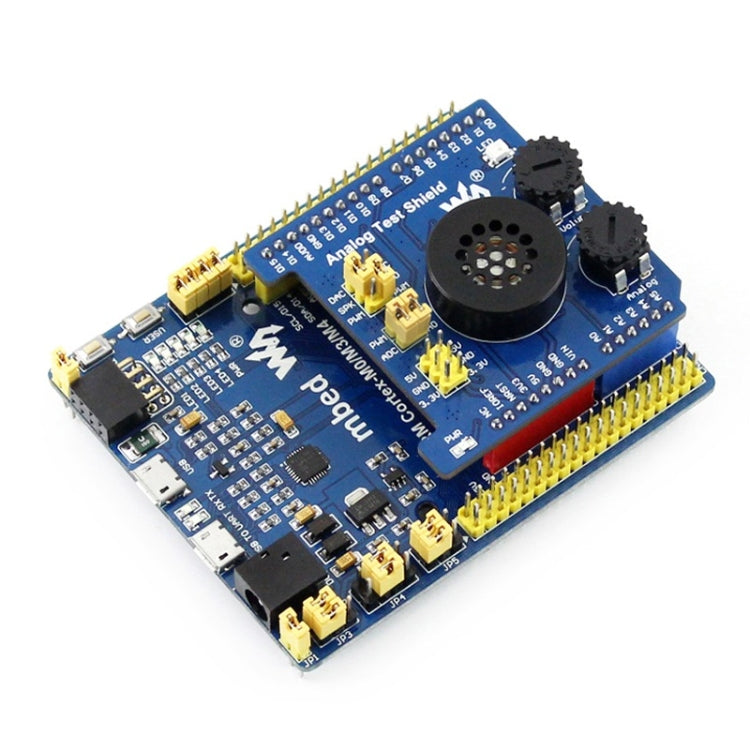

3. Analog Test Shield (AD acquisition, DA output test)
4. Music Shield (Audio codec, music playing, recording)
5. RS485 CAN Shield (RS485 and CAN communication)
XNUCLEO-F103RB Features
1. Compatible with NUCLEO-F103RB, onboard Cortex-M3 microcontroller STM32F103RBT6

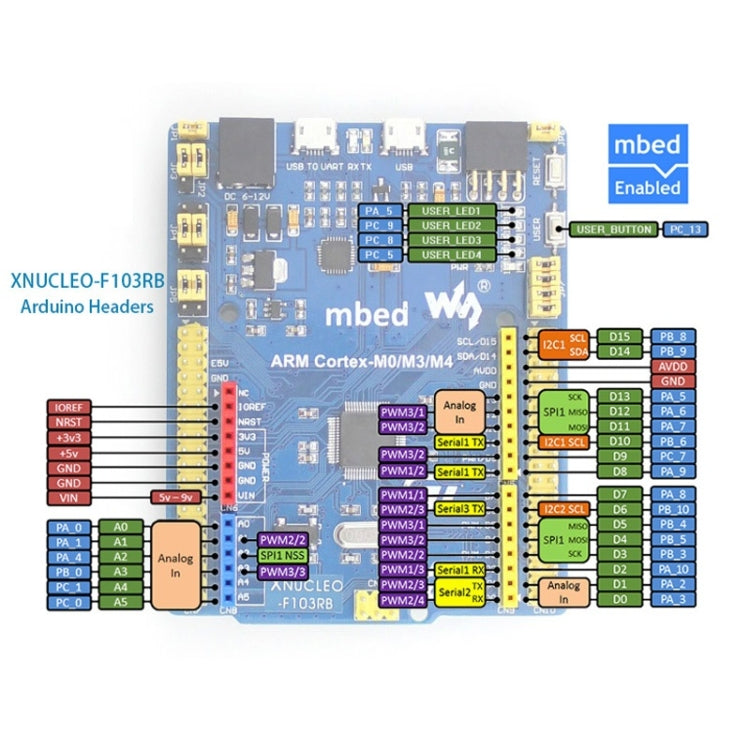

2. Arduino connectivity support, easy to connect with various Arduino shields and access the massive Arduino resources

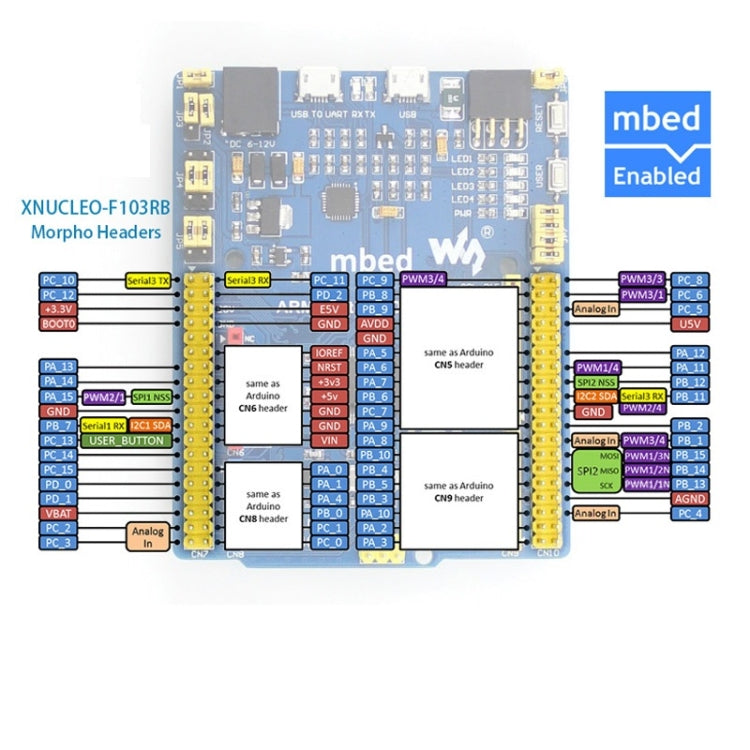

3. ST Morpho headers provide full access to all STM32 I/Os, easy for peripheral expansion
10. Supports mbed, build prototype quickly by mbed SDK and online tools
11. Comprehensive free software HAL library including a variety of software examples
12. Comes with a separated ST-LINK/V2 module

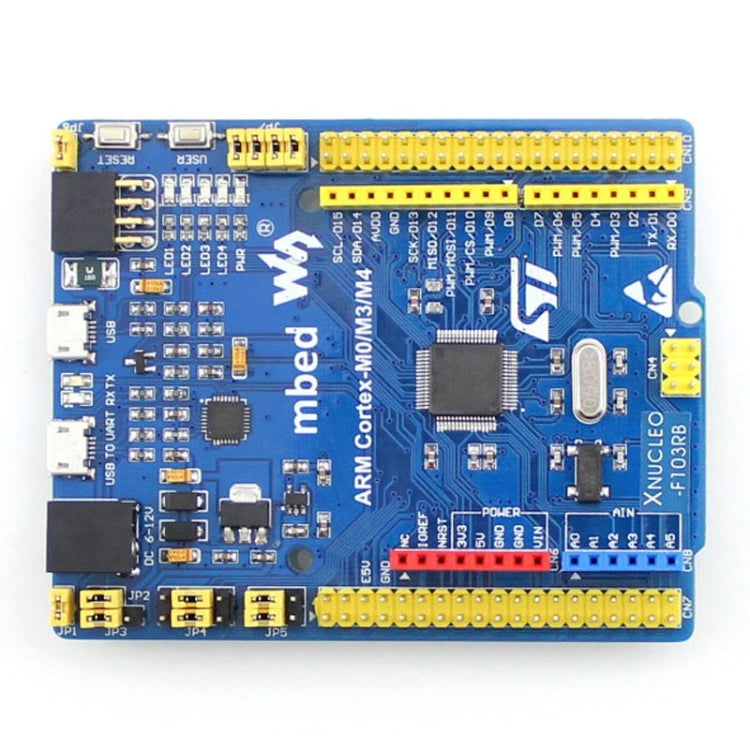

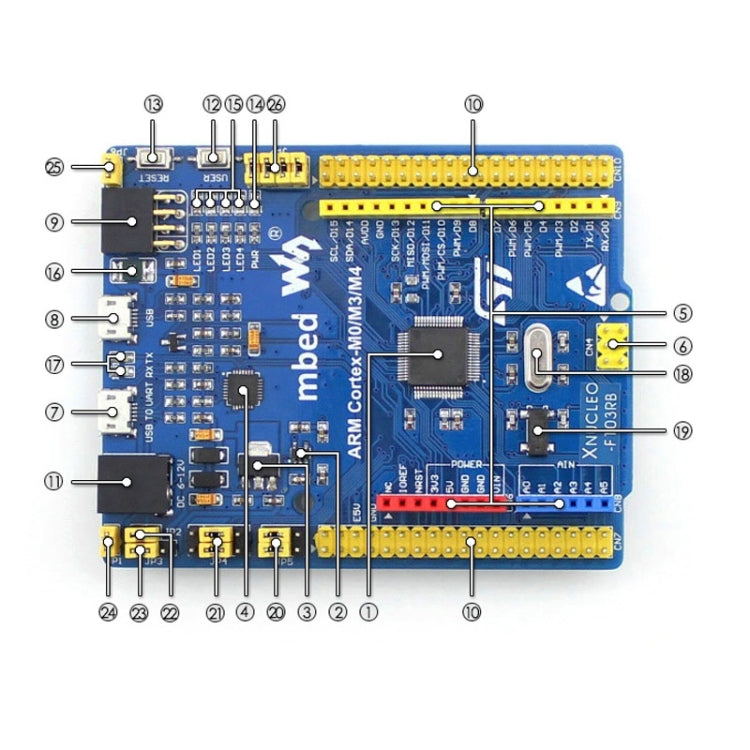

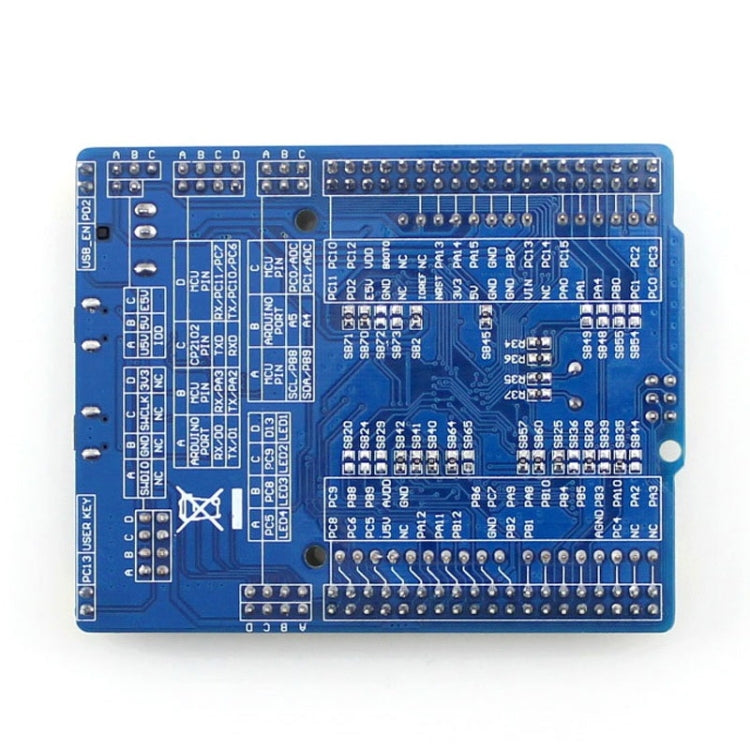

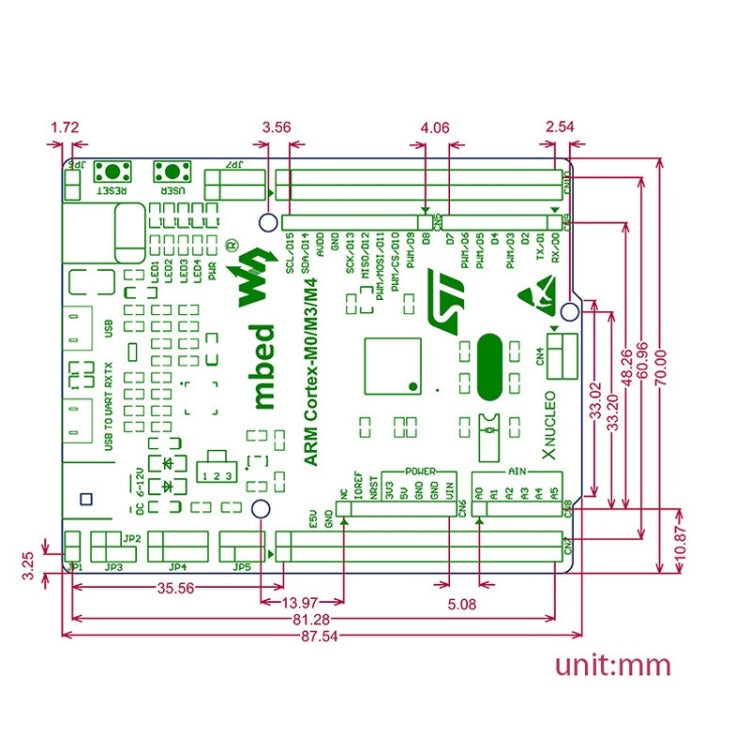

What is on the XNUCLEO-F103RB
1. STM32F103RBT6
- Core : ARM ® 32-bit Cortexâ„¢-M3
-Operating frequency : 72MHz
-Operating voltage : 2.0V-3.6V
-Package : LQFP64
-Memories : 128kB Flash, 20kB SRAM
-Interfaces : 2 x SPI, 3 x USART, 2 x I2C, 1 x CAN, 1 x USB
-AD/DA : 2 x AD (12 bit, 16 channels)
2. SPX3819M5 : 3.3V voltage regulator
3. AMS1117-5.0 : 5.0V voltage regulator
4. CP2102 : USB to UART convertor
5. Arduino connector : for connecting Arduino shields
6. ICSP interface : Arduino ICSP
7. USB TO UART : for debugging
8. USB connector : USB communication interface
9. SWD interface : for programming and debugging
10. ST Morpho headers : access to VCC, GND and all the I/Os, easy for expansion
11. 6-12V DC input
12. User button
13. Reset button
14. Power indicator
15. User LED
16. 500mA fast self-recovery fuse
17. Serial port Rx/Tx indicator
18. 8MHz crystal
19. 32.768KHz crystal
20. ADC/I2C selection jumper
- Short A and B : Arduino A4, A5 is used as I2C
- Short B and C : Arduino A4, A5 is used as ADC
21. UART selection jumper
22. MCU current test jumper : for low power tests
23. Power selection jumper
- Short 5V and U5V : powered from USB connection
- Short 5V and E5V : powered from external power supply
24. USB enable jumper
- Short the jumper to enable
- Open the jumper to disable
25. User button jumper
- Short the jumper to connect to I/Os used in example code
- Open the jumper to connect to other custom pins via jumper wires
26. User LED jumper
- Short the jumper to connect to I/Os used in example code
- Open the jumper to connect to other custom pins via jumper wires
Package Contents
1. XNUCLEO-F103RB x 1
2. ST-LINK/V2 (mini) x 1
3. USB Type A Plug to Micro B Plug Cable x 1
4. USB Type A Plug to Receptacle Cable x 1
5. Accessory Shield x 1
6. Analog Test Shield x 1
7. Music Shield x 1
8. Micro SD Card 16GB x 1
9. RS485 CAN Shield x 1
Overview
This development kit includes :
1. XNUCLEO-F103RB (STM32 Development Board, Supports Arduino, Compatible with NUCLEO-F103RB)
2. Accessory Shield (0.96inch OLED, high precision RTC, 3-axis accelerometer, temperature sensor, RGB LED, etc.)
3. Analog Test Shield (AD acquisition, DA output test)
4. Music Shield (Audio codec, music playing, recording)
5. RS485 CAN Shield (RS485 and CAN communication)
XNUCLEO-F103RB Features
1. Compatible with NUCLEO-F103RB, onboard Cortex-M3 microcontroller STM32F103RBT6
2. Arduino connectivity support, easy to connect with various Arduino shields and access the massive Arduino resources
3. ST Morpho headers provide full access to all STM32 I/Os, easy for peripheral expansion
10. Supports mbed, build prototype quickly by mbed SDK and online tools
11. Comprehensive free software HAL library including a variety of software examples
12. Comes with a separated ST-LINK/V2 module
What is on the XNUCLEO-F103RB
1. STM32F103RBT6
- Core : ARM ® 32-bit Cortexâ„¢-M3
-Operating frequency : 72MHz
-Operating voltage : 2.0V-3.6V
-Package : LQFP64
-Memories : 128kB Flash, 20kB SRAM
-Interfaces : 2 x SPI, 3 x USART, 2 x I2C, 1 x CAN, 1 x USB
-AD/DA : 2 x AD (12 bit, 16 channels)
2. SPX3819M5 : 3.3V voltage regulator
3. AMS1117-5.0 : 5.0V voltage regulator
4. CP2102 : USB to UART convertor
5. Arduino connector : for connecting Arduino shields
6. ICSP interface : Arduino ICSP
7. USB TO UART : for debugging
8. USB connector : USB communication interface
9. SWD interface : for programming and debugging
10. ST Morpho headers : access to VCC, GND and all the I/Os, easy for expansion
11. 6-12V DC input
12. User button
13. Reset button
14. Power indicator
15. User LED
16. 500mA fast self-recovery fuse
17. Serial port Rx/Tx indicator
18. 8MHz crystal
19. 32.768KHz crystal
20. ADC/I2C selection jumper
- Short A and B : Arduino A4, A5 is used as I2C
- Short B and C : Arduino A4, A5 is used as ADC
21. UART selection jumper
22. MCU current test jumper : for low power tests
23. Power selection jumper
- Short 5V and U5V : powered from USB connection
- Short 5V and E5V : powered from external power supply
24. USB enable jumper
- Short the jumper to enable
- Open the jumper to disable
25. User button jumper
- Short the jumper to connect to I/Os used in example code
- Open the jumper to connect to other custom pins via jumper wires
26. User LED jumper
- Short the jumper to connect to I/Os used in example code
- Open the jumper to connect to other custom pins via jumper wires
Package Contents
1. XNUCLEO-F103RB x 1
2. ST-LINK/V2 (mini) x 1
3. USB Type A Plug to Micro B Plug Cable x 1
4. USB Type A Plug to Receptacle Cable x 1
5. Accessory Shield x 1
6. Analog Test Shield x 1
7. Music Shield x 1
8. Micro SD Card 16GB x 1
9. RS485 CAN Shield x 1
