Wifi Point-to-point with Infrared Night Vision Light/ Record / Monitoring Function for Apple iOS and Android 2.3 Version above Mobile Phone and Computer(White)

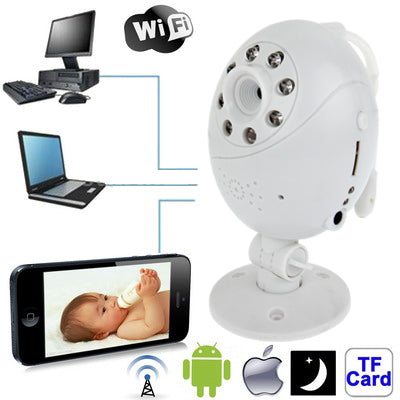

1) First Wifi point-to-point technology

2) iPhone / Android smart phone Wifi direct monitoring

3) iPhone / Android smart phone connect internet monitoring

4) 24 hours circulation video and synchronous support remote monitoring

Vsisit end equipment:

Support PC , laptop computer , apple portable series and Android mobile phone series (Android above 2.3 Version)

The equipment installation and setup:

Step1:

Insert TF Card into the card reader and connect with computer, double click CD, input the wifi camera connected the wireless router’s name and password 2 line information

Step2: Inset the written information TF card into the wifi camera, after the camera power on , the red light always lighting, after 10 seconds blue light always lights and inspect network, after connected ok the blue light flashing, TF card within 30 minutes save a file, cycle video, at the same time support the network access

Step3:

UPNE Setting

Before the network access, must turn on the camera connected router’s UPNP function, Before the network access, must turn on the camera connected router’s UPNP function, Routers setting method for details see instruction

Step4:

Initial use, after the power is turned on ,wifi camera automatically default network access working mode (blue light each second flashing 1 time,) long press a button on the camera and blue light flashing 6 times then loosen the button, the machines will be changed to point to point access working mode (blue light 5 seconds flashing 1 time), the user can convert them according the needs

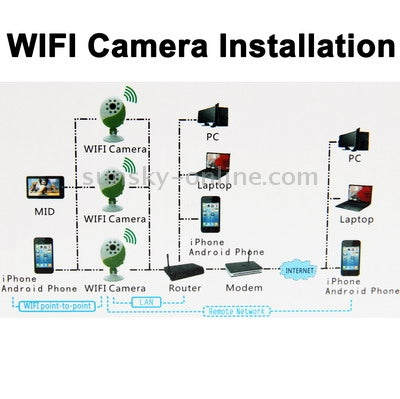

Through the network access to visit camera:

1) LAN users visit by PC:

Open the CD-ROM root directory”W100 Client” folder, double-click to open the monitor screen, the system automatic detection of wifi camera and automatic connection, the mouse placed in monitor screen, double-click and pop-up” equipment password” dialog box, enter the password (initial password is 123456, the user can modify by themselves, the modified automatic saved in equipment-end and access-end, the same as below) will display monitor screen , can display up to four pictures.

2) WAN users PC terminal access:

When the roter connected network, place the mouse at the monitor screen, right-click the device control menu, click enter the “Device list, where you can make a device to add, delete, modify information operations, after click add device appears the device name (set your own), device address : enter the wifi camera the bottom label of the domain name, the device password (initial password is 123456). Click on the confirm and the system automatic connection success and monitor screen is displayed.

3) The phone terminal monitoring software name for RDM wifi camera, apple phone series through the App store to search and download, Android phone series download through the Android market or from CD installed directly on the phone, in the case of mobile phone connectivity network, open software directly and domain name address, the initial password is : 123456, after input OK can see the monitor screen.

Through the wifi point to point to visit camera:

Point to Point work mod

1) Mobile phone users open the WLAN setting, find”aimer37” click on the link (password is 12345678), after a successful connection open mobile phone terminal monitoring software, users can add their own equipment , enter the following figure

Equipment name: (custom)

Device address: 192.168.1.1

Initial password: 123456

After completion click OK to enter the monitor screen

2) The notebook user open wifi find”aimer37” click to connect (password 12345678), After a successful connection and open, the system automatically connect wifi camera, the monitor screen, double-click and pop-up the “device password” dialog box, enter the password (initial password is 123456) will display the monitor screen.
