Waveshare XNUCLEO-F103RB, Improved STM32 NUCLEO Board

Roll over image to zoom in Click on image to zoom

Waveshare XNUCLEO-F103RB, Improved STM32 NUCLEO Board

Name: Waveshare XNUCLEO-F103RB, Improved STM32 NUCLEO Board
Brand: O2I24
SKU: ZY14187587
Price: 10933.0 INR
Availability: OutOfStock

O2I24

Price:

Rs. 10,933.00

Quantity:

Share this product

XNUCLEO-F103RB Features
1. Compatible with NUCLEO-F103RB, onboard Cortex-M3 microcontroller STM32F103RBT6

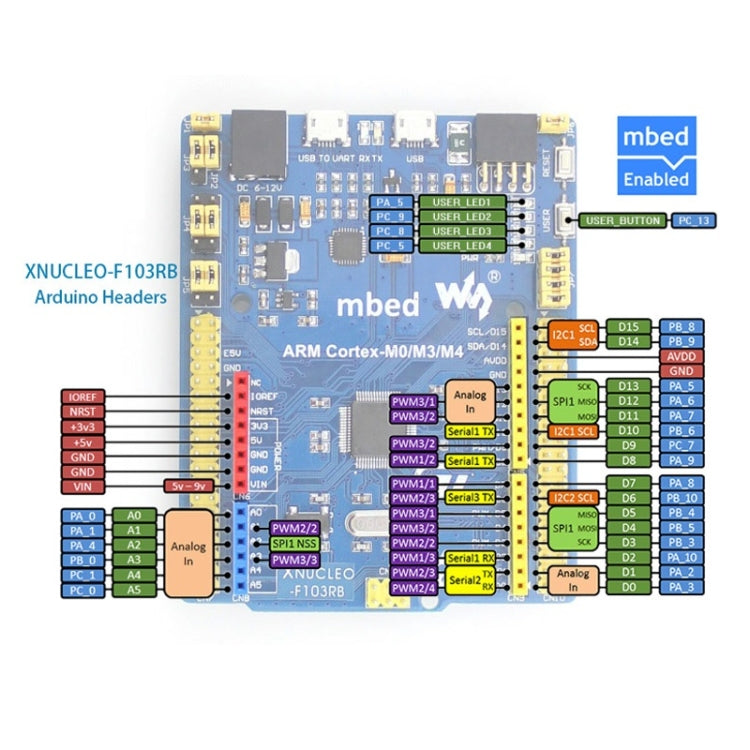

2. Arduino connectivity support, easy to connect with various Arduino shields and access the massive Arduino resources

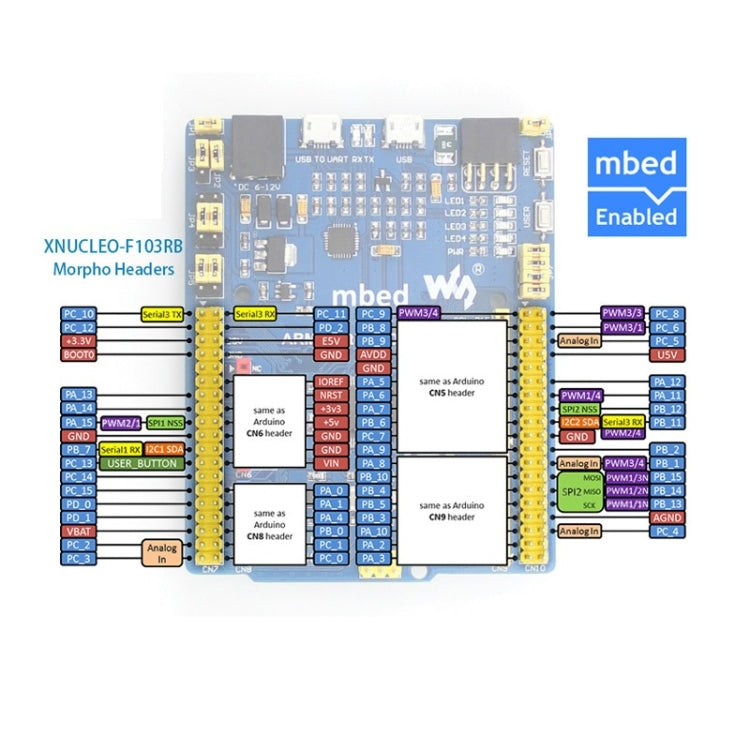

3. ST Morpho headers provide full access to all STM32 I/Os, easy for peripheral expansion
4. Supports mbed, build prototype quickly by mbed SDK and online tools
5. Comprehensive free software HAL library including a variety of software examples
6. Comes with a separated ST-LINK/V2 module

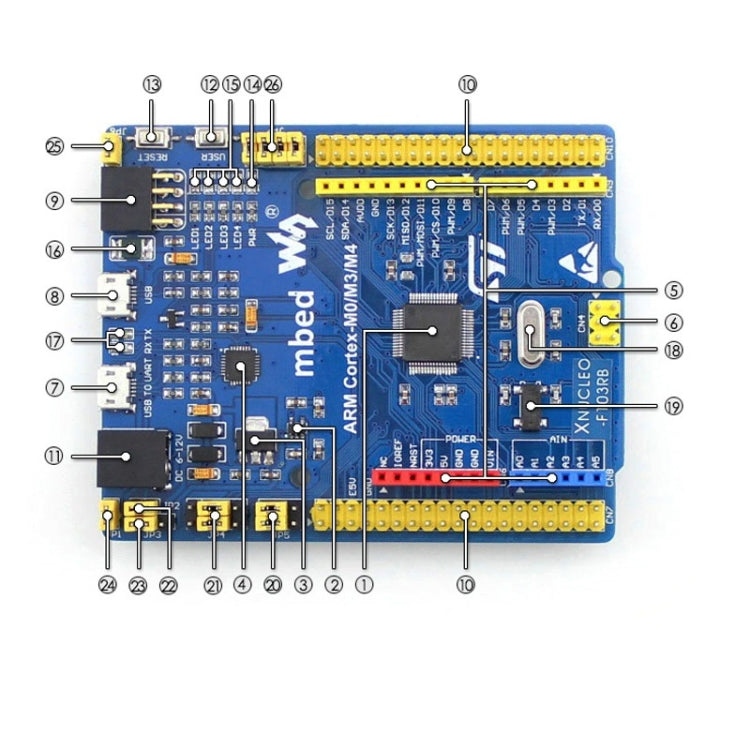

What is on the XNUCLEO-F103RB
1. STM32F103RBT6
- Core : ARM ® 32-bit Cortexâ„¢-M3
- Operating frequency : 72MHz
- Operating voltage : 2.0V-3.6V
- Package : LQFP64
- Memories : 128kB Flash, 20kB SRAM
- Interfaces : 2 x SPI, 3 x USART, 2 x I2C, 1 x CAN, 1 x USB
- AD/DA : 2 x AD (12 bit, 16 channels)
2. SPX3819M5 : 3.3V voltage regulator
3. AMS1117-5.0 : 5.0V voltage regulator
4. CP2102 : USB to UART convertor
5. Arduino connector : for connecting Arduino shields
6. ICSP interface : Arduino ICSP
7. USB TO UART : for debugging
8. USB connector : USB communication interface
9. SWD interface : for programming and debugging
10. ST Morpho headers : access to VCC, GND and all the I/Os, easy for expansion
11. 6-12V DC input
12. User button
13. Reset button
14. Power indicator
15. User LED
16. 500mA fast self-recovery fuse
17. Serial port Rx/Tx indicator
18. 8MHz crystal
19. 32.768KHz crystal
20. ADC/I2C selection jumper
- Short A and B : Arduino A4, A5 is used as I2C
- Short B and C : Arduino A4, A5 is used as ADC
21. UART selection jumper
22. MCU current test jumper : for low power tests
23. Power selection jumper
- Short 5V and U5V : powered from USB connection
- Short 5V and E5V : powered from external power supply
24. USB enable jumper
- Short the jumper to enable
- Open the jumper to disable
25. User button jumper
- Short the jumper to connect to I/Os used in example code
- Open the jumper to connect to other custom pins via jumper wires
26. User LED jumper
- Short the jumper to connect to I/Os used in example code
- Open the jumper to connect to other custom pins via jumper wires

Package Contents
1. XNUCLEO-F103RB x 1
2. ST-LINK/V2 (mini) x 1
3. USB Type A Plug to Micro B Plug Cable x 1
4. USB Type A Plug to Receptacle Cable x 1
