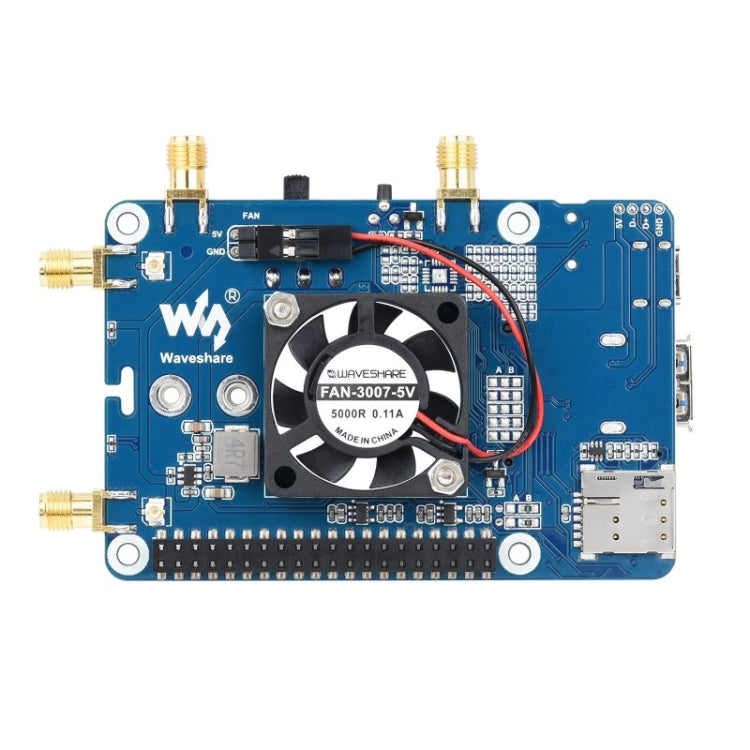

Waveshare SIM8262E-M2 5G HAT For Raspberry Pi, Quad Antennas 5G NSA, 5G/4G/3G Compatible - 23254


Price:
Sale priceRs. 48,369.00

Description

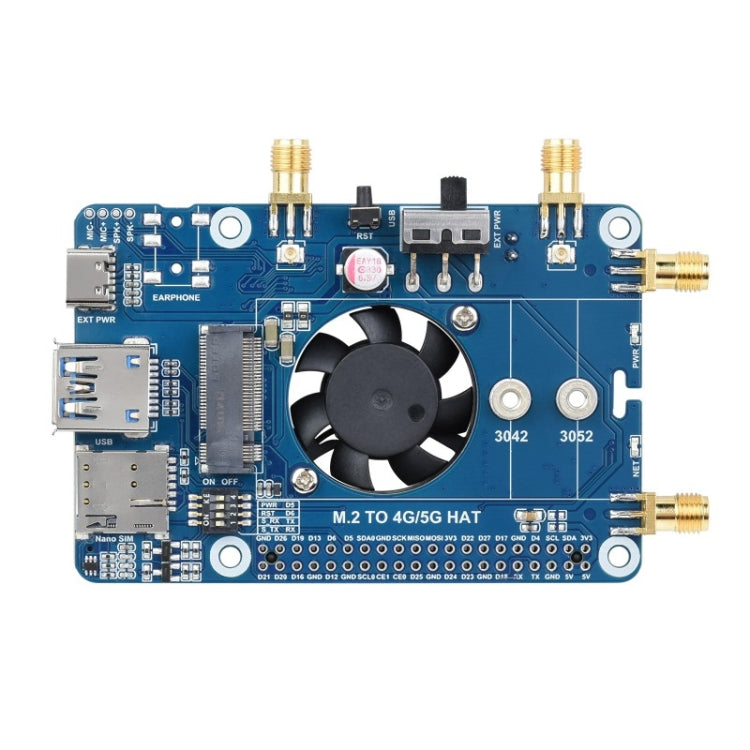

Features:

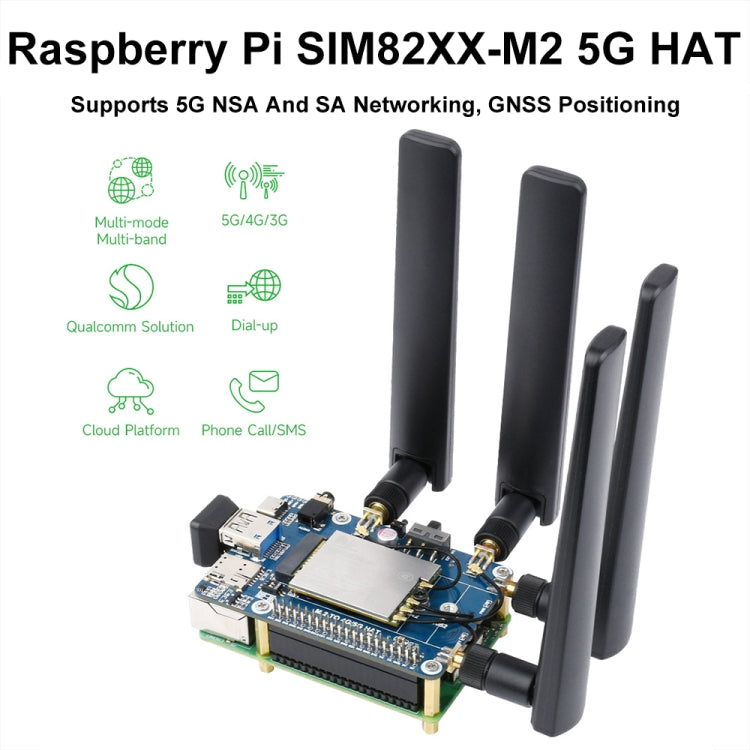

1. Based on Qualcomm platform, supports 5G NSA and SA networking, and supports multi-mode and multi-band
2. Multi-constellation dual-frequency positioning: GPS, Beidou, Glonass, Galileo, QZSS

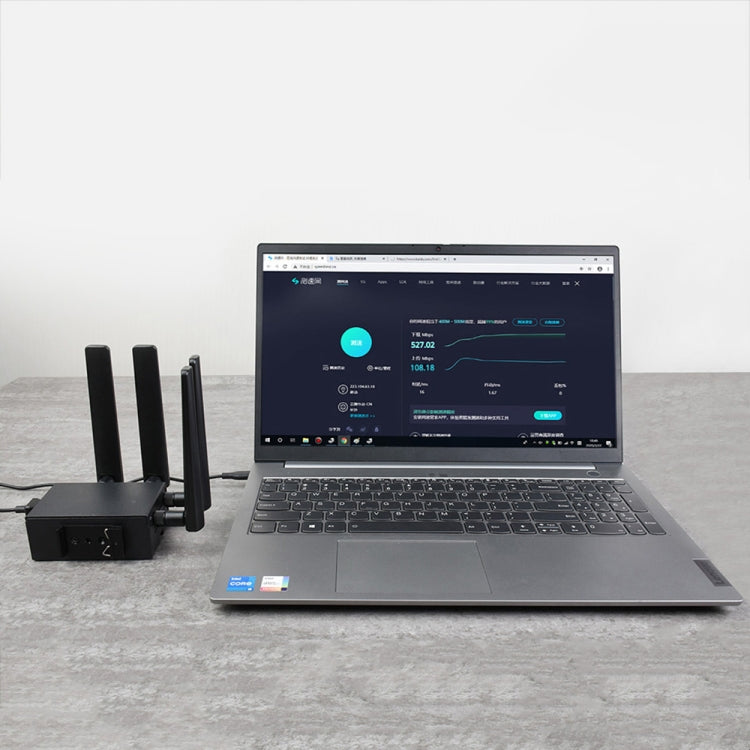

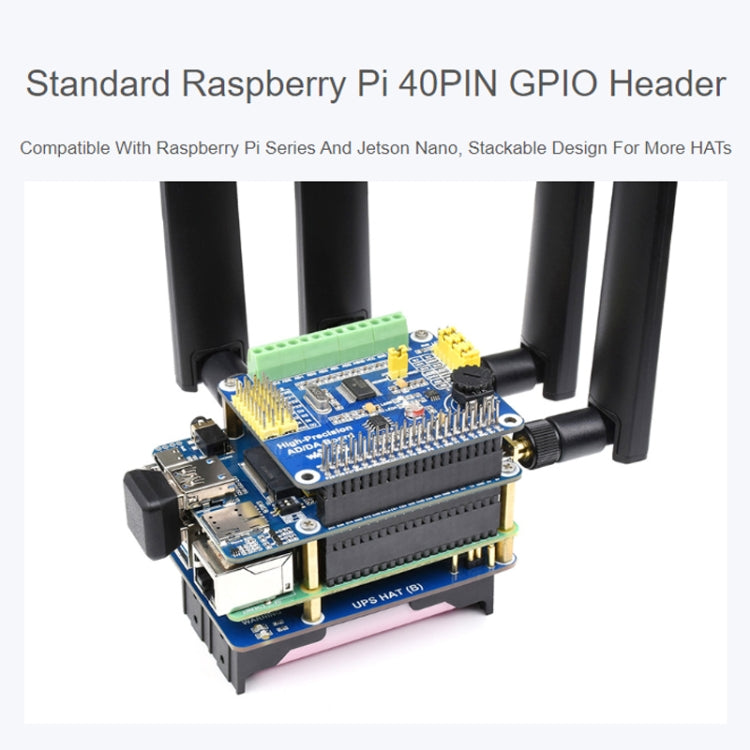

3. USB 3.1 port (USB 2.0 compatible) for connecting to PC, Raspberry Pi or Jetson Nano motherboard for high-speed 5G communication
4. Standard M.2 B KEY slot, compatible with different 5G modules: SIM8202X-M2 / SIM8200EA-M2 / SIM8262X-M2 / RM5XX series, set by DIP switch
5. Onboard UART, PWR and RST control pins with built-in voltage level converter enabled via DIP switch for use with hosts such as Raspberry Pi or Arduino
6. The onboard USB-C interface can be turned on by a switch to connect an independent power supply to the module, supporting more loads and providing stable and flexible power supply.
7. Onboard power switch, reset button and LED indicator light for easy switching on and off or monitoring module operating status
8. 4 x SMA to IPEX antenna connectors with pre-soldered SMA terminals for antenna connection
9. 2 x SIM card slots, dual SIM card single standby, can be switched by AT command

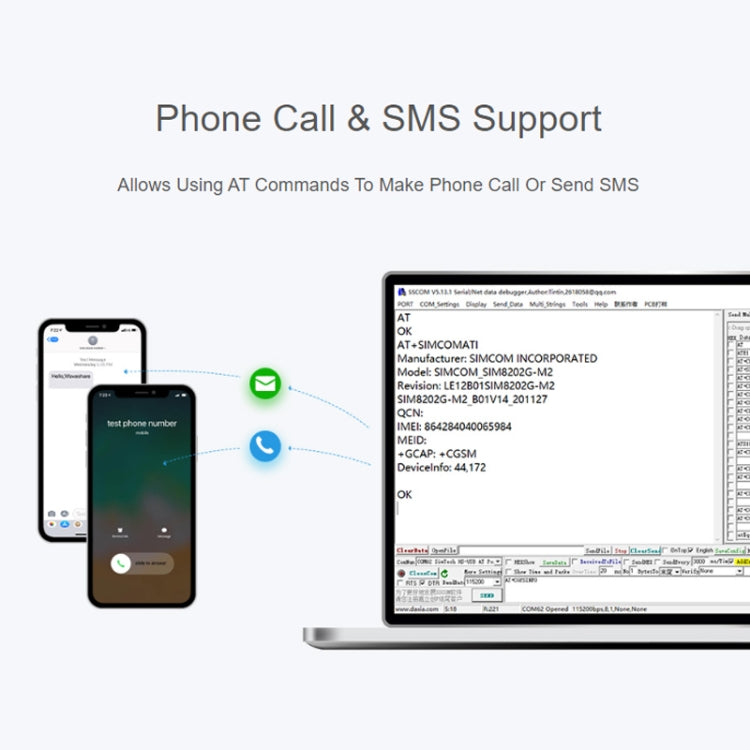

10. Onboard audio jack and audio decoder for audio operations such as making phone calls
11. High-efficiency power circuit, output current up to 3A

Product parameters:
1. 5G standard: 3GPP R16
2. Chip: Qualcomm Snapdragon X62
3. Sub-6G: n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n77, n78, n79
4. LTE-FDD: B1, B3, B5, B7, B8, B18, B19, B20, B26, B28, B32
5. LTE-TDD: B38, B39, B40, B41, B42, B43
6. WCDMA: B1, B5, B8
7. GNSS: GPS, GLONASS, Beidou, Galileo, QZSS
8. Sub-6G: 2.4 Gbps (DL) / 500 Mbps (UL)
9. LTE: 1 Gbps (downlink)/200 Mbps (uplink)
10. HSPA+: 42 Mbps (downstream)/5.76 Mbps (upstream)

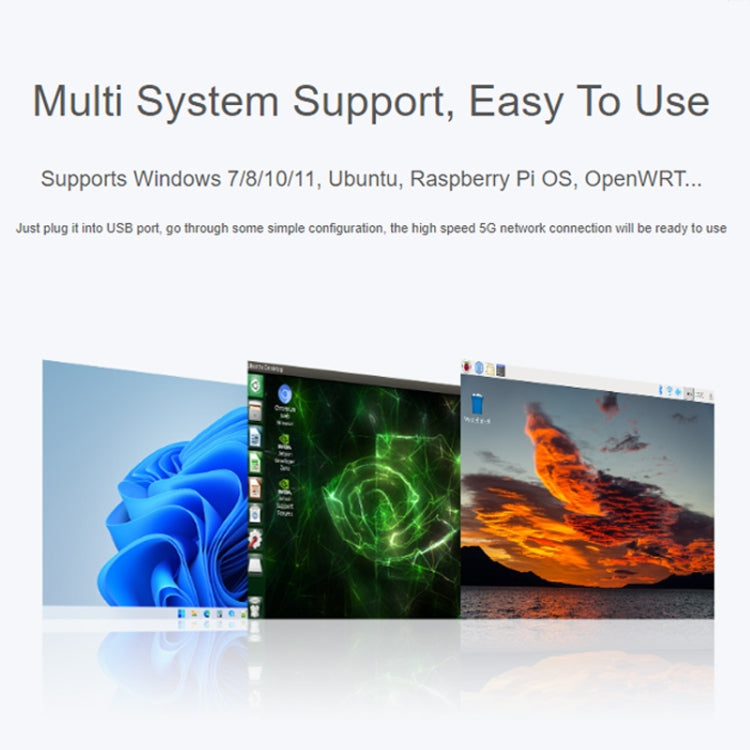

11. Operating system: Windows/Linux/Android
12. Communication protocol: TCP/IP, IPV4, IPV6, Multi-PDP, FTP, FTPS, HTTP, HTTPS, MQTTS, DNS, SSL3.0
13. Dial-up: RNDIS, NDIS, PPP, MBIM
14. SMS: supports MT, MO, CB, text, PDU
15. Firmware upgrade: Support firmware upgrade through USB port
16. SIM card: 1.8V/2.95V
17. Antenna: suitable for 3G/4G/5G/GNSS, 6 × IPEX-4 connector, 4 × IPEX-4 connector
18. Power supply: 3.135-4.4V
