Description
A 1.4GHz 64-bit quad-core ARM Cortex-A53 CPU
Dual-band 802.11ac wireless LAN and Bluetooth 4.2
Overview
1. Raspberry Pi 3 Model B+ is the improved version of Raspberry Pi 3 Model B, the key improvements include:
2. A 1.4GHz 64-bit quad-core ARM Cortex-A53 CPU
3. Dual-band 802.11ac wireless LAN and Bluetooth 4.2
4. Faster Ethernet (Gigabit Ethernet over USB 2.0)
5. Power-over-Ethernet support (with separate PoE HAT)
6. Improved PXE network and USB mass-storage booting
7. Improved thermal management
Raspberry Pi 3 Model B+ Specifications
1. Broadcom BCM2837B0, Cortex-A53 (ARMv8) 64-bit SoC @ 1.4GHz
2. 1GB LPDDR2 SDRAM
3. 2.4GHz and 5GHz IEEE 802.11.b/g/n/ac wireless LAN, Bluetooth 4.2, BLE
4. Gigabit Ethernet over USB 2.0 (maximum throughput 300 Mbps)
5. Extended 40-pin GPIO header
6. Full-size HDMI
7. 4 USB 2.0 ports
8. CSI camera port for connecting a Raspberry Pi camera
9. DSI display port for connecting a Raspberry Pi touchscreen display
10. 4-pole stereo output and composite video port
11. Micro SD port for loading your operating system and storing data
12. 5V/2.5A DC power input
13. Power-over-Ethernet (PoE) support (requires separate PoE HAT)
The LCD
1. 800x480 high hardware resolution
2. Resistive touch control
3. Supports popular mini PCs such as Raspberry Pi, BB Black, as well as general desktop computers
4. When works with Raspberry Pi, supports Raspbian/Ubuntu/Kali/Retropie/WIN10 IOT, driver free
5. When work as a computer monitor, supports Windows 10/8.1/8/7, single touch, and driver free
6. Backlight can be turned off to lower power consumption
Note:
To use the LCD with following mini-PCs, additional cables are required and should be purchased separately:
Raspberry Pi Zero: HDMI cable, USB-type-A-receptacle-to-Micro-B-plug-cable
BB Black: HDMI cable
Package Contents
1. Raspberry Pi 3 Model B+ x1
2. 5inch HDMI LCD (B) x1
3. HDMI cable x1
4. Touch pen x1
5. USB type A plug to micro B plug cable x1
6. RPi LCD screws pack (4pcs) x1

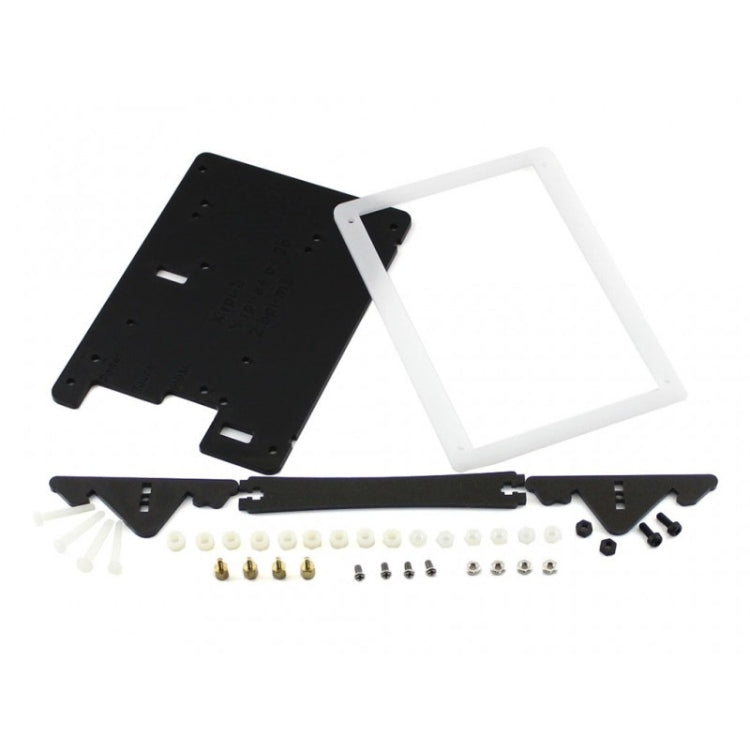

7. Bicolor Case for 5inch LCD Type B × 1
8. Screws Pack × 1
9. Micro SD Card 16GB x1
10. Power adapter US standard 5V/3A micro x1
11. Micro SD Card Reader x 1 (Extra Free)
Dual-band 802.11ac wireless LAN and Bluetooth 4.2
Overview
1. Raspberry Pi 3 Model B+ is the improved version of Raspberry Pi 3 Model B, the key improvements include:
2. A 1.4GHz 64-bit quad-core ARM Cortex-A53 CPU
3. Dual-band 802.11ac wireless LAN and Bluetooth 4.2
4. Faster Ethernet (Gigabit Ethernet over USB 2.0)
5. Power-over-Ethernet support (with separate PoE HAT)
6. Improved PXE network and USB mass-storage booting
7. Improved thermal management
Raspberry Pi 3 Model B+ Specifications
1. Broadcom BCM2837B0, Cortex-A53 (ARMv8) 64-bit SoC @ 1.4GHz
2. 1GB LPDDR2 SDRAM
3. 2.4GHz and 5GHz IEEE 802.11.b/g/n/ac wireless LAN, Bluetooth 4.2, BLE
4. Gigabit Ethernet over USB 2.0 (maximum throughput 300 Mbps)
5. Extended 40-pin GPIO header
6. Full-size HDMI
7. 4 USB 2.0 ports
8. CSI camera port for connecting a Raspberry Pi camera
9. DSI display port for connecting a Raspberry Pi touchscreen display
10. 4-pole stereo output and composite video port
11. Micro SD port for loading your operating system and storing data
12. 5V/2.5A DC power input
13. Power-over-Ethernet (PoE) support (requires separate PoE HAT)
The LCD
1. 800x480 high hardware resolution
2. Resistive touch control
3. Supports popular mini PCs such as Raspberry Pi, BB Black, as well as general desktop computers
4. When works with Raspberry Pi, supports Raspbian/Ubuntu/Kali/Retropie/WIN10 IOT, driver free
5. When work as a computer monitor, supports Windows 10/8.1/8/7, single touch, and driver free
6. Backlight can be turned off to lower power consumption
Note:
To use the LCD with following mini-PCs, additional cables are required and should be purchased separately:
Raspberry Pi Zero: HDMI cable, USB-type-A-receptacle-to-Micro-B-plug-cable
BB Black: HDMI cable
Package Contents
1. Raspberry Pi 3 Model B+ x1
2. 5inch HDMI LCD (B) x1
3. HDMI cable x1
4. Touch pen x1
5. USB type A plug to micro B plug cable x1
6. RPi LCD screws pack (4pcs) x1
7. Bicolor Case for 5inch LCD Type B × 1
8. Screws Pack × 1
9. Micro SD Card 16GB x1
10. Power adapter US standard 5V/3A micro x1
11. Micro SD Card Reader x 1 (Extra Free)
