Waveshare Raspberry Pi 3 Model B+ Development Kit (Type B)


Price:
Sale priceRs. 12,416.00

Description

A 1.4GHz 64-bit quad-core ARM Cortex-A53 CPU
Dual-band 802.11ac wireless LAN and Bluetooth 4.2

Overview
Raspberry Pi 3 Model B+ is the improved version of Raspberry Pi 3 Model B, the key improvements include:
1. A 1.4GHz 64-bit quad-core ARM Cortex-A53 CPU
2. Dual-band 802.11ac wireless LAN and Bluetooth 4.2
3. Faster Ethernet (Gigabit Ethernet over USB 2.0)
4. Power-over-Ethernet support (with separate PoE HAT)
5. Improved PXE network and USB mass-storage booting
6. Improved thermal management

Raspberry Pi 3 Model B+ Specifications
1. Broadcom BCM2837B0, Cortex-A53 (ARMv8) 64-bit SoC @ 1.4GHz
2. 1GB LPDDR2 SDRAM
3. 2.4GHz and 5GHz IEEE 802.11.b/g/n/ac wireless LAN, Bluetooth 4.2, BLE
4. Gigabit Ethernet over USB 2.0 (maximum throughput 300 Mbps)
5. Extended 40-pin GPIO header
6. Full-size HDMI
7. 4 USB 2.0 ports
8. CSI camera port for connecting a Raspberry Pi camera
9. DSI display port for connecting a Raspberry Pi touchscreen display
10. 4-pole stereo output and composite video port
11. Micro SD port for loading your operating system and storing data
12. 5V/2.5A DC power input
13. Power-over-Ethernet (PoE) support (requires separate PoE HAT)

Pioneer600 Features
1. Supports Raspberry Pi A+/B+/2B/3B/3B+
2. dual LED, joystick, buzzer, the basic components
3. CP2102, control the Pi through serial terminal
4. 0.96inch OLED, big world in the little screen
5. DS3231, high precision, backup battery holder is also available
6. PCF8591, 8-bit resolution, screw terminal IO interface
7. PCF8574, more GPIO, more possibility
8. LFN0038K, Raspberry Pi remote control comes true
9. BMP280, measuring air pressure and temperature
10. <1-WIRE> for connecting 1-WIRE devices, DS18B20 is included
11. for connecting various sensors

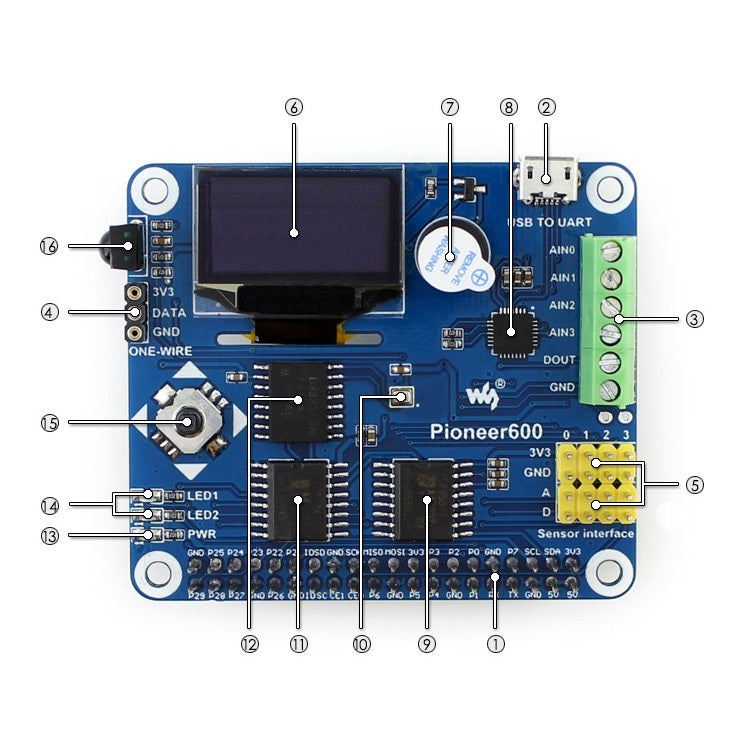

What is on the Pioneer600
1. Raspberry Pi GPIO interface: For connecting Raspberry Pi
2. USB TO UART: Control the Pi through serial terminal
3. AD/DA IO interface: Screw terminal
4. 1-WIRE interface: For connecting 1-WIRE devices like DS18B20
5. Sensor interface: for connecting various sensors
6. 0.96inch OLED: SSD1306 driver, 128×64 resolution, SPI interface
7. Buzzer
8. CP2102: USB TO UART converter
9. PCF8591: 8-bit AD/DA converter, I2C interface
10. BMP280: Pressure sensor, I2C interface
11. PCF8574: I/O expansion chip, I2C interface
12. DS3231: High precision RTC chip, I2C interface
13. Power indicator
14. User LED
15. Joystick
16. LFN0038K IR receiver

Package Contents
1. Raspberry Pi 3 Model B+ x1
2. Pioneer600 x1
3. DS18B20 ×1
4. USB Type A Plug to Micro B Plug Cable x1
5. RPi screws pack (2pcs) x1
6. Micro SD Card 16GB x1
7. Power adapter US standard 5V/3A micro x1
8. Infrared Remote Controller x1
