NUCLEO-F767ZI Description
The STM32 Nucleo-144 board provides an affordable and flexible way for users to try out new concepts and build prototypes with the STM32 microcontroller, choosing from the various combinations of performance, power consumption and features. The ST Zio connector, which is an extension of Arduinoâ„¢ Uno V3, provides access to more peripherals and ST morpho headers make it easy to expand the functionality of the Nucleo open development platform with a wide choice of specialized shields.
NUCLEO-F767ZI Key Features

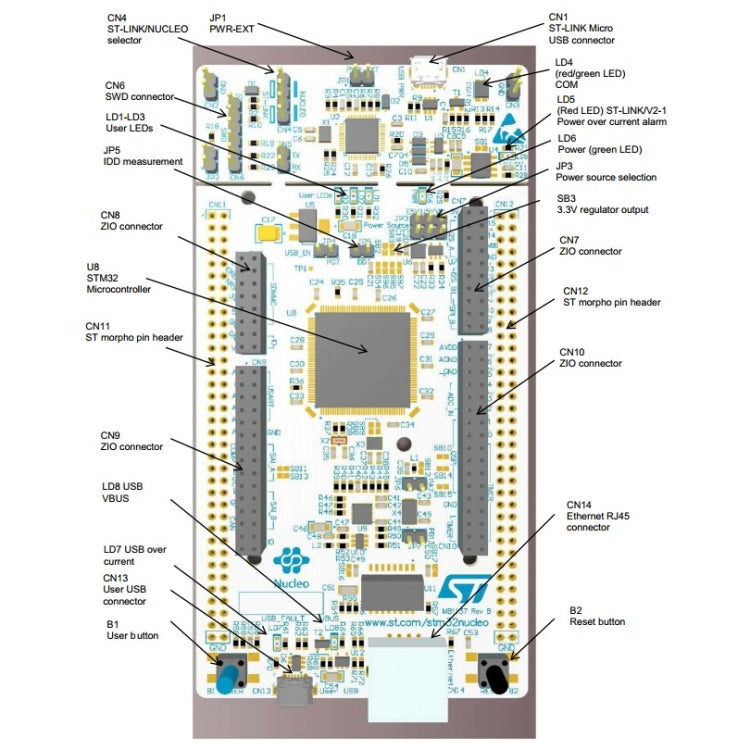

1. STM32 microcontroller in LQFP144 package
2. Two types of extension resources:
- ST Zio connector including: support for Arduinoâ„¢ Uno V3 connectivity (A0 to A5, D0 to D15) and additional signals exposing a wide range of peripherals
- ST morpho extension pin header footprints for full access to all STM32 I/Os
3. ARM ® mbedâ„¢ -enabled (see http://mbed.org)
4. On-board ST-LINK/V2-1 debugger/programmer with SWD connector:
- Selection-mode switch to use the kit as a standalone ST-LINK/V2-1
- USB re-enumeration capability. Three different interfaces supported on USB: virtual COM port, mass storage, debug port
5. Flexible board power supply:
- 5 V from ST-LINK/V2-1 USB VBUS
- External power sources: 3.3 V and 7 - 12 V on ST Zio or ST morpho connectors, 5 V on ST morpho connector
6. USB OTG or full-speed device with Micro-AB connector (depending on STM32 support)
7. IEEE-802.3-2002 compliant Ethernet connector (depending on STM32 support)
8. Three user LEDs
9. Two push-buttons: USER and RESET
10. LSE crystal:
- 32.768 KHz crystal oscillator
11. Comprehensive free software HAL library including a variety of software examples
12. Support of wide choice of Integrated Development Environments (IDEs) including IARâ„¢ , Keil ® , GCC-based IDEs, ARM ® mbedâ„¢
The STM32 Nucleo-144 board provides an affordable and flexible way for users to try out new concepts and build prototypes with the STM32 microcontroller, choosing from the various combinations of performance, power consumption and features. The ST Zio connector, which is an extension of Arduinoâ„¢ Uno V3, provides access to more peripherals and ST morpho headers make it easy to expand the functionality of the Nucleo open development platform with a wide choice of specialized shields.
NUCLEO-F767ZI Key Features
1. STM32 microcontroller in LQFP144 package
2. Two types of extension resources:
- ST Zio connector including: support for Arduinoâ„¢ Uno V3 connectivity (A0 to A5, D0 to D15) and additional signals exposing a wide range of peripherals
- ST morpho extension pin header footprints for full access to all STM32 I/Os
3. ARM ® mbedâ„¢ -enabled (see http://mbed.org)
4. On-board ST-LINK/V2-1 debugger/programmer with SWD connector:
- Selection-mode switch to use the kit as a standalone ST-LINK/V2-1
- USB re-enumeration capability. Three different interfaces supported on USB: virtual COM port, mass storage, debug port
5. Flexible board power supply:
- 5 V from ST-LINK/V2-1 USB VBUS
- External power sources: 3.3 V and 7 - 12 V on ST Zio or ST morpho connectors, 5 V on ST morpho connector
6. USB OTG or full-speed device with Micro-AB connector (depending on STM32 support)
7. IEEE-802.3-2002 compliant Ethernet connector (depending on STM32 support)
8. Three user LEDs
9. Two push-buttons: USER and RESET
10. LSE crystal:
- 32.768 KHz crystal oscillator
11. Comprehensive free software HAL library including a variety of software examples
12. Support of wide choice of Integrated Development Environments (IDEs) including IARâ„¢ , Keil ® , GCC-based IDEs, ARM ® mbedâ„¢
