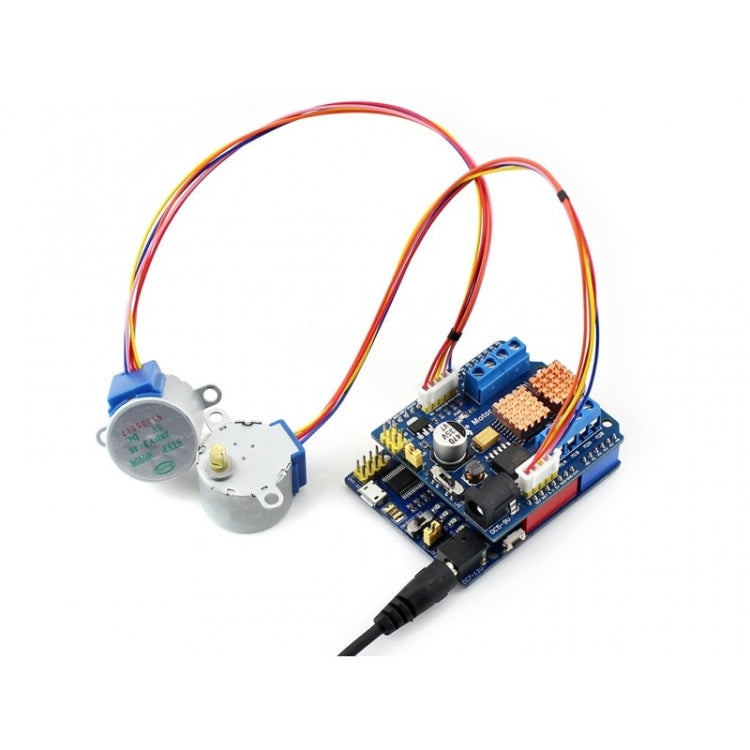

Motor Control Shield is capable of driving 4 DC motors or 2 stepping motors at one time.
Features
1. Configurable motor power supply via onboard jumper
- When using 5V motor power supply: Drives four 5V DC motors at one time
- When using adjustable motor power supply: Drives two 1.25V-6.45V DC motors at one time (9V external power supply is required)
2. Onboard dual H-bridge driver L293D x 2
- Each L293D can drive 2 DC motors or 1 stepping motor at one time
- Totally 4 channel H-bridge, with 600mA output current (peak 1.2A) per single bridge
- ESD protection

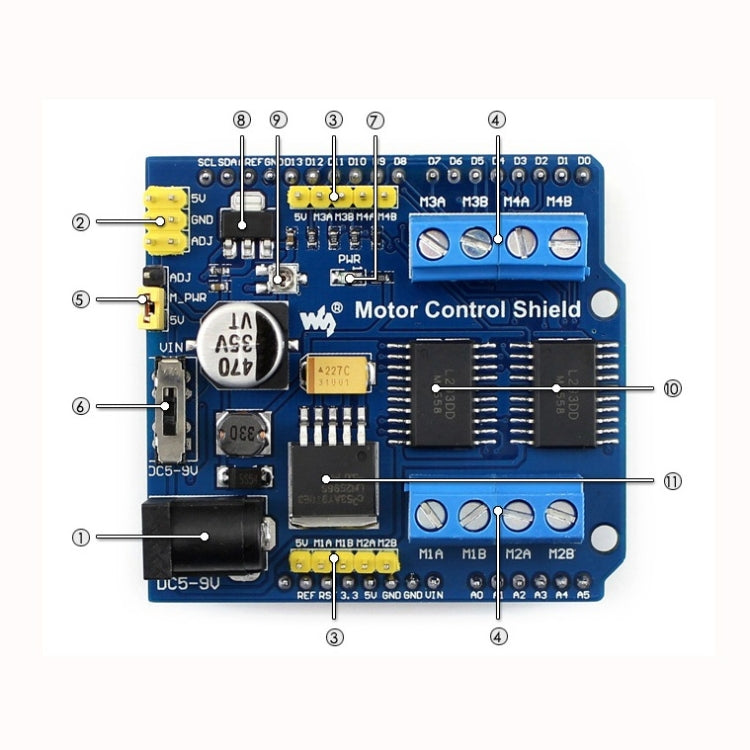

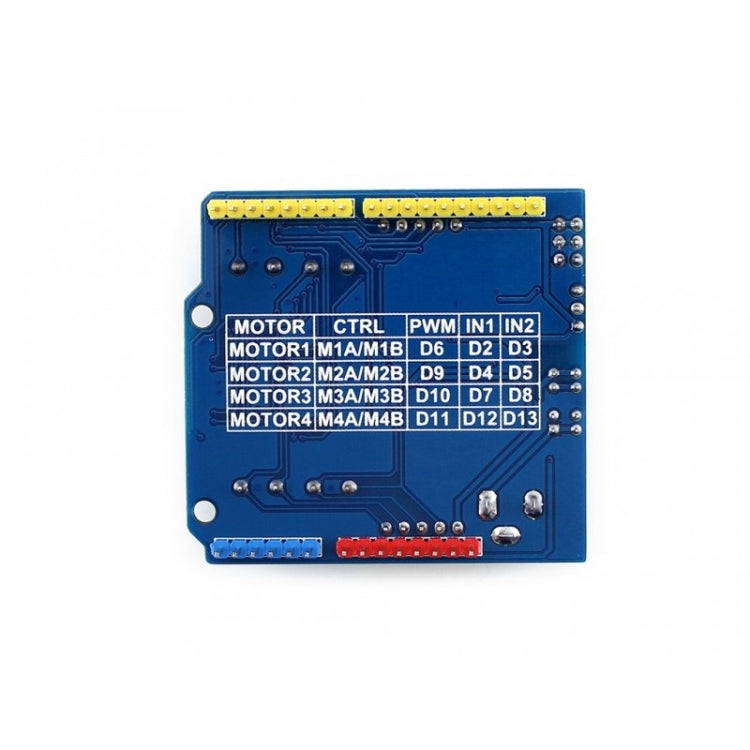

What's on Board
1. External power supply jack
2. Power input/output pinheader
3. Stepping motor interface
4. DC motor interface
5. M_PWR configuration: Connects M_PWR (motor power) to 5V or ADJ
6. Power selection switch
7. Power indicator
8. AMS1117-ADJ: Onboard linear regulator with adjustable output
9. Adjustable potentiometer: For adjusting the output voltage of ADJ (adjustable motor power)
10. L293D: Dual H-bridge driver
11. LM2596-5.0: Onboard linear switching regulator with 5V output
Note: When in operation, it is normal that the onboard motor drivers and regulators generate lots of heat.
Package Contents
1. Motor Control Shield x1
2. Copper heat sinks x2
Motor Control Shield is capable of driving 4 DC motors or 2 stepping motors at one time.
Features
1. Configurable motor power supply via onboard jumper
- When using 5V motor power supply: Drives four 5V DC motors at one time
- When using adjustable motor power supply: Drives two 1.25V-6.45V DC motors at one time (9V external power supply is required)
2. Onboard dual H-bridge driver L293D x 2
- Each L293D can drive 2 DC motors or 1 stepping motor at one time
- Totally 4 channel H-bridge, with 600mA output current (peak 1.2A) per single bridge
- ESD protection
What's on Board
1. External power supply jack
2. Power input/output pinheader
3. Stepping motor interface
4. DC motor interface
5. M_PWR configuration: Connects M_PWR (motor power) to 5V or ADJ
6. Power selection switch
7. Power indicator
8. AMS1117-ADJ: Onboard linear regulator with adjustable output
9. Adjustable potentiometer: For adjusting the output voltage of ADJ (adjustable motor power)
10. L293D: Dual H-bridge driver
11. LM2596-5.0: Onboard linear switching regulator with 5V output
Note: When in operation, it is normal that the onboard motor drivers and regulators generate lots of heat.
Package Contents
1. Motor Control Shield x1
2. Copper heat sinks x2
