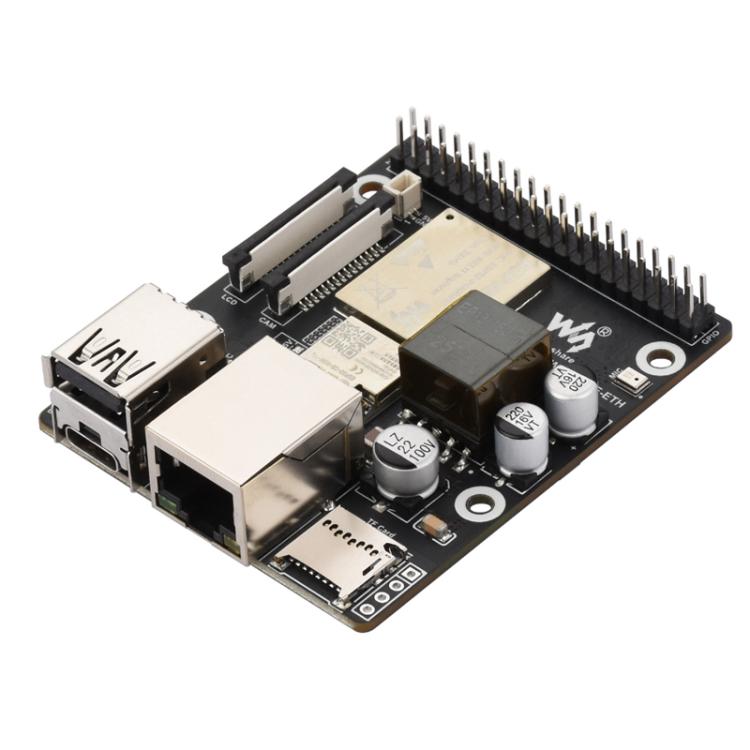

Name: WAVESHARE ESP32-P4-WIFI6-POE-ETH Development Board Supports Power Over Ethernet - PoE - Basic Package
Brand: O2I24
SKU: TBD0606653401A
Price: 6979.0 INR
Availability: InStock

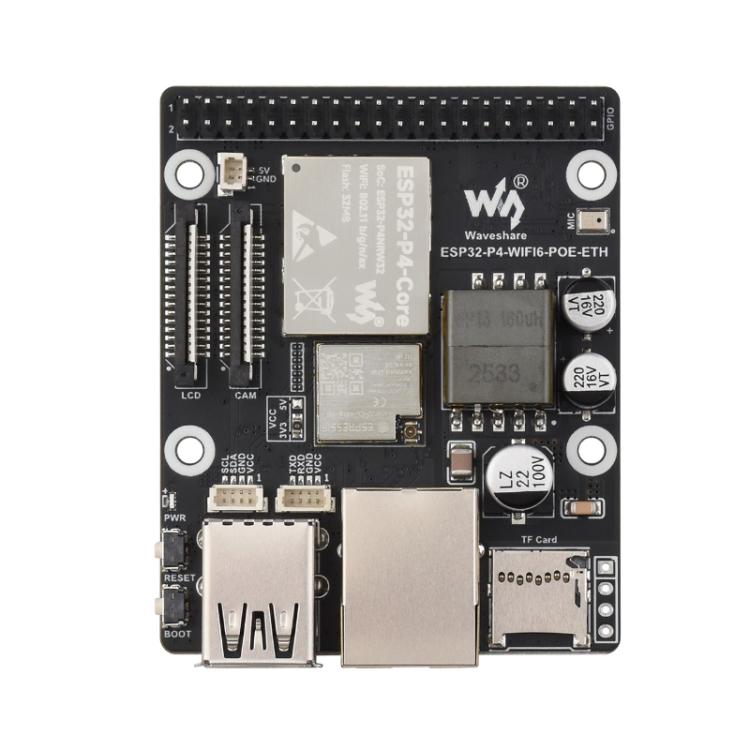

WAVESHARE ESP32-P4-WIFI6-POE-ETH Development Board Supports Power Over Ethernet - PoE - Basic Package

Roll over image to zoom in Click on image to zoom

1. It provides a rich set of human-machine interface (HMI) interfaces, including MIPI-CSI (integrated image signal processor ISP), MIPI-DSI, SPI, I2S, I2C, LED PWM, MCPWM, RMT, ADC, UART, and TWAI, and also supports USB OTG 2.0 HS. It integrates an RJ45 Ethernet interface with PoE functionality.
2. Equipped with peripherals such as USB 2.0, MIPI-CSI/MIPI-DSI, and H.264 encoding, it meets the needs of low-cost, high-performance, and low-power multimedia development.
3. The ESP32-P4 integrates a digital signature peripheral and a dedicated key management unit to ensure data and operation security.
4. The ESP32-P4-WIFI6-POE-ETH is designed for high-performance and high-security applications, meeting the needs of embedded systems in human-machine interaction, edge computing, and I/O expansion.
5. Powerful image and voice processing capabilities, with image and voice processing interfaces including JPEG codec, pixel processing accelerator (PPA), image signal processor (ISP), and H264 video encoder.
6. The board provides common peripheral interfaces such as MIPI-CSI, MIPI-DSI, USB 2.0 OTG, Ethernet, SDIO 3.0 SD card slot, microphone, speaker terminals, and RTC battery terminals.

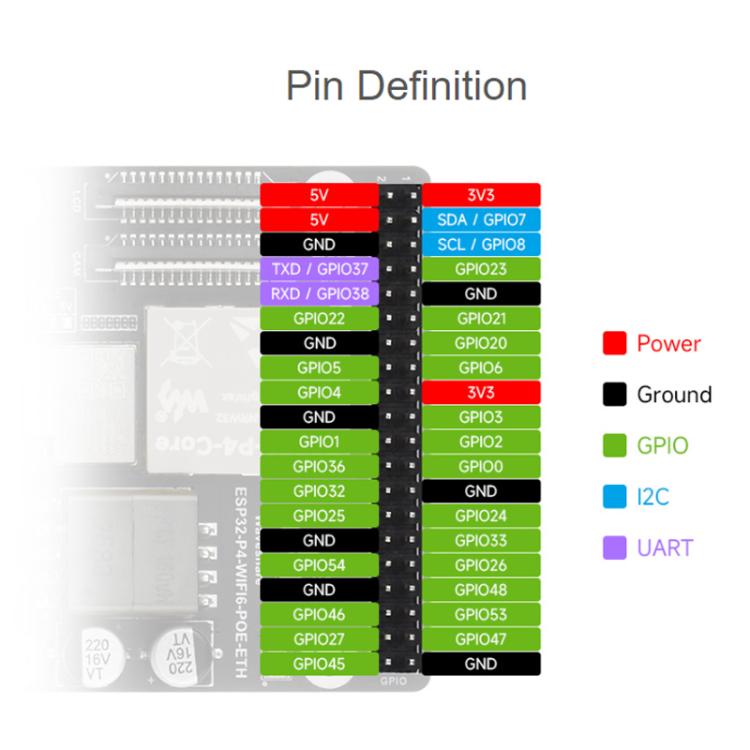

7. The board features a 2 × 20 pin header, providing 28 remaining programmable GPIOs.
8. Security mechanisms include secure boot, Flash encryption, hardware encryption accelerator, and hardware random number generator. It also supports hardware access protection, enabling access permission management (APM) and privilege separation.

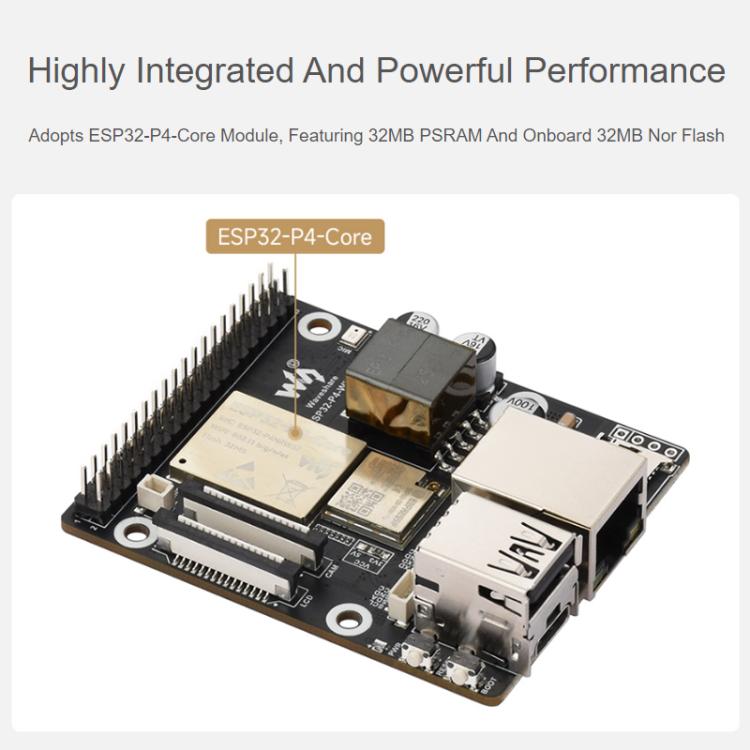

9. The development board uses the ESP32-P4-Core module, stacked with 32MB PSRAM, and has 32MB Nor Flash onboard.

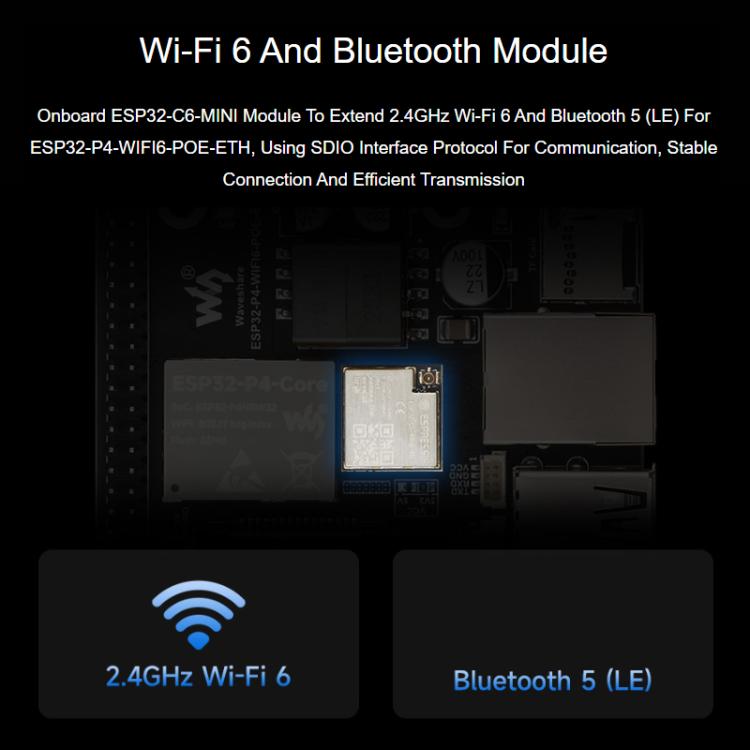

10. Supports Wi-Fi 6 and Bluetooth modules, with an onboard ESP32-C6-MINI module, extending 2.4GHz Wi-Fi 6 and Bluetooth 5 capabilities to the ESP32-P4. (LE), communicates using the SDIO interface protocol, ensuring stable connection and efficient transmission.

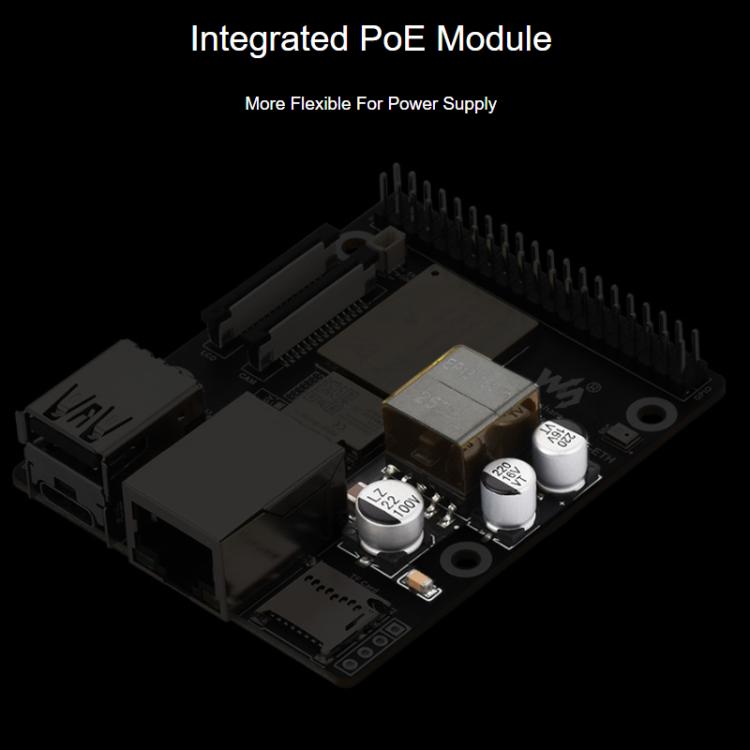

11. Integrated PoE module, making the development boards power supply more flexible.

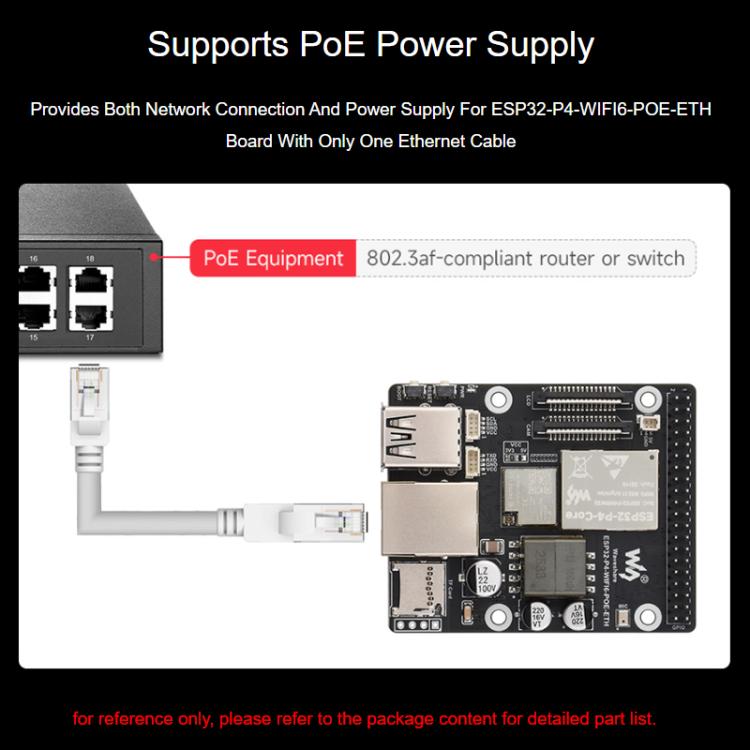

12. Only one network cable is needed to connect to a PoE device, enabling both networking and power supply for the ESP32-P4-WIFI6-POE-ETH.
13. Dimensions: 55x68mm

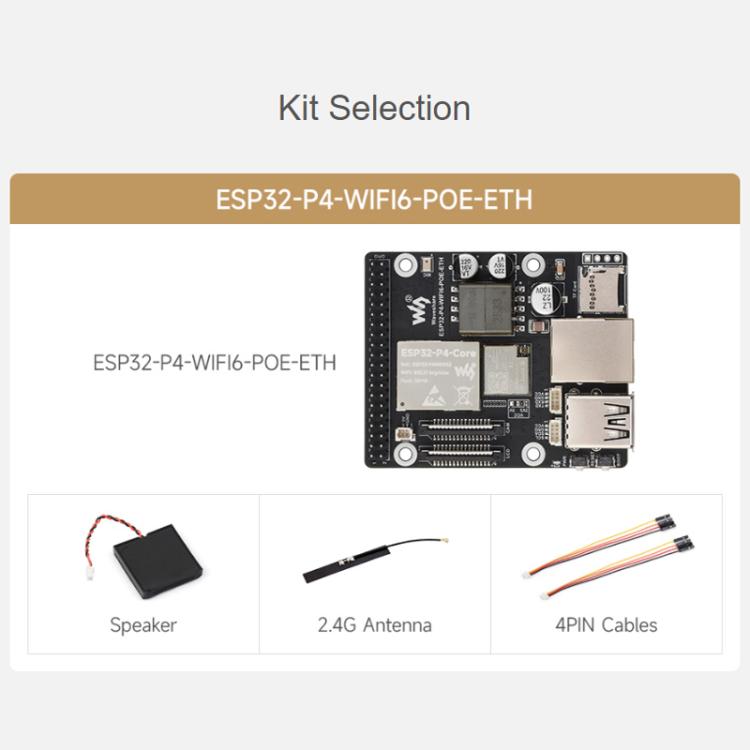

14. Package contents:
- ESP32-P4-WIFI6-POE-ETH x 1
- SH1.0 4PIN connecting cable (approx. 150mm) x 2
- 1217 cavity speaker 8Ω 2W x 1
- 2.4G antenna x 1
- Screw pack x 1
