O2I24
Price:
Rs. 7,479.00

Description


1. Support setting of device address (1 - 255) to enable cascading of multiple devices via RS485 bus

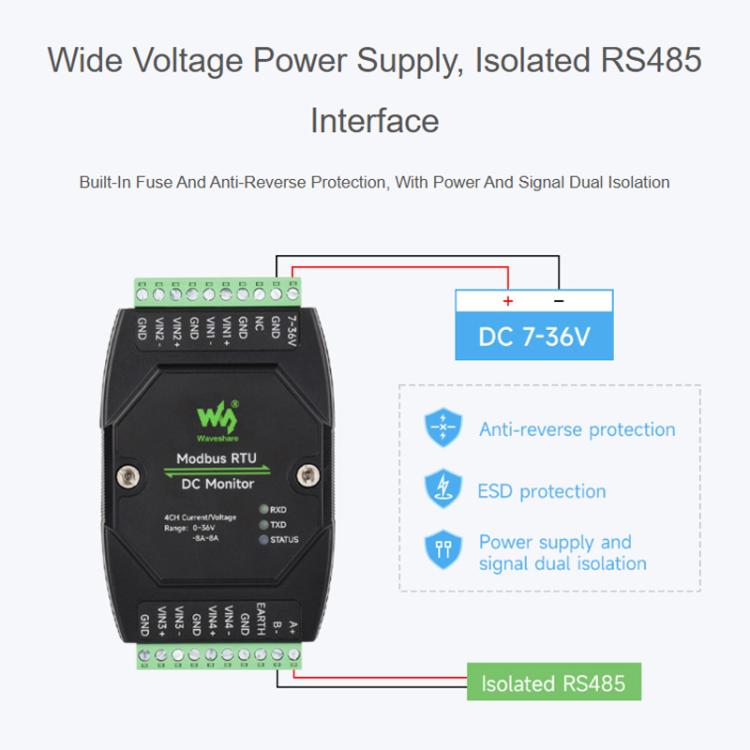

2. Onboard voltage stabilizing chip, supporting a wide voltage range of 7V - 36V

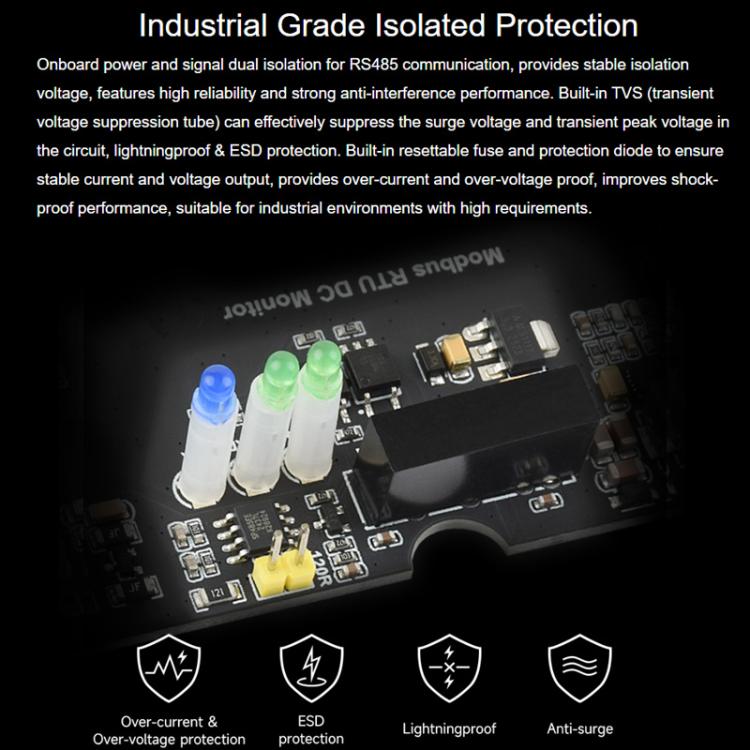

3. Onboard integrated power isolation, providing stable isolated voltage. The isolated terminals do not require additional power supply
4. Onboard optocoupler isolation, capable of signal isolation, with high reliability and strong anti-interference
5. Onboard self-recovery fuse and TVS (Transient Voltage Suppression Diode), effectively suppressing surge voltages and transient peak voltages in the circuit, preventing overcurrent, overvoltage, lightning and static electricity
6. Onboard 0.002 ohm 1% sampling resistor, 16-bit high-precision acquisition, capable of measuring bidirectional current
7. The maximum measurement voltage is supported up to 36V, the maximum measurement current is supported up to 8A, and direct measurement of power is supported

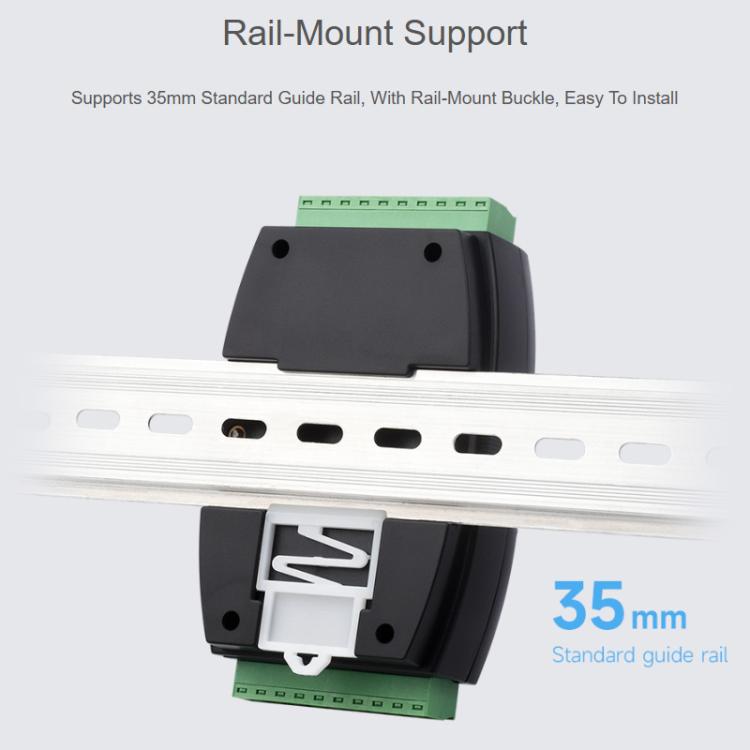

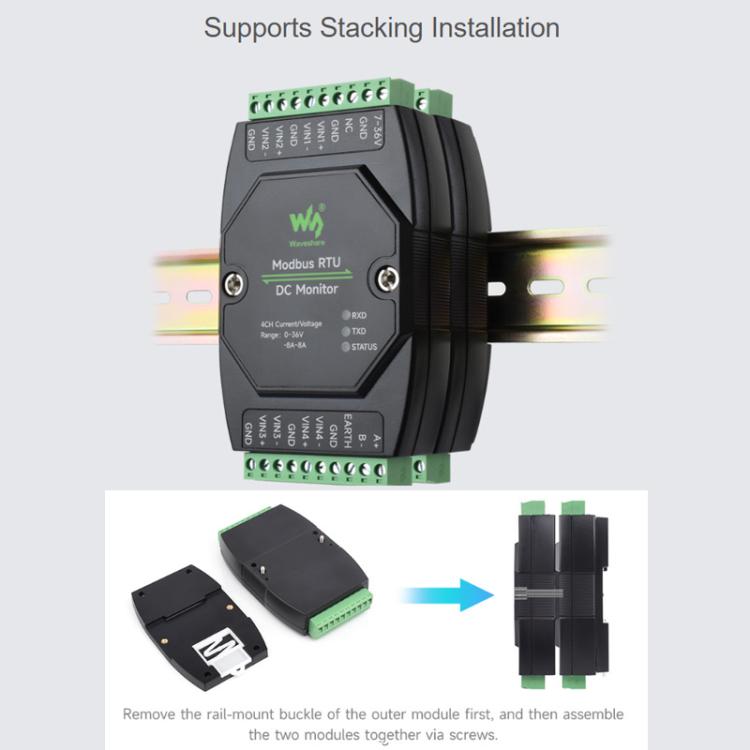

8. Rail-mounted enclosure design, supporting stacking combination, easy installation, and safer to use
9. Three external LED indicators, facilitating viewing of MCU status and signal transmission/reception status

Parameters
1. Communication interface: RS485
2. Communication baud rate: 4800, 9600, 19200, 38400, 57600, 115200, 128000, 256000
3. Default communication format: 9600, N, 8, 1
4. Modbus protocol: standard Modbus RTU protocol
5. Power supply voltage: DC 7V - 36V
6. Sampling resistance: 0.002 ohm, 1%
7. Measurement range: voltage: 0 - 36V, current: ±8A
8. Resolution: 0.8mA

Packaging list:
- Modbus RTU DC Monitor x 1
- Power adapter x 1
- Screwdriver x 1
