Description
Support routing mode and bridge relay mode:
1. In the routing mode, WiFi WAN access is supported.
2. In routing mode, support WAN/LAN switching of wired network ports.

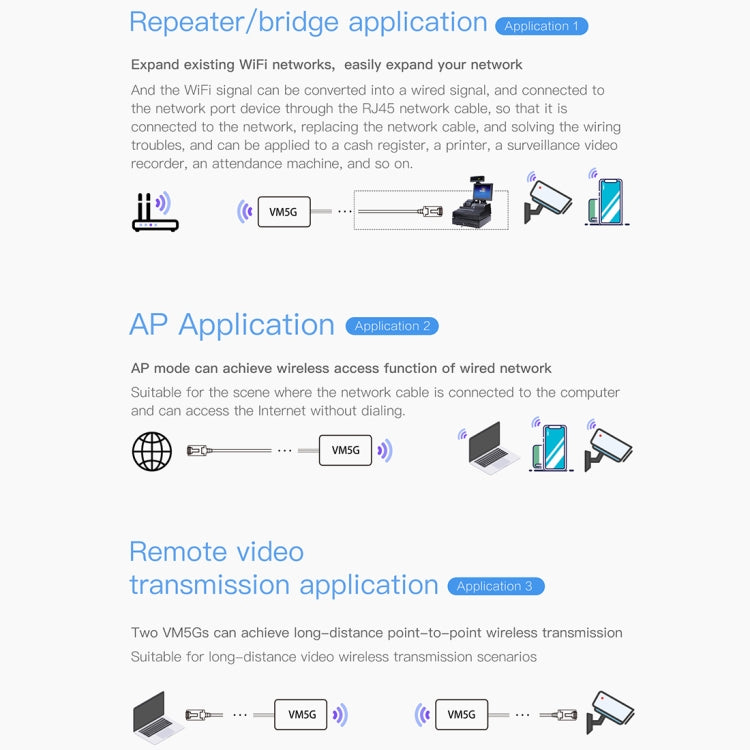

3. Support WiFi intelligent bridge relay, which can realize wireless to wired and wired to wireless.
4. Support WiFi transmission protocols such as 802.11ac, 802.11a, and 802.11n.
5. Support UART/UDP data transparent transmission.
6. Support WiFi hotspot automatic reconnection, two hotspot matching methods: Full match authentication mode, SSID and password authentication mode.
7. Support WiFi hotspot memory, maximum memory 10 hotspots.
8. Supports simultaneous connection of more than 20 WiFi terminal devices.
9. Support SSA protocol, built-in hotspot signal strength detection and reporting function, realize WiFi mobile positioning.
10. Support hotspot forced shutdown, WiFi hardware forced shutdown.
11. WiFi hotspot connection parameter import and export function.
12. Use VDNS virtual domain name configuration technology to reduce user configuration difficulties.
13. With WEB management, you can freely switch between Chinese and English configuration interfaces.
14. Support online upgrades.

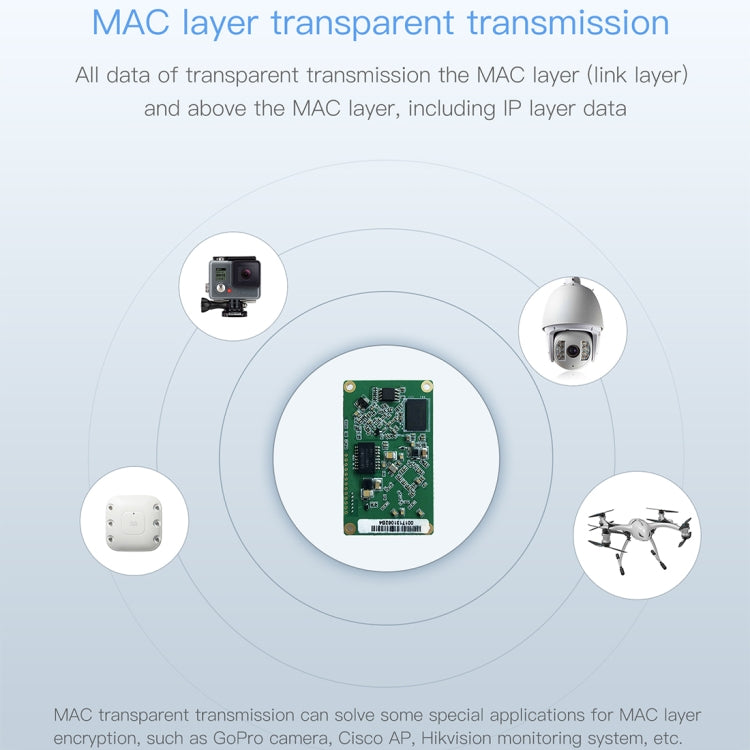

15. Support IP layer transparent transmission and MAC layer transparent transmission two bridge modes to meet various bridge applications. IP layer transparent transmission (factory default), transparent transmission of IP layer data, can meet most of the bridge application; MAC layer transparent transmission, transparent transmission of the MAC layer (link layer) and all data above the MAC layer, including IP layer data. MAC passthrough can solve some special applications for MAC layer encryption, such as GoPro camera, Cisco AP, Hikvision monitoring system.
Characteristic:

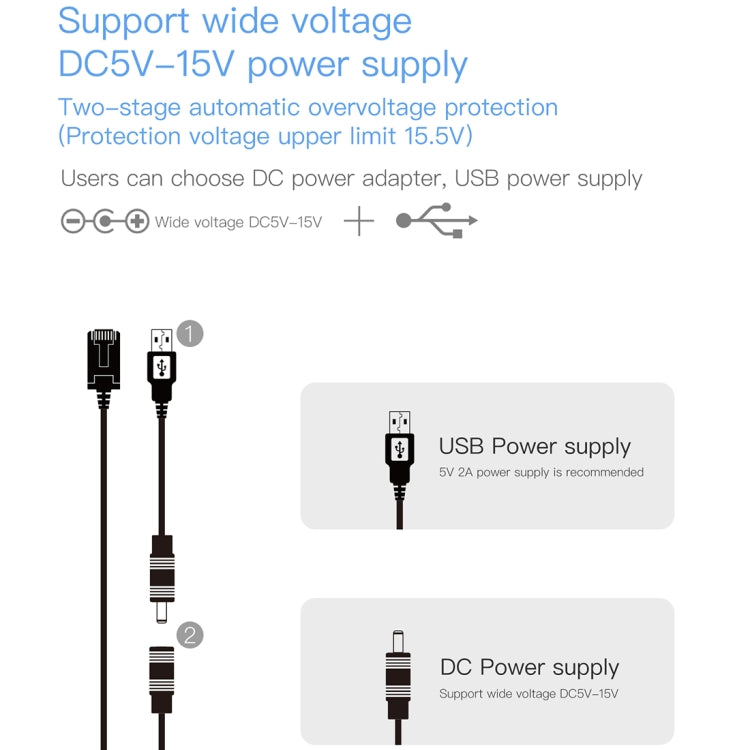

1. Support wide voltage DC5-15V power supply, two-stage automatic overvoltage protection (protection voltage upper limit 15.5V).
2. The output power of the power supply is not less than 10W (typical power supply 5V/2A, ripple less than 100mV).
3. Module power consumption: 1.3W -- 3.75W.
4. WiFi working frequency band: 2.4G + 5G.

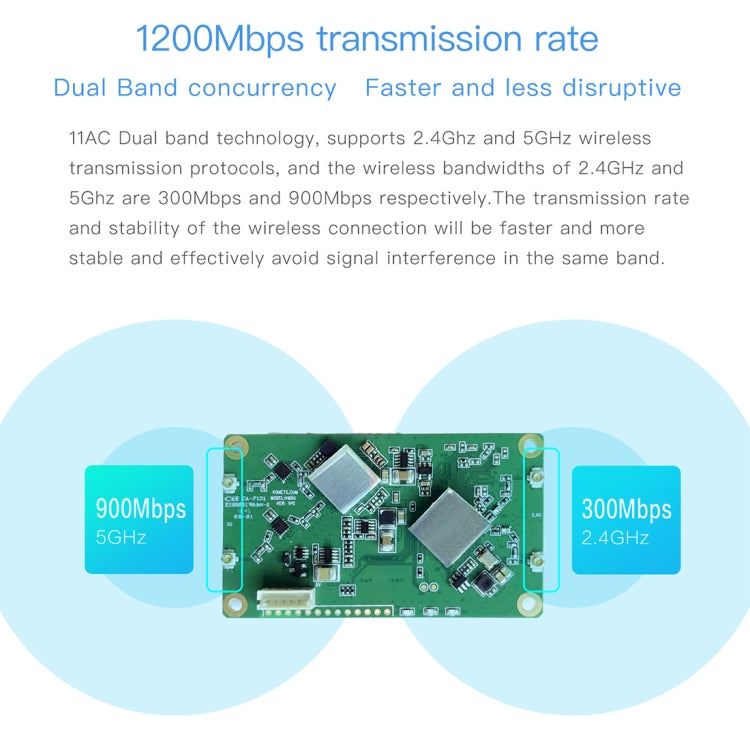

5. Wireless transmission rate: 300Mbps (2.4G) + 900Mbps (5G).
6. Transmit power: 2.4G is 14.5dBm, and 5G is 19dBm/23dBm.
7. Point-to-point barrier-free maximum transmission distance: 700 meters (5G band).
8. The module has a built-in low noise amplifier (LNA) with a receiving sensitivity of 14dBi.

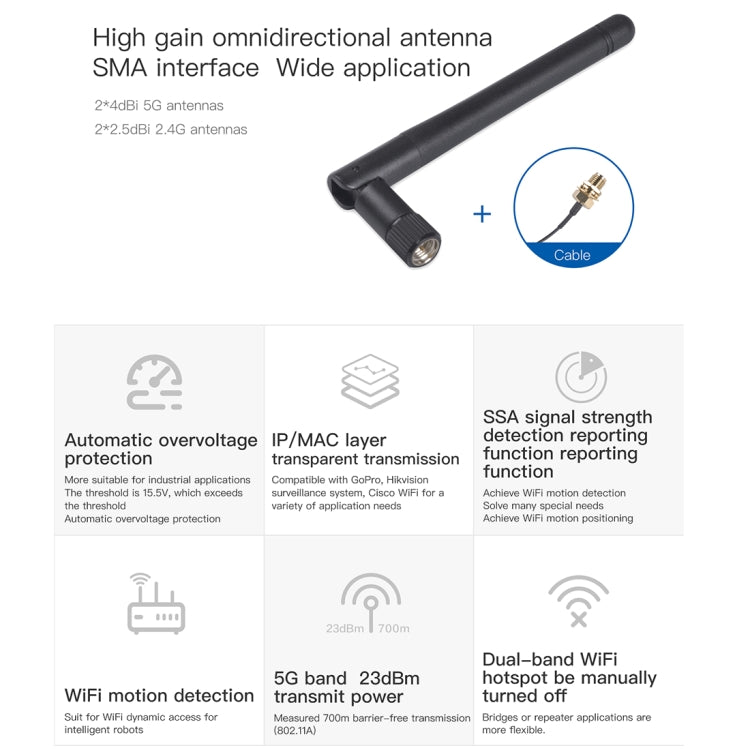

9. Standard external antenna: 2 4dBi 5G antenna, 2 2.5dBi 2.4G antenna.
10. Provide a TTL level UART data transparent transmission interface.
11. Using digital-mode temperature compensation and frequency stabilization technology, the WiFi signal is more stable and not easy to drop.
12. Working environment temperature: -40-55 degrees Celsius.
Packing list:

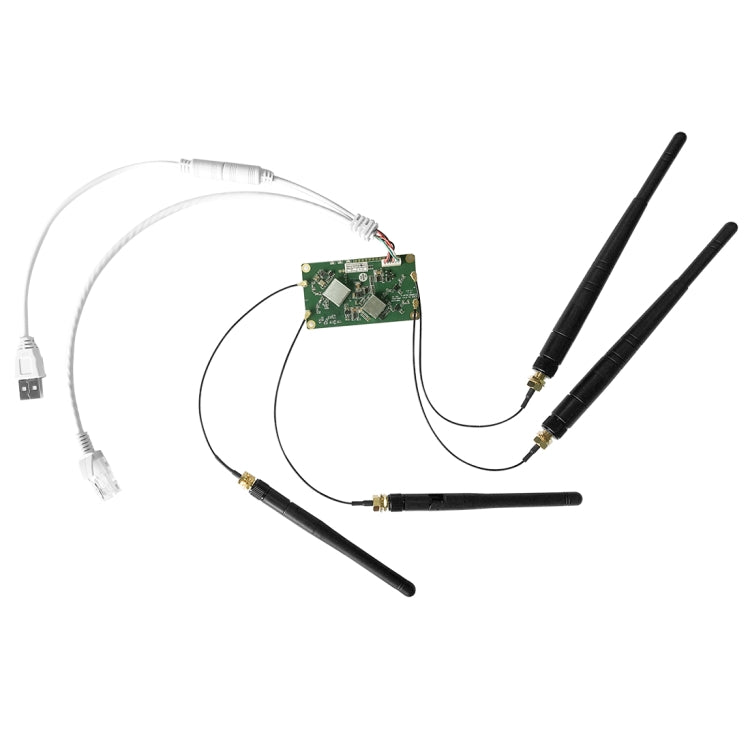

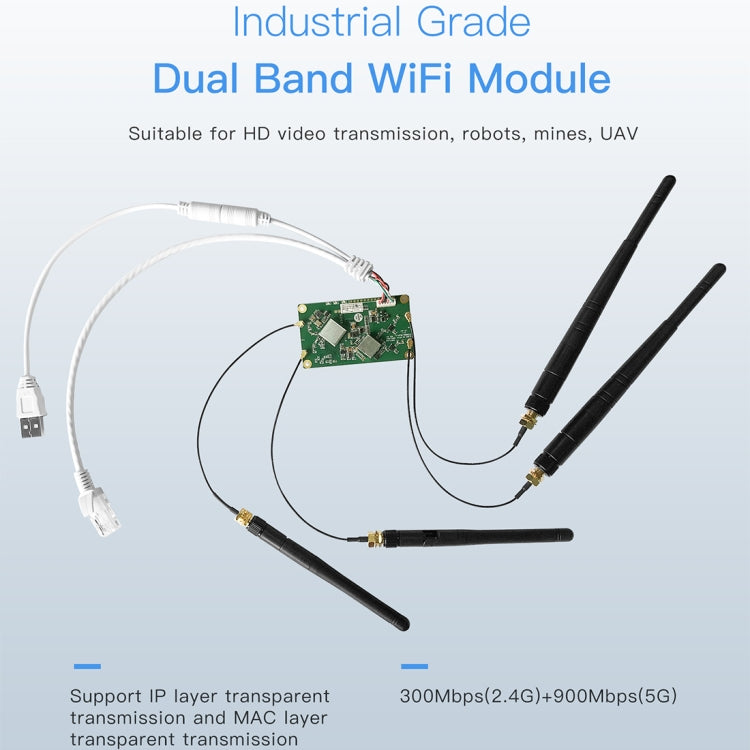

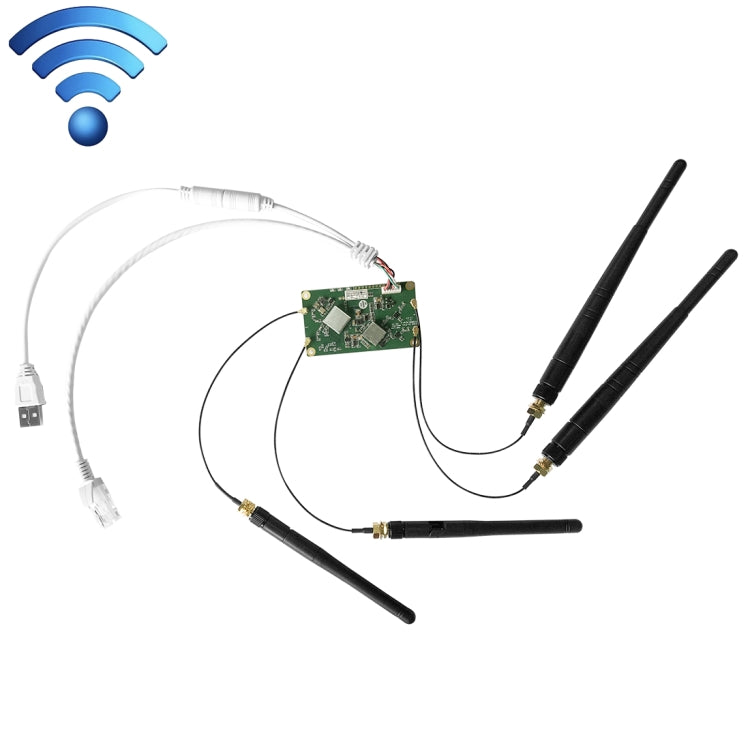

Dual-band WIFI module x 1
Power supply, network two-in-one dedicated line x 1

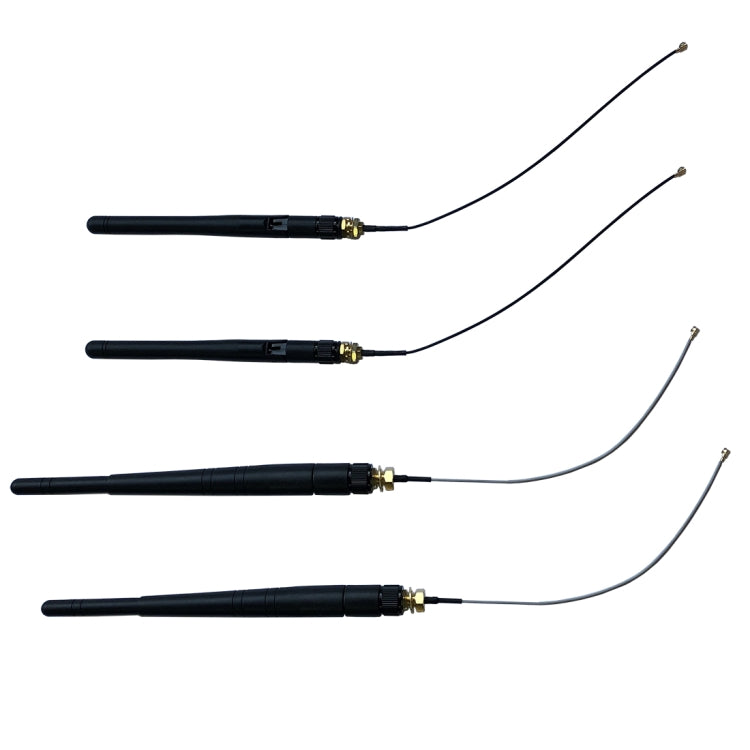

2.5dBi 2.4G whip antenna x 2
4dBi 5G whip antenna x 2
1. In the routing mode, WiFi WAN access is supported.
2. In routing mode, support WAN/LAN switching of wired network ports.
3. Support WiFi intelligent bridge relay, which can realize wireless to wired and wired to wireless.
4. Support WiFi transmission protocols such as 802.11ac, 802.11a, and 802.11n.
5. Support UART/UDP data transparent transmission.
6. Support WiFi hotspot automatic reconnection, two hotspot matching methods: Full match authentication mode, SSID and password authentication mode.
7. Support WiFi hotspot memory, maximum memory 10 hotspots.
8. Supports simultaneous connection of more than 20 WiFi terminal devices.
9. Support SSA protocol, built-in hotspot signal strength detection and reporting function, realize WiFi mobile positioning.
10. Support hotspot forced shutdown, WiFi hardware forced shutdown.
11. WiFi hotspot connection parameter import and export function.
12. Use VDNS virtual domain name configuration technology to reduce user configuration difficulties.
13. With WEB management, you can freely switch between Chinese and English configuration interfaces.
14. Support online upgrades.
15. Support IP layer transparent transmission and MAC layer transparent transmission two bridge modes to meet various bridge applications. IP layer transparent transmission (factory default), transparent transmission of IP layer data, can meet most of the bridge application; MAC layer transparent transmission, transparent transmission of the MAC layer (link layer) and all data above the MAC layer, including IP layer data. MAC passthrough can solve some special applications for MAC layer encryption, such as GoPro camera, Cisco AP, Hikvision monitoring system.
Characteristic:
1. Support wide voltage DC5-15V power supply, two-stage automatic overvoltage protection (protection voltage upper limit 15.5V).
2. The output power of the power supply is not less than 10W (typical power supply 5V/2A, ripple less than 100mV).
3. Module power consumption: 1.3W -- 3.75W.
4. WiFi working frequency band: 2.4G + 5G.
5. Wireless transmission rate: 300Mbps (2.4G) + 900Mbps (5G).
6. Transmit power: 2.4G is 14.5dBm, and 5G is 19dBm/23dBm.
7. Point-to-point barrier-free maximum transmission distance: 700 meters (5G band).
8. The module has a built-in low noise amplifier (LNA) with a receiving sensitivity of 14dBi.
9. Standard external antenna: 2 4dBi 5G antenna, 2 2.5dBi 2.4G antenna.
10. Provide a TTL level UART data transparent transmission interface.
11. Using digital-mode temperature compensation and frequency stabilization technology, the WiFi signal is more stable and not easy to drop.
12. Working environment temperature: -40-55 degrees Celsius.
Packing list:
Dual-band WIFI module x 1
Power supply, network two-in-one dedicated line x 1
2.5dBi 2.4G whip antenna x 2
4dBi 5G whip antenna x 2
