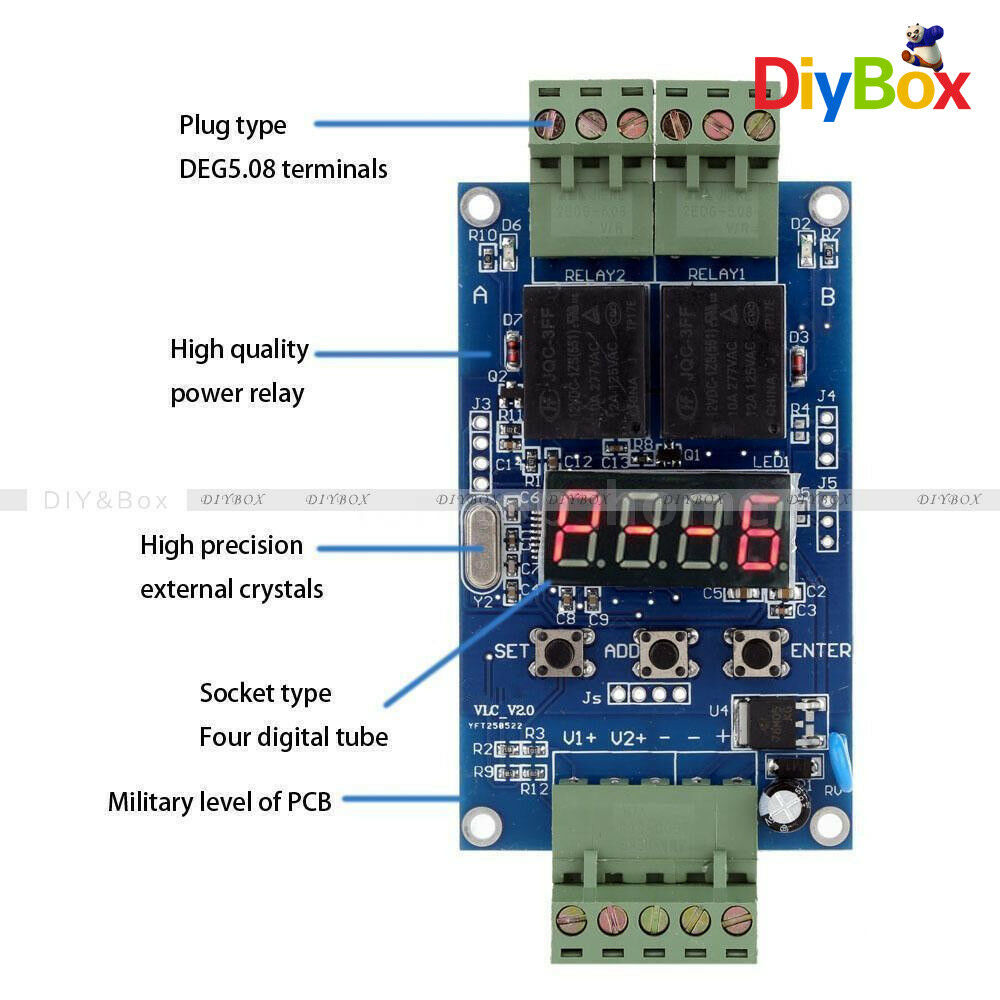

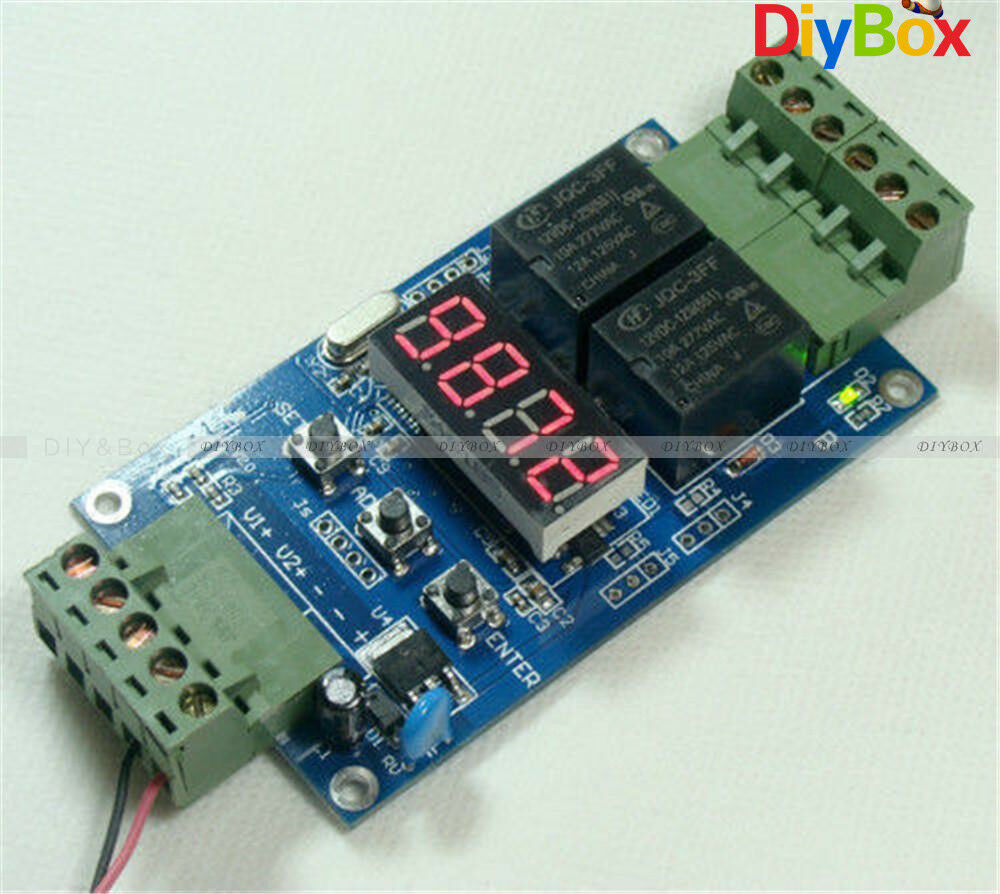

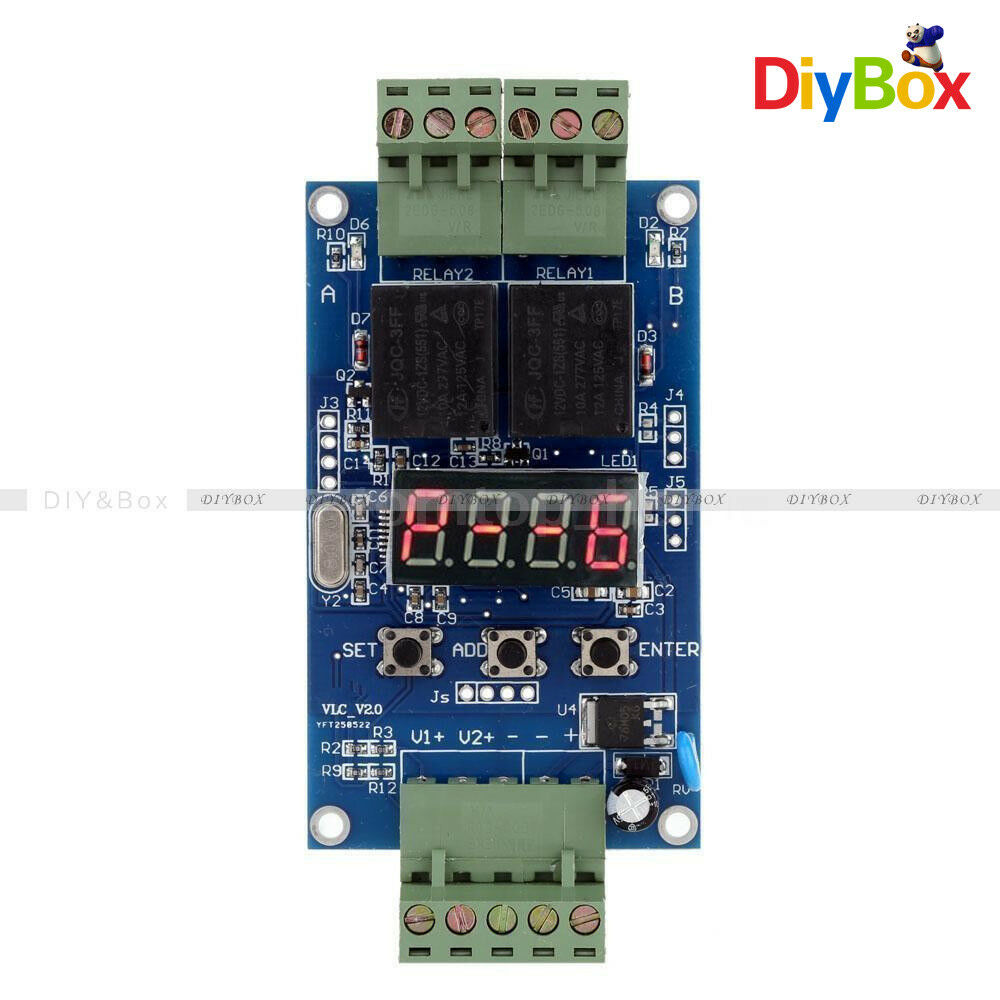

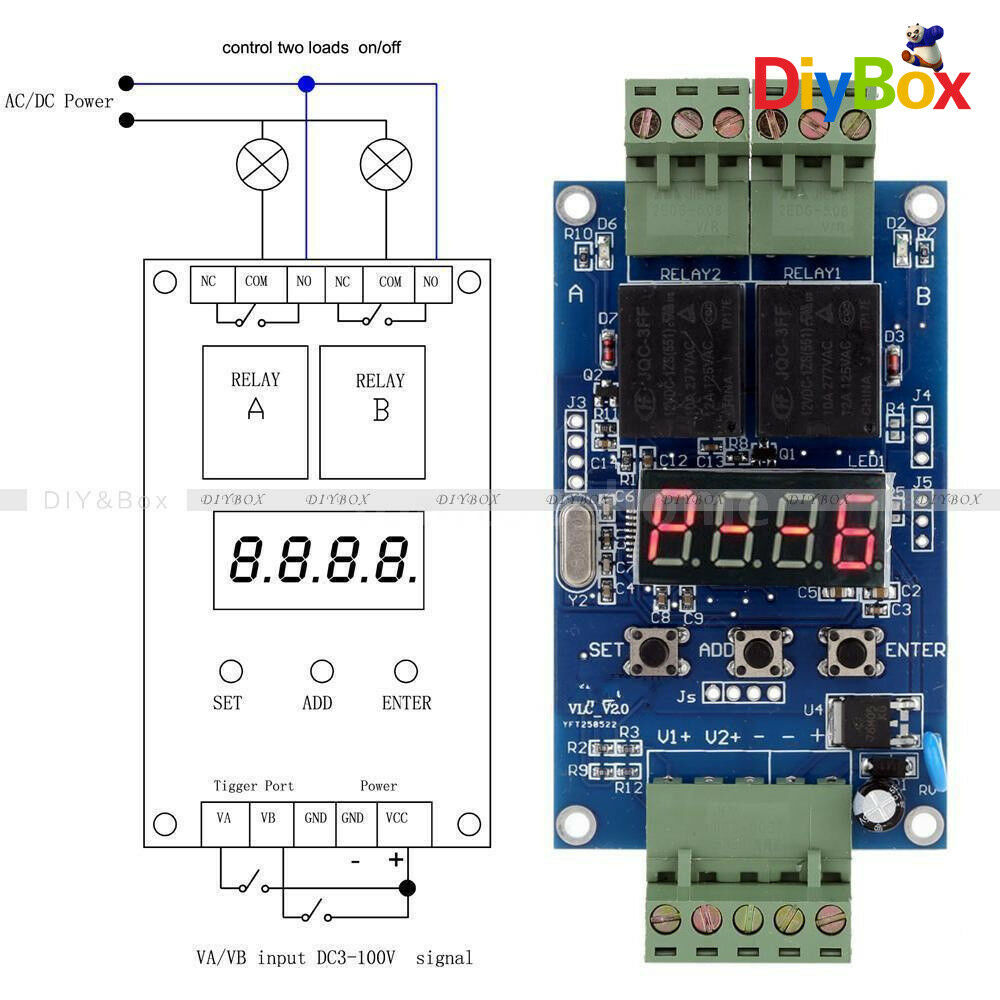

ITEM NAME:VLC3.0 12V Dual Programmable Relay Control Board Delay Timer Clock Switch Module VLC3.0 12V Dual Programmable Relay Control Board Delay Timer Clock Switch Module Descriptions: VLC-3.0 controller can be set 30 groups time (step) and in each step, the relay switch state can be set on/off. You can use external input voltage signal or switch quantity to achieve a variety of control modes. The controller can be used to control two solenoid valve linkage (control pneumatic equipment), motor reversing, dual load intermittent work, etc. Features: Digital LED display, set by three buttons, easy to use. High-performance microcontroller, high process stability, digital display can be shut automatically, the min. operating current at 7mA/12V. With reverse power protection, surge current shock. Each group of relay has common and normally open, normally closed contacts, two sets of conversion. 30 groups time for setting, range: 0.1-9999 minutes adjustable, the total number of cycles are adjustable from 0 to 9999. High level signal trigger launch, or forcing relay close/release. All settings can be saved. Specifications: Timing Range: 0.1-9999 minutes Cycles: 0-9999 times Operating Power: DC 10~16V Coil voltage: DC 12V Two set of conversion (normally open and normally closed) Contact Load: 10A/277V AC or 10A/30V DC DC Contact Resistance: ≤ 100mΩ (1A 6V DC) Mechanical Durability: 10 millions Electricity Durability: > 100,000 (10A-250VAC) Normal Operating Current: 18mA/12V, when the display shut, the minimum current: 7mA/12V, Dual relay timely working current: 80mA/12V Working Temperature: -40-85°C Dimension: 107 * 48 * 17mm / 4.21 * 1.89 * 0.67in Weight: 55g / 1.95oz Package Included: 1pc ×Relay Module.Find many great new & used options and get the best deals for VLC3.0 12V Dual Programmable Relay Control Board Delay Timer Clock Switch Module at the best online prices at Order2india Shopping! Free shipping for many products!
