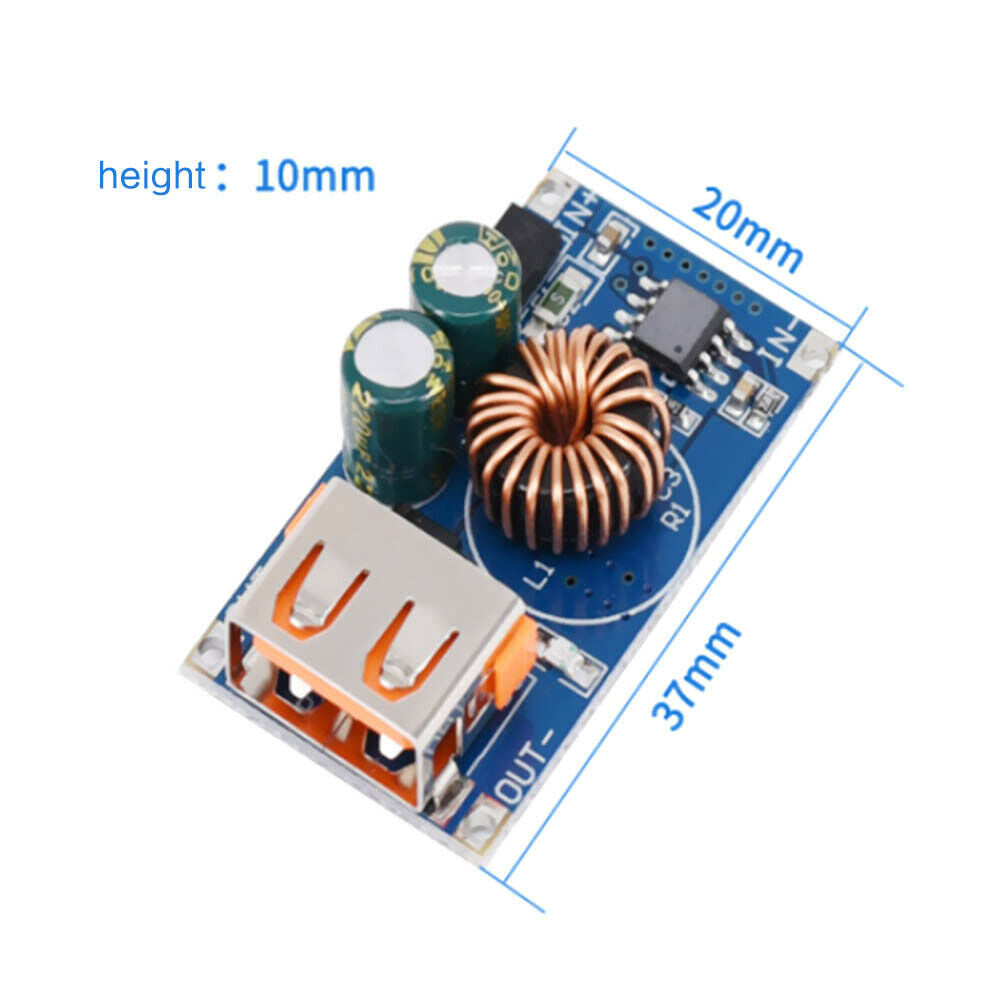

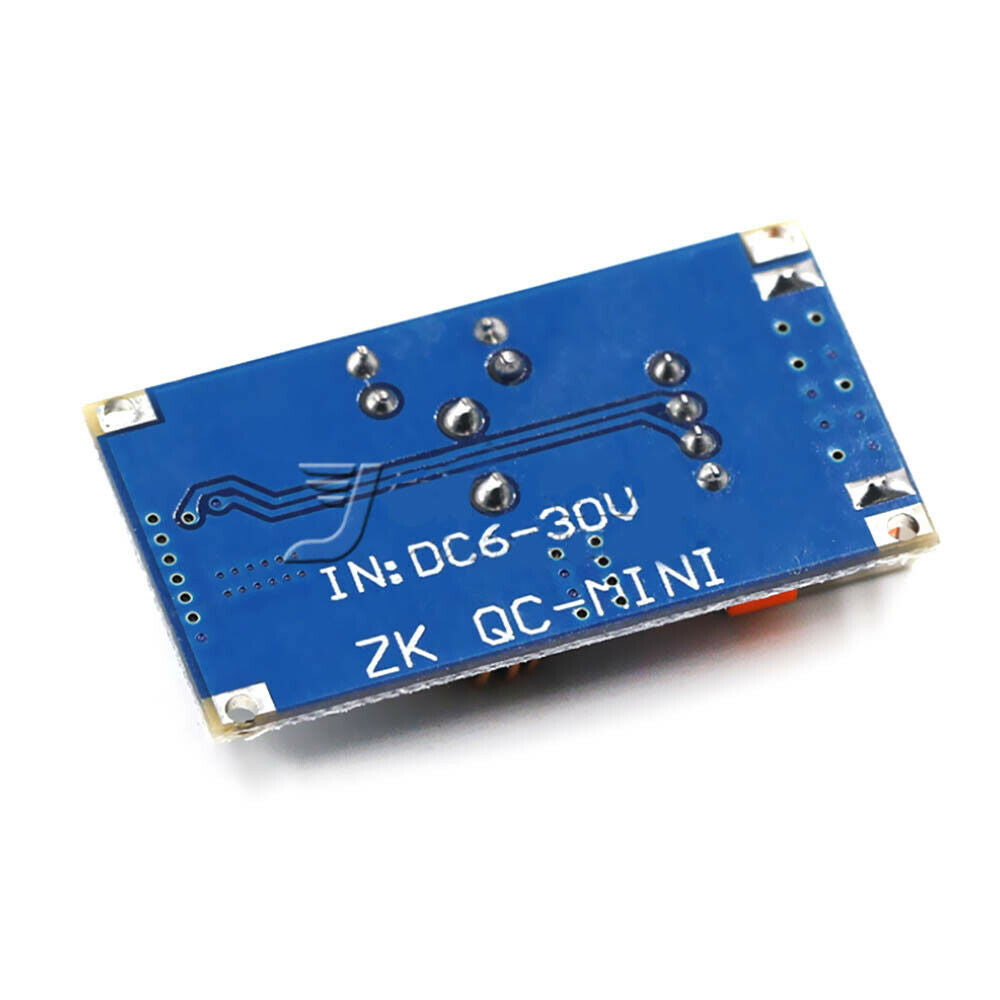

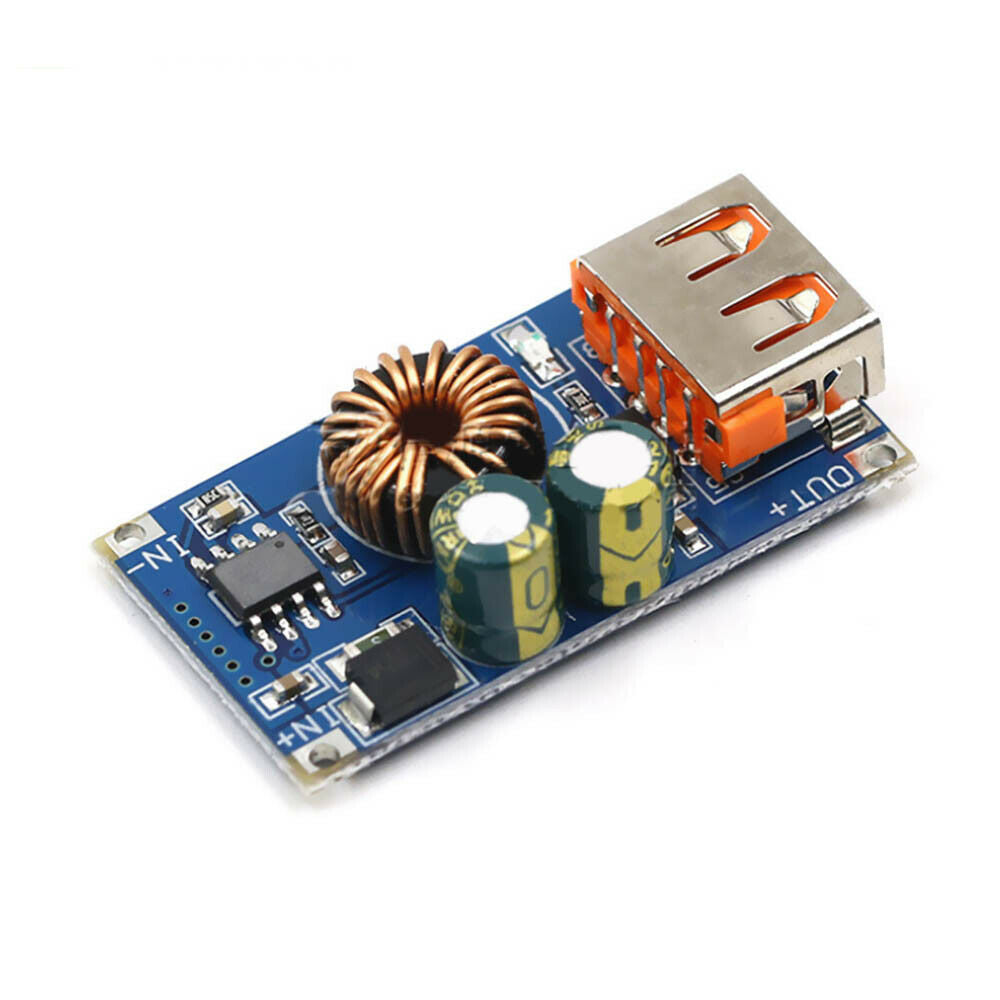

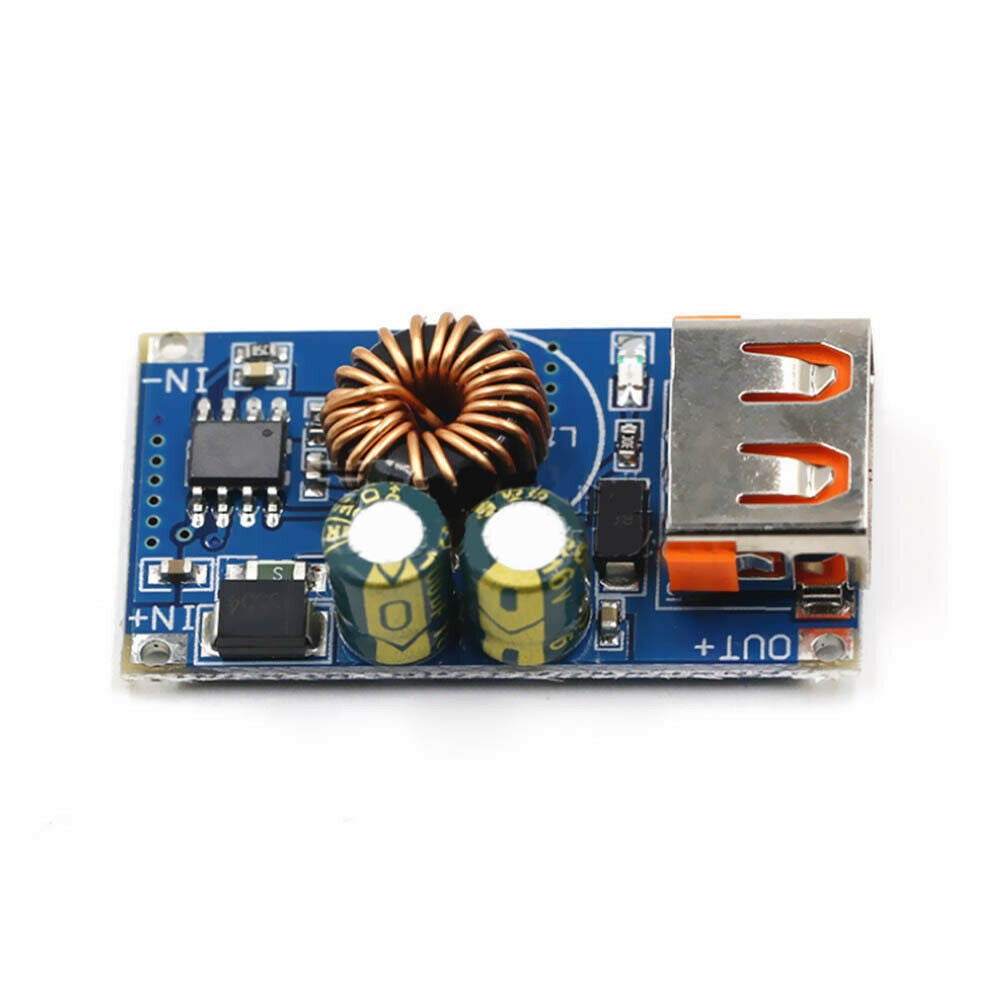

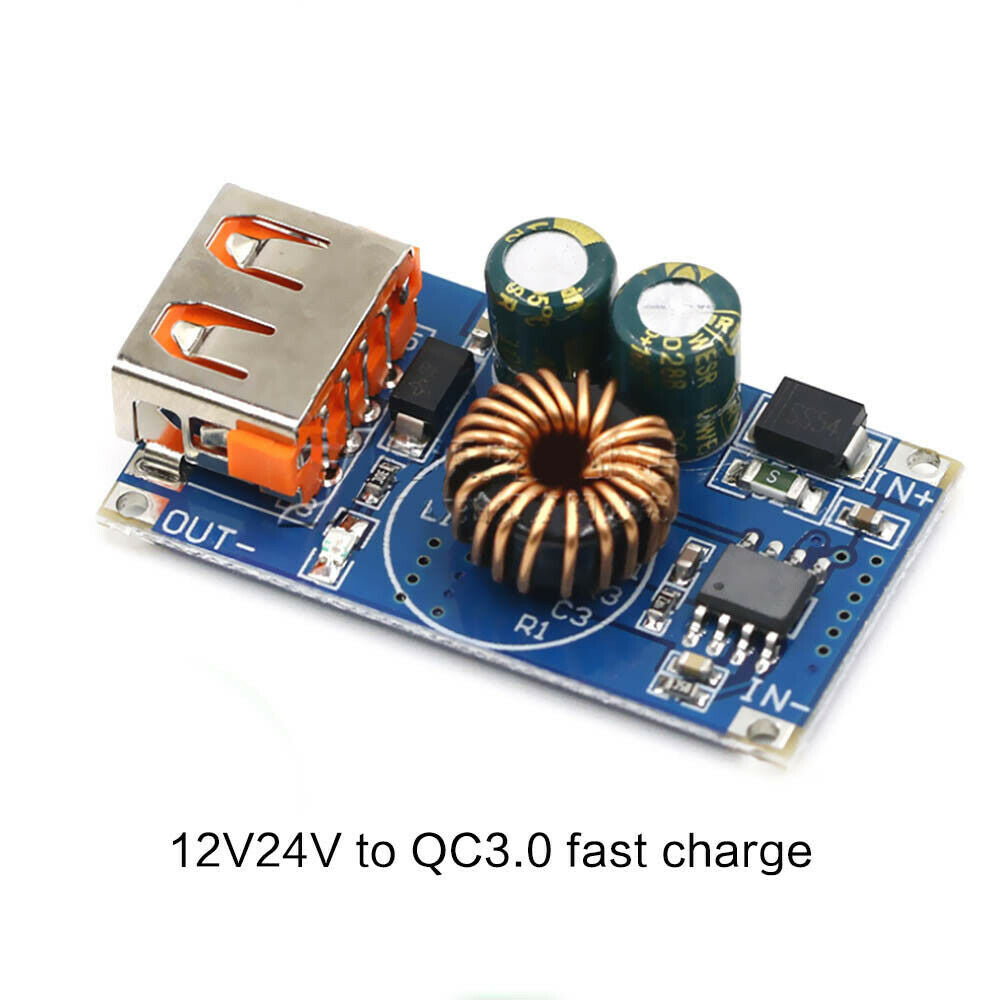

ITEM NAME:USB DC Step-Down Module 12V 24V to QC2.0 QC3.0 Mobile Phone Fast Charging Board Product Description Description: QC-MINI is a USB DC Fast Charging power supply module.It can be applied to solar charging, mobile phone charging and other fields. Features: 1>.Support QC2.0, QC3.0. 2>.Support overvoltage protection. 3>.Support undervoltage protection. 4>.Support overcurrent protection. 5>.Support short circuit protection. 6>.Support over temperature protection. 7>.Fast charge automatically adjusts the voltage. 8>.Support multiple fast charging protocols. Parameters: 1>.Product Name:QC-MINI QC2.0 QC3.0 Fast Charging Step Down Module 2>.Product Number:QC-MINI 3>.Working Voltage:DC 6.0V-32V 4>.Output Voltage:DC 5V(Automatic adjust at 3.0V-12V at fast charging mode) 5>.Output Power:24W 6>.Conversion efficiency:About 95% 7>.Working current:30mA 8>.Working Temperature range:-20~85 9>.Working Humidity range:0%-95%RH 10>.Size:37*20*10mm Support fast charge protocol: 1>.BC1.2 protocol 2>.Apple protocol 3>.Samsung protocol 4>.Qualcomm QC2.0 and 3.0 5>.MTK PE1.1/PE2.0 6>.Huawei Fast Charge Protocol FCP, does not support mate9 (SCP) 7>.Spreadtrum Fast Charge Protocol SFCP Using Steps: 1>.Connect right input voltage at input terminal. 2>.Connect USB device at USB terminal and use. Note: 1>.Default output voltage is 5V.But its output voltage will change 3V-12V if connect a fast charging device. 2>.There is a LED load indicator.Weak flash when no load, the greaterthe load, the higher the brightness. 3>.Due to the large current, it is recommended to use a thicker wire.Wire cross-section greater than 1.5 square millimeters. 4>.Wire cannot be reversed.Otherwise the module will be damaged. 5>.It is a DC power module,So it can not connect to AC power. 6>.Please make sure input power is more than load power. 7>.Please step down output power if module is hot. 8>.Please read use manual and description before use. Application: 1>.Solar panel to mobile phone charging 2>.Car charging r.Find many great new & used options and get the best deals for USB DC Step-Down Module 12V 24V to QC2.0 QC3.0 Mobile Phone Fast Charging Board at the best online prices at Order2india Shopping! Free shipping for many products!
