Description
Features
1. The driver boards are hardware compatible with StepStick and Pololu A4988.
2. Two-phase stepper motor single-phase current 2A (peak 2.5A) motor operating currently adjustable
3. Support Step / DIR interface and SPI interface, two control methods
4. Combined with maximum efficiency and optimum motor torque without noise operation
5. High-precision sensorless motor load detection
6. To reduce energy consumption by 75%
Specification
1. Model: TMC2130 V1.0
2. Interfacel: Step/Dir or SPI
3. Configurationl: CFG Pins or SPI
4. Native Microstepsl: Up to 1/256
5. MicroPlyer Microstepsl: 1/256
6. Logic Voltage VIOl: 3-5V
7. Motor Voltage VMl: 5.5-46V
8. Motor Phase Currentl: 1.2A RMS, 2.5A Peak
9. VM always neededl: Yes
10. Internal V- Regulatorl: Enabled
11. RDSonl: >=0.5 Ohm
12. Quantity：1 set
13. Material: FR4

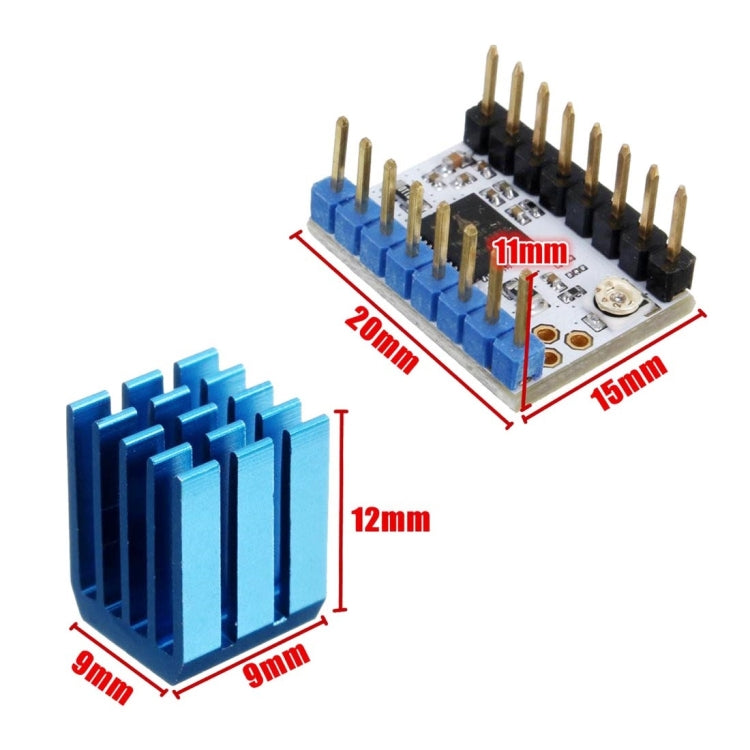

14. Dimensionsl: 6 cm x4.8 cm x 1 cm
15. Weightl: 20 g

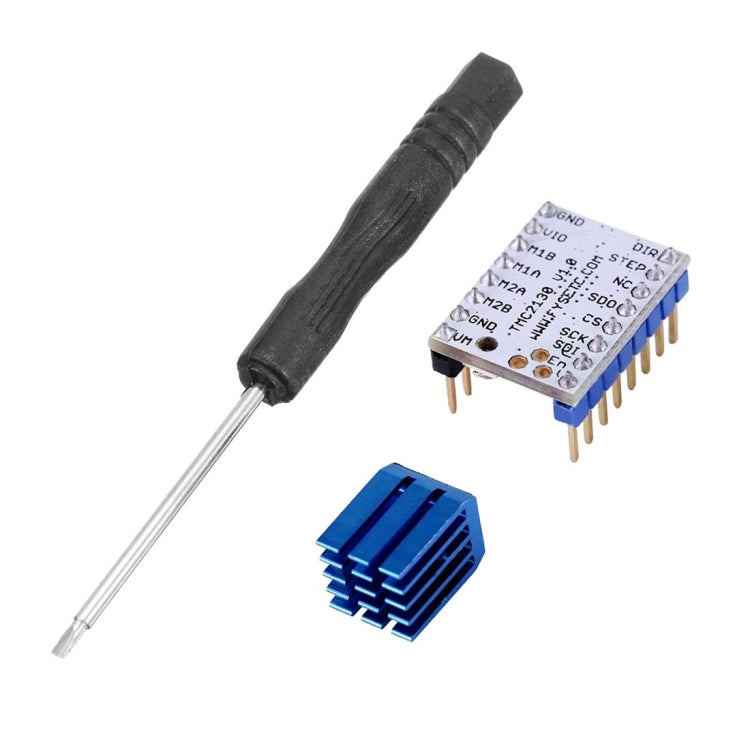

16. Package Included:
- 1 x TMC2130 Driver
- 1 x Heatsink
- 1 x Screwdriver
17. Note: Due to different producing batches, product details might be a little different. If you minding the difference, please buy it carefully.
1. The driver boards are hardware compatible with StepStick and Pololu A4988.
2. Two-phase stepper motor single-phase current 2A (peak 2.5A) motor operating currently adjustable
3. Support Step / DIR interface and SPI interface, two control methods
4. Combined with maximum efficiency and optimum motor torque without noise operation
5. High-precision sensorless motor load detection
6. To reduce energy consumption by 75%
Specification
1. Model: TMC2130 V1.0
2. Interfacel: Step/Dir or SPI
3. Configurationl: CFG Pins or SPI
4. Native Microstepsl: Up to 1/256
5. MicroPlyer Microstepsl: 1/256
6. Logic Voltage VIOl: 3-5V
7. Motor Voltage VMl: 5.5-46V
8. Motor Phase Currentl: 1.2A RMS, 2.5A Peak
9. VM always neededl: Yes
10. Internal V- Regulatorl: Enabled
11. RDSonl: >=0.5 Ohm
12. Quantity：1 set
13. Material: FR4
14. Dimensionsl: 6 cm x4.8 cm x 1 cm
15. Weightl: 20 g
16. Package Included:
- 1 x TMC2130 Driver
- 1 x Heatsink
- 1 x Screwdriver
17. Note: Due to different producing batches, product details might be a little different. If you minding the difference, please buy it carefully.
