Description
Assembly and operation

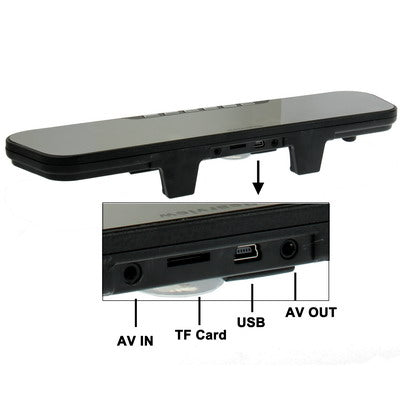

1) Insert the TF card into TF card slot.

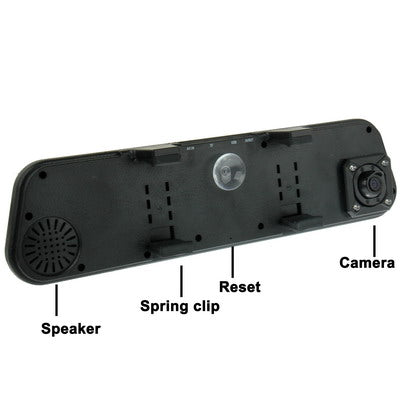

2) Installed and Fixed the spring clip, ensure the rear view was fixed, and safe driving position.
3) Turn off the engine, adjust the camera position, to obtain the best shooting range
4) Check the machine is installed correctly, turn on the engine, link up machine and the cigarette lighter by vehicle charger.
Note/remark
1) Please installed rear view recorder in right place with light and safety
2) After correctly installation, LED of system will turn into BLUE color and display
3) Please start the engine, and then plug in car charger.
Function:
1) Record
2) Photograph function
3) Playback or captured.
4) Motion detect function
5) Night vision function
6) Collision sensor function
7) Reverse rear view function
8) Update time and date
9) Loop video and rewritten video

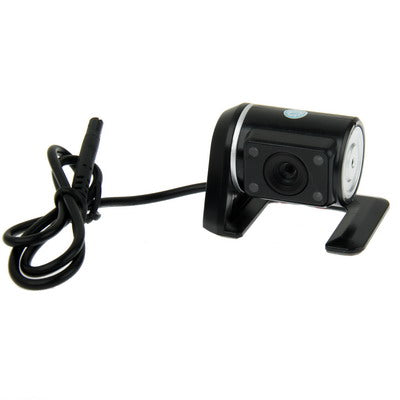

10) External camera
11) Removable U disk
12) Net camera
13) Low level power detection
14) Multiple Languages: Simplified Chinese / English / Russian / Japanese / Korean / (Broadcast Voice enrolled) , Default language is English
Performance parameter:
1) Camera sensor: 99141
2) Front lens angle: 120 °( ± 20 °) A+
3) Video quality of front lens: (1280*720) S/30 frame
4) Image quality of back lens-CVBS: (640*480) S/30
5) Support picture in picture: support front and back lens,full screen and PIP.
6) Image format: JPEG
7) Camera resolution: HD 2048 x 1536 max
8) Display screen: 2.7 TFT high definition
9) File interval: seamless camera
10) Front/back display: support
11) Front/back sensor: support
12) Rewritten: support
13) Sound recording: video record synchronize(option)
14) Collision sensor: triaxial collision detection
15) Emergency lock collision sensor: support
16) Network camera: support
17) Storage temperature: -20℃~60℃
18) Operation temperature: -10℃~60℃
19) Operation humidity: 15-65%RH
20) TF type: support TF 32G MAX
21) Battery: high-quality built-in rechargeable battery
22) Operation power consumption: 500MA-700MA
23) Static current: 10uA
24) Standard voltage: DC5V
25) USB interface: USB 2.0
1) Insert the TF card into TF card slot.
2) Installed and Fixed the spring clip, ensure the rear view was fixed, and safe driving position.
3) Turn off the engine, adjust the camera position, to obtain the best shooting range
4) Check the machine is installed correctly, turn on the engine, link up machine and the cigarette lighter by vehicle charger.
Note/remark
1) Please installed rear view recorder in right place with light and safety
2) After correctly installation, LED of system will turn into BLUE color and display
3) Please start the engine, and then plug in car charger.
Function:
1) Record
2) Photograph function
3) Playback or captured.
4) Motion detect function
5) Night vision function
6) Collision sensor function
7) Reverse rear view function
8) Update time and date
9) Loop video and rewritten video
10) External camera
11) Removable U disk
12) Net camera
13) Low level power detection
14) Multiple Languages: Simplified Chinese / English / Russian / Japanese / Korean / (Broadcast Voice enrolled) , Default language is English
Performance parameter:
1) Camera sensor: 99141
2) Front lens angle: 120 °( ± 20 °) A+
3) Video quality of front lens: (1280*720) S/30 frame
4) Image quality of back lens-CVBS: (640*480) S/30
5) Support picture in picture: support front and back lens,full screen and PIP.
6) Image format: JPEG
7) Camera resolution: HD 2048 x 1536 max
8) Display screen: 2.7 TFT high definition
9) File interval: seamless camera
10) Front/back display: support
11) Front/back sensor: support
12) Rewritten: support
13) Sound recording: video record synchronize(option)
14) Collision sensor: triaxial collision detection
15) Emergency lock collision sensor: support
16) Network camera: support
17) Storage temperature: -20℃~60℃
18) Operation temperature: -10℃~60℃
19) Operation humidity: 15-65%RH
20) TF type: support TF 32G MAX
21) Battery: high-quality built-in rechargeable battery
22) Operation power consumption: 500MA-700MA
23) Static current: 10uA
24) Standard voltage: DC5V
25) USB interface: USB 2.0
