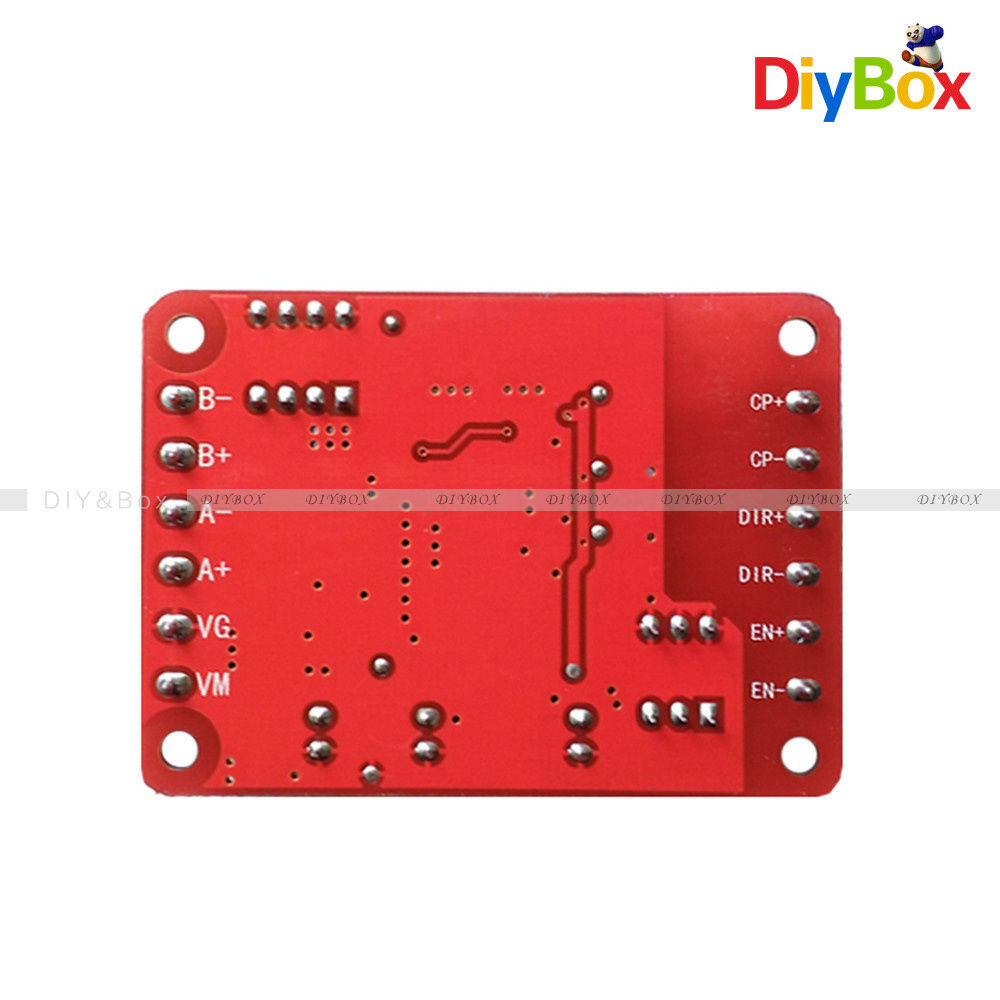

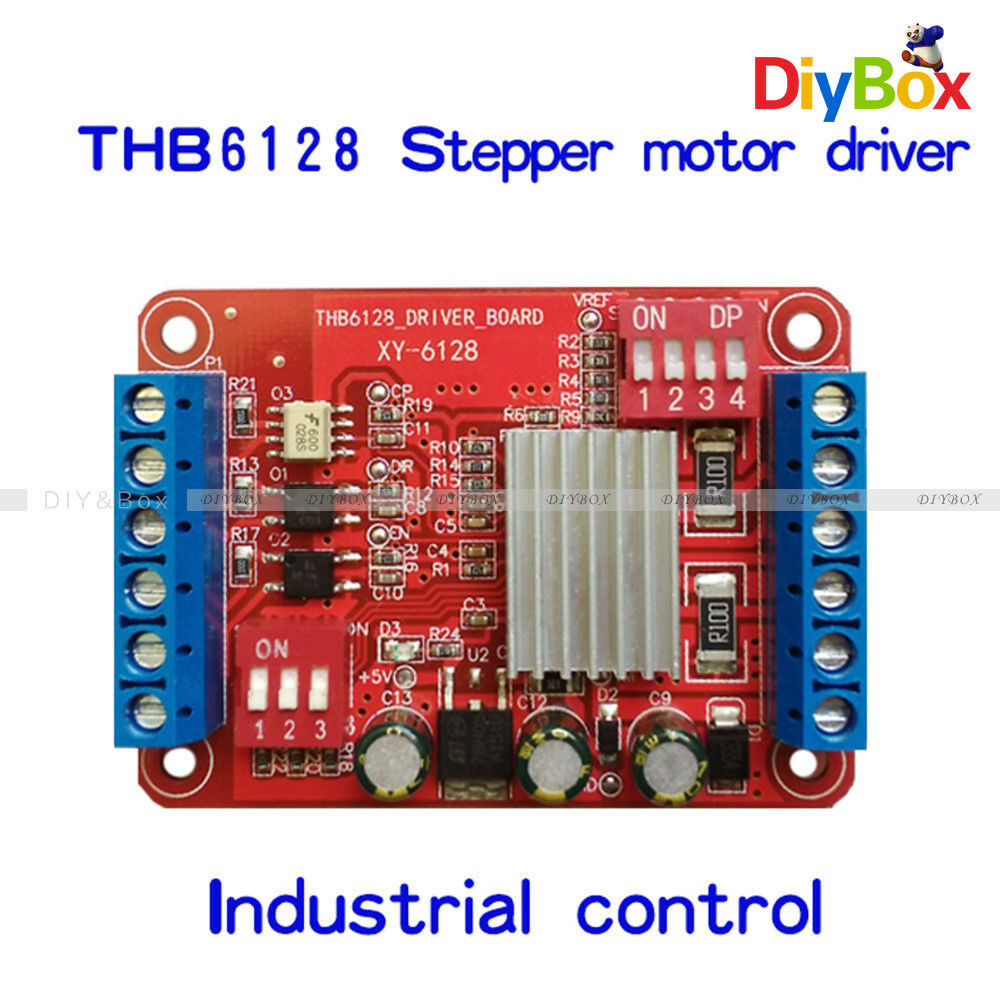

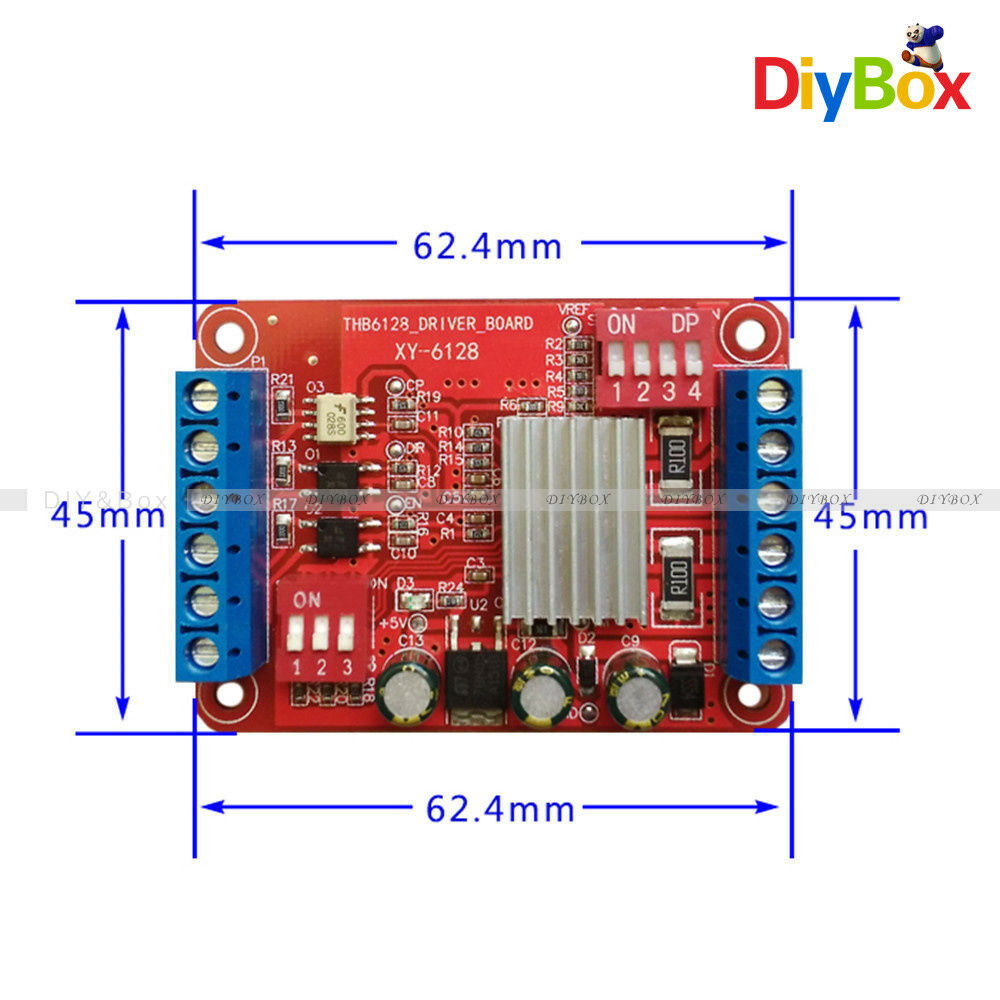

ITEM NAME:THB6128 Stepper Motor Driver / MOSFET driver / DIP Switch / 2A current / Max 36V THB6128 Stepper Motor Driver / MOSFET driver / DIP Switch / 2A current / Max 36V Description: This module is based on the original imported Toshiba stepper motor drive chip THB6128 design, can drive 57 and the following two-phase four-wire stepper motor. The module has the following advantages: chip using double full-bridge MOSFET driver, low on-resistance Ron = 0.55Ω maximum voltage 36V, peak current 2.2A, continuous current 2A, the current set by DIP switch simple set 1, 2, 4, 8, 16,32,64,128 a variety of sub-optional, subdivided through the DIP switch to set chip with automatic half-flow lock function, greatly reduce the heat when the motor is locked chip built-in temperature protection, over-current protection built-in 5V logic signal supply regulator chip, and add a current limiting resistor to reduce the chip fever when the input high voltage Input voltage side reverse polarity protection Reasonable alignment, clear identification, reliable and stable Signal interface The module has three sets of input signals, namely CP pulse signal, DIR direction signal, EN enable signal. The electrical diagram of the signal is as follows: When the external signal amplitude is 3.3-5V, the current limiting resistor R can not be connected, when the signal amplitude exceeds 5V, the input signal must be limited to ensure that the optocoupler input current of 8mA-15mA, the specific calculation method For: optocoupler conduction voltage drop is generally 1.1-1.3V or so, take 1.2V, then Optocoupler current = (voltage amplitude - optocoupler conduction voltage drop 1.2V) / (R + 330) Special Note: If the optocoupler operating current exceeds 20mA, the optocoupler life will be greatly reduced. The input signal interface is characterized by: the user can be used as needed common anode connection or common cathode connection. 1, common anode connection: respectively CP +, DIR +, EN + connected to .Find many great new & used options and get the best deals for THB6128 Stepper Motor Driver / MOSFET driver / DIP Switch / 2A current / Max 36V at the best online prices at Order2india Shopping! Free shipping for many products!
