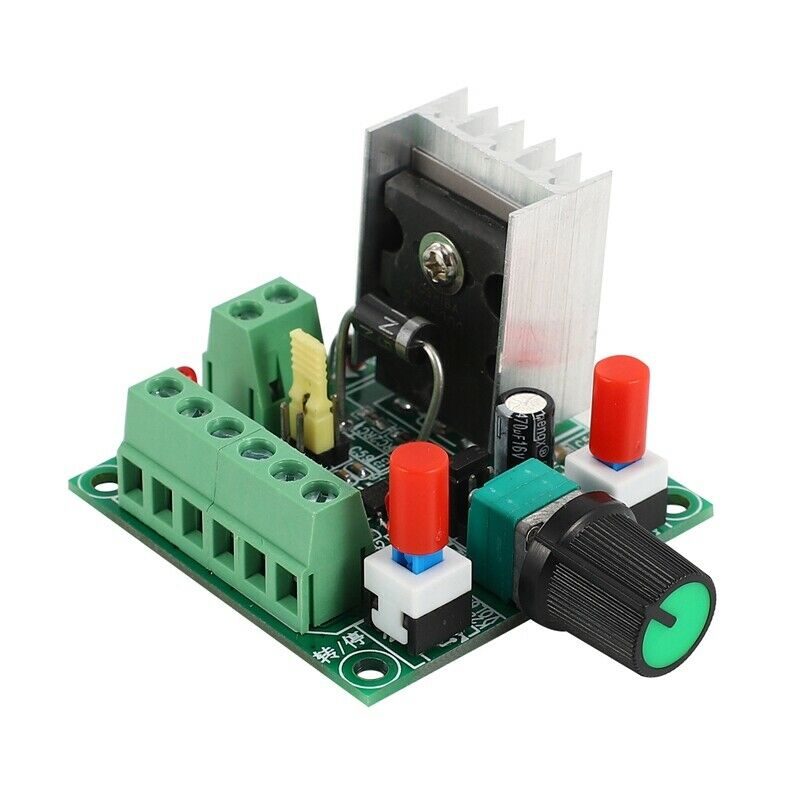

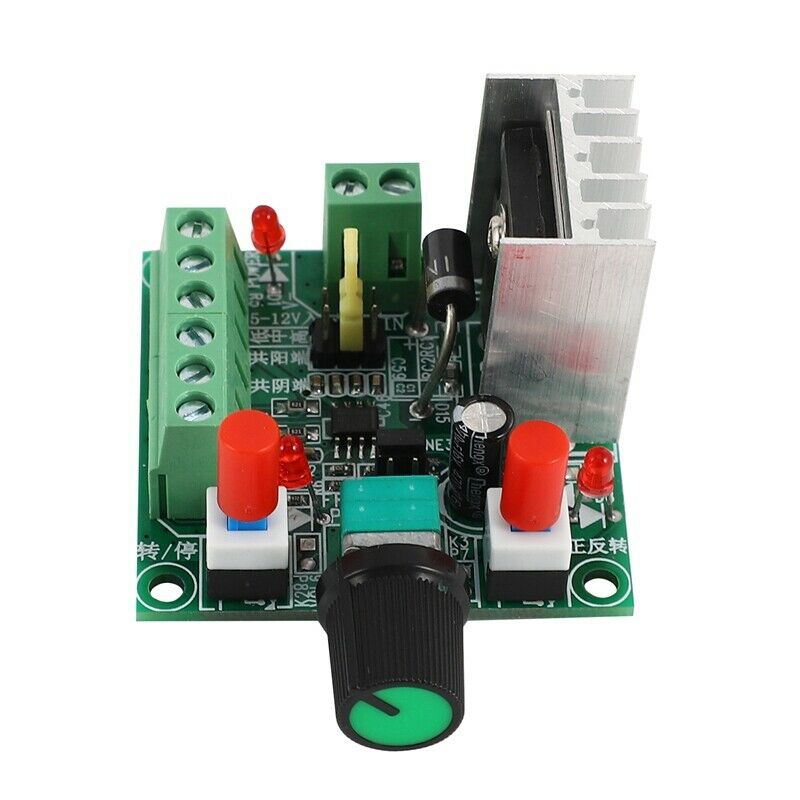

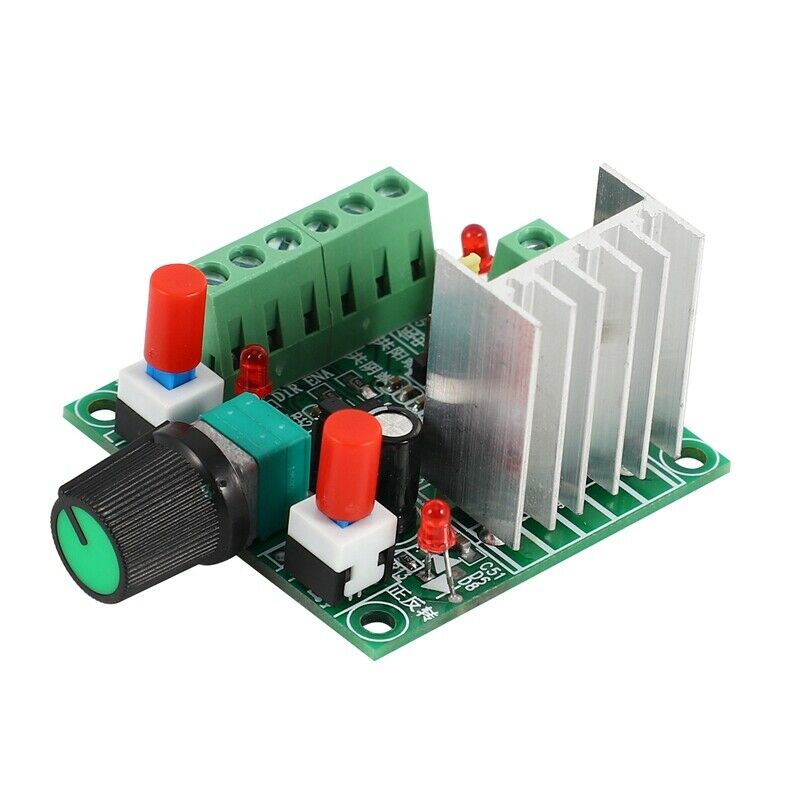

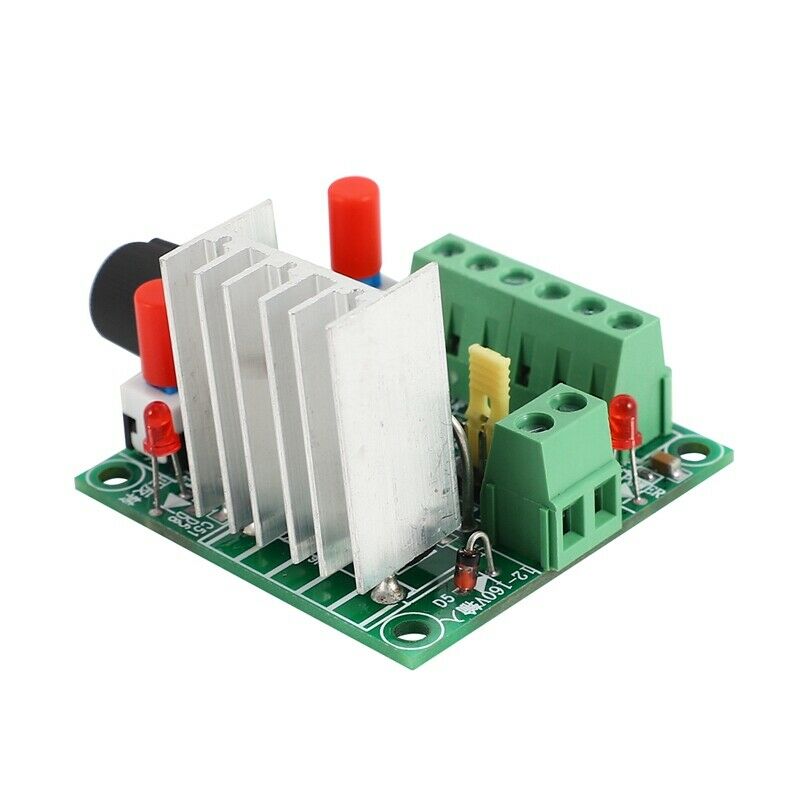

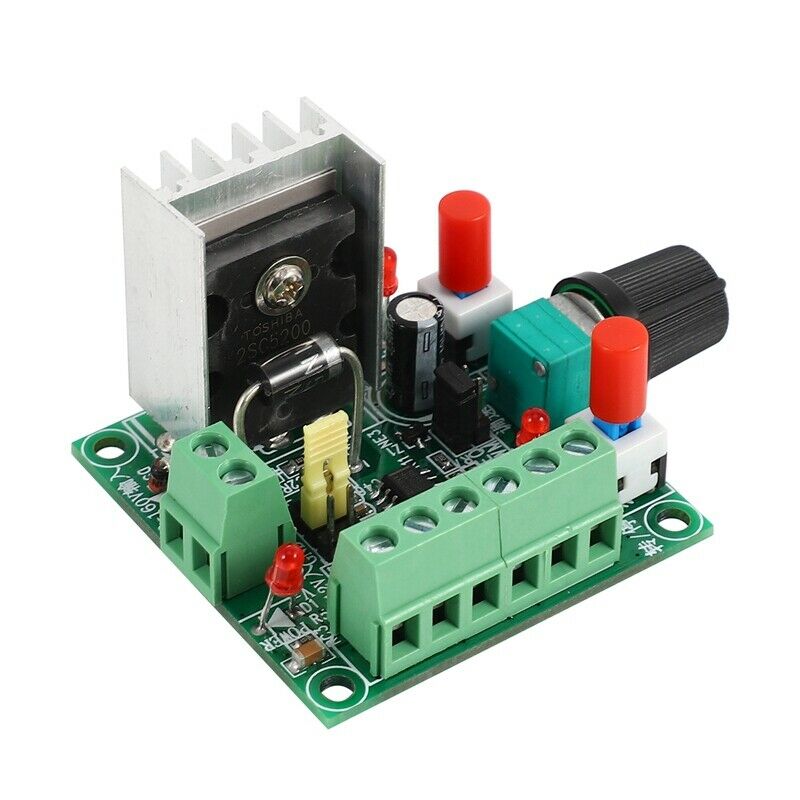

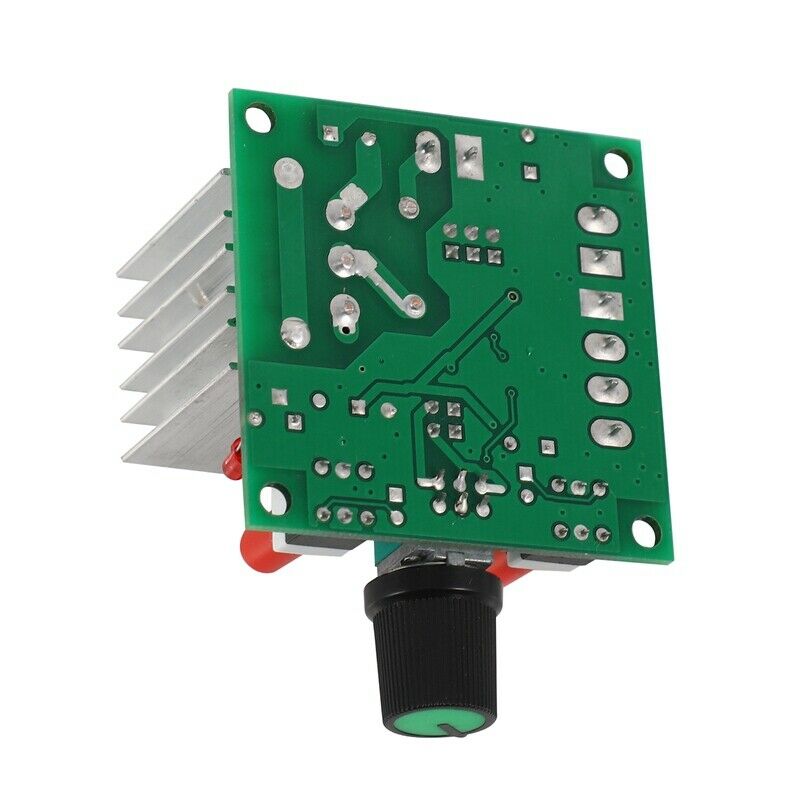

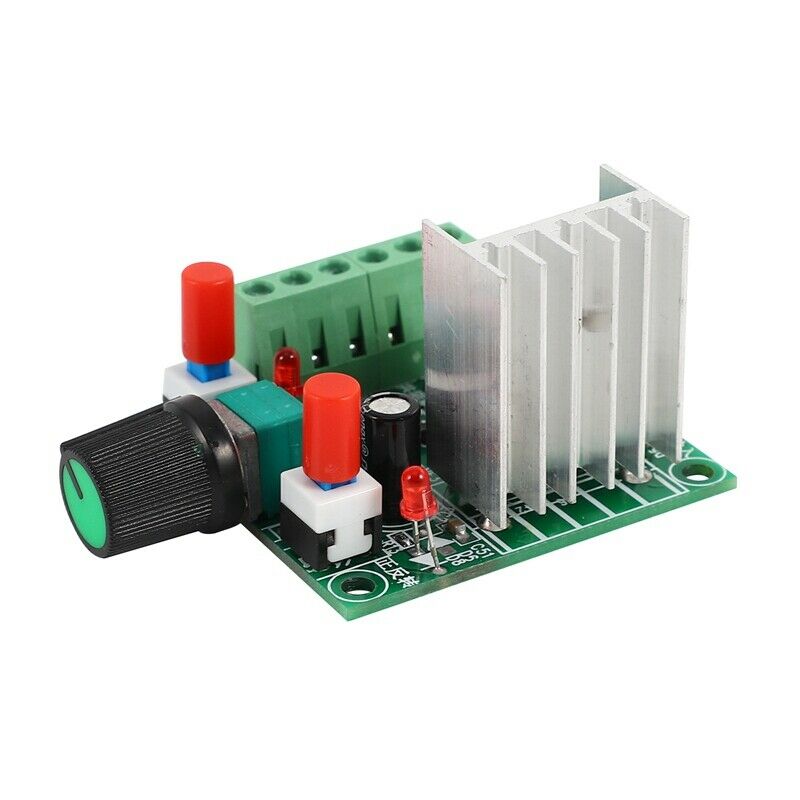

ITEM NAME:Stepper Motor Drive Simple Controller Speed Forward and Reverse Control Pulse Z9 Stepper Motor Drive Simple Controller Speed Forward and Reverse Control Pulse Z9 When the controller generates a pulse frequency signal, it can be used as a signal for the stepper driver. Drivers are also required to control the stepper motor. This simple controller + Stepper motor driver + Stepper motor + DC power supply can form a simple control platform. The controller can generate a pulse frequency signal, it can also be generated. PWM Signal pulse duration. There is a bouncing needle on the board., You can set options Select, the default setting should generate a pulse frequency signal. REQ It generates a pulse frequency. When the controller generates a frequency pulse signal, has a high, low frequency signal can be selected by a jumping needle, the frequency parameters are approximately: High: 5.8 kHz-127 kHz V: 590 Hz-15.8 kHz Low: 82 Hz-2.3 kHz, Frequency measurement: the number of available negative terminals (GND) two ports. Power supply 2 Power input group, 2 groups A can only be connected to a group of power sources. the recommended power supply is 15 V. receive2 bit terminal power supply, neither positive nor negative, we must accept the opposite .. One group is a power supply connected to DC.15-160VDC, the recommended working voltage15-80VDCAll right. The other group is5-12VDC. when used in conjunction with the driver, it is recommended that minimum12V be used, do use 5V power, 5V too long, positive power supply "5-12 Venter", negative power supply "common cathode end". Connection instructions: Wi each connection port, instructions for the silk screen next to the terminals. It can be connected to a step driver using a regular yin or common yang. Colour: green Material: plastic Size: 73*51*37MM Package Contents: 1 x Stepper motor drive controller.Find many great new & used options and get the best deals for Stepper Motor Drive Simple Controller Speed Forward and Reverse Control Pulse Z9 at the best online prices at Order2india Shopping! Free shipping for many products!
