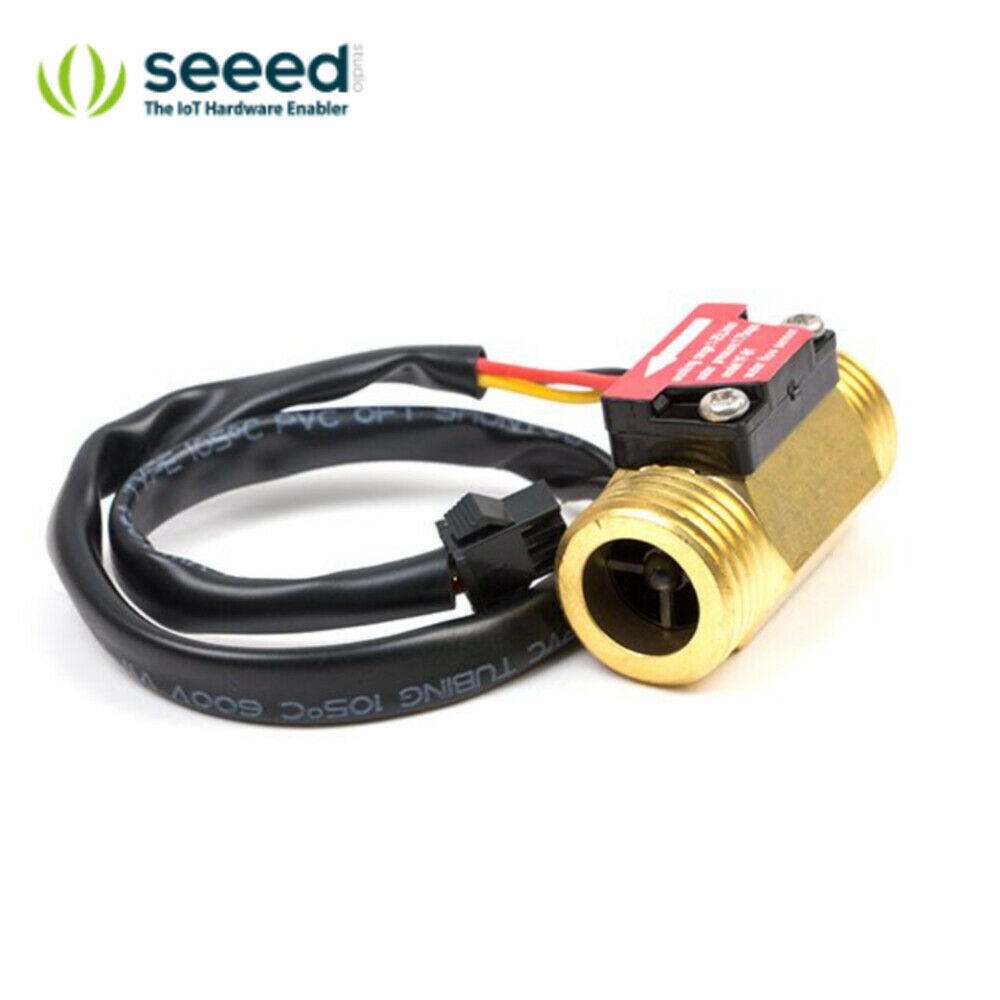

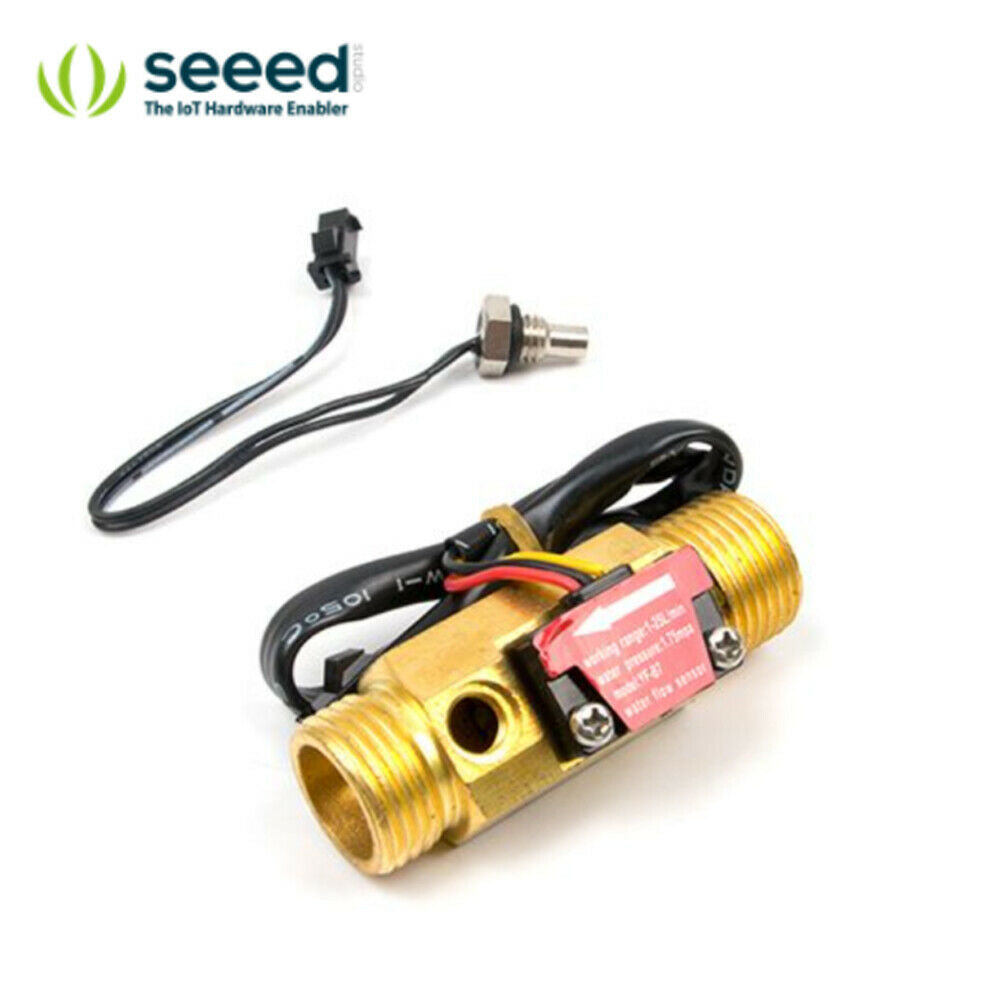

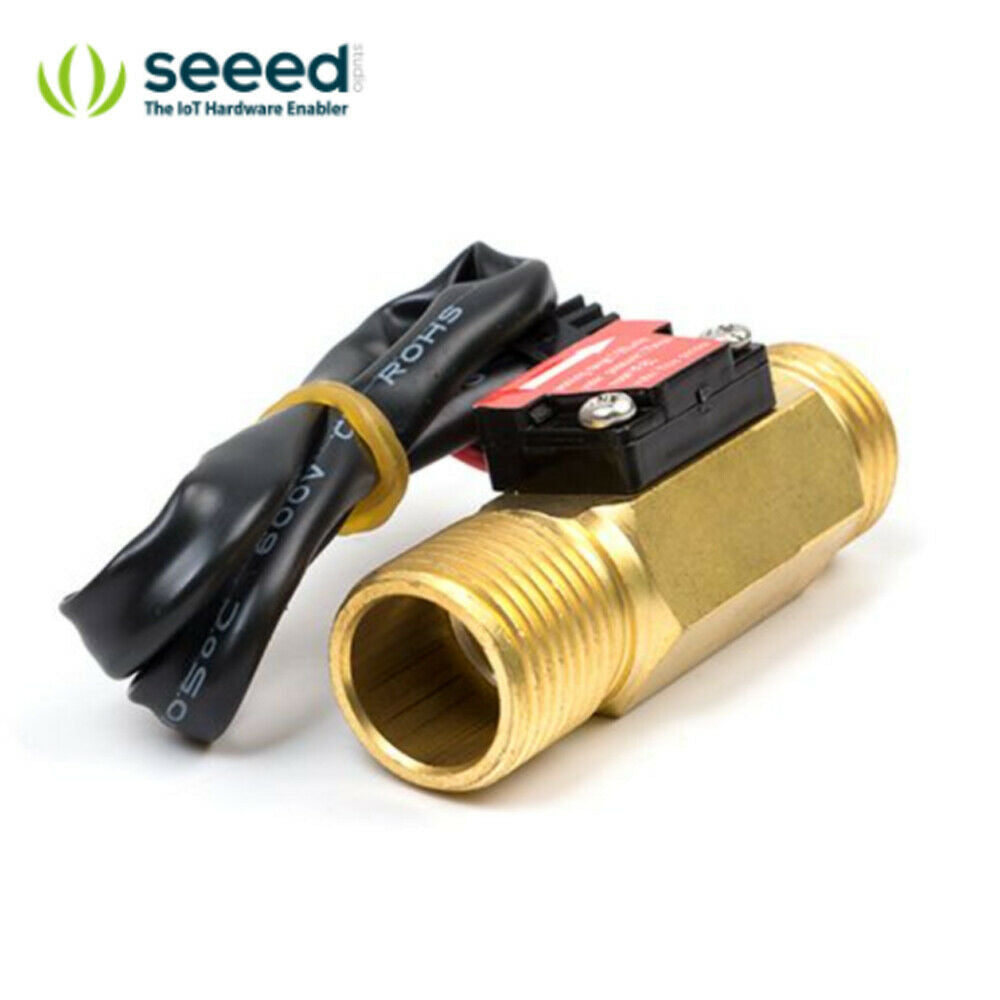

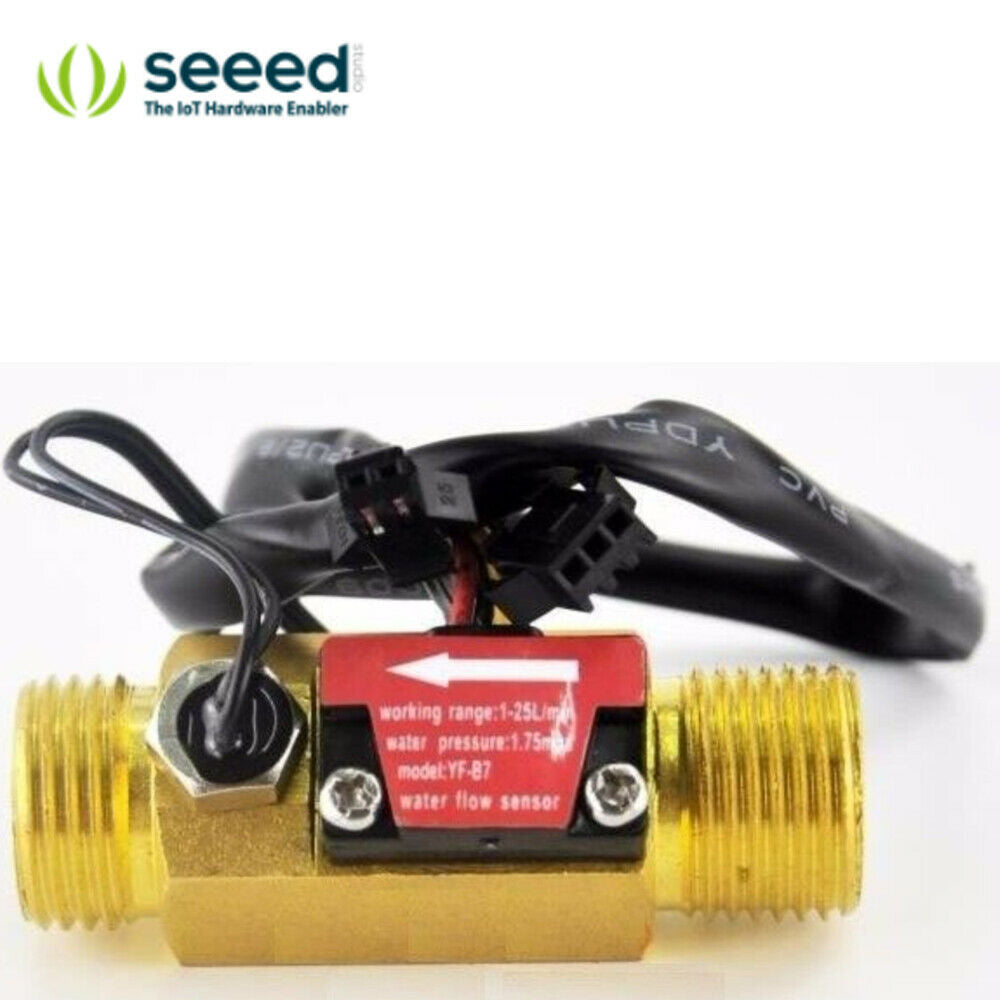

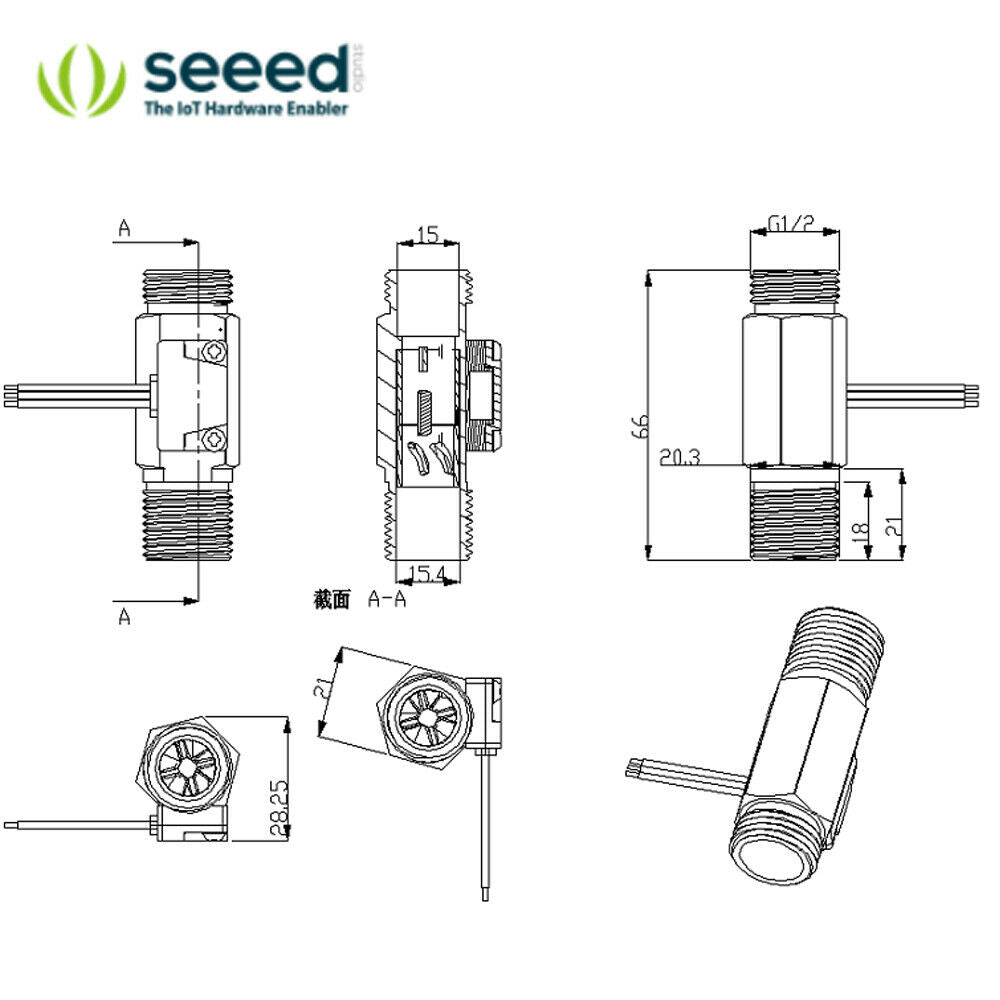

ITEM NAME:Seeed YF B1-B7 Thread Hall Effect Liquid Water Flow Sensor Switch Flow Meter PRODUCT DETAILS Water flow sensor consists of a copper body, a water rotor, and a hall-effect sensor. When water flows through the rotor, rotor rolls. Its speed changes with different rate of flow. The hall-effect sensor outputs the corresponding pulse signal. This one is suitable to detect flow in water dispenser or coffee machine. Life is longer than plastic body. Features • Compact, Easy to Install • High Sealing Performance • High Quality Hall Effect Sensor • RoHS Compliant Part List 1 x YF-B1-B7 water flow sensor Type Dimensions(DN) Working Voltage Flow Rate Range Length Male & Female Length of Thread Material YF-B1 DN15 5V~15V(DC) 1~25L/min 44mm Double Male 10mm Copper YF-B2 DN15 5V~15V(DC) 1~25L/min 50mm Male in Female out 10mm Copper YF-B3 DN15 5V~15V(DC) 1~25L/min 66mm Double Male 18mm Copper YF-B4 DN15 5V~15V(DC) 1~25L/min 66mm Male in Female out 10mm Copper YF-B5 DN20 5V~15V(DC) 1~30L/min 50mm Double Male 10mm Copper YF-B6 DN20 5V~15V(DC) 1~30L/min 60mm Double Male 11mm Copper YF-B7 DN15 5V~15V(DC) 1~25L/min 66mm Double Male 10mm Copper G1&2 DN15 5V~24V(DC) 1~30L/min Double Male Plastic G3&4 DN20 5V~24V(DC) 1~60L/min Double Male Plastic G1&2 DN15 5V~24V(DC) 1~30L/min 60mm Double Male 13mm Plastic G1&8 - 5V~24V(DC) 0.3~6L/min - - - Plastic M11*1.25 - 5V~24V(DC) 0.3~6L/min - - - Plastic Technical details Weight G.W 99g Battery Exclude Mini. Wokring Voltage DC 4.5V Max. Working Current 15mA (DC 5V) Working Voltage DC 5V~15V Flow Rate Range 1~25L/min Frequency F=(11*Q)Q=L/MIN ±3% Load Capacity ≤10mA (DC 5V) Operating Temperature 0 ~ 80℃ Liquid Temperature ≤120℃ Operating Humidity 35%～90%RH Water Pressure ≤1.75MPa Storage Temperature -25～+ 80℃ Storage Humidity 25%～95%RH Interface Dimensions G1/2Inch Error Range (1~30L\MIN) ±3% Material Description H57Copper+POM Output Pulse High Level >DC 4.7V (Input Voltage DC5V) Output Pulse Low Level
