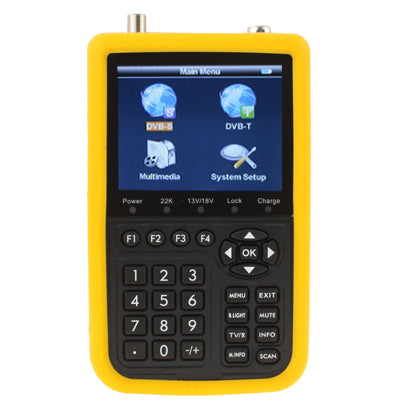

Name: SATLINK WS6909 DVB-Satellite & Terrestrial Combo Satellite Meter
Brand: O2I24
SKU: S-SAF-1005
Price: 32711.0 INR
Availability: OutOfStock

SATLINK WS6909 DVB-Satellite & Terrestrial Combo Satellite Meter

Roll over image to zoom in Click on image to zoom

SATLINK WS6909 DVB-Satellite & Terrestrial Combo Satellite Meter

Brief Introduction to Products:

For the first time in a economical digital meter, you are now able to view the actual channel on the screen of the meter. Now you can quickly and accurately align the satellite AND you can instantly check the stability of the channel right on the screen of the meter. Transponders, Frequency, Symbol Rate, Polarity, and other settings can be modified by the user. There is never a need to send your meter in for a upgrade.(SATLINK WS6909)

Meter never needs to be returned for re-calibration due to the unique calibration system built in to the meter. Each time the meter boots up it automatically calibrates for optimum performance so you can align each install with confidence.

Main Functions

DVB-T

1) COFDM Demodulated

2) Frequency range:46-870MHz

3) Level range:40-110dBuV

4) Input Resistance:75ohm(SATLINK WS6909)

5) Demodulation:QPSK,16QAM,64QAM

6) Test: BER, C/N, FEC Signal Quality and Strength

7) Multi-Channel Simultaneous Measurement

8) Auto Full Frequency Scan

9) Auto scan of frequency selected

10) Power supply at RFIN:5V/12V/15V/18V/24Vx(100mA)

11) Connector: IEC Female 9.5mm

12) Frequency range: VHF and UHF

13) Bandwith: 8/7/6MHz

14) Input impedance: 75 ohm

DVB-S

1) Input Frequency range:950-2150MHz

2) Input Level:-65dbm-25dbm

3) Input Resistance:75ohm

4) Symbol rate:2Msps-45Msps

5) Test: BER, C/N, FEC Signal Quality and Strength

6) Auto search: NIT Search ,Manul Search

7) DisEqC: 22K Supported

8) LNB power supply :H + 18V + 13V 400Ma

9) Connector: F type, Female

10) Frequency Range: 950MHz-2150MHz

11) Signal Level: -65dBm - -25dBm

12) LNB Power: 13/18V,Max350mA

13) LNB Switch Control: 22KHz

14) DiSEqC Ver 1.0/ 1.2

15) Demodulation Range: 2Mbps - 45Mbps

System Resources

1) Processor: 32bit processor (133MHz)

2) FLASH: 8Mbyte

3) SDRAM: 4x16Mbyte

Video Decoder

1) MPEG 2: MP@ML

2) Data Rate: Max15M bits/s

3) Resolution: 720x576,720x480

4)Video format: PAL/NTSC/SECAM

OTHER

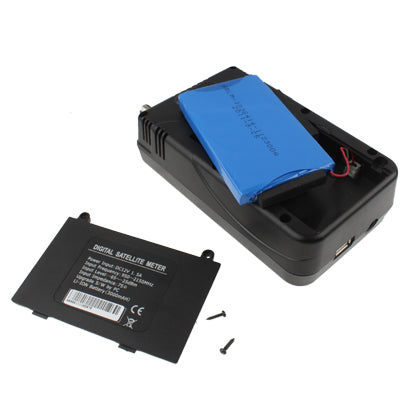

1) 8.4V/3000mAH Lion battery

2) Power adapter input: AC 90V-240V/50Hz

3) Power adapter output: DC 12V/1.5A

4) Working time:4-6 hours (full charge)

5) Charging time: 5 hours from flat(SATLINK WS6909)

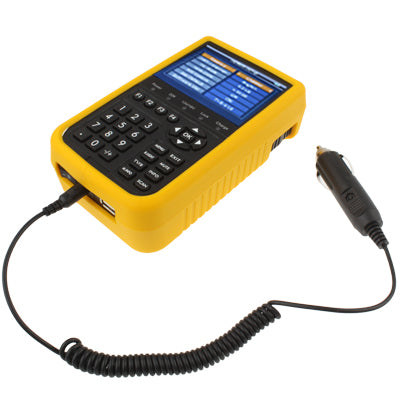

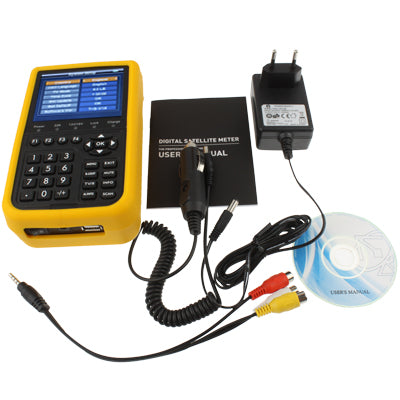

6) Car charger supplied

7) Dimension:160 x 100 x 50mm

8) Net weight: 0.6kg
