Name: SATLINK WS6902 3.5 Inch High Definition TFT LCD Screen Digital Satellite Finder Meter & Spectrum Analyzer
Brand: O2I24
SKU: S-SAF-1002
Price: 35942.0 INR
Availability: OutOfStock

SATLINK WS6902 3.5 Inch High Definition TFT LCD Screen Digital Satellite Finder Meter & Spectrum Analyzer

Roll over image to zoom in Click on image to zoom

For the first time in a economical digital meter, you are now able to view the actual channel on the screen of the meter. Now you can quickly and accurately align the satellite AND you can instantly check the stability of the channel right on the screen of the meter. Transponders, Frequency, Symbol Rate, Polarity, and other settings can be modified by the user. There is never a need to send your meter in for a upgrade.(SATLINK WS6902)

Meter never needs to be returned for re-calibration due to the unique calibration system built in to the meter. Each time the meter boots up it automatically calibrates for optimum performance so you can align each install with confidence.

Main Function:

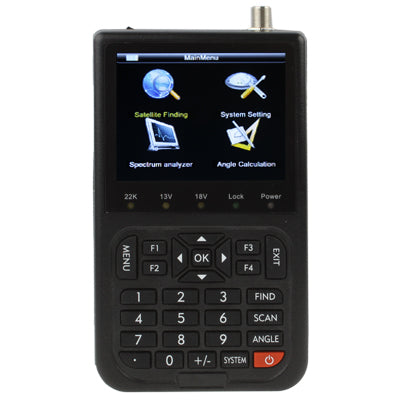

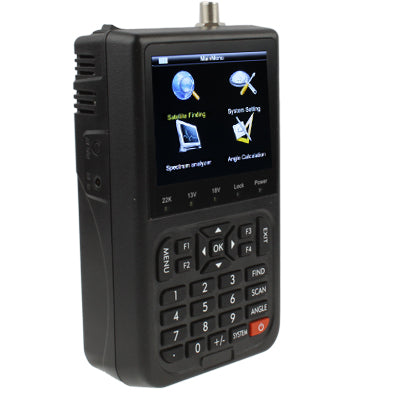

1) 3.5 Inch High definition TFT LCD Screen which Can show live Channels

2) NEC Solution

3) Shows both S/N and C/N

4) Shows strength and quality readings(SATLINK WS6902)

5) Sound and Light Alarm When Lock Signal

6) Shows channel picture

7) Show numerical reading and bar reading

8) Digital Meter for Signal Strength(in numerical & #118alue and picture)

9) Easy Satellite Manager ( EDIT, delete and SCAN)

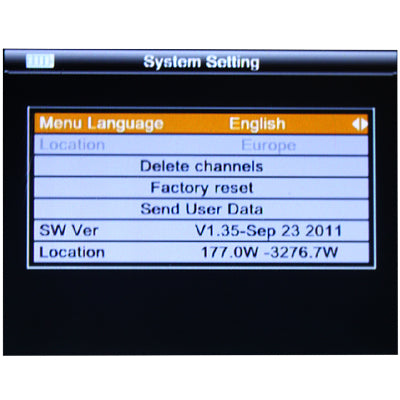

10) Edit TP, Frequency, LNB switch, Symbol Rate etc.

11) Completely programmable by the user

12) Input Frequency: 950-2150MHz

13) Input Level: -65~25dBm

14) Input Impedance: 75(ohm)

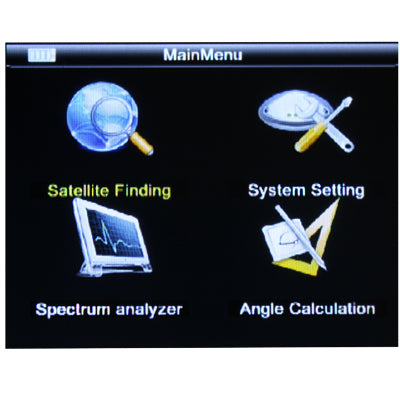

15) Auto Calculate Angle of AZ ,EL

16) Upgrade S/W by PC

17) Easy to carry, size only 9.5cm X 15.5cm X 4.5cm

18) DisEqC Control

19) 22KHz Control

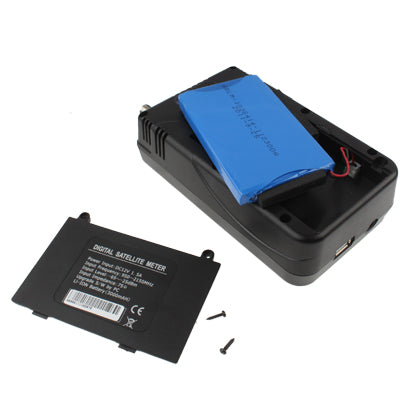

20) Fast Charge LI-ION Battery(1950mAh), Can Last 4 Hours

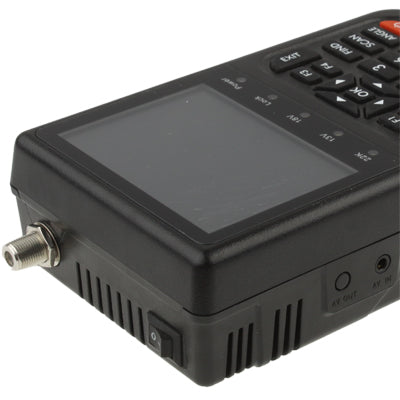

21) Indicator Lights for 13/18 volts(SATLINK WS6902)

22) Indicator lights for 22 KHz

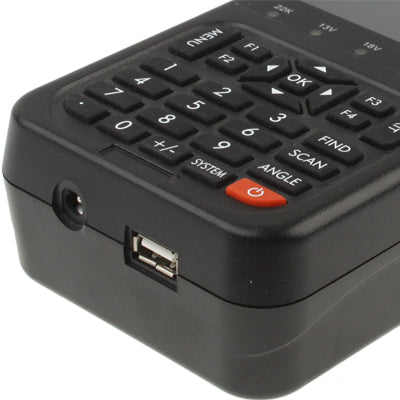

23) USB port for software upgrades

24) USB software upgrade cable included

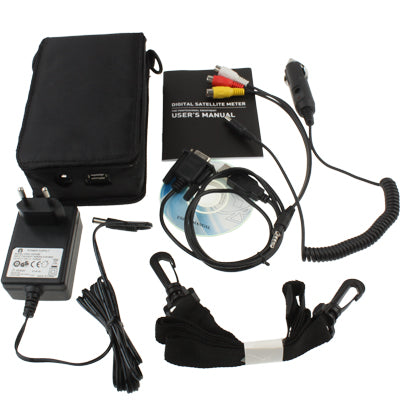

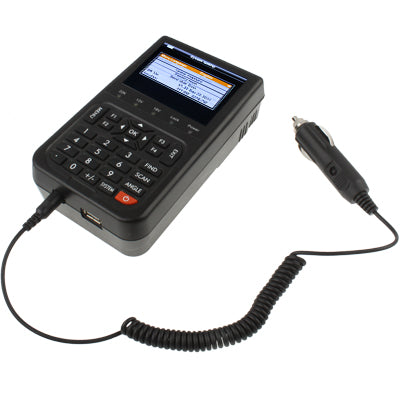

25)Includes Neck Strap,Carrying Case,12V DC Power Charger

Technical Parameter:

1) LNB/Tuner input: Connector(F type,male), Frequency range(950MHz-2150MHz), Signal lever

(-65dBm-25dBm), LNB supply(13/18V,max400mA), LNB switch control(22KHz), DiSEqC(Ver 1.0)

2) Video decoder: MPEG 2 (Main Proflie@Main Level), Data Rate(up to 15M bits/s), Resolution(720x576,720x480), Video format(PAL/NTSC/SECAM)

3) MPEG Audio:Sampling rates32(44.1 and 48KHz)

4) Li-oN Battery: 1950 mA

5) Supply voltage: 12.6Volt

6) charger: 90-240V

7) Digital tuner input: F type, male

8) Size: 9.5x15.5x4.5 (cm)

9) Weight(Net): 0.5 Kg
