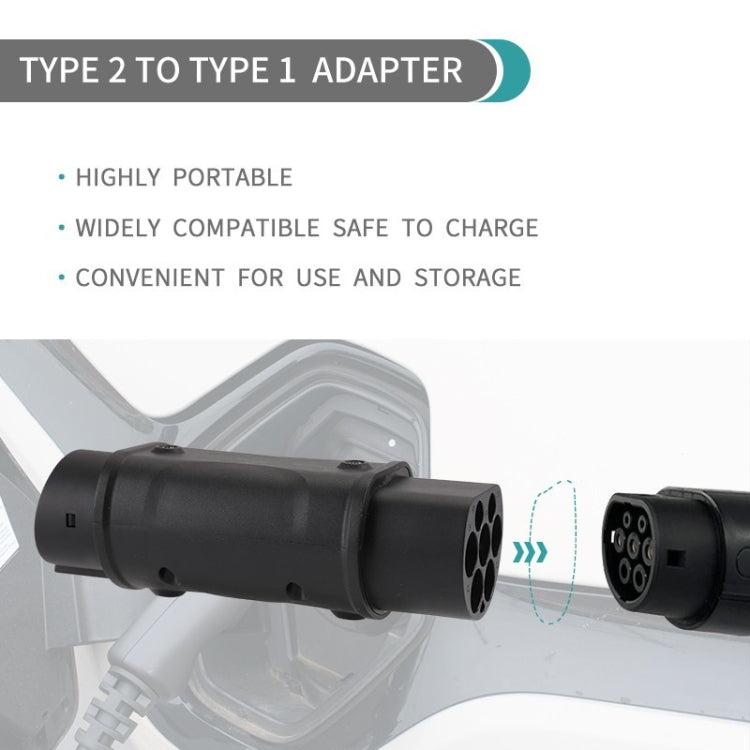

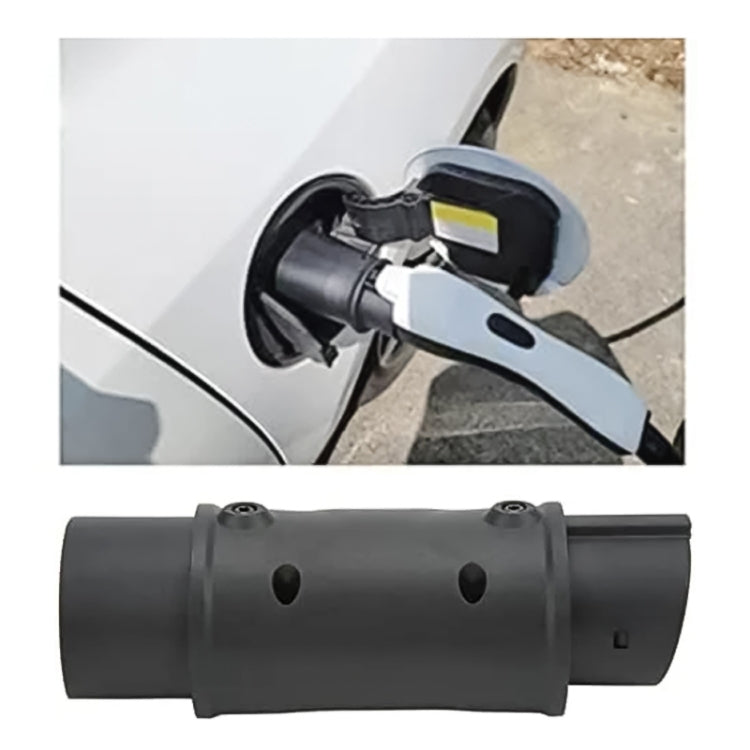

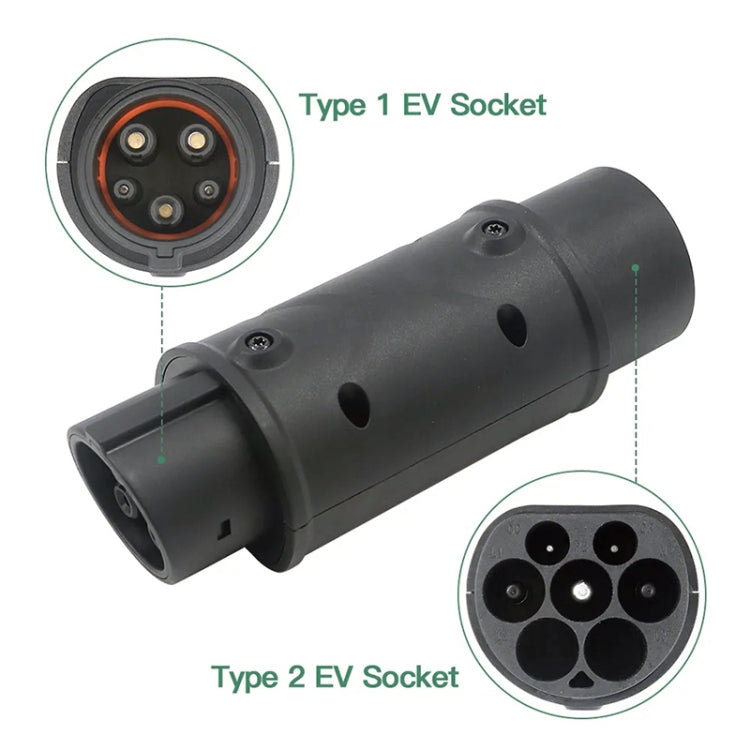

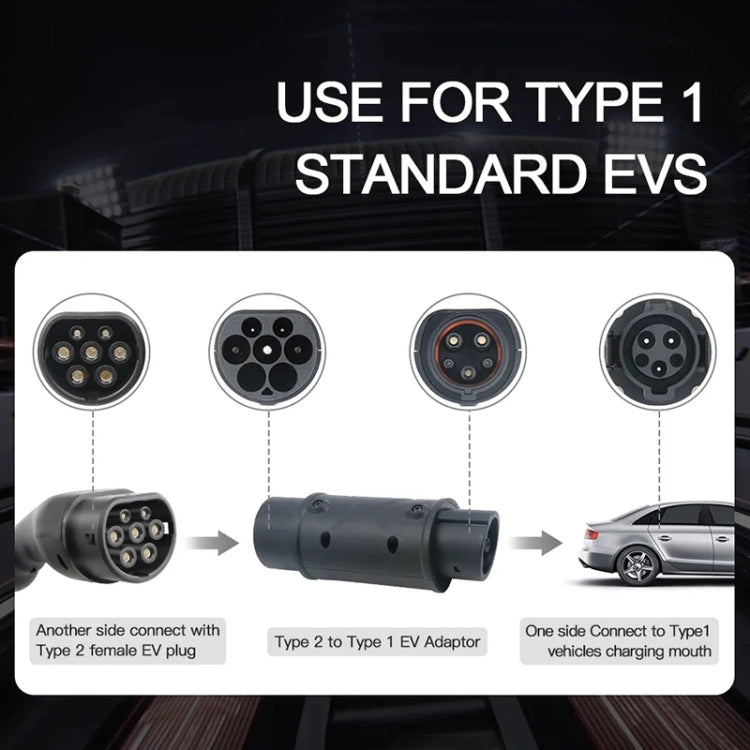

SAE J1772 New Energy Vehicle Charging Gun Type 2 to Type 1 Adapter


Price:
Sale priceRs. 7,185.00

Description

1. Shell material: thermoplastic, flame retardant grade UL94V-0
2. Pin: copper alloy, silver plated on the surface + thermoplastic on the top
3. Mechanical life: about 10,000 times of no-load plugging and unplugging
4. Insertion force during coupling: more than 45N and less than 80N
5. Rated operating current: 16A or 32A
6. Working voltage: 110V-250V
7. Insulation resistance: greater than 1000M ohms (DC500V)
8. Terminal temperature rise: less than 50K
9. Withstanding voltage: 2000V
10. Contact resistance: 0.5m ohm Max
11. Working environment temperature: -30 degrees Celsius - +50 degrees Celsius
12. Beautiful appearance, with protective cover, support front installation
13. The head of the pin adopts a safety insulation design to prevent accidental direct contact with the limbs
14. Excellent protection performance, the protection level reaches IP54
15. Widely compatible, safe to use and safe to charge
