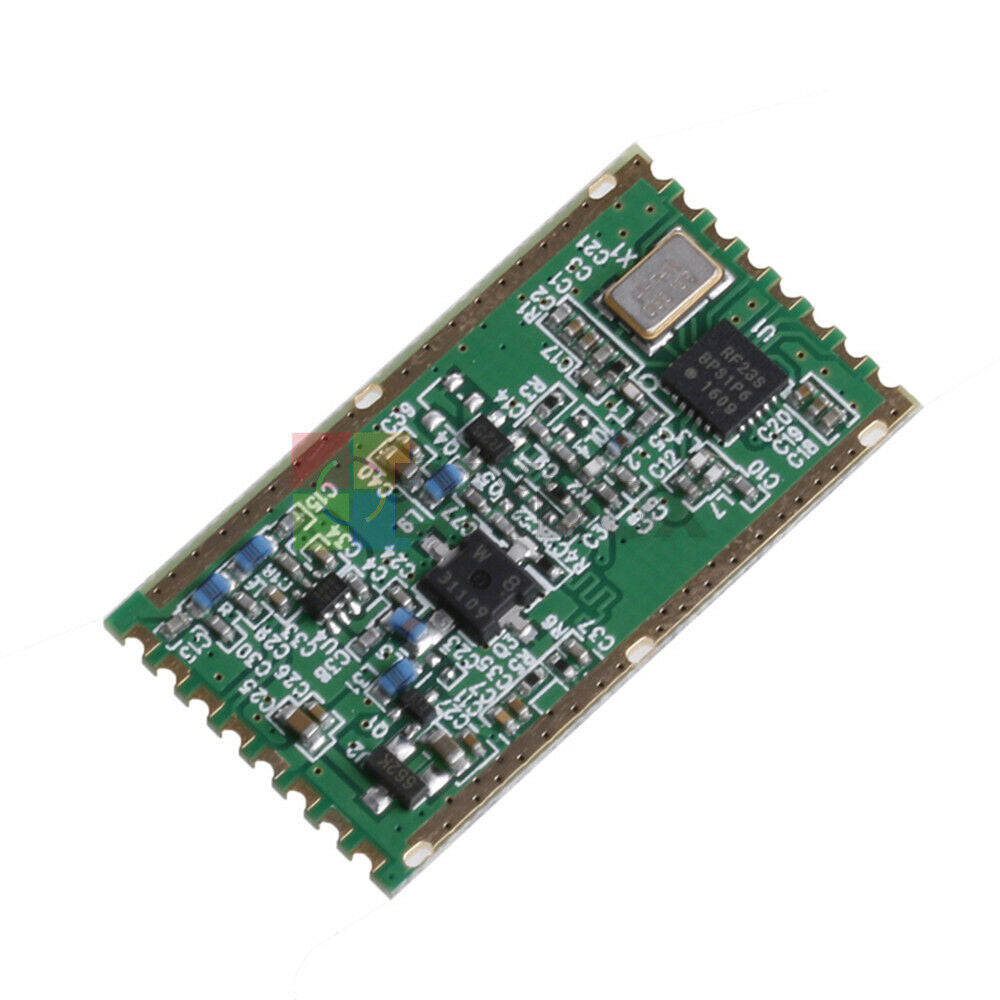

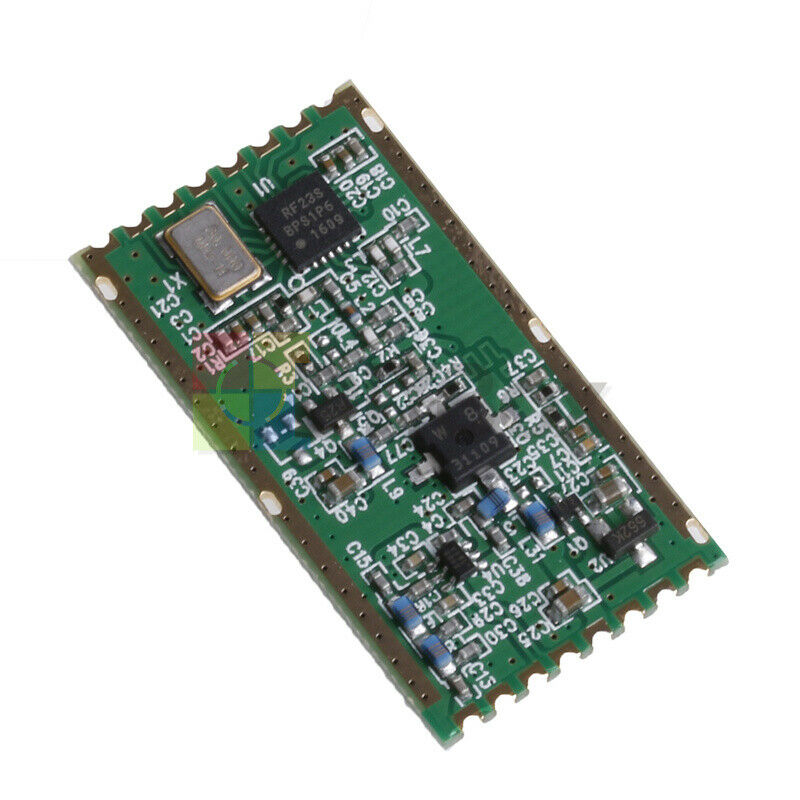

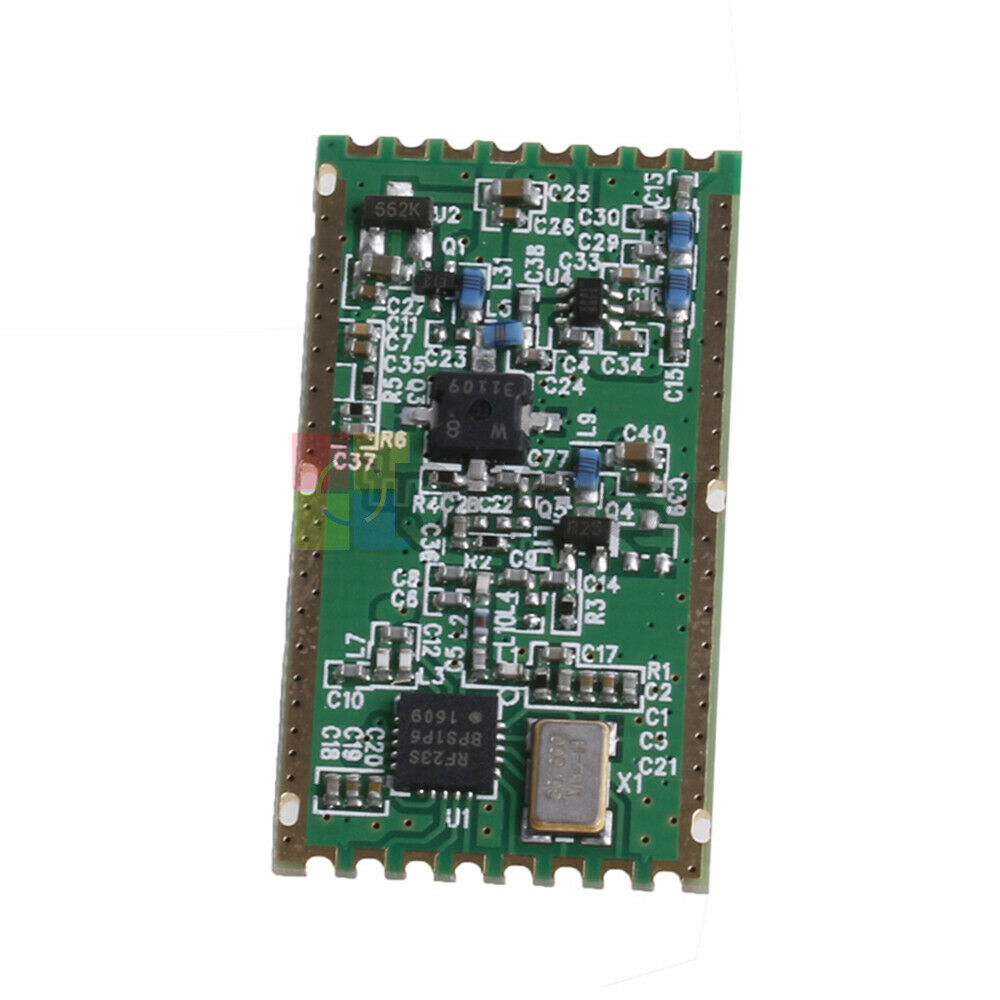

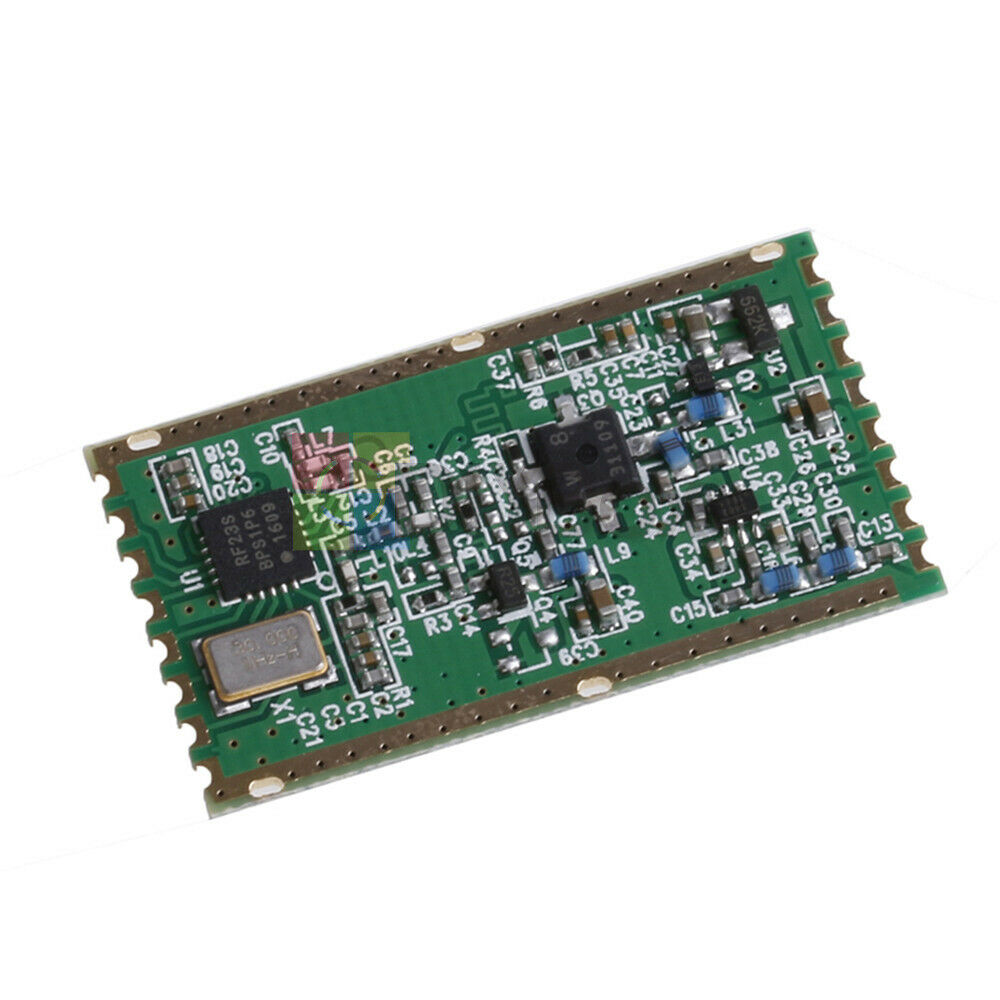

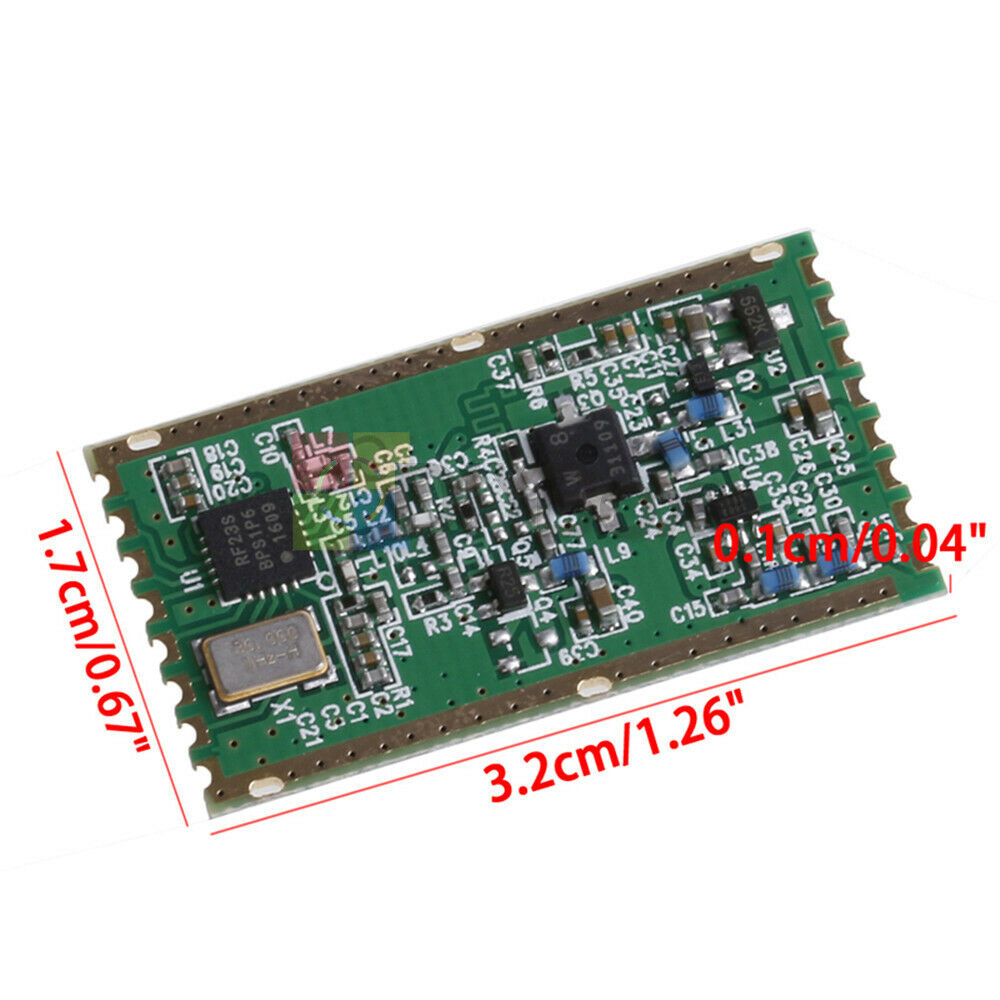

ITEM NAME:RFM23BP 433Mhz HopeRF +30dBm 1W High Power RF Wireless Transceiver Module RFM23BP 433Mhz HopeRF +30dBm 1W High Power RF Wireless Transceiver Module Description: 100% brand new and high quality Material: Electrical components Color: See pictures Description HopeRF's RFM23BP are highly integrated, low cost,433/470/868/915MHZ wireless ISM transceivers module. The low receive sensitivity(?120dBm) coupled with industry leading +30dBm output power ensures extended range and improved link performance. Built-in antenna diversity and support for frequency hopping can be used to further extend range and enhance performance. Additional system features such as an automatic wake-up timer, low battery detector, 64 byte TX/RX FIFOs, automatic packet handling, and preamble detection reduce overall current consumption and allow the use of lower-cost system MCUs. An integrated temperature sensor, general purpose ADC, poweron-reset (POR), and GPIOs further reduce overall system cost and size. The RFM23BP digital receive archit ecture features a high-performance ADC and DSP based modem which performs demodulation, filtering, and packet handling for increased flexibility and performance. The direct digital transmit modulation and automatic PA power ramping ensure precise transmit modulation and reduced spectral spreading ensuring compliance with global regulations including FCC, ETSI. An easy-to-use calculator is provided to quickly configure the radio settings, simplifying customer's system design and reducing time to market. Features: 1. Frequency Range:433/868/915MHz ISM bands 2. Sensitivity = ?120 dBm 3. Output power range: +30 dBm Max (RFM23BP) 4. Low Power Consumption: 25 mA receive; 550 mA @ +30 dBm transmit 5. Data Rate = 0.123 to 256 kbps 6. FSK, GFSK, and OOK modulation 7. Power Supply = 3.3 to 6 V 8. Ultra low power shutdown mode 9. Digital RSSI 10. Wake-up timer 11. Auto-frequency calibration (AFC) 12. Power-on-reset (POR) 13. Antenna diversity and TR switch contro.Find many great new & used options and get the best deals for RFM23BP 433Mhz HopeRF +30dBm 1W High Power RF Wireless Transceiver Module at the best online prices at Order2india Shopping! Free shipping for many products!
