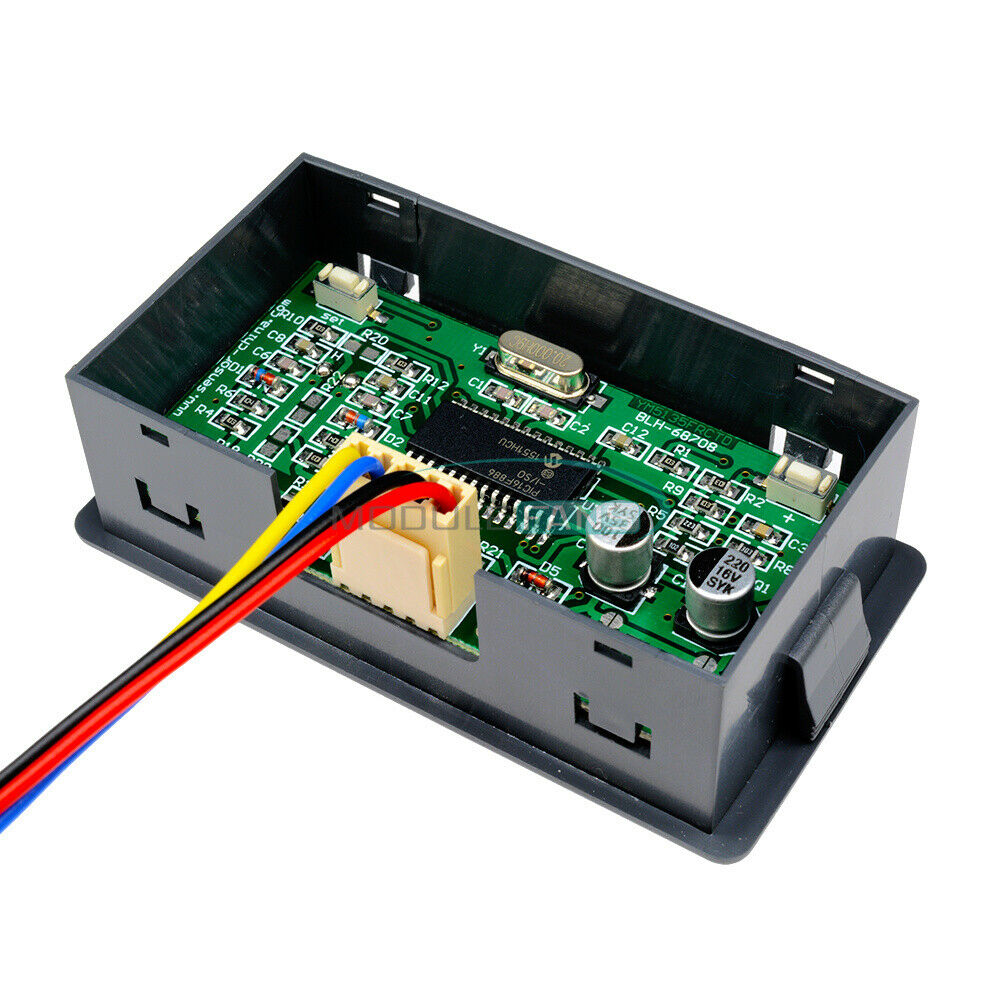

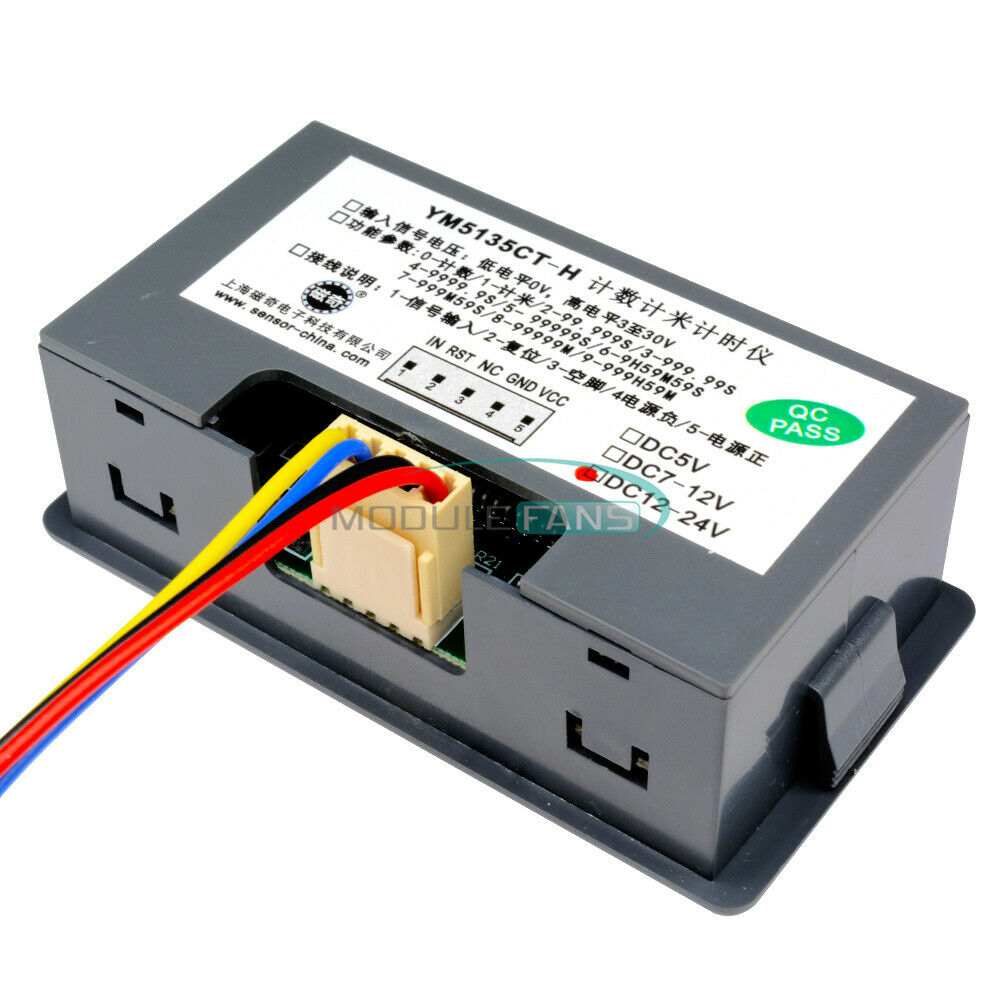

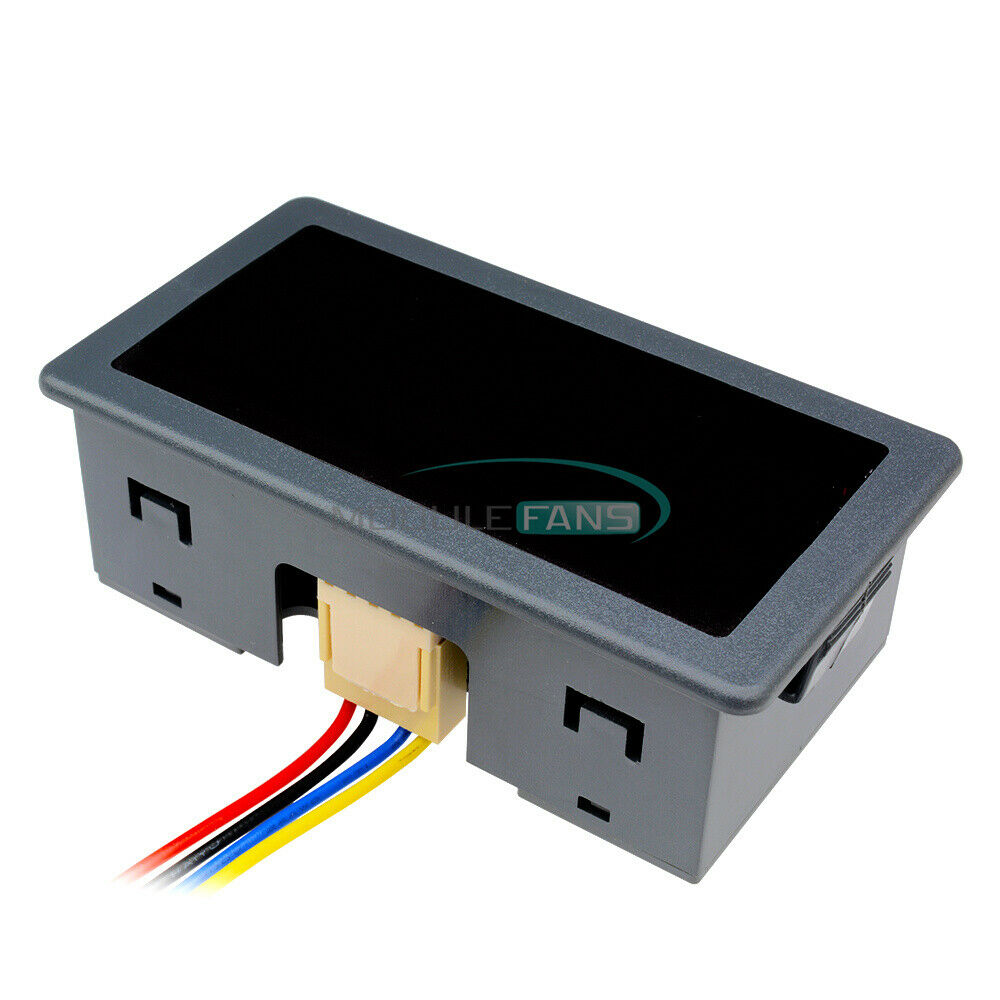

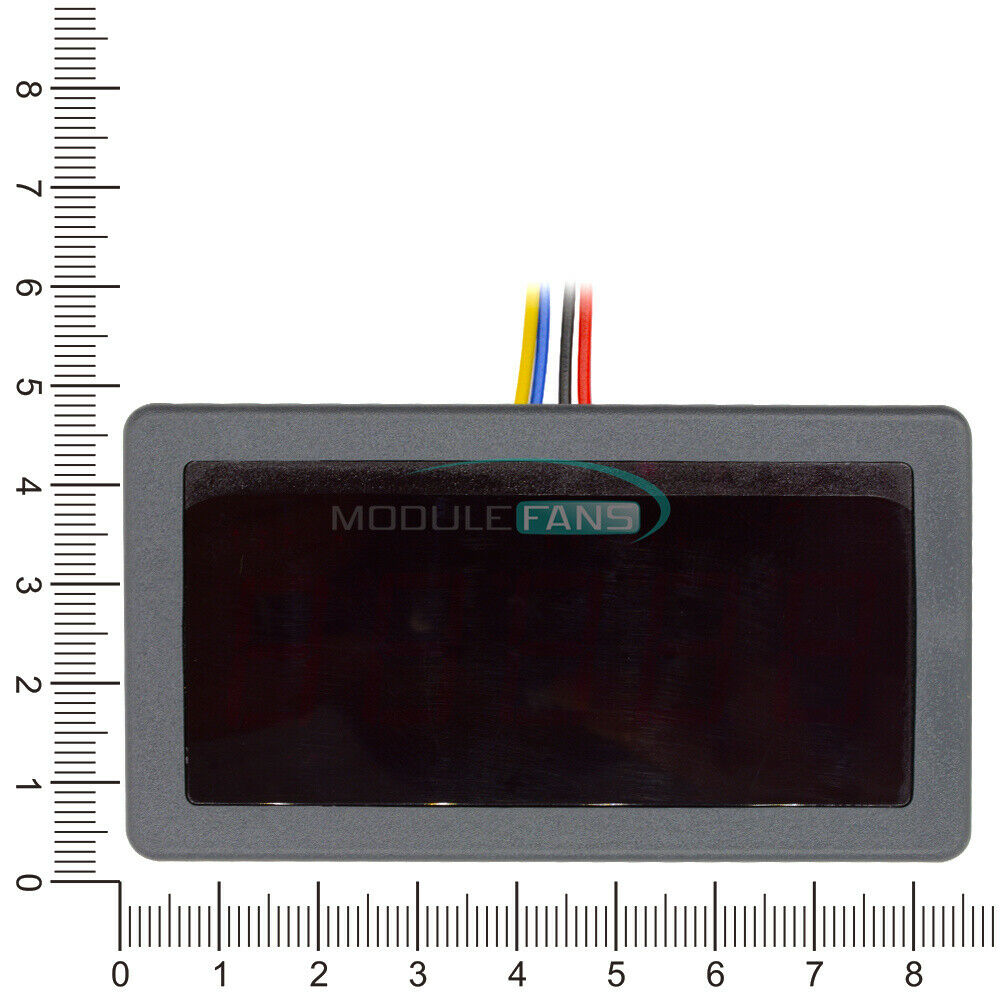

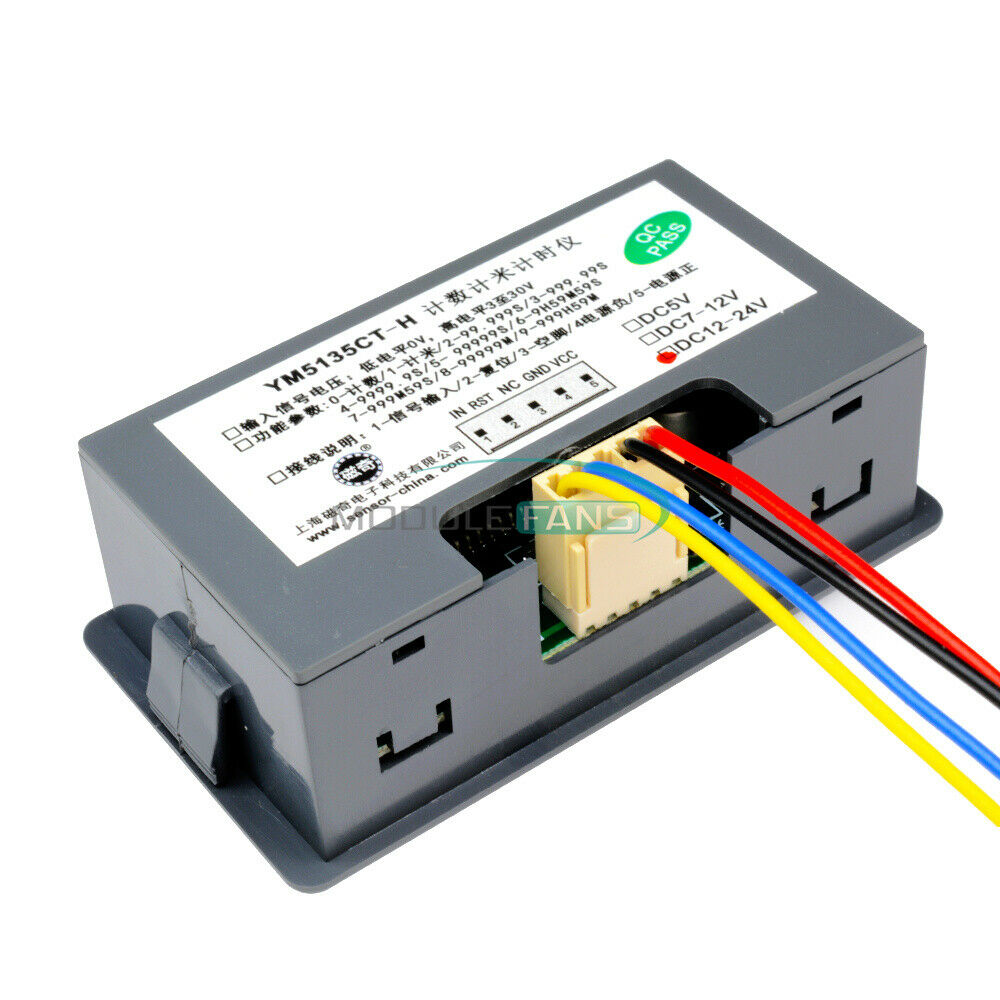

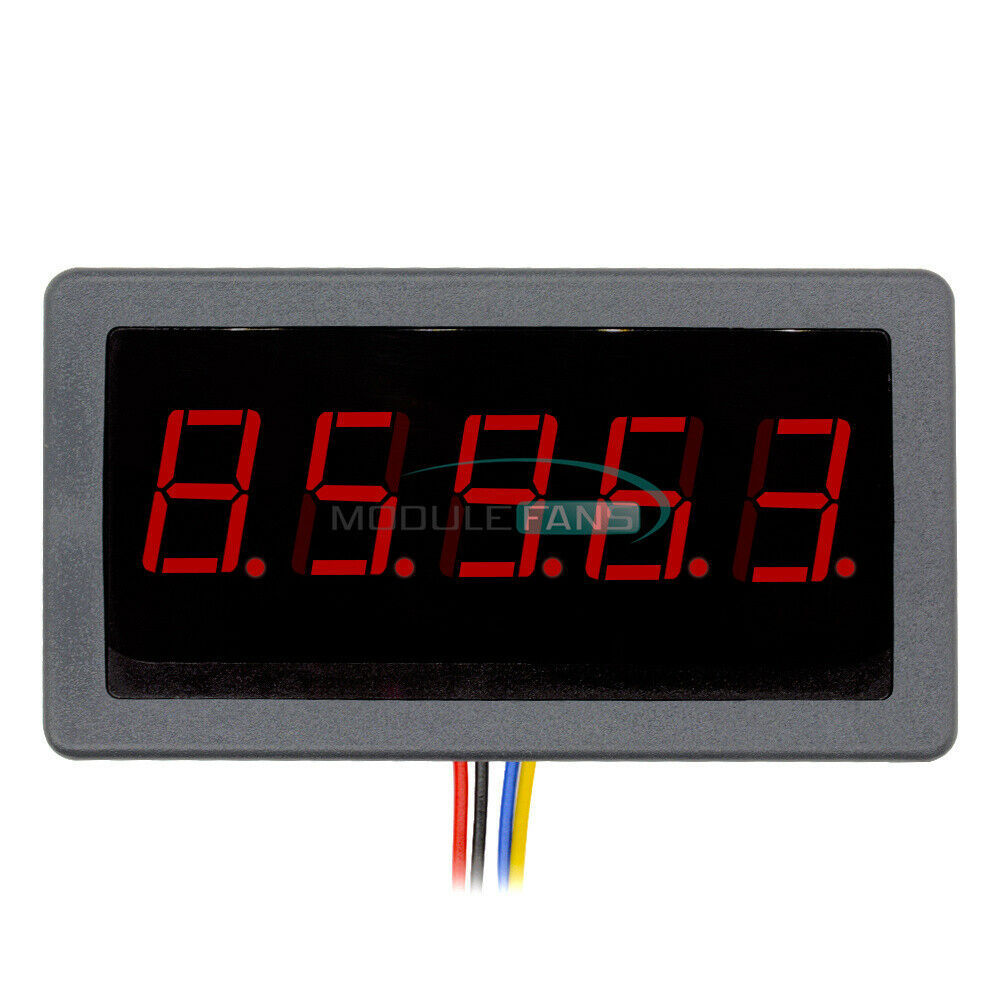

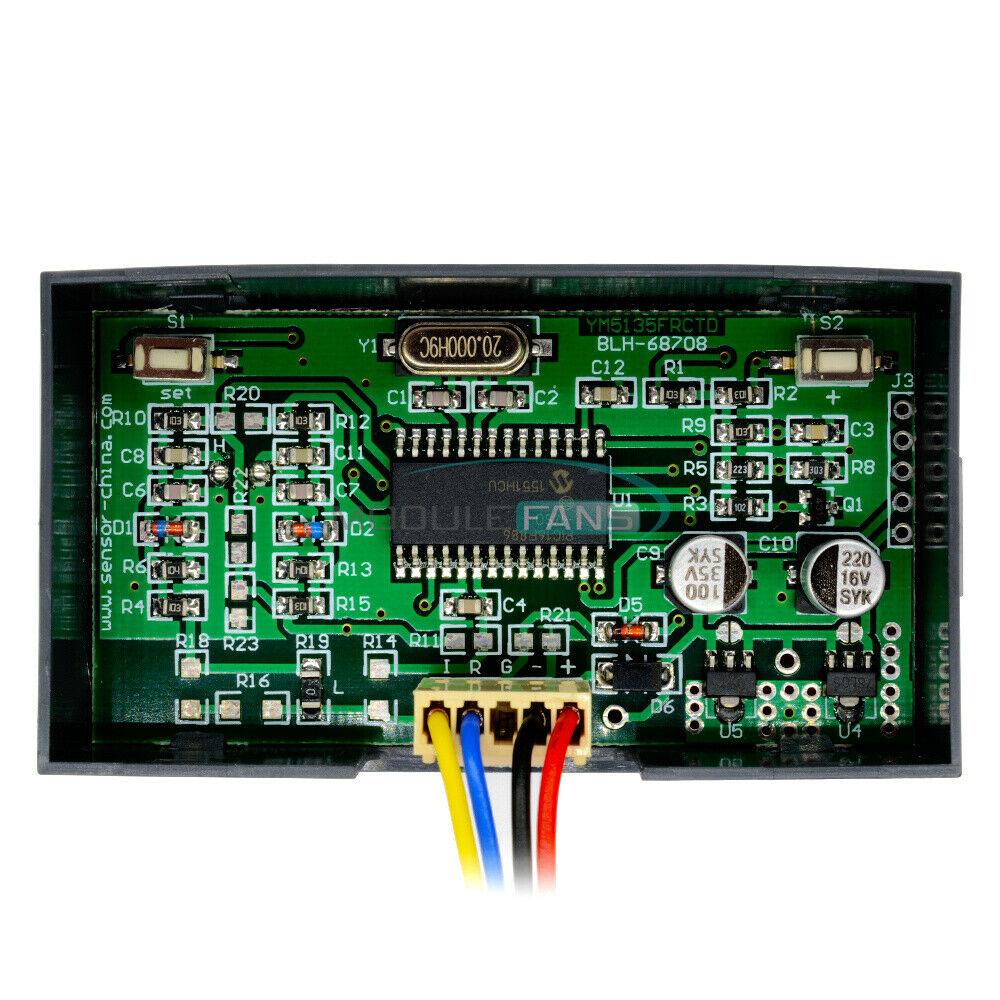

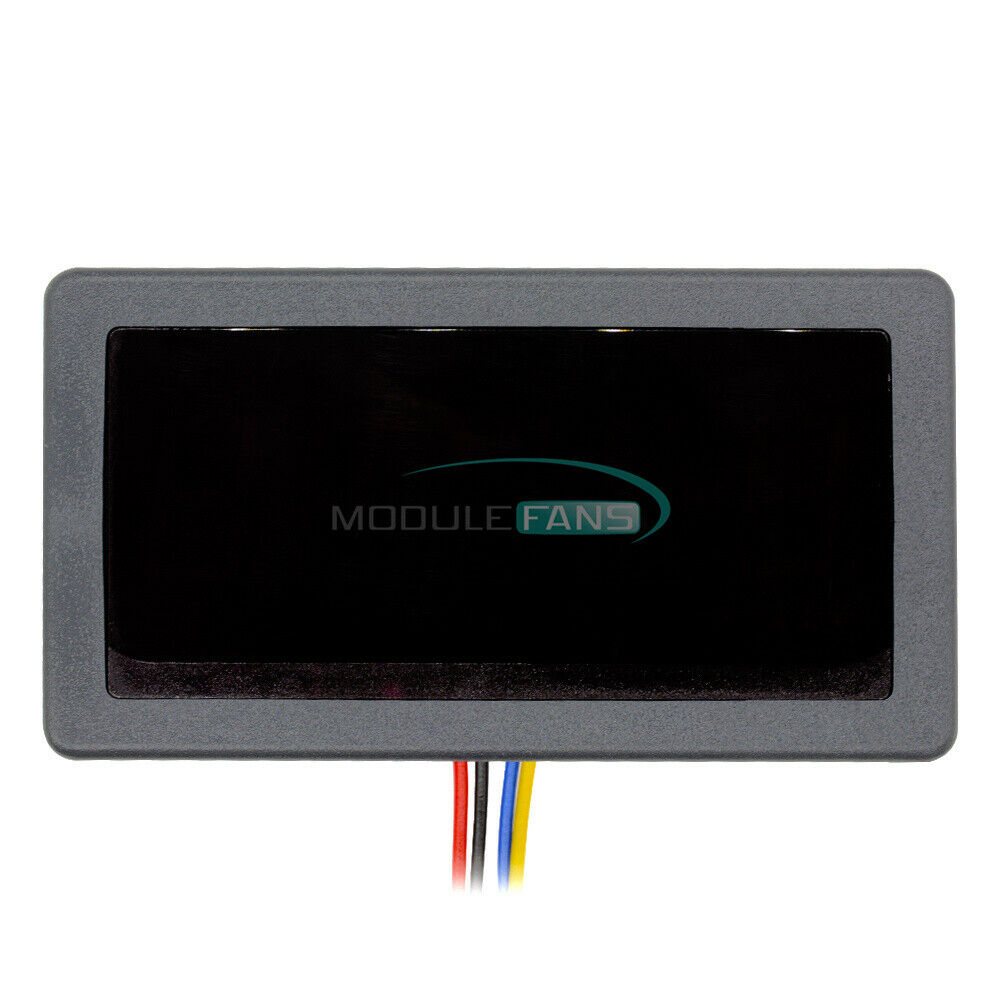

ITEM NAME:Red LED 0.56" Digital Counter Meter Count Timer Timing Three Function DC12V-24V Product Overview Red LED 0.56" Digital Counter Meter Count Timer Timing Three Function DC12V-24V Products Features Fast response when count and count meter High accuracy Including three operating modes: Counter, Meter count , Timing Top Quality & High Performance, easy to operate Hold the value when power off Specifications Counter Meter Count Timing Display Digit 0.56" 5-digits LED measurement accuracy 0.0001‰ Measure Range 0-99999 Times 0-99999 M (1m counted once) 0-9999.9 M (0.1m counted once) 0-9999.9 M (0.2m counted once) 0-9999.9 M (0.5m counted once) 999.99S 9H59M59S 99999S 99999S input signal / amplitude Dry contact、PNP、NPN、Pulse/3－30V Input Resistance 100KΩ Power supply 12-24VDC Withstand voltage AC2000V 1min Between the External terminal and the shell Anti-vibration Vibration Frequency ：1－100HZ，Acceleration: 50m/s2 X、Y、Z, each direction 5min X 10 Operating Temperature -30℃ - +70℃(-22℉- +158℉) Humidity 10－90% RH Storage Temperature －40℃－＋80℃ (-40℉- +176℉) Panel Dimensions (mm) 79X43X25（L×W×H) Cut-out Dimensions (mm) 75X39.5（L×W） NOTE Please use the item in normal environment; Please select the correct operating mode according to your requirement; Input signal should meet the requirements of impedance, if the internal impedance of the input signal is big and you need to change the impedance . Package Included: 1PCS * DC12-24V 0.56" Red LED Digital Counter Meter Count Timer Timing Three Function.0.56" 5-digits LED. Hold the value when power off. Top Quality & High Performance, easy to operate. very important to us. Otherwise deal is final. if the internal impedance of the input signal is big and you need to change the impedance.
