Price:
Rs. 27,034.00

Description

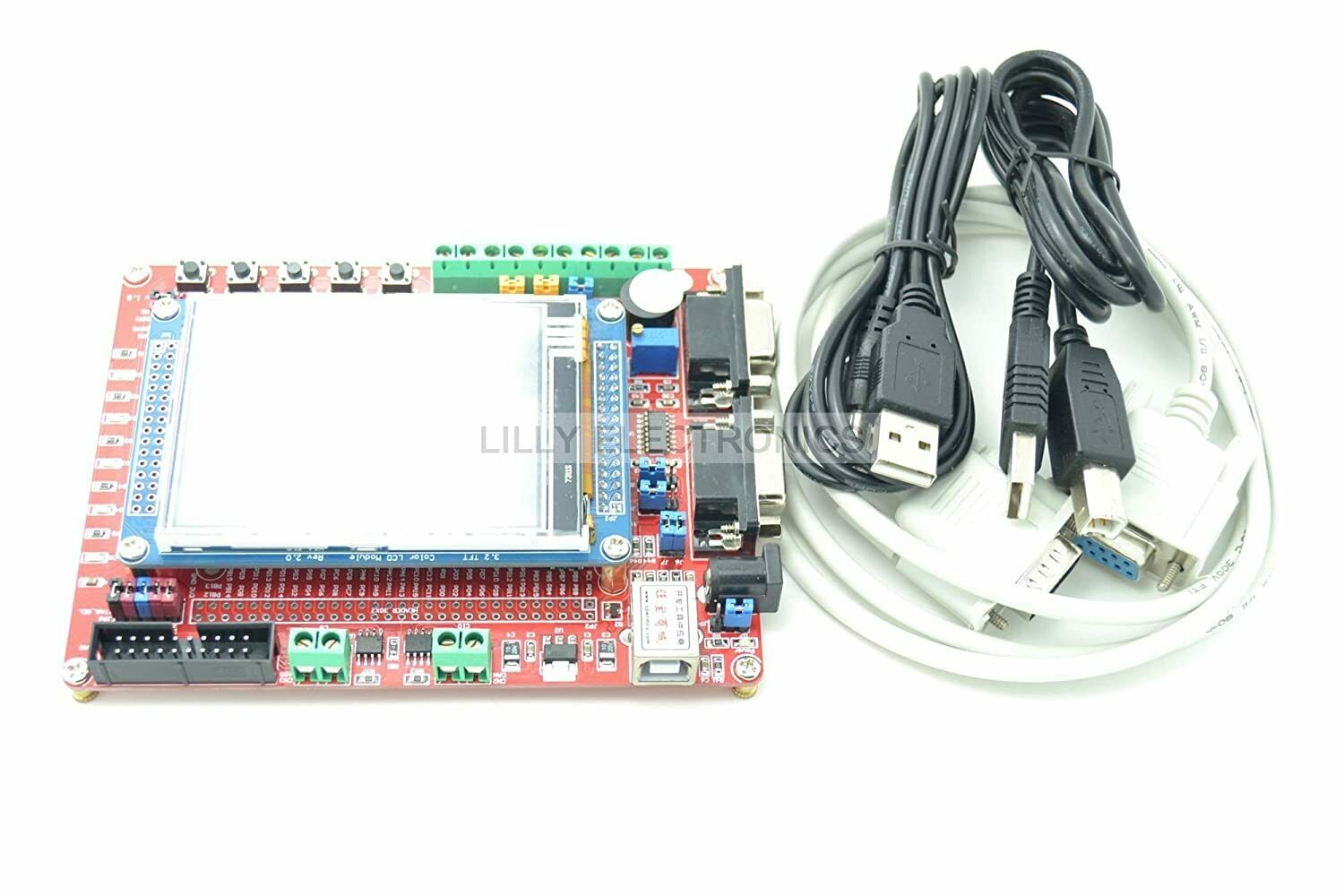

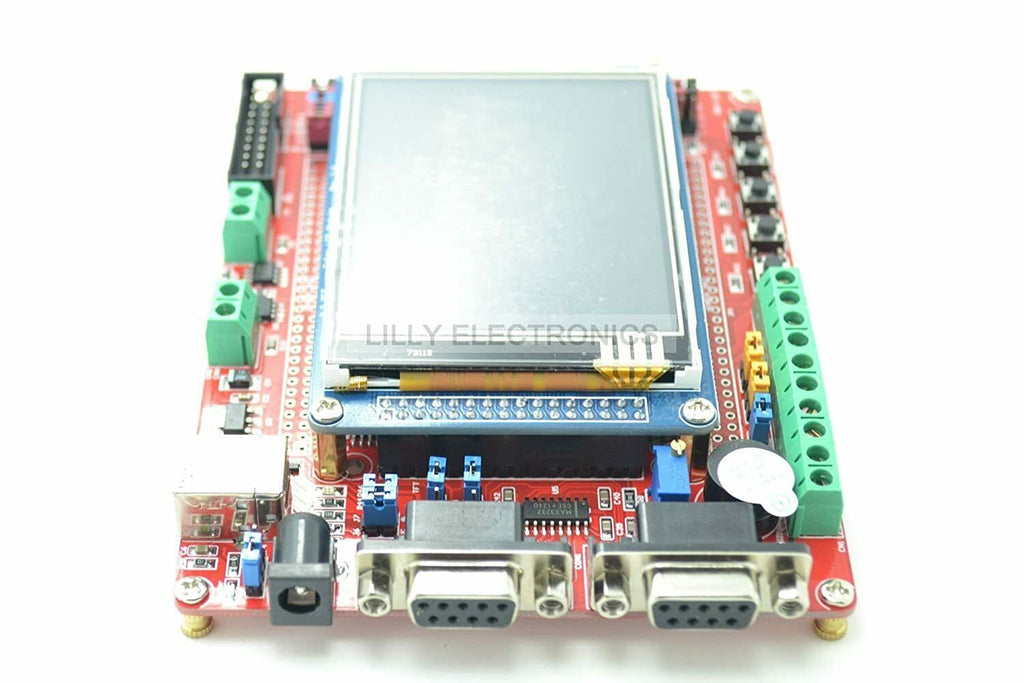

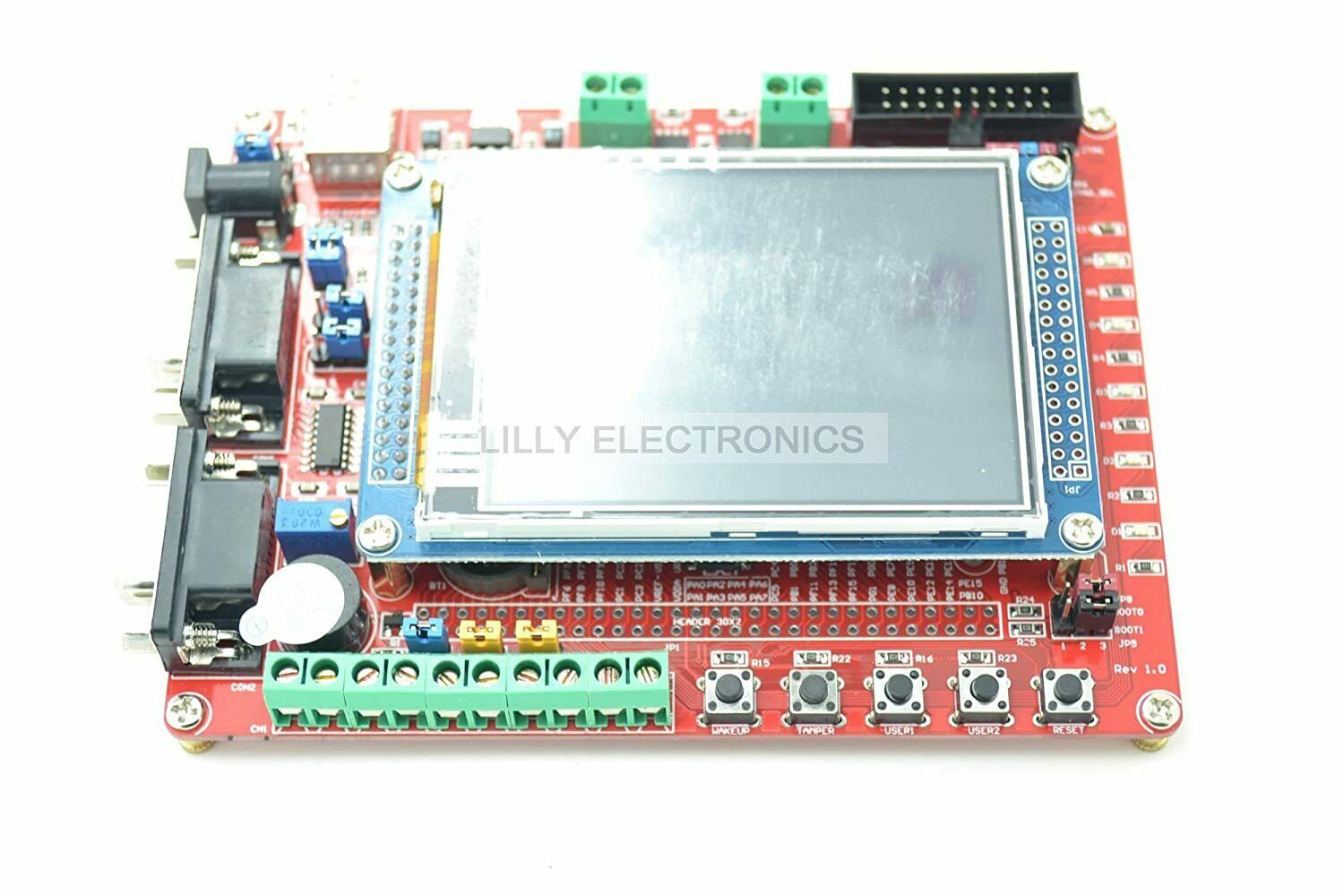

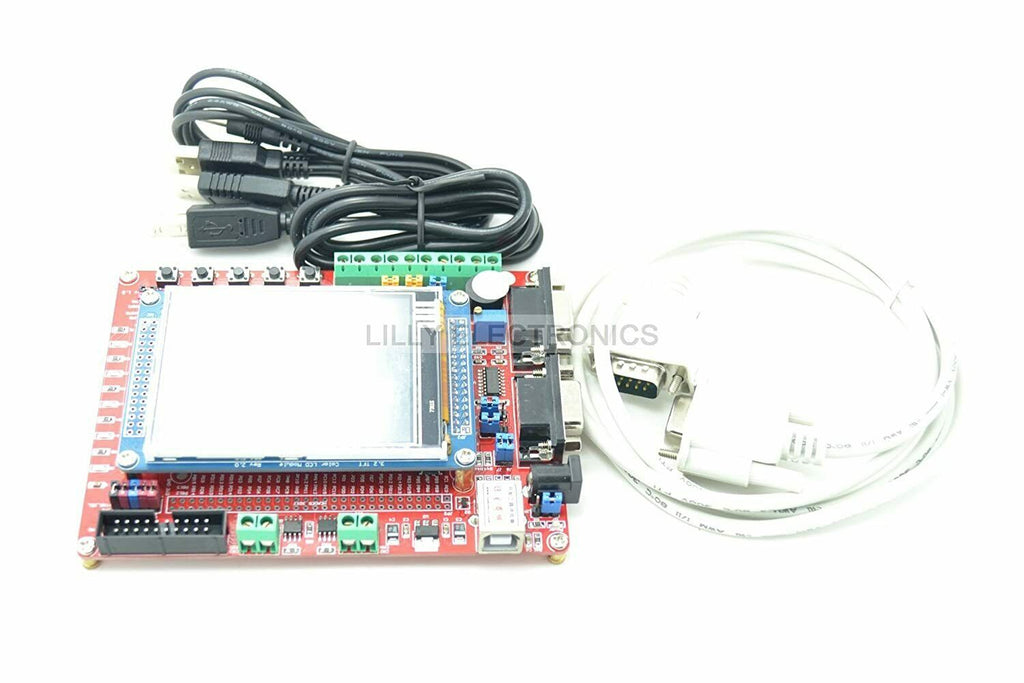

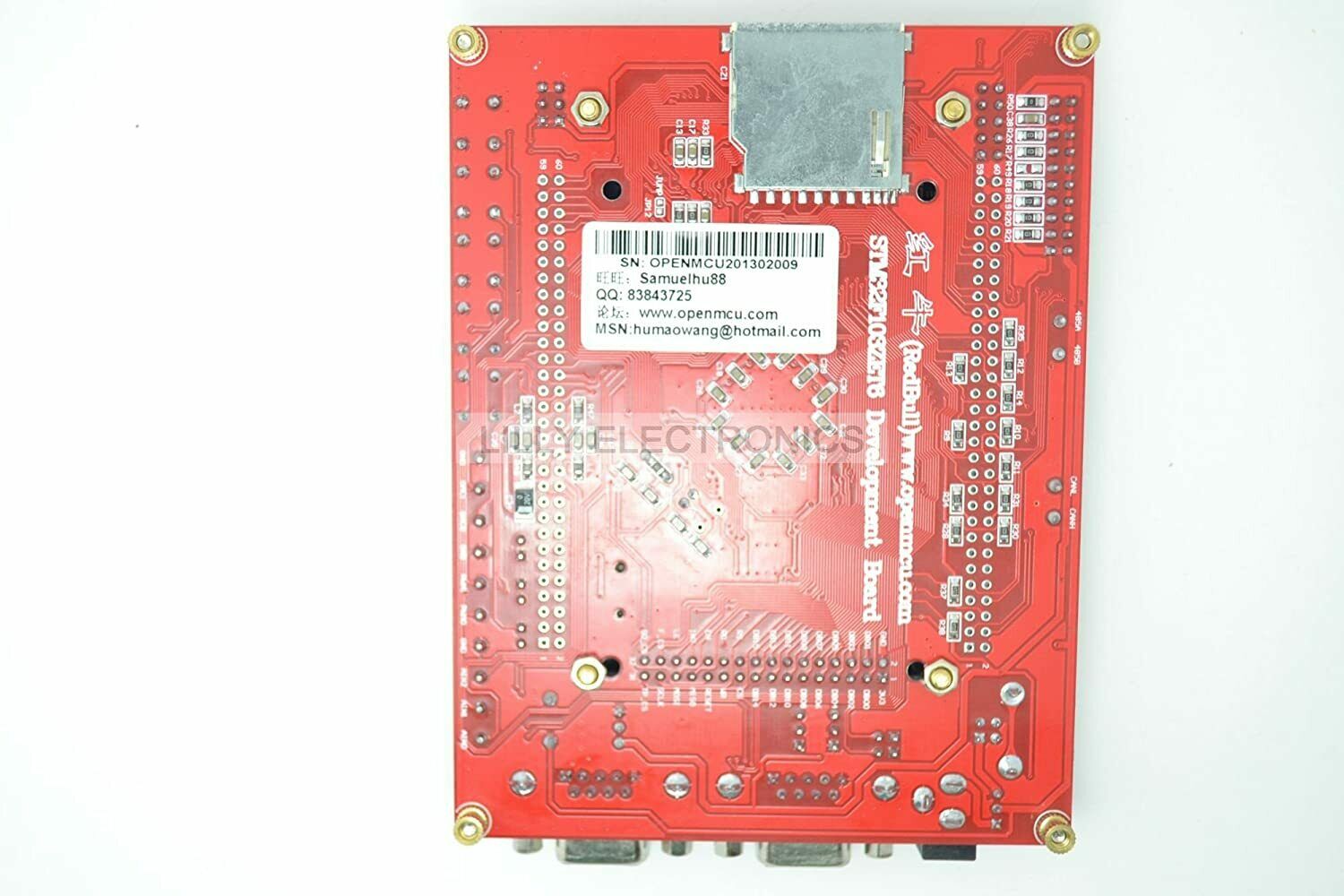

ITEM NAME:Red-bull STM32F103ZET6 Core Board +3.2 "TFT Module ARM Cortex-M3 Red-bull STM32F103ZET6 Core Board +3.2 "TFT Module ARM Cortex-M3 Sepcification: CPU:STM32F103ZET6;( Lqfp144 pin, integrated with 512k flash, 64K ram, 12bit A / D, D / A; PWM, can, USB, SDIO, FSMC and other resources) 512k SRAM and 2m nor flash (the board supports 1024k SRAM and 16m NOR Flash) can meet the requirements of large capacity data acquisition, processing and analysis 128M NAND flash is expanded on the board to meet the needs of rich picture storage, data table storage, file management and other applications on the color screen Equipped with 2.8-inch TFT true color touch screen module or 3.2-inch TFT true color touch screen module (selected by the user), FSMC control, ADS7843 touch controller is configured on the color screen module, supporting an SD card (SPI mode) for storing pictures, and supporting a data flash of at45dbxxx (which can be used for storing Chinese Character Library) One can communication interface, driver chip sn65vhd230 Two way RS232 interface One RS485 communication interface SDIO control mode of one SD card holder One I2C memory interface, standard 24LC02 (EEPROM) One SPI memory interface, standard AT45DB161D (data flash) One way ADC adjust potentiometer input Three way ADC input terminal lead out Two PWM output terminals lead out Two DAC output terminals lead out One buzzer, five user LED lights, one power indicator, one USB communication indicator, four user keys, and one system reset key Power supply selection jumper, support external 5V power supply, USB power supply or JLINK power supply Board size: 13cm x 10cm All I / O ports are led out through 2.54mm standard spacing to facilitate secondary development Package: 1x Red Bull development board (arm Cortex-M3 high-end preferred)
1x USB power cable
1x USB copper cable
1x Serial port download line
1x Red Bull DVD ROM (including schematic diagram, user manual, experimental routines, driver li.Find many great new & used options and get the best deals for Red-bull STM32F103ZET6 Core Board +3.2 "TFT Module ARM Cortex-M3 at the best online prices at Order2india Shopping! Free shipping for many products!
