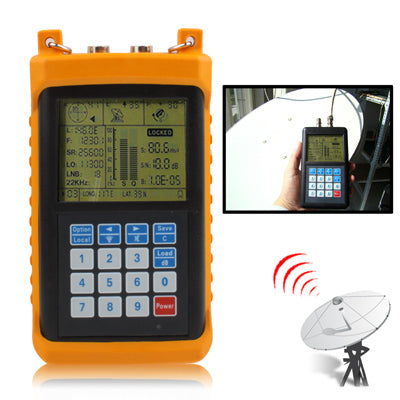

Pro Digital Satellite Finder Sat Signal Meter MF-1900

1) MF1900 Satellite Finder which can help you to finish installation and orientation of satellite quickly and conveniently, the signal respond rapidly. Even get weak signal, meter also can show the ratio of S/N.

2) According to your location and orientated satellite’s longitude, the meter will calculate the azimuth angle, elevation and polarization automatically, which to be shown in graphic. Through prompt message and carefull tuning, you can find satellite quickly and accurately.

3) The meter has set global satellite channel list, which can download updated channel list with PC and set local visible satellite channel list by your location, meanwhile, you can make a user-defined channel list which can save 100 satellite parameters.

4) Rechargeable Li-on battery supply power for radio-frequency head, don’t need any other equipments. Even without or low energy, the meter also can get power from receiver.

5) Simple operation mode and information-rich interface predigest your operating process.

6) Pictures and files just made for reference. If there is any difference, refer to the real products.

* Specification:

1) Input Frequency Range: 950~2150MHz

2) Signal field intensity range: 30dBuV-105dBuV

3) Measurement Unit: dBmV; dBµV; dBm

4) Measurement Accuracy： ±1.5dB

5) Input Resistance: 75Ω

6) Symbol Rate：2Msps-45Msps

7) Sub-body mode: F

8) Measurement item: signal strength; bit error rate; S/N

9) QPSK switch: automatic identification

10) 22Kcontrol: sustain.

11) Audio-output: loudhailer

12) Display: Block code wide-temperature LCD

13) Memory content：300 reserved positions of global satellite channel，100 user-defined channels

14) LNB Power Supply：13V，18V, ≤400mA

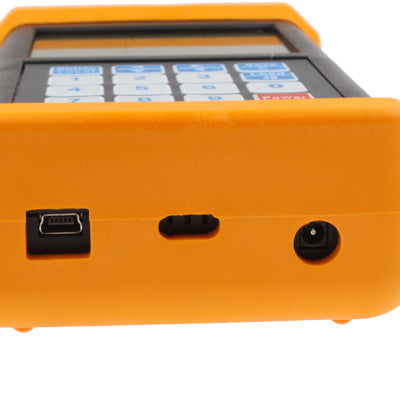

15) Interface mod：RS232

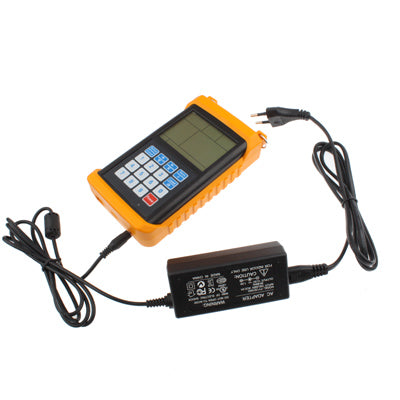

16) Adapter power supply：AC110V/60Hz/220V/50Hz ±10%

17) Meter’s direct current input voltage：DC9V/1A

18) OUTPUT-port input voltage range：DC12-23V

19) Battery working time: Fully charged, the meter will work about 3.5 hours continuously. Difference according to high-frequency head’s electric quantity.

20) Charging time：>4 hours and no longer than 6 hours.

21) Working Temperature：0~40℃

22) Storage Temperature：-10~50℃

23) Exterior size：142x82x35mm

24) Weight： 0.42Kg with battery
