Description
1) Automatic scroll information, automatic jump to new code / info, needn’t press any key
2) Remember the BIOS selection when power off
3) Quickly search code records, long time hit PAGE will jump -5th step
4) This card use database compress technologies, so we can store all debug error information to MCU
5) The MCU can analysis debug code and show error information, thus you can repair your main-board quickly. It shows on graphic LCD. It shows information in English, simplified / traditional Chinese.
6) 18 codes in total, current 05th , CODE= C3, PAGE1
7) This card cannot support hot plug in / out, please do not plug in / out when the main board is power on
8) Please check power + 3.3V if there is nothing display
9) Display “no debug code†means the main-board not running. Please check the CPU and power supply
10) Size: 74mm x 50mm x 5mm

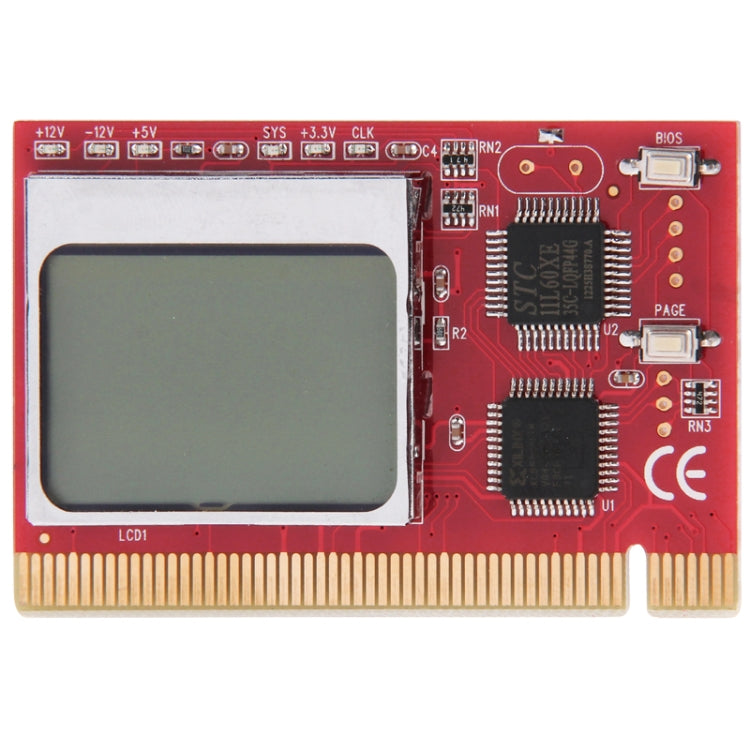

11) Keys and LED indicators:
1. Bios key: short time hit to change Bios. Long time hit stores current selection
2. Page key: short time hit show previous code. Long time hit show 5th previous code from current
3. +12V LED: PCI slots + 12V power indicator
4. -12V LED: PCI slots -12V power indicator
5. +5V LED: PCI slots + 5V power indicator
6. +3.3V LED: PCI slots +3.3V power indicator
7. CLK LED: PCICLK signal indicator
8. SYS LED: MCU running indicator, normally flashing
2) Remember the BIOS selection when power off
3) Quickly search code records, long time hit PAGE will jump -5th step
4) This card use database compress technologies, so we can store all debug error information to MCU
5) The MCU can analysis debug code and show error information, thus you can repair your main-board quickly. It shows on graphic LCD. It shows information in English, simplified / traditional Chinese.
6) 18 codes in total, current 05th , CODE= C3, PAGE1
7) This card cannot support hot plug in / out, please do not plug in / out when the main board is power on
8) Please check power + 3.3V if there is nothing display
9) Display “no debug code†means the main-board not running. Please check the CPU and power supply
10) Size: 74mm x 50mm x 5mm
11) Keys and LED indicators:
1. Bios key: short time hit to change Bios. Long time hit stores current selection
2. Page key: short time hit show previous code. Long time hit show 5th previous code from current
3. +12V LED: PCI slots + 12V power indicator
4. -12V LED: PCI slots -12V power indicator
5. +5V LED: PCI slots + 5V power indicator
6. +3.3V LED: PCI slots +3.3V power indicator
7. CLK LED: PCICLK signal indicator
8. SYS LED: MCU running indicator, normally flashing
