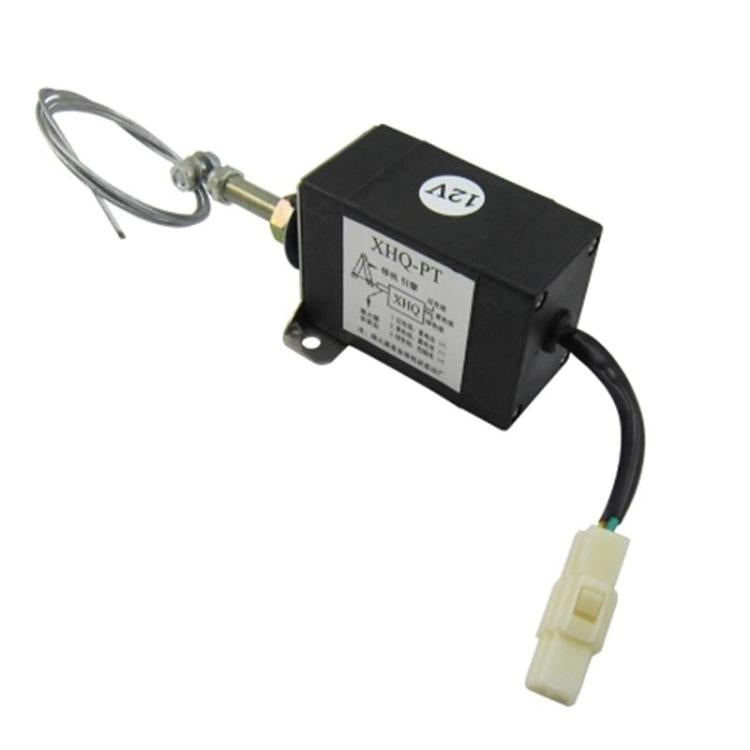

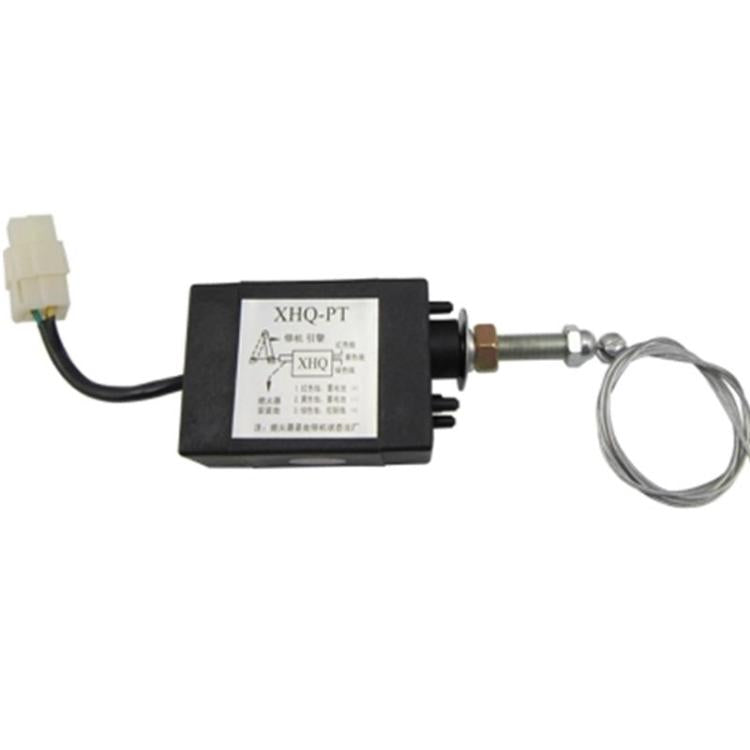

Normally Open Type NO 12V Diesel Engine Flame Out Device Engine Stop Solenoid Valve XHQ-PT Power Off Pull Type Flameout Magnetic Valve
Normally Open Type NO 12V Diesel Engine Flame Out Device Engine Stop Solenoid Valve XHQ-PT Power Off Pull Type Flameout Magnetic Valve
Normally Open Type NO 12V Diesel Engine Flame Out Device Engine Stop Solenoid Valve XHQ-PT Power Off Pull Type Flameout Magnetic Valve
Roll over image to zoom in Click on image to zoom
Normally Open Type NO 12V Diesel Engine Flame Out Device Engine Stop Solenoid Valve XHQ-PT Power Off Pull Type Flameout Magnetic ValveNormally Open Type NO 12V Diesel Engine Flame Out Device Engine Stop Solenoid Valve XHQ-PT Power Off Pull Type Flameout Magnetic ValveNormally Open Type NO 12V Diesel Engine Flame Out Device Engine Stop Solenoid Valve XHQ-PT Power Off Pull Type Flameout Magnetic Valve

Normally Open Type NO 12V Diesel Engine Flame Out Device Engine Stop Solenoid Valve XHQ-PT Power Off Pull Type Flameout Magnetic Valve

O2I24
Price:
Rs. 2,849.00

Description

1. The contact between the fire stopper and the switch is controlled by a relay. The switch opens and closes, ensuring that the screw contacts the travel distance first during operation, providing a good buffering effect, protecting the switch, and extending its service life.
2. The microswitch of the flameout device can carry a current of 2-3A, making it more robust and durable;
3. Effectively manage the sparks generated by the flameout motor during operation to improve motor performance and make it more stable;

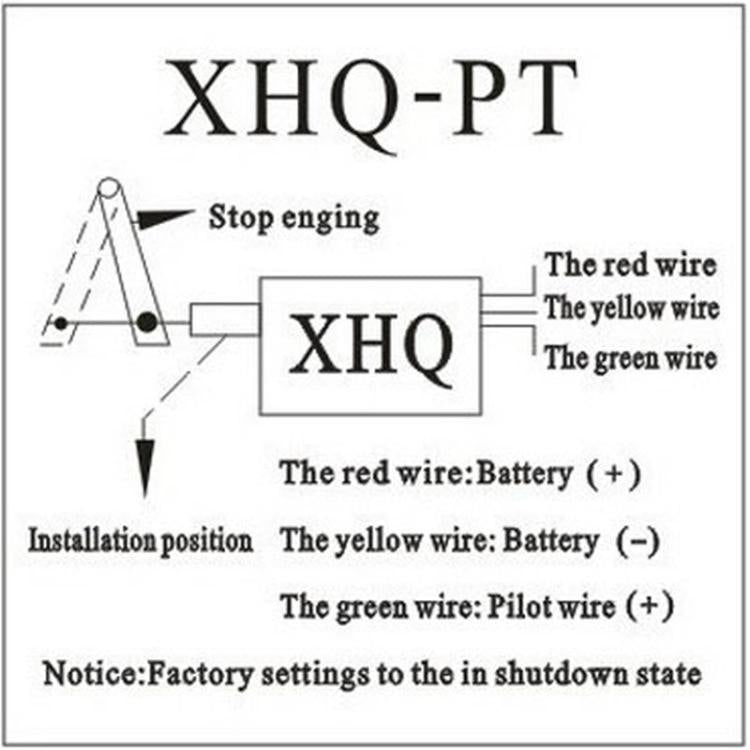

4. Wiring method: Connect the red wire to the positive power supply, the yellow wire to the negative power supply, and the green wire to the control wire. Use a direct-plug interface port for convenience and speed.
5. Each flameout device undergoes hundreds of load tests (150N+ tensile force) before leaving the factory, and is only packaged after passing the tests;
6. Perform 20 load tests each on an upward tilt of 60 degree and a downward tilt of 60 degree (tensile force of 150N+).
7. Conduct resistance-to-rotation tests, exceeding 1000 times.
8. Superior Material: The outer shell material has advantages such as high strength, high hardness, flame retardancy, freeze resistance, impact resistance, and aging resistance.
9. Low price: The price is much lower than that of the shutdown solenoid valves currently widely used in the market, which can reduce production costs.
10. Wide applicability: Applicable to various types of diesel engines.

Parameter:
1. Rated Voltage: DC 12V / DC 24V (optional)
2. Working Current: Less than or equal to 1A
3. Reaction Time: Less than 2S
4. Distance of run: 45mm +/-2mm
5. Temp Range: -40~150 degrees
6. Service lifetime: Greater than or equal to 10000 times
7. The length: 100cm
8. Pull: Greater than or equal to 150N
