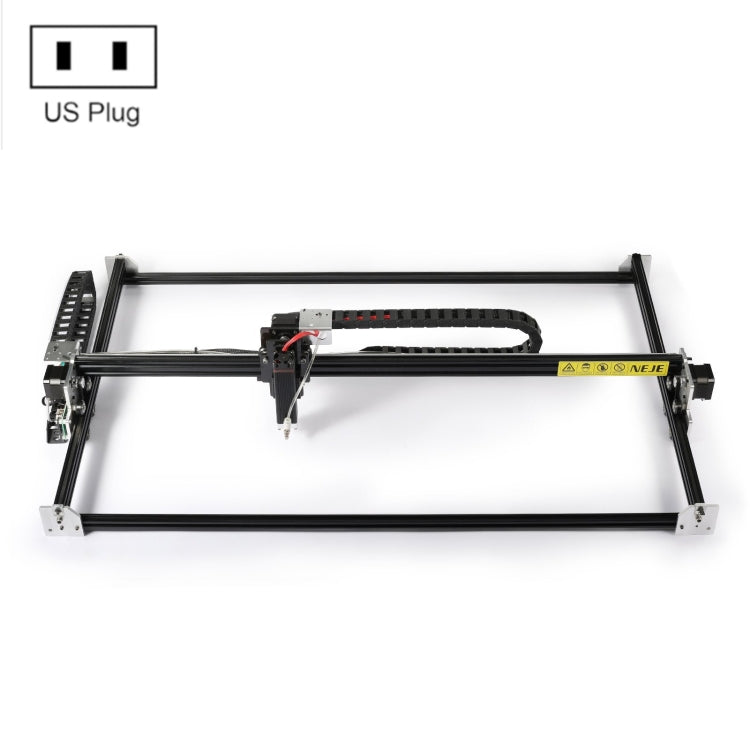

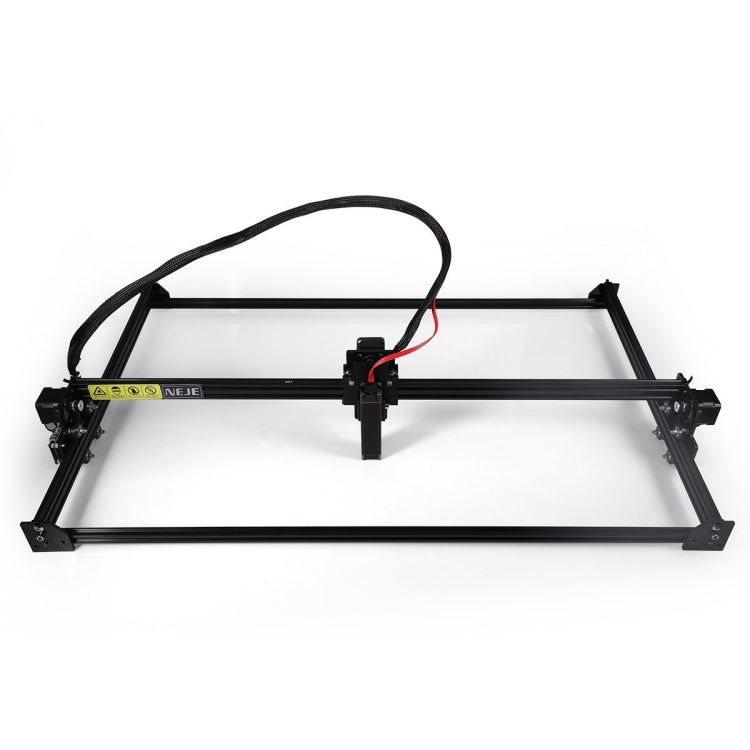

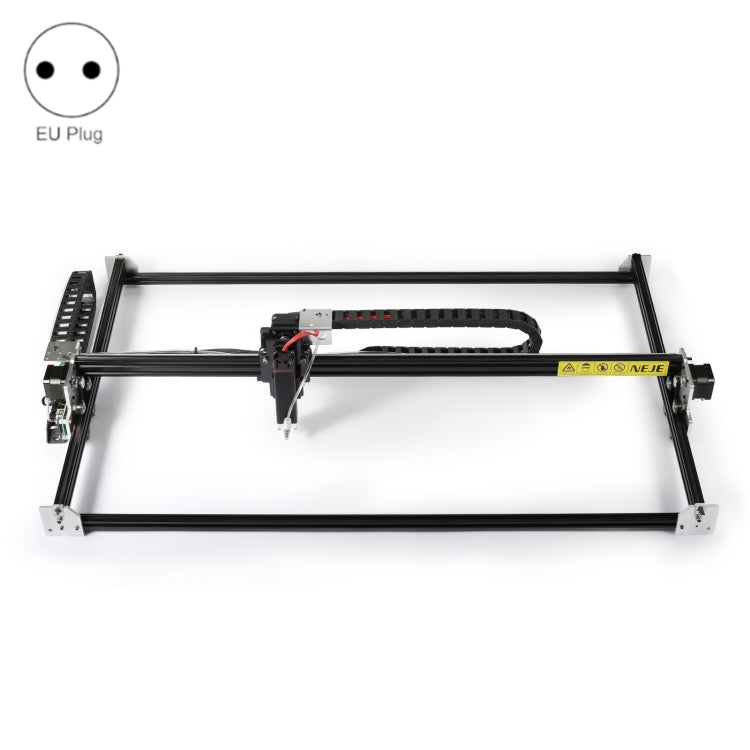

NEJE MASTER 3 MAX Laser Engraver with F30130 Laser Beam Module

1. Frame size (L-W-H): 590x980x160mm
2. Working size (X - Y): 460 x 810mm, area expansion design
3. Dot pitch: 0. 075mm
4. Pixels: 6133 x 10800 pixels
5. Frame material: All-aluminum alloy and PC material mixed frame
6. Structure: Y-axis fit adjustable design, X-axis stress fit assembly
7. Structural features: fit, high precision, stability, smooth, oil-free, easy maintenance, long life
8. Motor drive current: 0.9A
9. Maximum moving speed: X: 1000mm/s (with F30130 module 204g)
Y:750mm/s
10. MCU: 32-bit MCU
11. Input: 12V 5A
12. Compatible modules: all NEJE 12V 4pin laser modules
13. You can safely and stably upgrade to the latest GRBL firmware through the NEJE software. When using the device for the first time, please open the NEJE software to update to the latest firmware.
14. NEJE has optimized the low-light experience of diode lasers in GRBL mode, and the low-light settings can be adjusted through the laserGRBL software.
15. NEJE is compatible with M8, M7, Door functions, and automatically adapts to lightburn, laserGRBL, and NEJE software to achieve better process automation.
16. The motor is automatically locked when powered on, and secondary processing can be performed when repeating the engraving work without losing position information.
17. NEJE win software adds area customization settings, NEJE provides extended track function, the Y-axis area and X-axis area can be freely expanded, and the laser module is also automatically silent engraving.

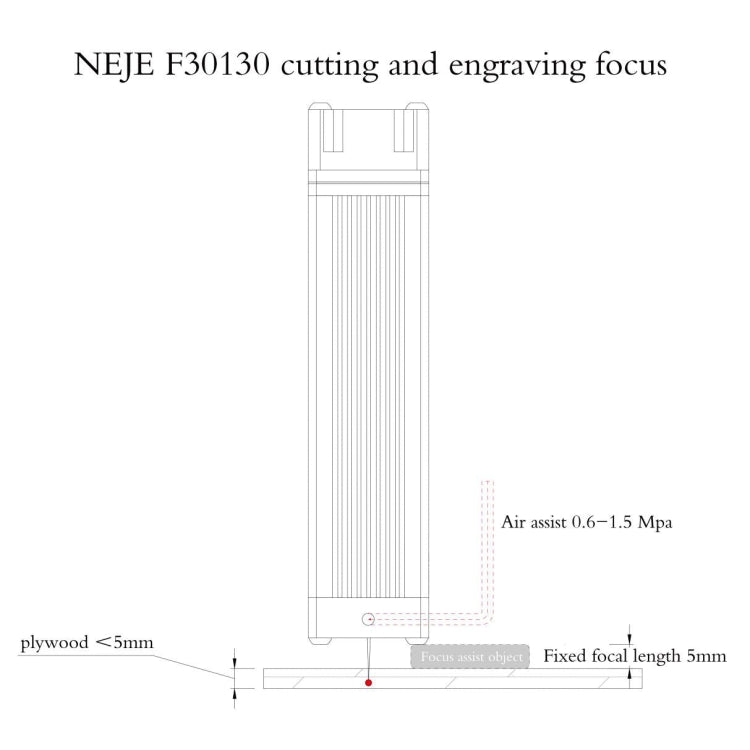

18. The NEJE 3 comes standard with a high pressure air assist kit.
19. NEJE 3 adopts all-metal frame + PC CNC structural parts, which improves the stability of the structure and enhances the smoothness of movement. Adopt easy maintenance drive structure.
20. The NEJE 3 Max comes standard with an M8 air valve kit for controlling air assist, an M7 relay switch kit for controlling the fume extraction system, and a door switch for emergency stop.

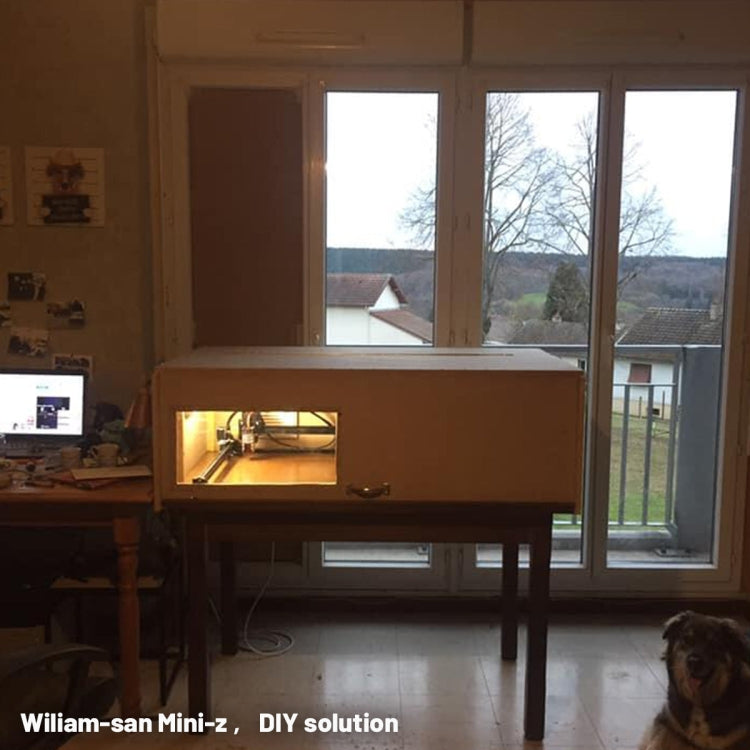

21. The NEJE 3 Max comes standard with a drag chain to organize the air ducts and wires for easy installation into a closed box.
22. NEJE has greatly enhanced the anti-static and surge design under the new control system. NEJE has passed very strict tests in the experiment, which greatly improves the reliability of the NEJE control system. The new system does not require additional grounding to protect equipment.
23. The new laser uses a high temperature resistant window to protect the lens, which effectively improves the service life of the lens.

feature:

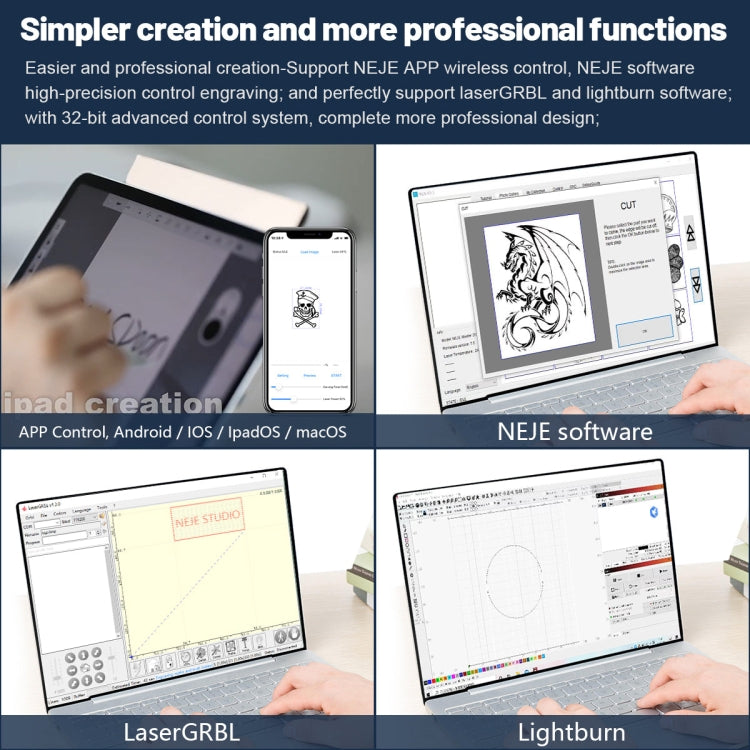

1. Support NEJE software, NEJE APP, LaserGRBL, Lightburn at the same time.
2. Compared with NEJE 2s MAX, the operation experience is greatly optimized, the weak light display of light burning in laser GRBL and GRBL modes is added, and the weak light intensity can be adjusted by laser GRBL.
3. After the machine is powered on, the motor will be automatically locked, so that two operations can be performed after work without repositioning; the interactive experience is optimized, and the interaction with laserGRBL and lightburn software is optimized.

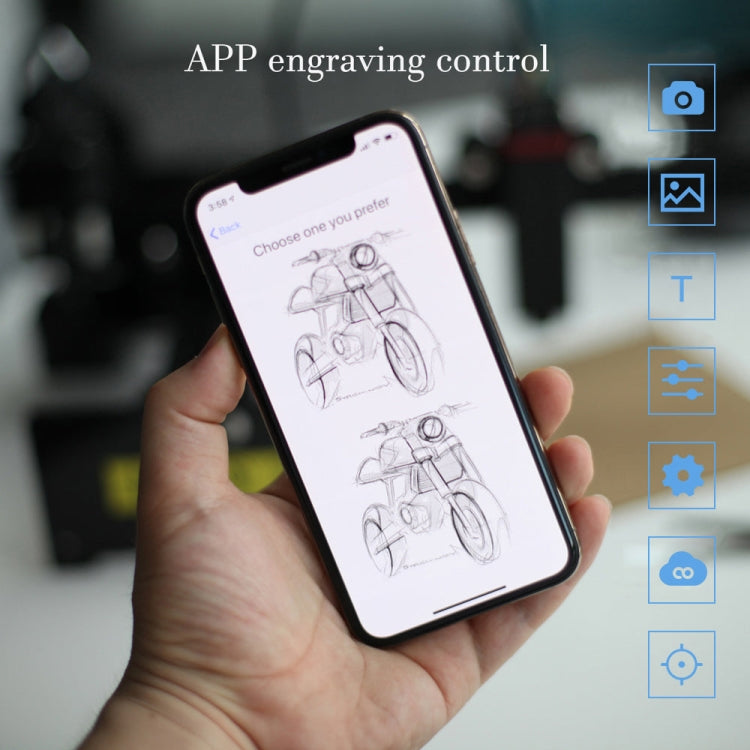

4. BLE-based wireless control, support NEJE APP wireless control;
5. Support NEJE 2S Max to replace the motherboard. The device only adjusts the position of the YL and YR motor sockets.
6. More functions: Added M8, M7, Door functions, all compatible with NEJE software, laserGRBL, Lightburn, M8 generally realize air-assisted automatic control, and realize dynamic control of each process; M7 function is generally used to realize smoke control; There is a problem with the message mechanism of the lightburn software, the door function can only be stopped, but it can be suspended in NEJE mode or LaserGRBL mode, after canceling the door, you can continue to work without losing work; NEJE provides M8, M7, door function expansion accessories, including Air valve switch and relay switch, you can use these accessories to realize the automatic control of air compressor air circuit, smoke exhaust fan circuit, oxygen generator circuit.
7. The new version of NEJE V6.1.2 software supports area expansion. You can simply modify the track length to achieve area expansion. NEJE also provides options for expanding the track.
8. Built-in sensor protection, currently in NEJE mode, when the machine angle changes, the device will automatically stop working.
9. The top-level 32-bit processor replaces the first two chip processing solutions and is more reliable. It supports OTA upgrade in NEJE mode. NEJE continuously upgrades software and firmware to provide more surprises and useful functions.
