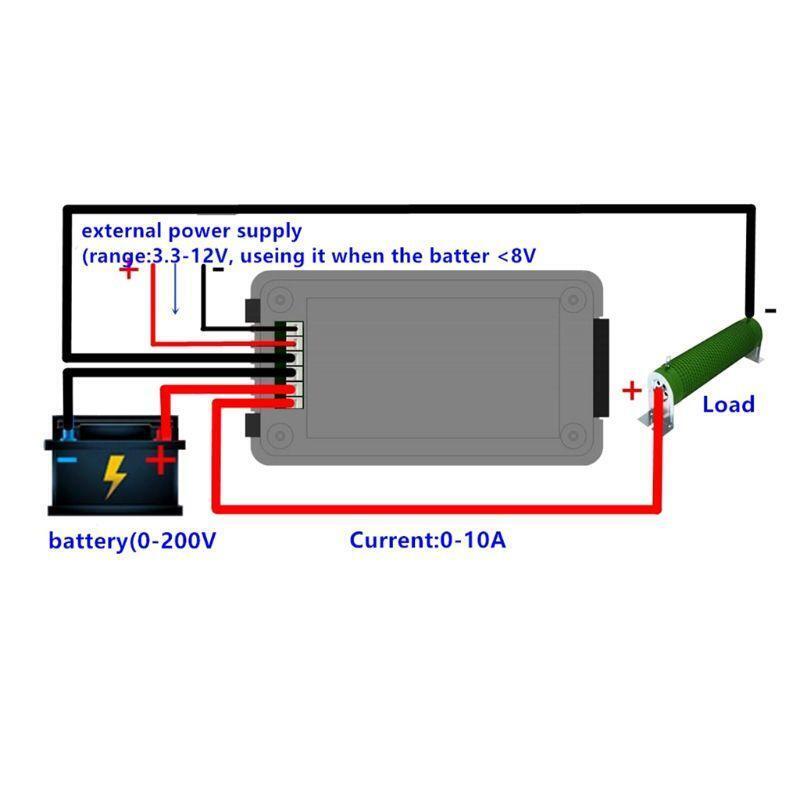

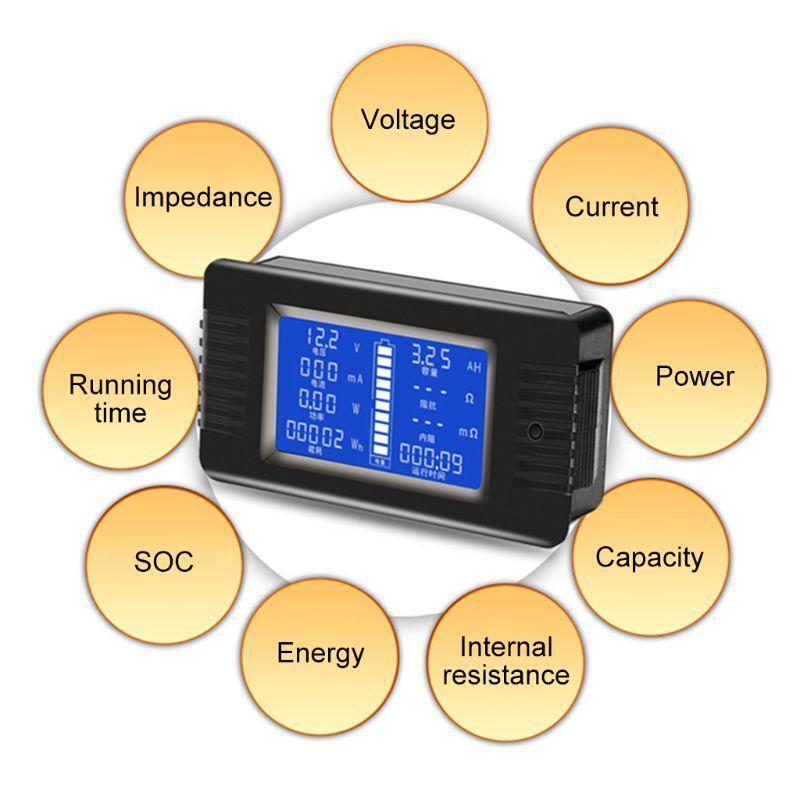

Multi-Function Power Monitor LCD Digital Display Ammeter Voltmeter MultimeterOverview:This meter is mainly used to test all kinds of batterys voltage, discharge current, discharge power, discharge impedance, internal resistance, capacity, dump energy, energy consumption and running time, and display the measurement data through LCD screen.PZEM-013: Measuring Range 10A (Built-in Shunt)Function descriptionVoltage Measuring range: 0-200V. (when the test voltage is 8V, please use the independent power supply mode)Voltage Minimum resolution:0.01V.Voltage The starting test voltage: 0.05VVoltage Measurement accuracy:1%Current Measuring range: 0-10A. (Type: PZEM-013)Current Minimum resolution: 1mACurrent The starting test current: 10mACurrent Measurement accuracy:1%Power Measuring range: 0-2000WPower Minimum resolution: 0.01WPower The starting test power: 0.1WPower Measurement accuracy:1%Impedance = Voltage/ CurrentImpedance Measuring range: 0-1000 (When over the test range or the current is zero, it display ---)Impedance Minimum resolution: 0.1Impedance Measurement accuracy:1%Internal resistance= (Full voltage Bring load voltage) / Bring load current, when the bring load voltage is larger than themaximum voltage, the internal resistance is zero.Internal Resistance Measuring range: 0-999m (Display format: 999m, when over the test range or the current is zero, it display ---.)Internal Resistance Minimum resolution: 1mInternal Resistance Measurement accuracy:1%(Note:Note: Before you test the internal resistance, you should preset the full voltage depend on the battery type, after it is fully charged youcan use it to test if you do not fully charge it, you can set the battery without load voltage is the full voltage, then test the internalresistance is not a fixed value, the more the battery discharged, the bigger the resistance.)Dump energyDump energy is display via the battery symbol, totally 10 grids, every grid present 10% energy.Dump energy is calculated via the current battery voltage value, before test you should preset the full voltage and the cut-off voltagedepend on the battery type every grid voltage = (the highest voltage the lowest voltage) / 10.Accumulate energy consumptionMeasuring range: 09999kWh (Over the test range will become zero.)Minimum resolution: 1WhMeasurement accuracy:1%(Note: 1Wh=0.001kWh=0.001 Kilowatt)Running time Measuring range: 0 ~ 999 hour (without load the time will not accumulate)Display format: 0:00:00 ~ 999:59:59 (Over the test range will become zero.)Working modeThis meter has two modes: normal display mode and dormant mode. In normal display mode, short press the button to enter thedormant mode, in order to reduce the whole machine power consumption, the backlight and LCD display will be turned off in dormantmode. In dormant mode, short press the button will switch to the normal display mode.Note: The meter will stop all measurement functions in dormant mode, so please do not switch to dormant mode if normalmeasurement is performed.Power consumptionNormal working state: 0.03-1.2 WSleeping state: 0.5mW-0.5W(The power consumption is related to the test voltage value, the higher the voltage,the greater the power)Working temperature-20C ~ +60C.Note:If you need detailed instructions, please
