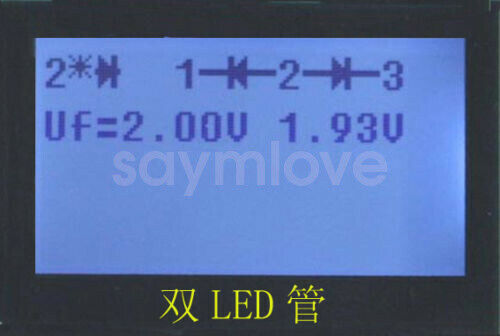

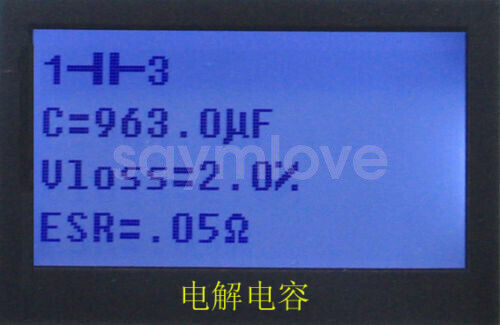

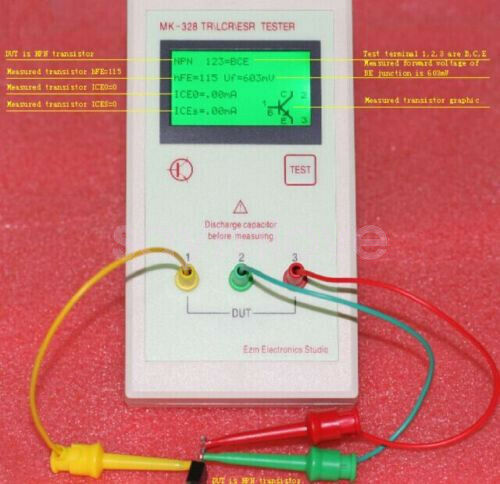

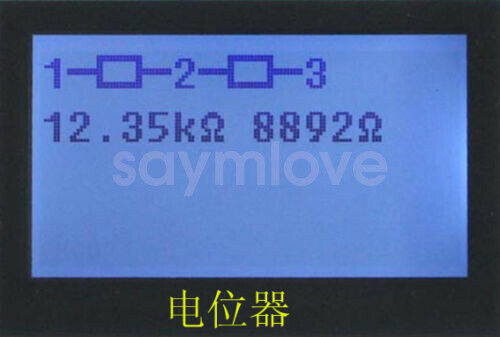

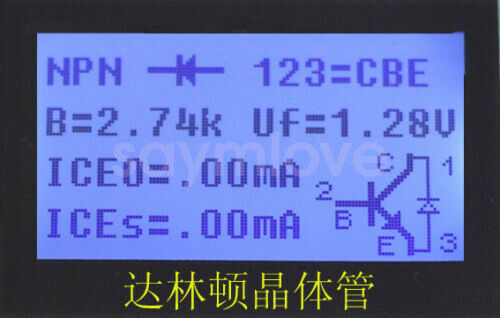

ITEM NAME:MK-328 TR LCR ESR Tester Transistor Inductance Capacitance Resistance ESR Meter Product Overview MK-328 TR LCR ESR Tester Transistor Inductance Capacitance Resistance ESR Meter Detail 6.1 Operates with ATmega328 microcontrollers. 6.2 Displaying the results to a 128x64 graphic LCD-Display. 6.3 One key operation with automatic power shutdown. 6.4 Shutdown current is only about 20nA. 6.5 Automatic detection of NPN and PNP bipolar transistors, N- and P-Channel MOSFETs, JFETs, diodes, double diodes, Thyristors and Triacs. 6.6 Automatic detection of pin layout of the detected part. 6.7 Measuring of current amplification factor and Base-Emitter threshold voltage of bipolar transistors. 6.8 Darlington transistors can be identified by the threshold voltage and high current amplification factor. 6.9 Detection of the protection diode of bipolar transistors and MOSFETs. 6.10 Measuring of the Gate threshold voltage and Gate capacity value of MOSFETs. 6.11 Up to two Resistors are measured and shown with symbols and values with up to four decimal digits in the right dimension. All symbols are surrounded by the probe numbers of the Tester (1-3). So Potentiometer can also be measured. If the Potentiometer is adjusted to one of its ends, the Tester cannot differ the middle pin and the end pin. 6.12 Resolution of resistor measurement is now up to 0.01Ω, values up to 50MΩ are detected. 6.13 One capacitor can be detected and measured. It is shown with symbol and value with up to four decimal digits in the right dimension. The value can be from 25pF to 100mF. The resolution can be up to 1pF . 6.14 For capacitors with a capacity value above 0.18 µF the Equivalent Serial Resistance (ESR) is measured with a resolution of 0.01Ω and is shown with two significant decimal digits. 6.15 For capacitors with a capacity value above 5000pF the voltage loss after a load pulse can be determined. The voltage loss give a hint for the quality factor of the capacitor. 6.16 Up to two diodes are sho.Find many great new & used options and get the best deals for MK-328 TR LCR ESR Tester Transistor Inductance Capacitance Resistance ESR Meter at the best online prices at Order2india Shopping! Free shipping for many products!
