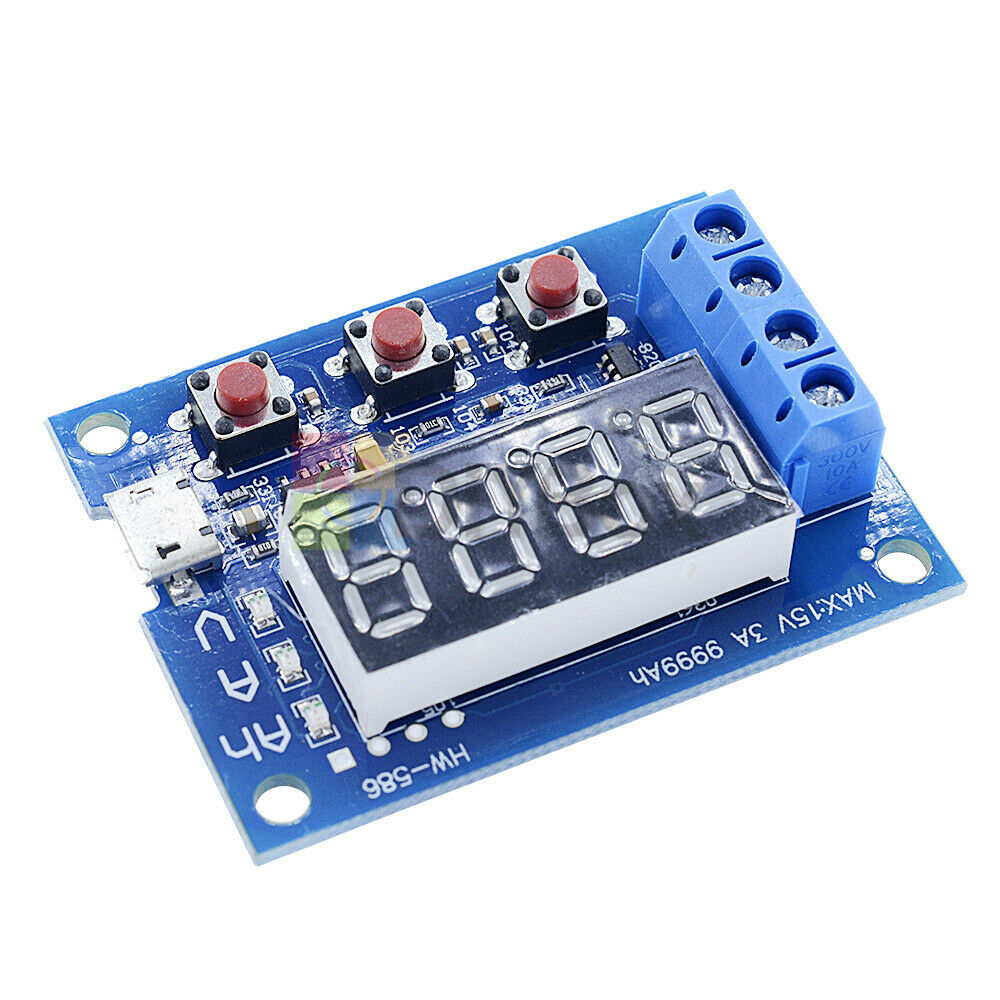

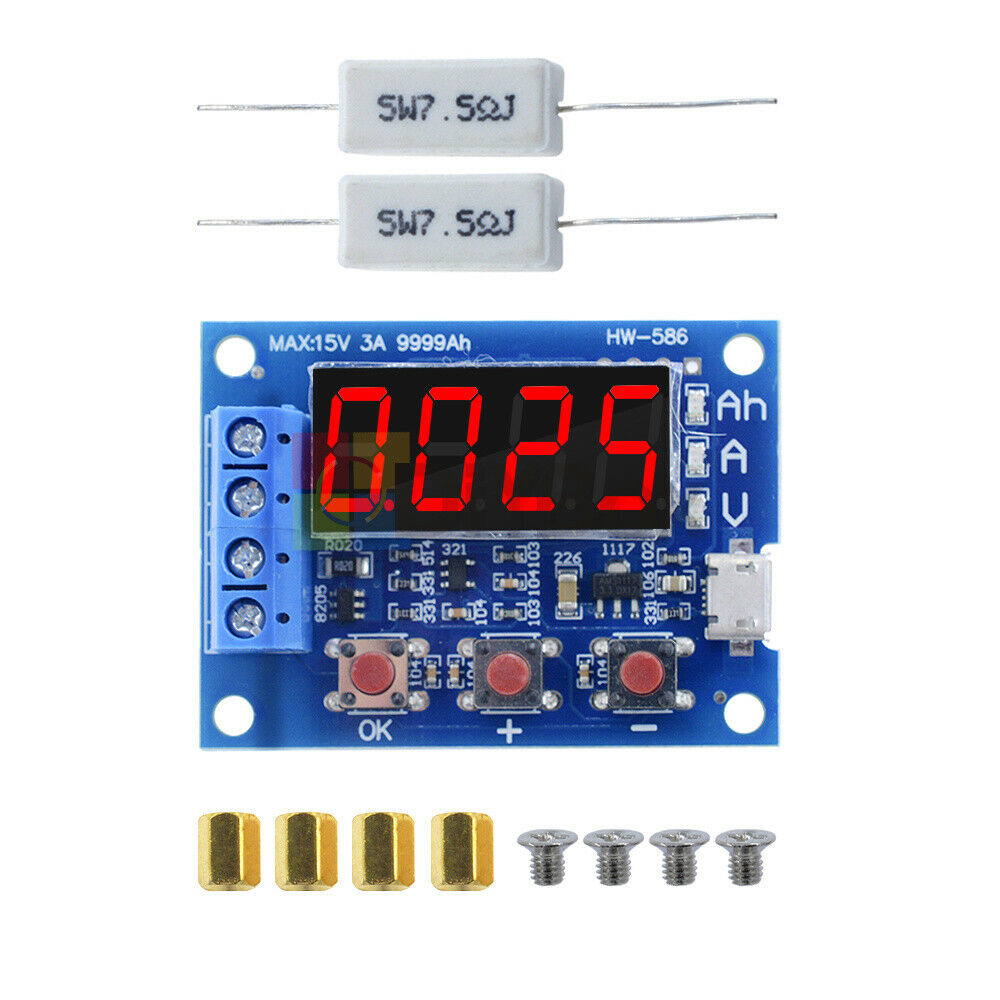

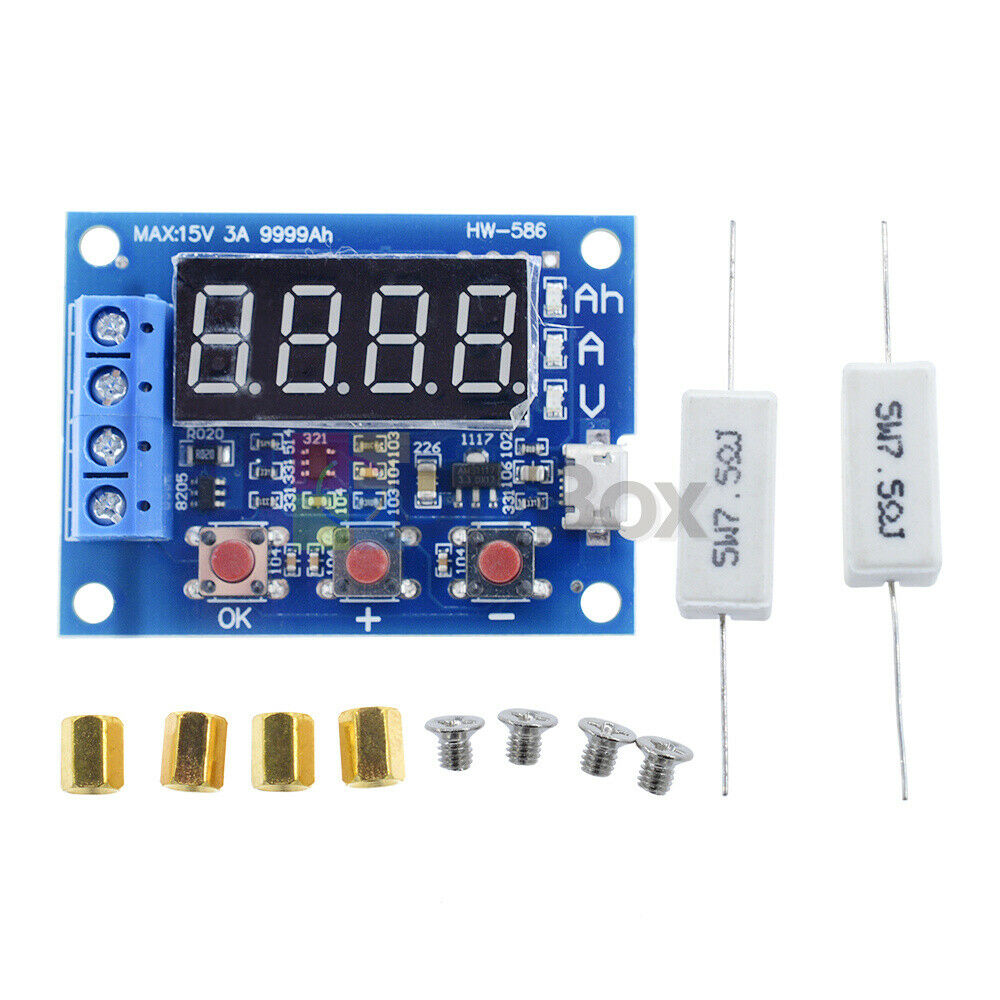

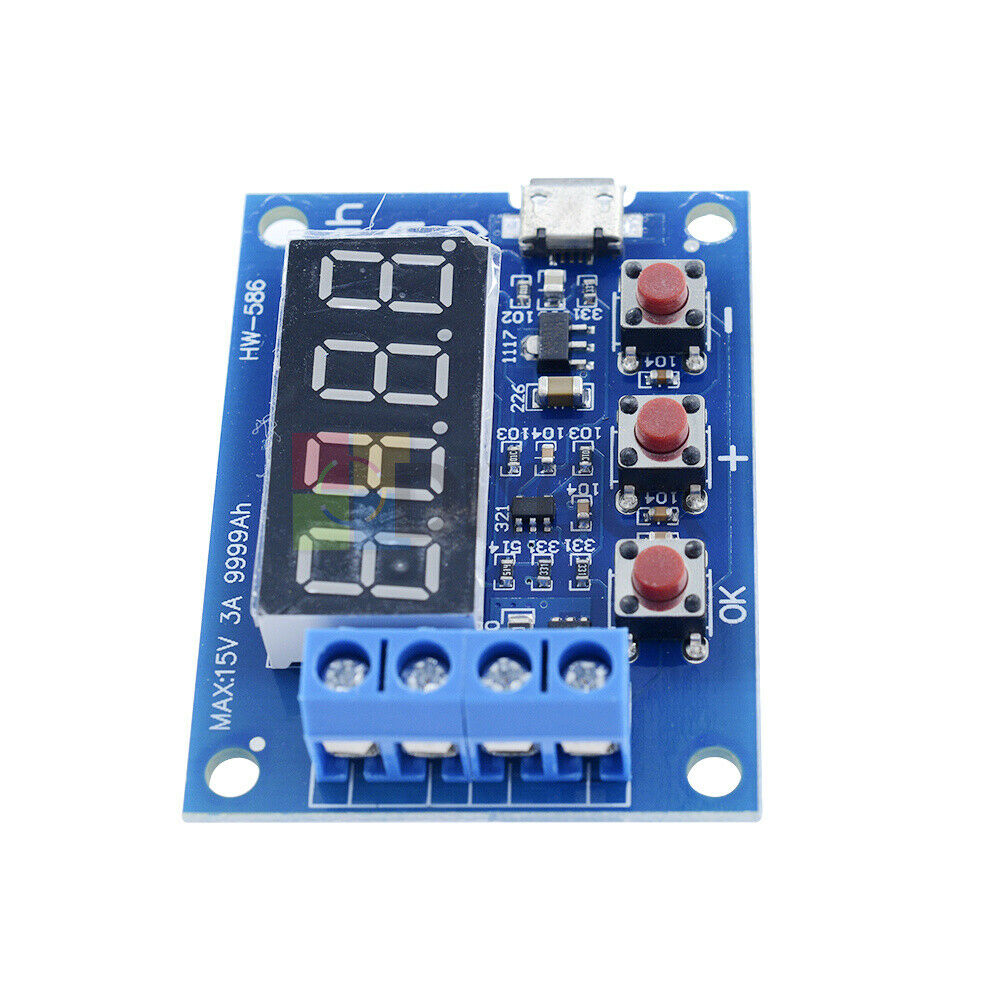

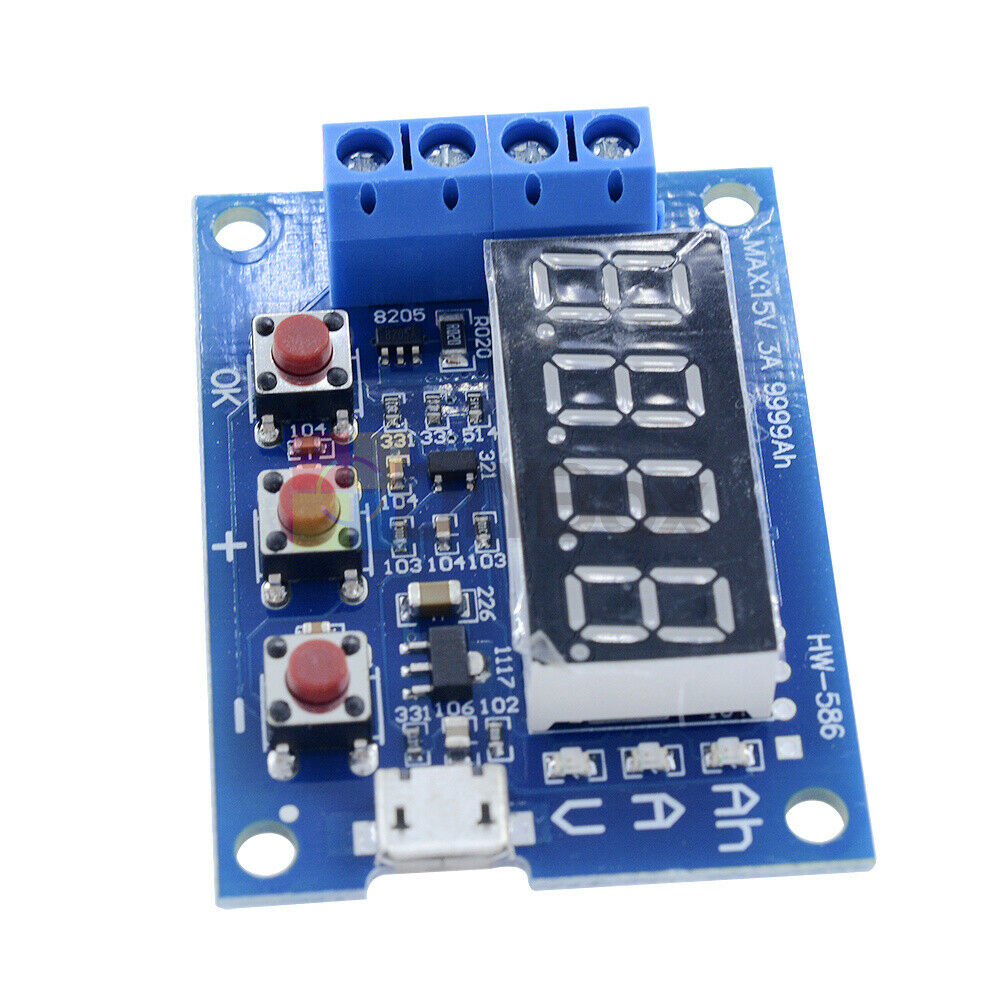

ITEM NAME:Li-ion Lithium Lead-acid Battery Capacity Meter Discharge Tester Analyzer HW-586 Li-ion Lithium Lead-acid Battery Capacity Meter Discharge Tester Analyzer Description: 100% brand new and high quality Material: Electrical components Color: See pictures ZB2L3 battery capacity tester discharge type 1.2-12V external load capacity of the battery and other tests 18650 Tools, single-function, by controlling the load off and get real-time integrated discharge current capacity results Maximum support 15V 3A discharged through the discharge voltage and current, itself does not discharge Maximum capacity statistics support 9999Ah (9999000mAh) Automatically identify and develop appropriate battery termination voltage can also be manually adjusted Specifications: Power supply voltage: DC4.5-6V (micro USB connector) Operating Current: less than 70mA Discharge voltage: 1.00V-15.00V 0.01V resolution Termination voltage range: 0.5-11.0V Supported by current: 3.000A 0.001A resolution Maximum voltage measurement error: 1% + 0.02V Maximum current measurement error: 1.5% + - 0.008A Maximum battery capacity range: 9999Ah (1Ah = 1000mAh) greater value by shifting the decimal point to switch, when the display is less than 10Ah X.XXX, as shown above to achieve 10Ah XX.XX, and so on. Board size: 50mmX37mm Finished Size: 50mmX37mmX17mm (length X width X height maximum position size, contains copper foot height) Instructions: 1. The first test should be fully charged battery. 2. Connect the battery to be tested positive to positive input, a negative input to the negative, can not be reversed (with load reversal may damage the circuit)! Load connected to the output of the positive and negative output, to work through the tester micro USB power supply (not available desktop or laptop USB.Find many great new & used options and get the best deals for Li-ion Lithium Lead-acid Battery Capacity Meter Discharge Tester Analyzer HW-586 at the best online prices at Order2india Shopping! Free shipping for many products!
