Description

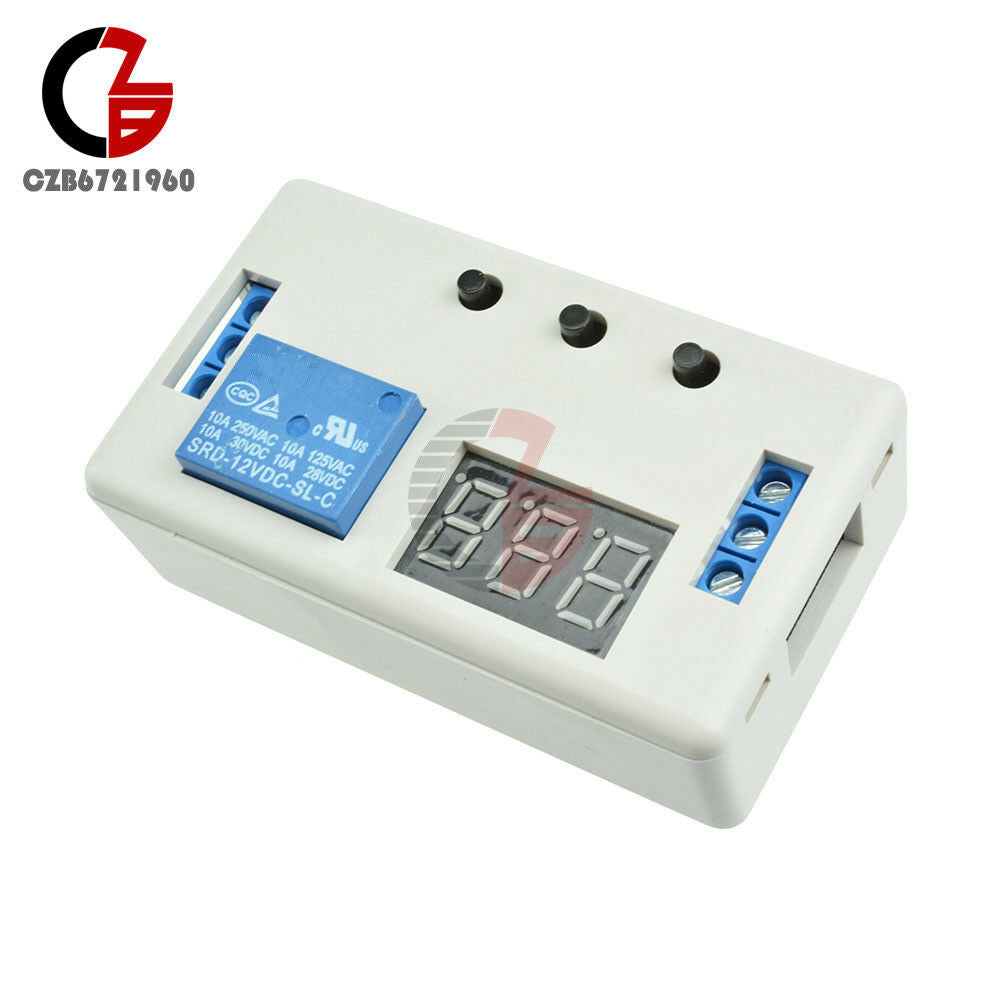

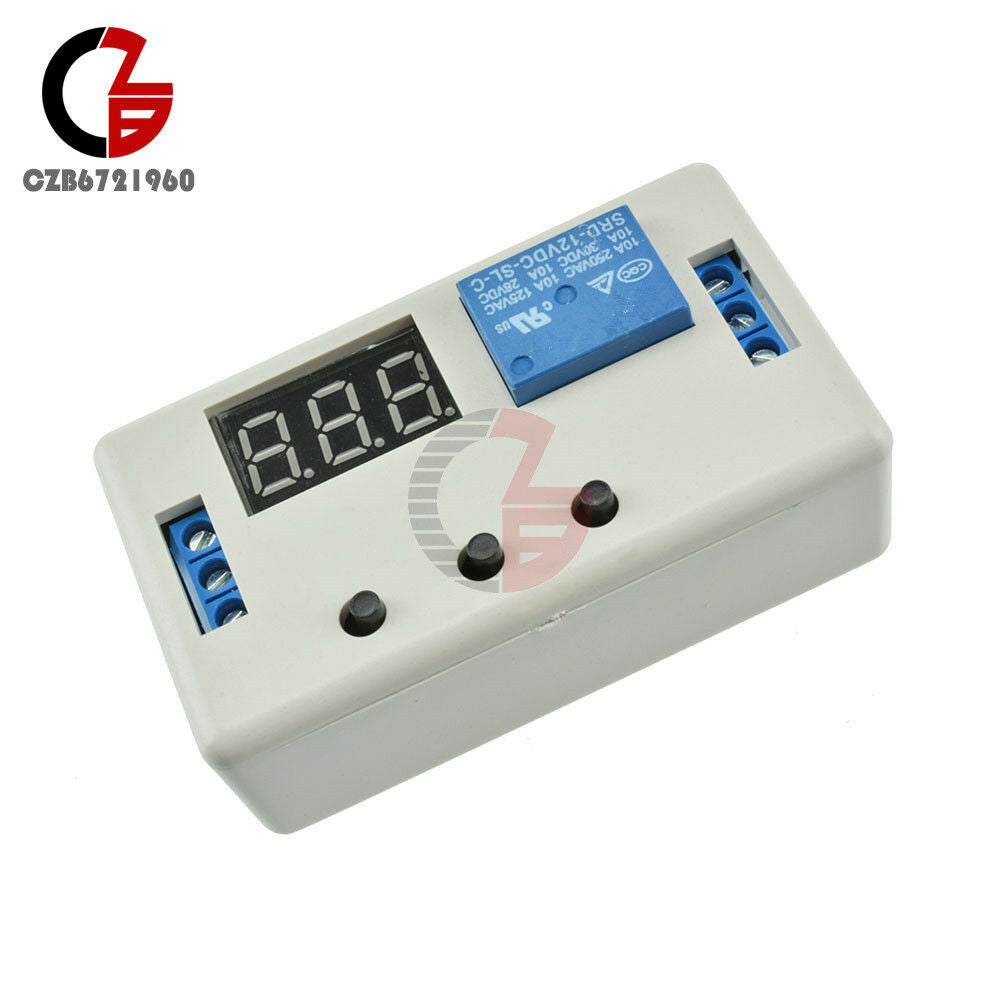

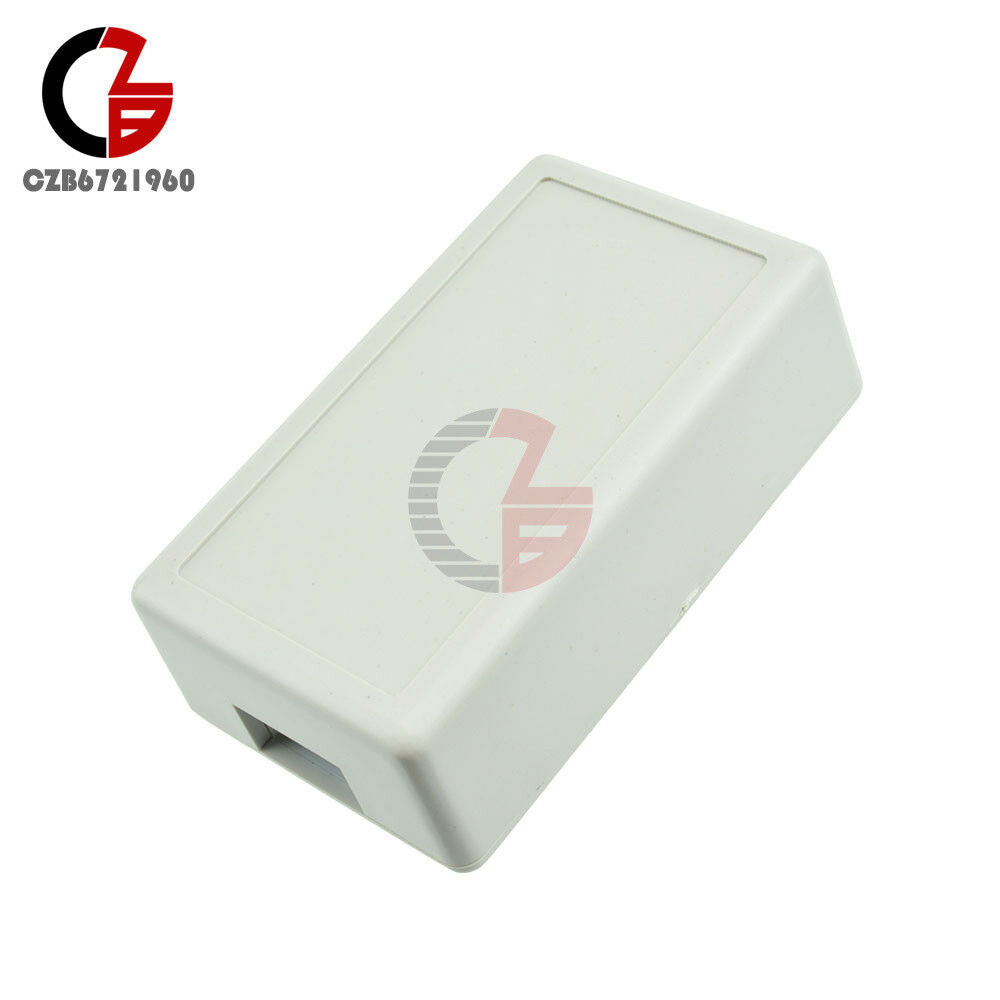

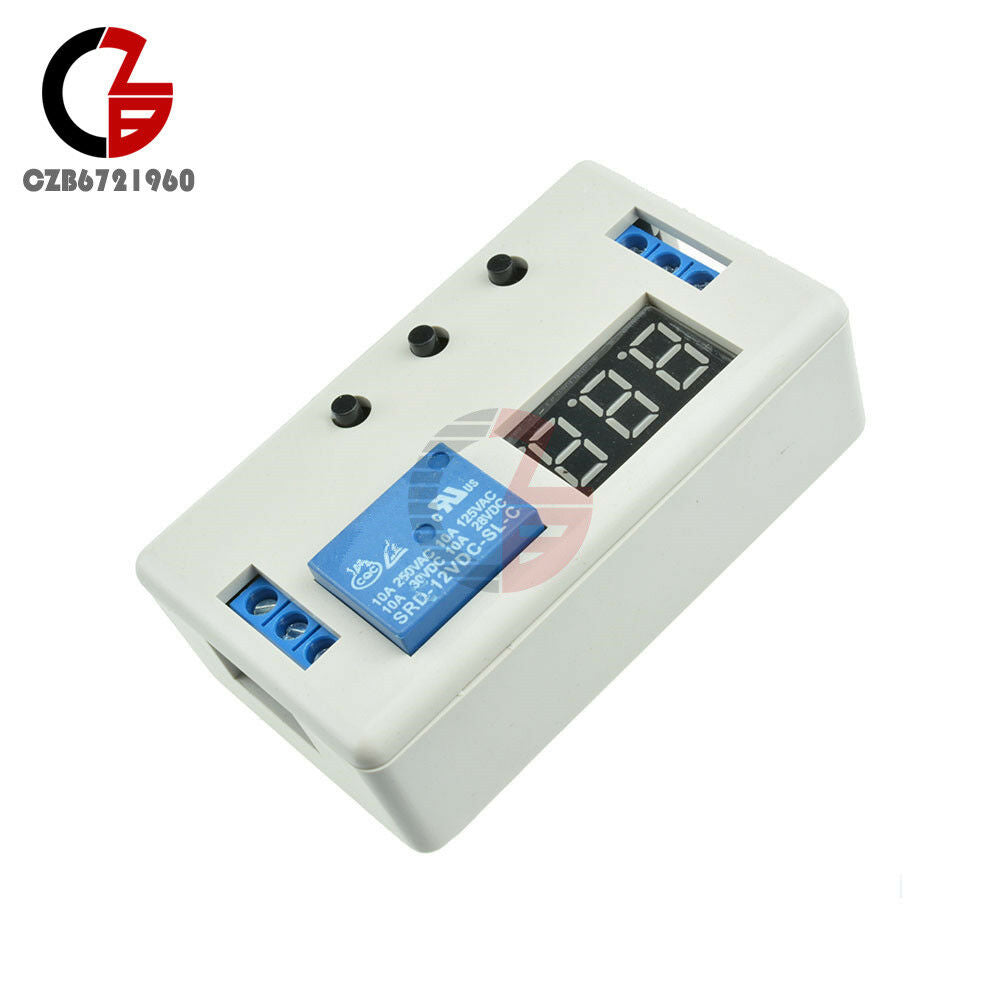

ITEM NAME:LED Delay Timer Control Switch Relay Module Automation 12V with case Home Electronic Component Chips Sensor Arduino Module Raspberry Pi LED Delay Timer Control Switch Relay Module Automation 12V with case Popular Popular Product Introduction Description： 1. New upgrades to simplify,to meet customer needs. 2. Increase the supply anti-reversefunction. 3. The use of opto isolated input and output,enhanced anti-jamming capabilit consumption. 4. Set parameter after power for ever memories. 5. Signal terminal voltage signal can be maintained for a longtime. 6. to ensure stability,industrial grade board,class PLC. Product parameters: 1. Size:64.2mm*34.8mm*18.5mm. 2. Relay Specifications:AC 220V 10A or DC 30V 10A. 3. Quiescent Current:20mA,Operating Current:50mA. 4. Working voltage:10~16V (if other ranges can be customized). 5. Signal voltage:4V~20V (if other ranges can be customized). 6. life:about100,000times,Working temperature:-40~85'C. Working mode selection:After power on,long press K12 seconds later into the select function mode,P1-1~P1-4forchoose. P1-1 operating modes:a signal to trigger relay, time is up,the relay disconnect users,You can set relay time T,click K2 the hundreddigital tube starts flashing,then press K3, the hundred digital change;click K2 ten digital tube starts flashing,then press K3,ten digit changes;click K2 bit digital tube starts flashing, then press K3, single-digit change;then click K2,; digital pipe does not blink,then press the K3, shifting the decimalpoint,the decimalpointin abitindicates 0-999minutesin ten represents 0 to 99.9 seconds withou tadecimalpointrepresents 0-999 seconds;goodchoice,bringing the time setting is completed.Short press K1,enterfunction offine-tuning settings,triggerthedefaultdelayperiod is invalid, press K1, during the delay trigger active(re-timing),clickon the K1, during the delay reset (timer turned off,the relay reset) press again to repeat the default settings for the first time. P1-2 operating modes:As.Find many great new & used options and get the best deals for LED Delay Timer Control Switch Relay Module Automation 12V with case at the best online prices at Order2india Shopping! Free shipping for many products!
