Description

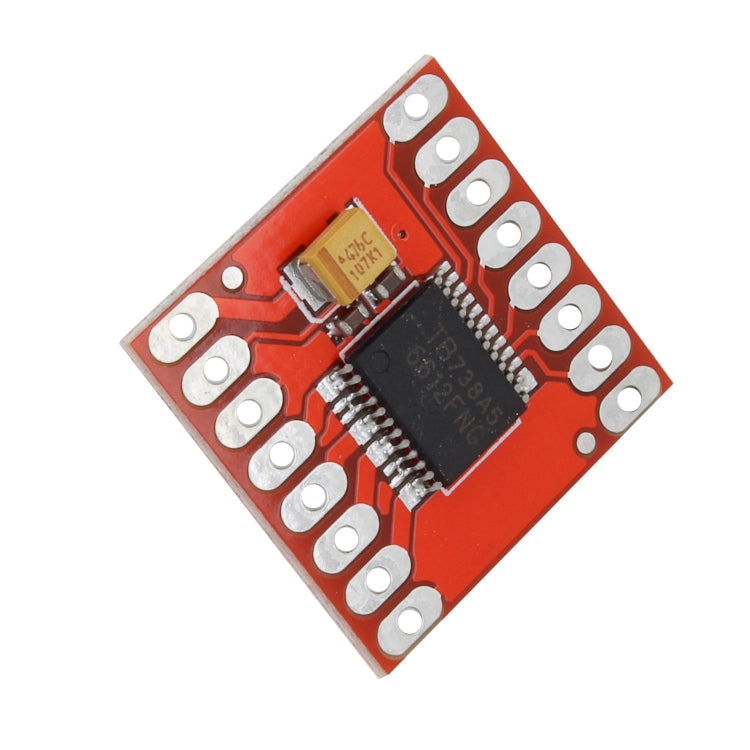

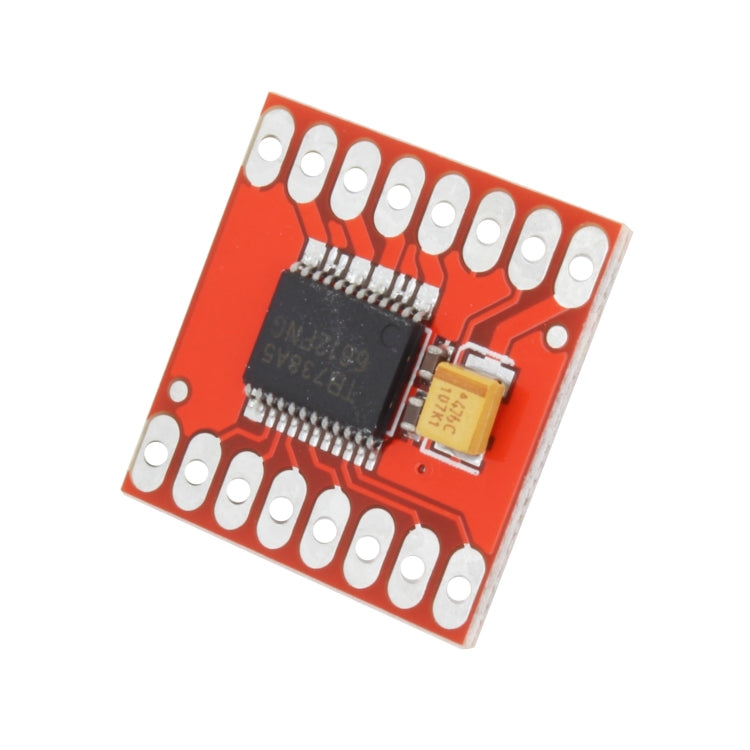

The motor driver can control up to two DC motors at a constant current of 1.2A (3.2A peak). Two input signals (IN1 and IN2) can be used to control the motor in one of four function modes - CW, CCW, short-brake, and stop. The two motor outputs (A and B) can be separately controlled, the speed of each motor is controlled via a PWM input signal with a frequency up to 100kHz. The STBY pin should be pulled high to take the motor out of standby mode.
Note: However, when using the board at currents up to 0.6A, it may be necessary to improve thermal performance with a heat-sink.
Features
1. Driver Chip: TB6612FNG
2. Power supply voltage: VM=15V max, VCC=2.7-5.5V
3. Output current: Iout=1.2A(average) / 3.2A (peak)
4. Standby control to save power
5. CW/CCW/short brake/stop motor control modes
6. Built-in thermal shutdown circuit and low voltage detecting circuit

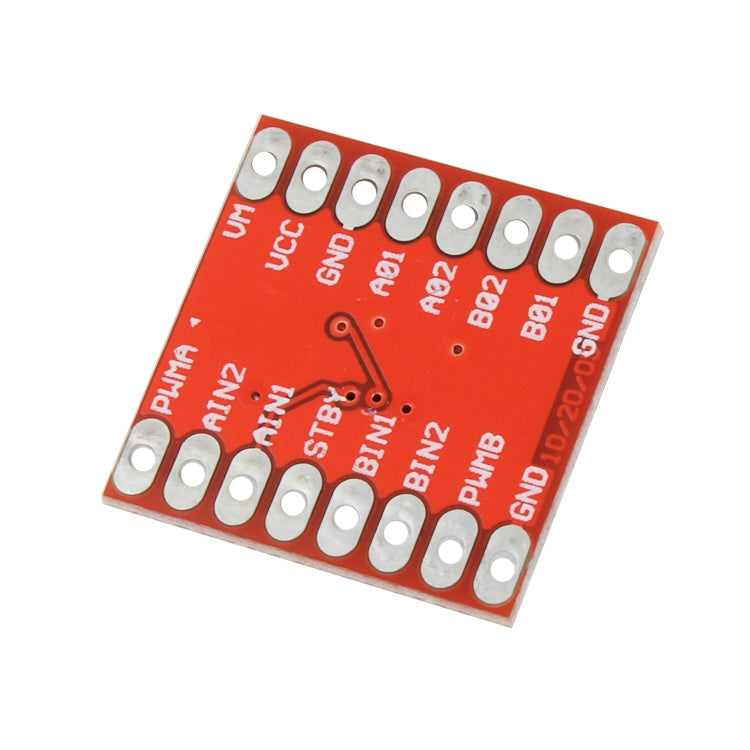

7. All pins of the TB6612FNG broken out to 2.54mm spaced pins, and it can be plugged onto the breadboard
8. Filtering capacitors on both supply lines
9. Great for DIY and smart car projects
10. Brand: Landa tianrui
11. Model: LDTR-WG0212
12. Quantity: 1 piece
13. Color: Red
14. Material: PCB
15. Dimensions: 3 cm x 2cm x 0.5 cm
16. Weight: 5g
17. Package List:
- 1 x Dual Motor Driver Module
- 2 x Straight Pin
Note: However, when using the board at currents up to 0.6A, it may be necessary to improve thermal performance with a heat-sink.
Features
1. Driver Chip: TB6612FNG
2. Power supply voltage: VM=15V max, VCC=2.7-5.5V
3. Output current: Iout=1.2A(average) / 3.2A (peak)
4. Standby control to save power
5. CW/CCW/short brake/stop motor control modes
6. Built-in thermal shutdown circuit and low voltage detecting circuit
7. All pins of the TB6612FNG broken out to 2.54mm spaced pins, and it can be plugged onto the breadboard
8. Filtering capacitors on both supply lines
9. Great for DIY and smart car projects
10. Brand: Landa tianrui
11. Model: LDTR-WG0212
12. Quantity: 1 piece
13. Color: Red
14. Material: PCB
15. Dimensions: 3 cm x 2cm x 0.5 cm
16. Weight: 5g
17. Package List:
- 1 x Dual Motor Driver Module
- 2 x Straight Pin
