Description
Features
1. Two-phase stepper motor single-phase current 1.2A (peak 2.5A) motor operating current can be adjusted
2. SPI only
3. Subdivided into 256
4. Noiseless operation combined with maximum efficiency and optimal motor torque
5. High-precision sensorless motor load detection
6. Reduce energy consumption by 75%
7. High load drive is not out of step
Specifications

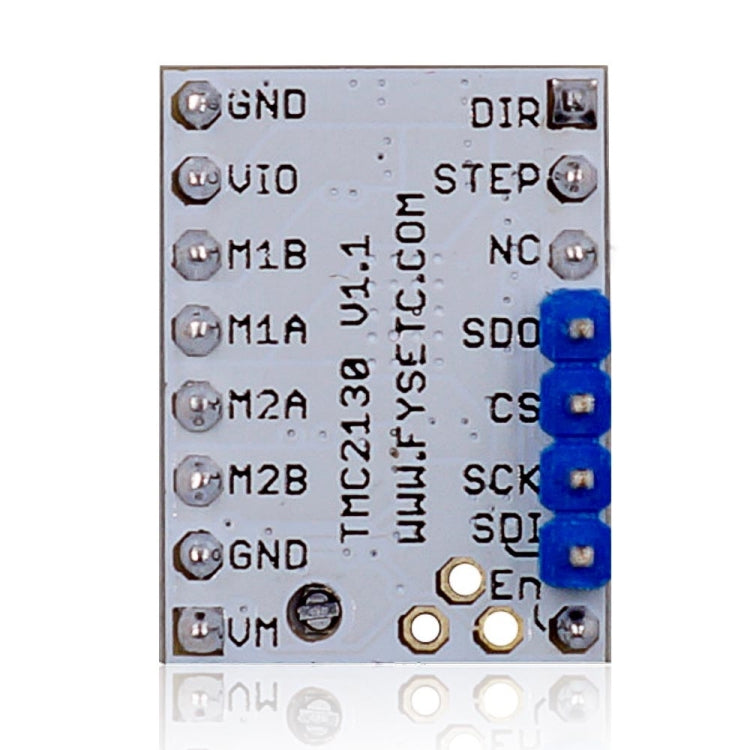

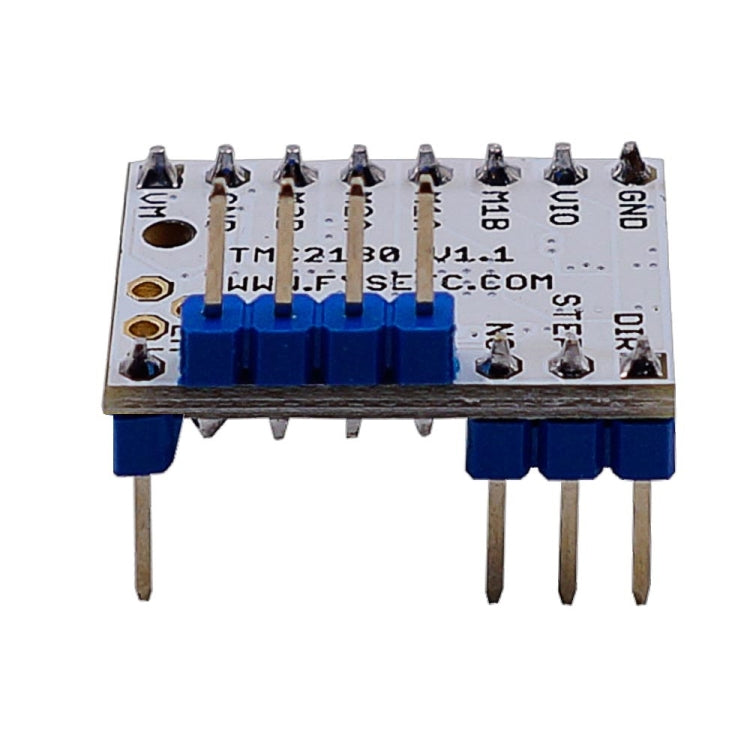

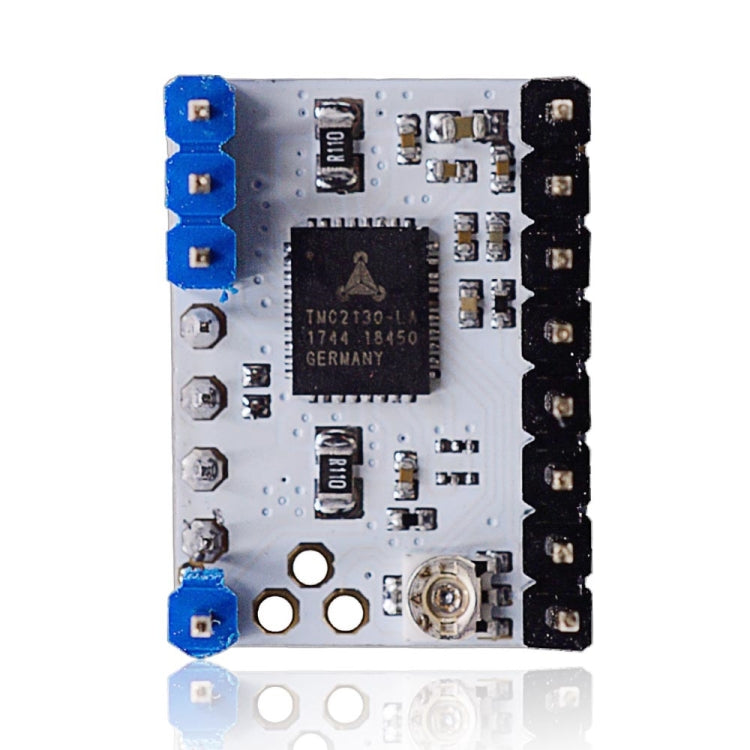

1. Product Name: TMC2130 V1.1 Stepstick Stepper Motor Driver
2. Motor input voltage range: 4.75~46V
3. Logic interface input voltage: 3 ~ 5V
4. Interface: Step/Dir or SPI
5. Configuration: CFG Pins or SPI
6. Native Microsteps*: up to 1/256
7. MicroPlyer
8. Microsteps: 1/256
9. Motor Phase Current: 1.2A RMS, 2.5A Peak
10. VM always needed: Yes
11. Internal V- Regulator: enabled
12. RDSon: >=0.5 Ohm
13. StealthChop (quiet): Yes
14. SpreadCycle: Yes
15. CoolStep: Yes
16. StallGuard: Yes
17. DcStep: Yes
18. Quantity: 1 set
19. Material: FR4
20. Dimensions: 6 cm x 4.8 cm x 1.5 cm
21. Weight: 20 g

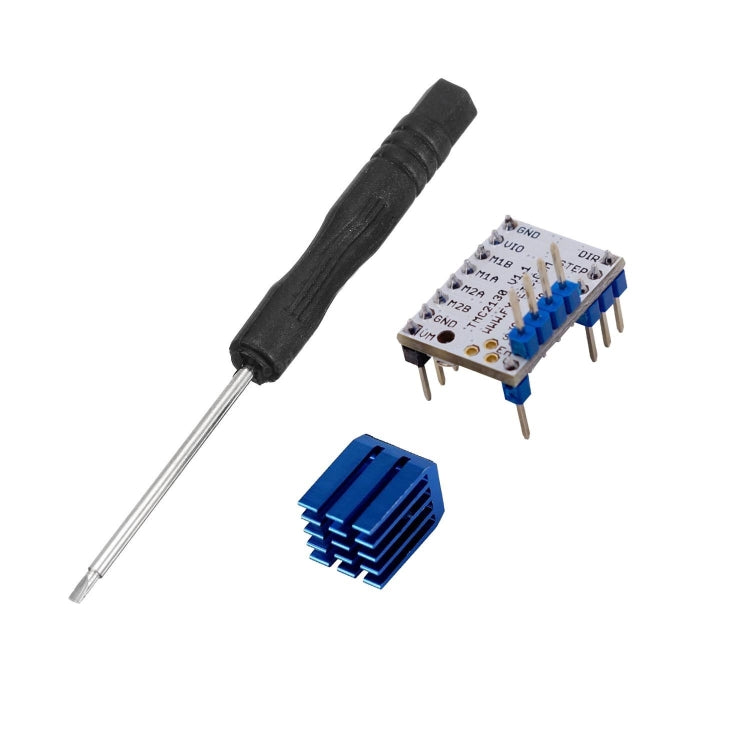

22. Package Included:
- 1 x TMC2130 V1.1 Stepstick Stepper Motor Driver
- 1 x With plastic heat sink
- 1 x Screwdriver
Note:
* Due to different producing batches, product details might be a little different. Thank you for understanding.
