LDTR-WG0171 Ultrasonic Distance Measurement Control Board HC-SR04 Test Board Rangefinder, Digital Display Serial Output

Roll over image to zoom in Click on image to zoom

LDTR-WG0171 Ultrasonic Distance Measurement Control Board HC-SR04 Test Board Rangefinder, Digital Display Serial Output

Name: LDTR-WG0171 Ultrasonic Distance Measurement Control Board HC-SR04 Test Board Rangefinder, Digital Display Serial Output
Brand: O2I24
SKU: ZY14082028
Price: 2347.0 INR
Availability: OutOfStock

O2I24

Price:

Rs. 2,347.00

Quantity:

Share this product

Features
1. Effective measuring distance: 3cm - 400cm
2. Display unit: cm
3. The biggest error: about 1%
4. Working voltage: 5V
5. Test Board size: 24.2x35.1mm

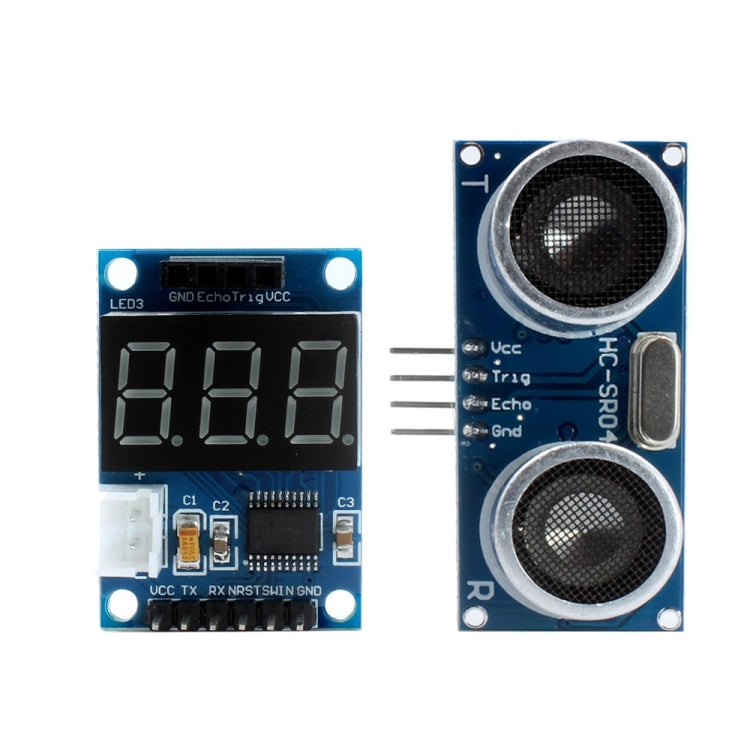

Interface Description
1. VCC, GND: 5V power interface
2. 54mm white socket: 5V power supply interface
3. TX: module serial port to send foot
4. RX: module serial port receive pin
5. NRST, SWIN: reserved STM8 program download port

Instructions for use

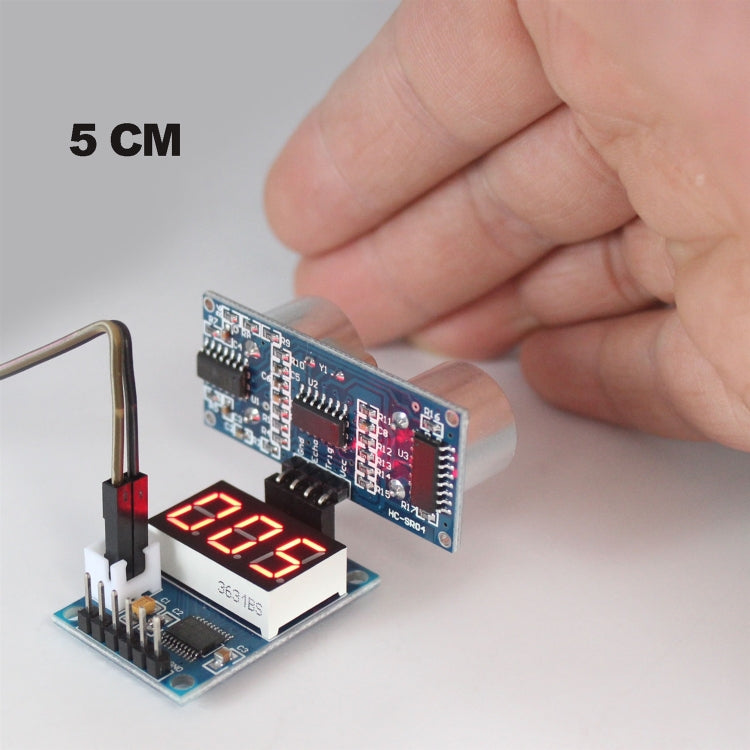

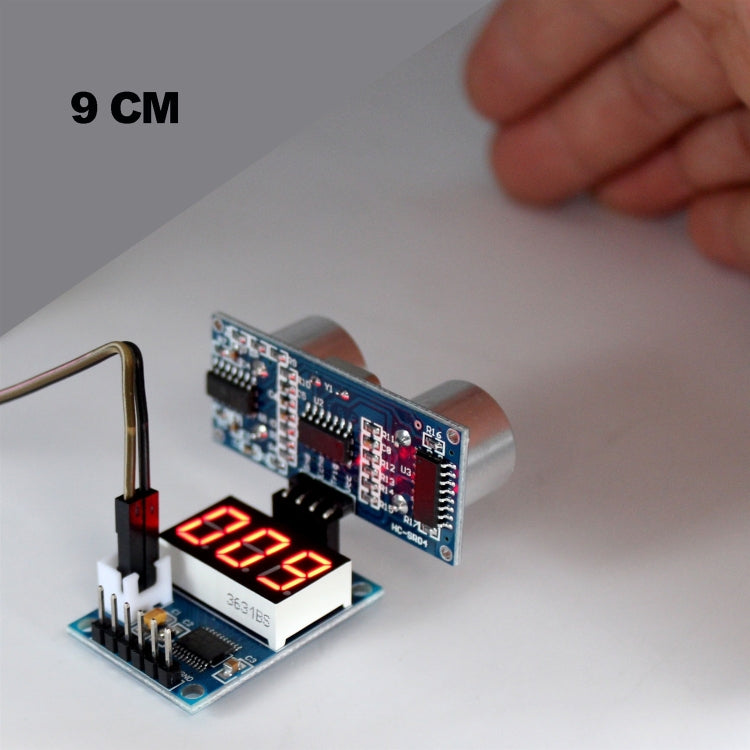

1. Measurement distance can be displayed simultaneously through the digital tube and serial port

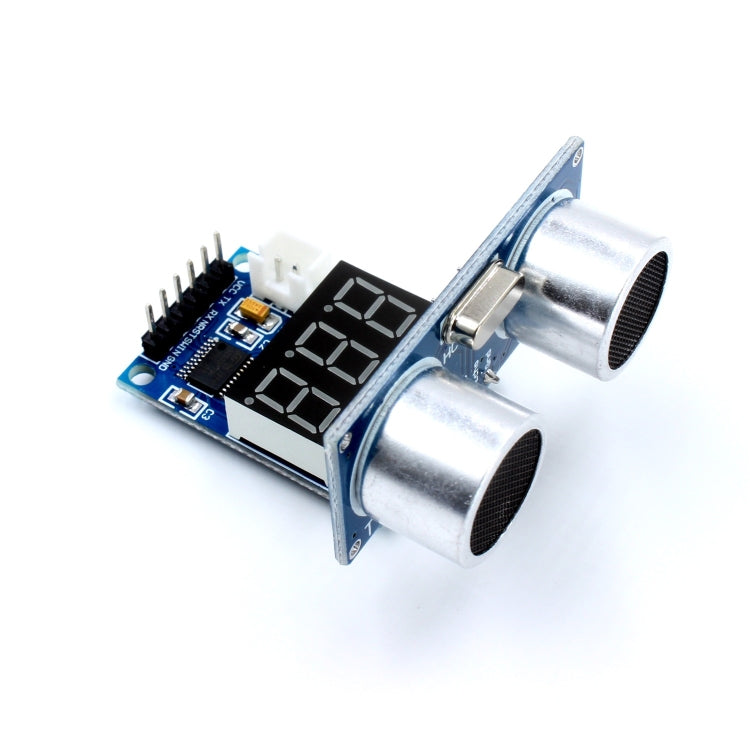

2. Digital display, directly plug in the ultrasonic module, access 5V power supply
3. Serial port output: plug in the ultrasonic module, the module's VCC, TX, RX, GND are connected to USB to TTL module 5V, RX, TX, GND, serial communication baud rate 9600, the output format: "D: XXX r n ", Where XXX represents the distance, the unit is CM

Precautions
1. Ranging, the measured object area of not less than 0.5 square meters and should be as flat as possible and slightly stronger reflective ability, otherwise it will affect the test results.
2. Effective measuring distance 3cm-400cm, beyond this range may result in data is not allowed or display 000

Package included

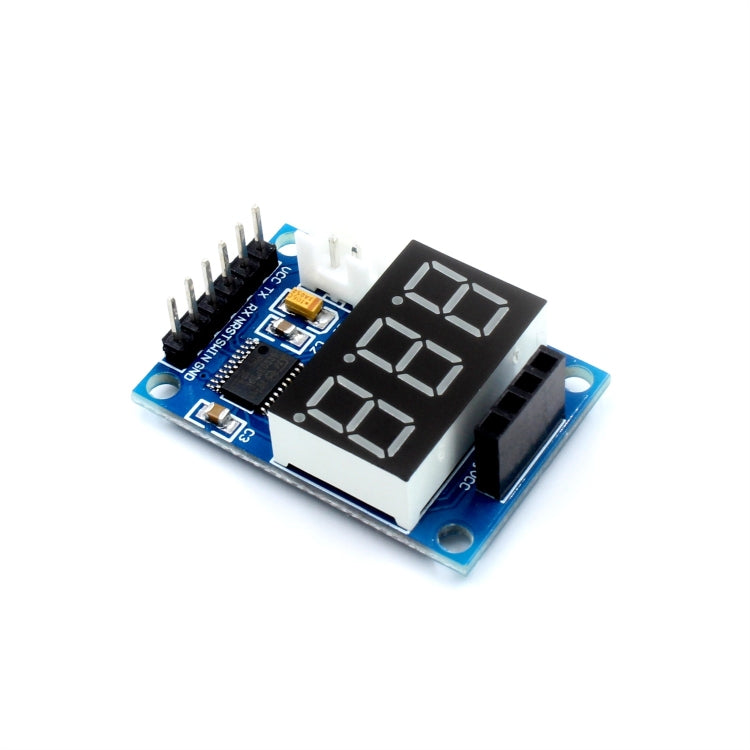

1. 1 x Ultrasonic Distance Measurement Control Board

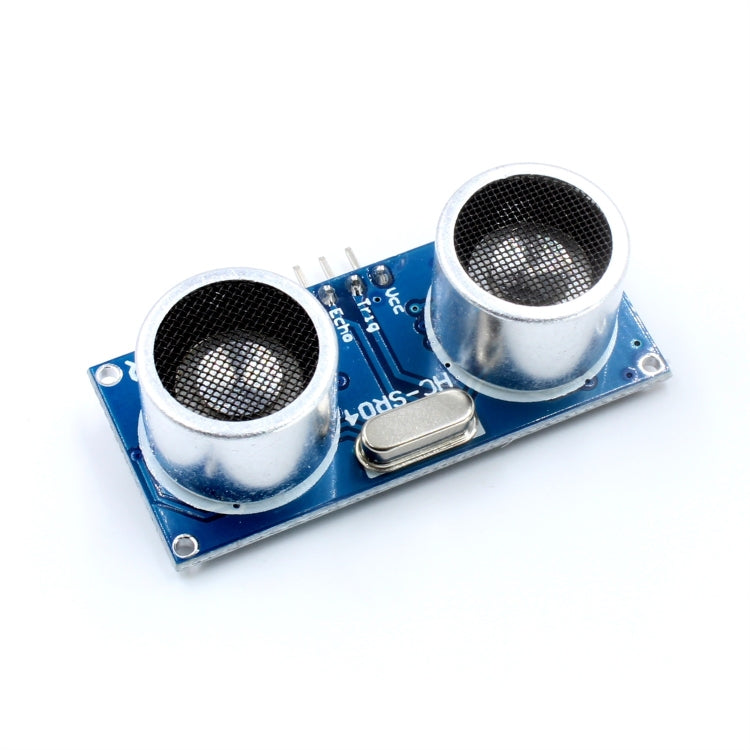

2. 1 x Ultrasonic Module HC-SR04
