Description

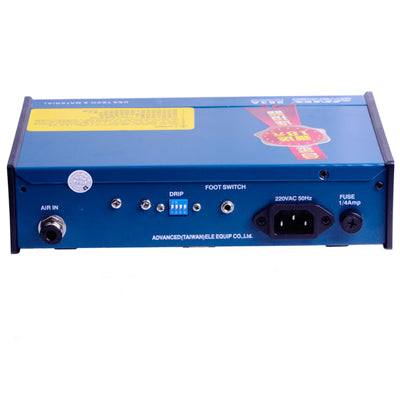

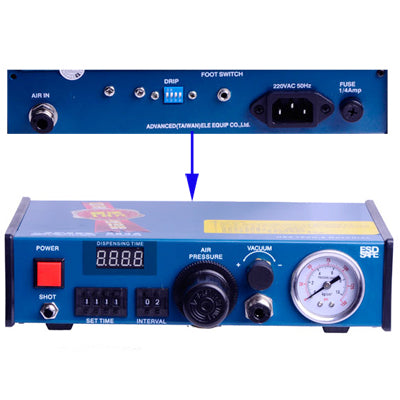

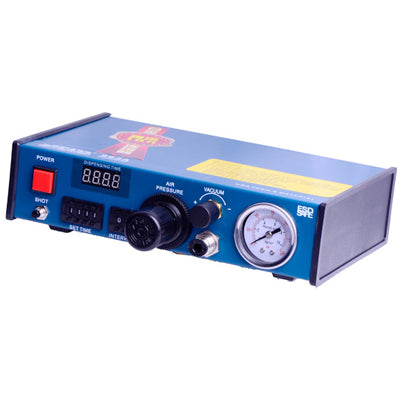

Digital timed air dispenser plus the function of cycle dispensing and time display.
Dispensing material include solder paste, glue, adhesives, grease, sealant, silicone, RTV, cyanoacrylate, anaerobic and UV cure resins etc.
Features :
1) Manual or timer operation modes
2) Foot pedal controlled
3) Suck-back feature ensure no dripping
4) Designed for wide range of application as EFD, I&J Fisnar
5) Complete with an accessory dispensing kit
6) Timer mode dispensing time 0.01-99.99 seconds
7) Timer mode cycle time 0.1-9.9 seconds
8) Manual mode, materials could be dispensed continuously until operator release the foot pedal
9) English user manual is included
10) This unit need to be connected to air compressor (1.5HP or above)
Specifications :
1) Size : 23.5 x 20.5 x 6.3 cm
2) Timer mode dispensing time : 0.01-99.99 seconds
3) Timer mode cycle interval : 0.1-9.9 seconds
4) Manual mode dispensing time : Controlled by the foot pedal
5) Input voltage: 110V
6) Internal voltage: 24VDC
7) Air input: 70-100 psi
8) Air output: 1-100 psi
9) Weight: 3 kg
Accessories :

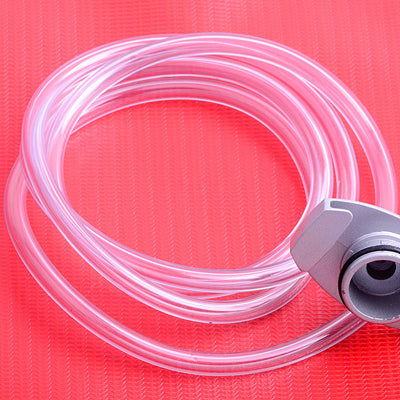

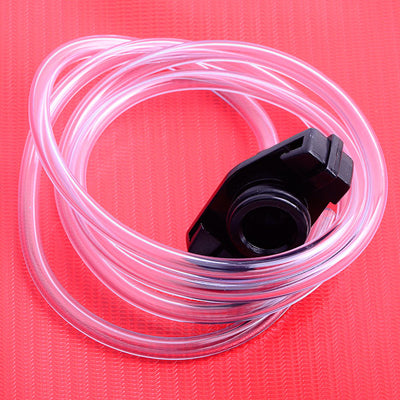

30CC Barrel Adapter Assembly 1pc

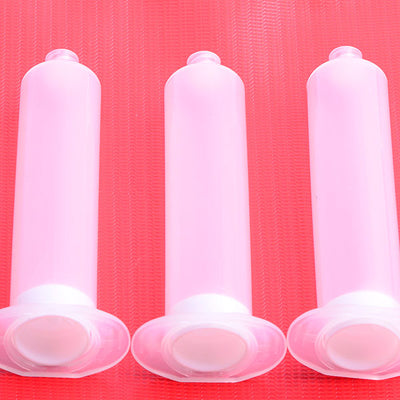

30CC Barrel (I.D. 22mm) 3pcs
30CC PE Piston 3pcs

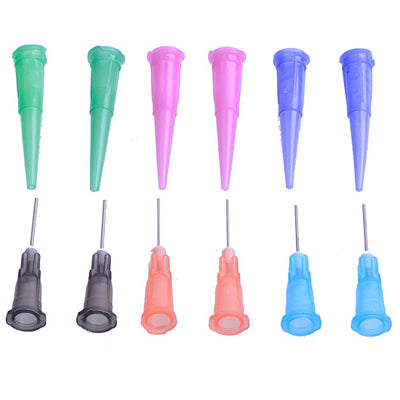

15 GA Blunt End Tip 5pcs
20 GA Blunt End Tip 5pcs
22 GA Blunt End Tip 5pcs
25 GA Blunt End Tip 5pcs
16A Tapered Tip 5pcs
20A Tapered Tip 5pcs
Barrel Stand 1pc

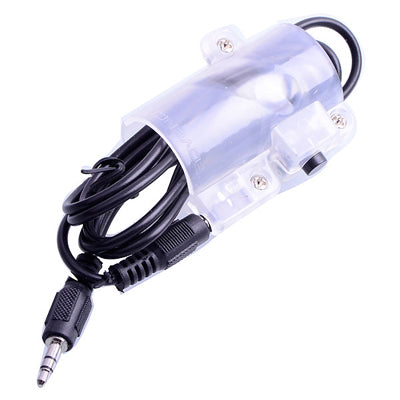

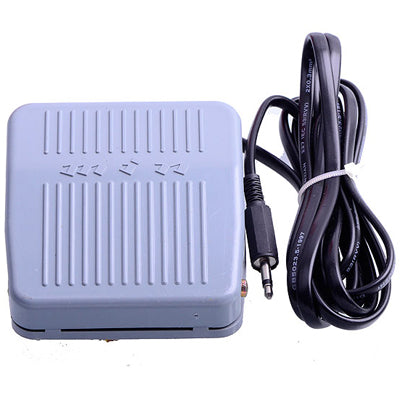

Foot Pedal 1pc
Air Hose 1pc
Power cord 1pc
Dispensing material include solder paste, glue, adhesives, grease, sealant, silicone, RTV, cyanoacrylate, anaerobic and UV cure resins etc.
Features :
1) Manual or timer operation modes
2) Foot pedal controlled
3) Suck-back feature ensure no dripping
4) Designed for wide range of application as EFD, I&J Fisnar
5) Complete with an accessory dispensing kit
6) Timer mode dispensing time 0.01-99.99 seconds
7) Timer mode cycle time 0.1-9.9 seconds
8) Manual mode, materials could be dispensed continuously until operator release the foot pedal
9) English user manual is included
10) This unit need to be connected to air compressor (1.5HP or above)
Specifications :
1) Size : 23.5 x 20.5 x 6.3 cm
2) Timer mode dispensing time : 0.01-99.99 seconds
3) Timer mode cycle interval : 0.1-9.9 seconds
4) Manual mode dispensing time : Controlled by the foot pedal
5) Input voltage: 110V
6) Internal voltage: 24VDC
7) Air input: 70-100 psi
8) Air output: 1-100 psi
9) Weight: 3 kg
Accessories :
30CC Barrel Adapter Assembly 1pc
30CC Barrel (I.D. 22mm) 3pcs
30CC PE Piston 3pcs
15 GA Blunt End Tip 5pcs
20 GA Blunt End Tip 5pcs
22 GA Blunt End Tip 5pcs
25 GA Blunt End Tip 5pcs
16A Tapered Tip 5pcs
20A Tapered Tip 5pcs
Barrel Stand 1pc
Foot Pedal 1pc
Air Hose 1pc
Power cord 1pc
