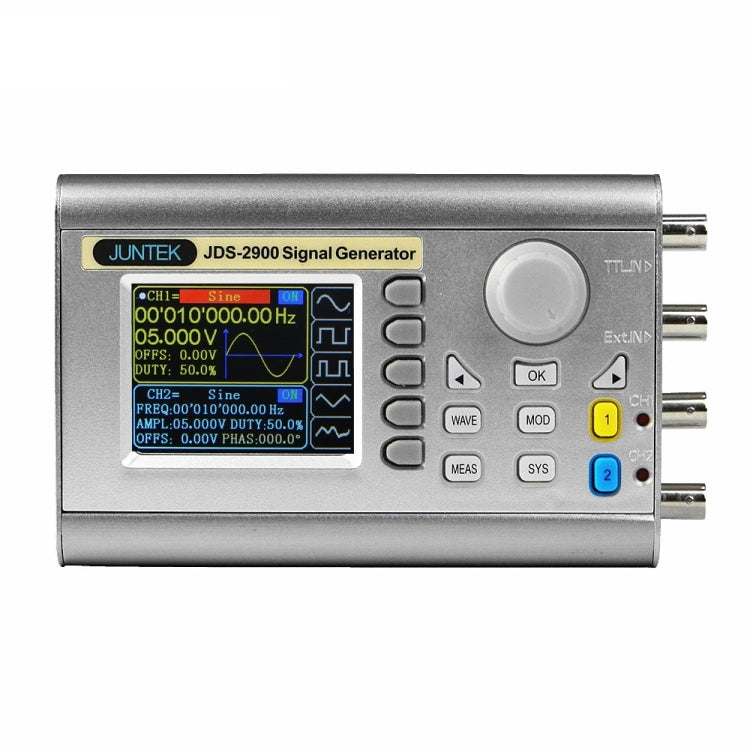

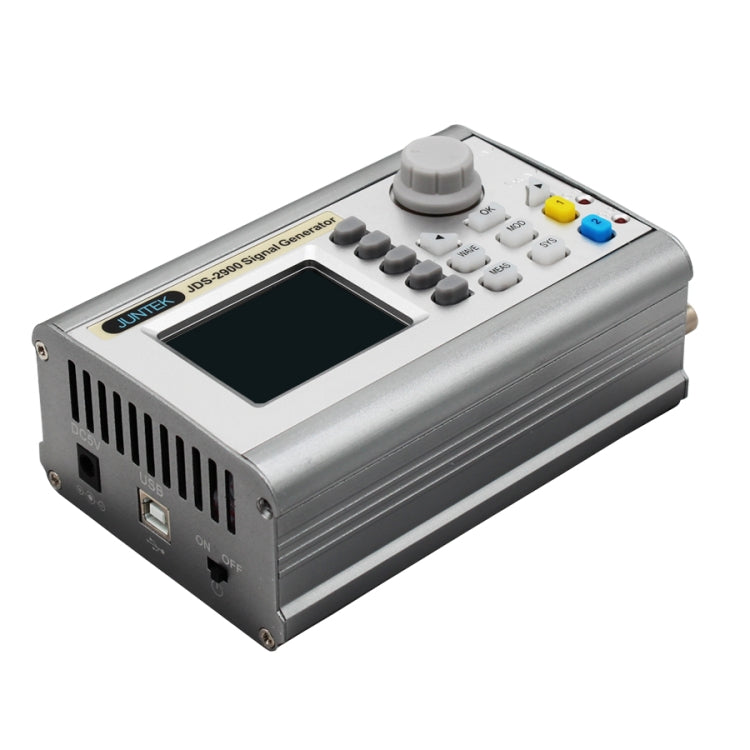

JUNTEK Programmable Dual-Channel DDS Function Arbitrary Waveform Signal Generator, Frequency: 40MHz

1. Waveform length: 2048
2. Point waveform sampling rate: 266MSa/s
3. Waveform vertical resolution: 14 bits
4. Amplitude resolution: 1mV
5. Waveform output impedance: 50 ohms (typical)
6. Protection: All signal output terminals can work within 60 under load short circuit conditions
7. Sweep channel: CH1 or CH2
8. Sweep type: linear sweep, logarithmic sweep
9. Sweep time: 0.1s~999.9s
10. Input signal voltage range: 2Vpp~20Vpp
11. Pulse width measurement: 0.01us resolution, measurable 20s (MAX)
12. Period measurement: 0.01us resolution, measurable 20s (MAX)
13. Burst function pulse number: 1-1048575
14. Count range: 0-4294967295
15. Coupling mode: DC and AC
16. Counting mode: Manual
17. TTL/CMOS output: Low level 0.3V; High level 1V~10V
18. Burst mode: Manual trigger, CH2 trigger, external trigger (AC), external trigger (DC)
19. Number of storage: 100 groups
20. Position: 00 to 99 (00 storage position parameter is transferred by default when the power is turned on)
21. Number of arbitrary waves: 60 groups from 1 to 60 (15 groups are default when the power is turned on)
22. Interface mode: USB to serial interface
23. Extension interface: Serial port with TTL level mode, convenient for users to carry out secondary development
24. Communication rate: Standard 115200bps
25. Communication protocol: Command line mode is adopted, and the protocol is open
26. Voltage range: DC5V
27. Prompt sound: Users can turn it on or off through program settings

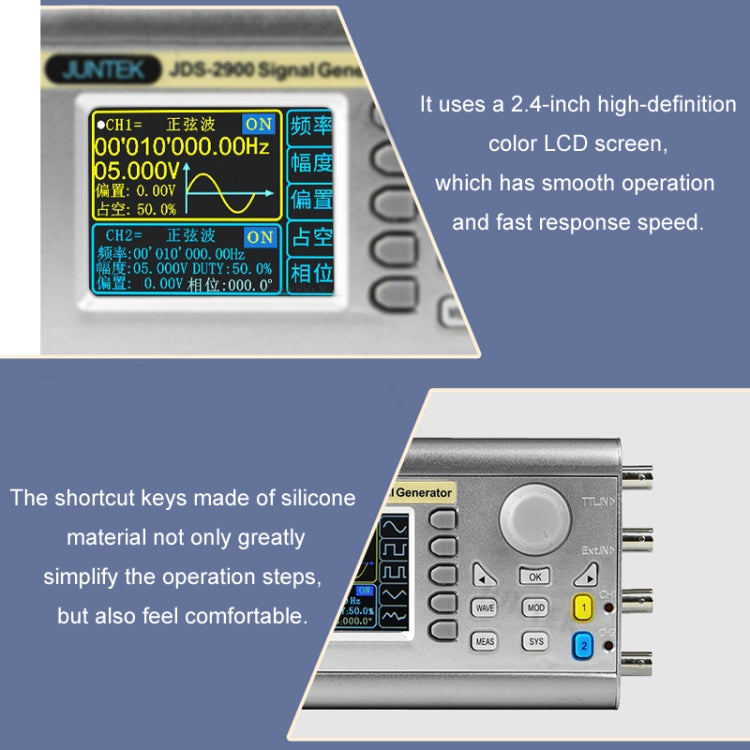

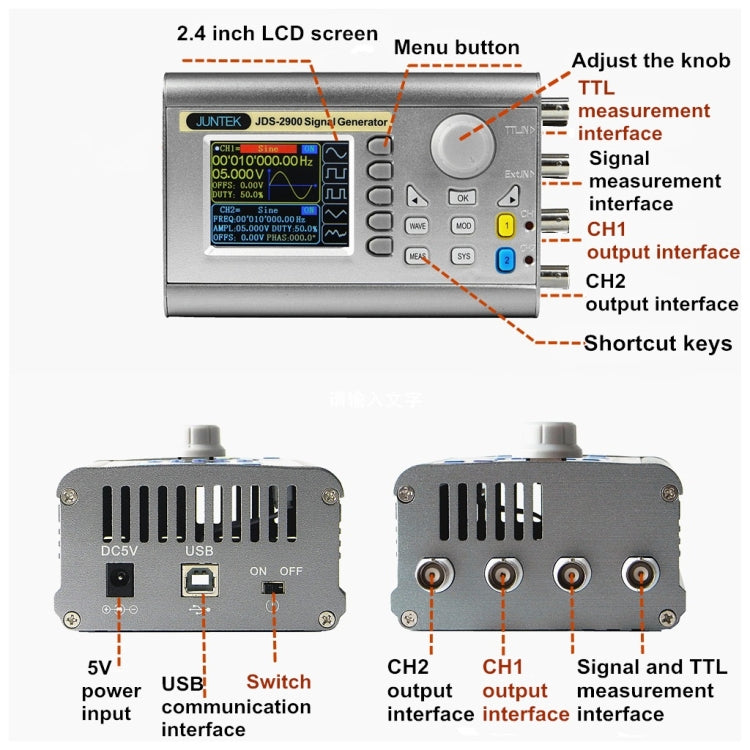

28. Adopt 2.4-inch high-definition color LCD display, smooth operation and fast response speed
29. The shortcut keys made of silicone material not only greatly simplify the operation steps, but also feel comfortable

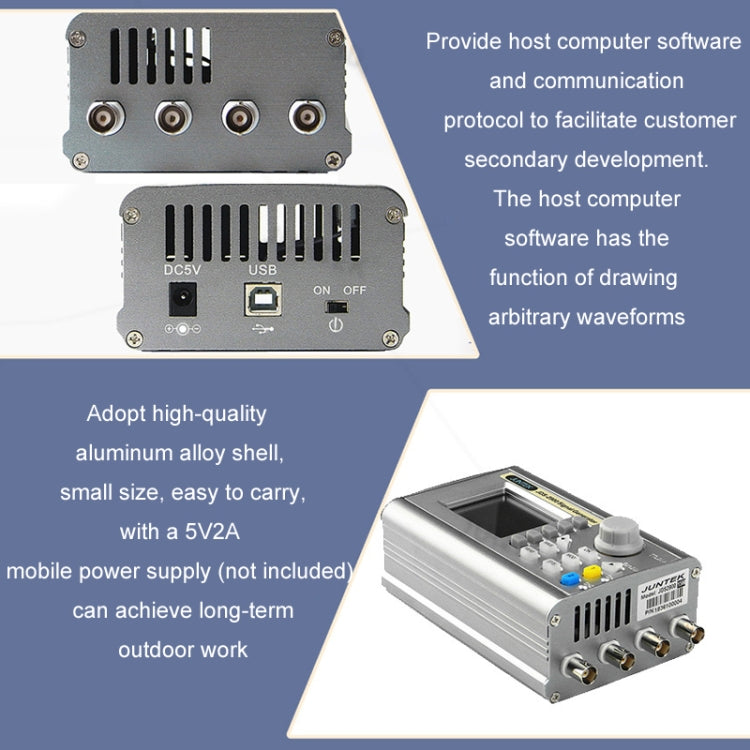

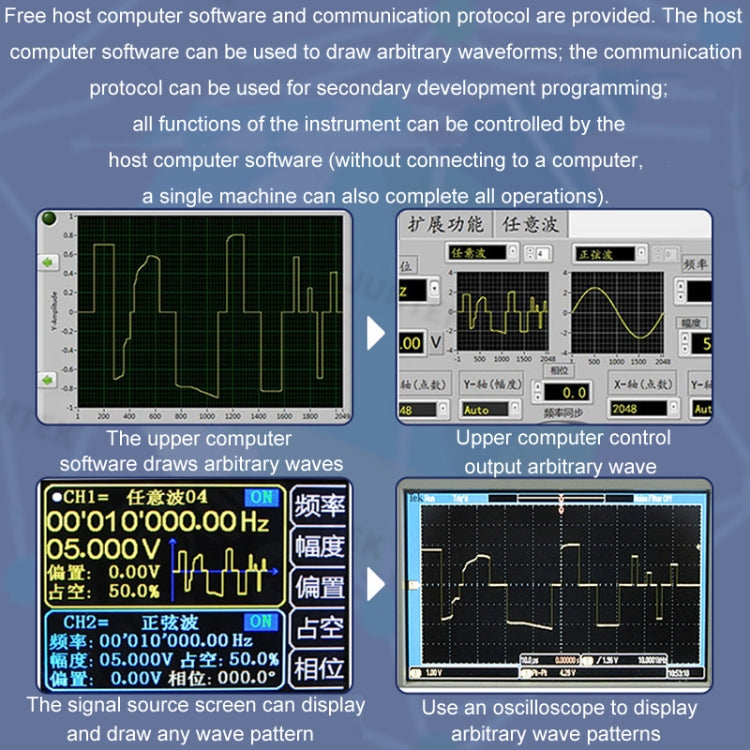

30. Provide host computer software and communication protocol to facilitate customer secondary development. The host computer software has the function of drawing arbitrary waveforms
31. Adopt high-quality aluminum alloy shell, small size, easy to carry, with a 5V2A mobile power supply (not included) can achieve long-term outdoor work

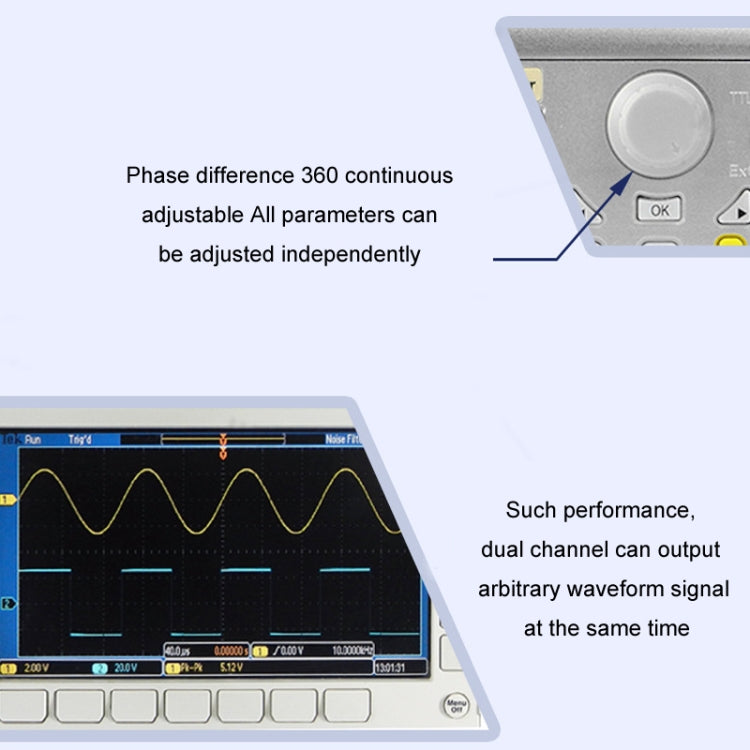

32. The dual channels with equal performance can output the same or different function signals or arbitrary waveform signals at the same time. All parameters can be adjusted independently. The phase difference between the two channels is continuously adjustable from 0 to 359.9 degrees

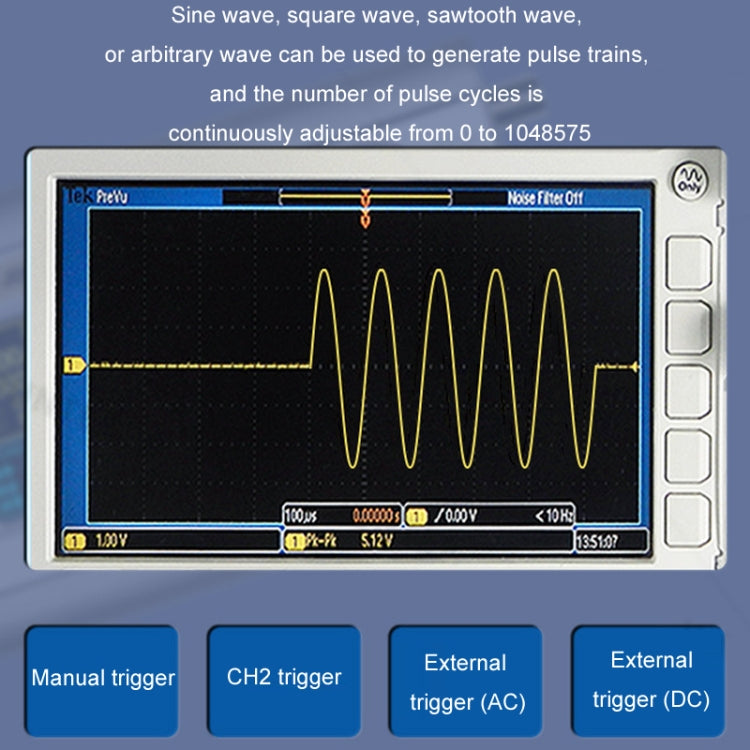

33. Sine wave, square wave, sawtooth wave, or arbitrary wave can be used to generate pulse trains. The number of pulse cycles is continuously adjustable from 0 to 1048575

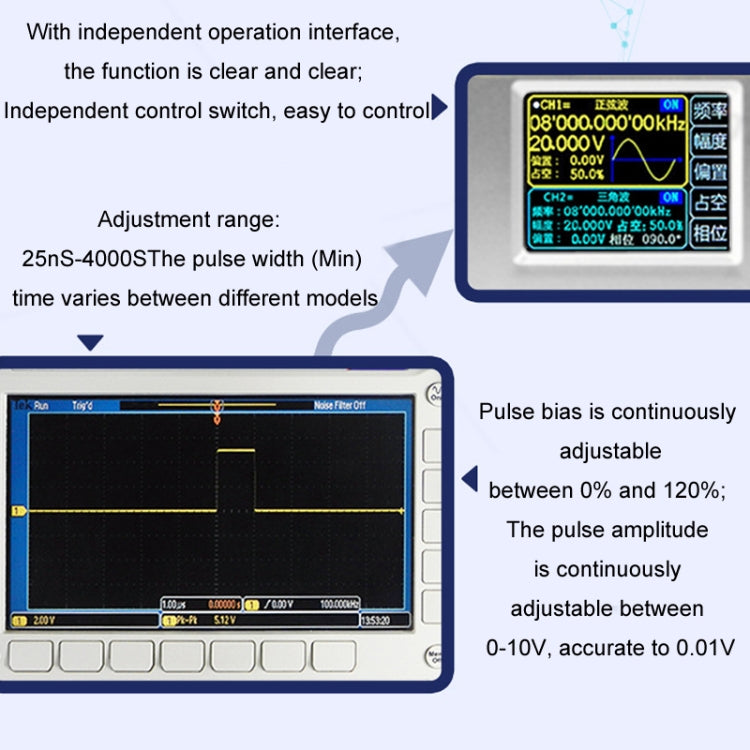

34. The pulse width and pulse cycle time of the pulse wave are digitally and accurately adjustable
35. The host computer software and communication protocol are provided free of charge. Any waveform can be drawn using the host computer software; secondary development programming can be performed using the communication protocol; all functions of the instrument can be controlled using the host computer software (all operations can be completed on a standalone machine without connecting to a computer)

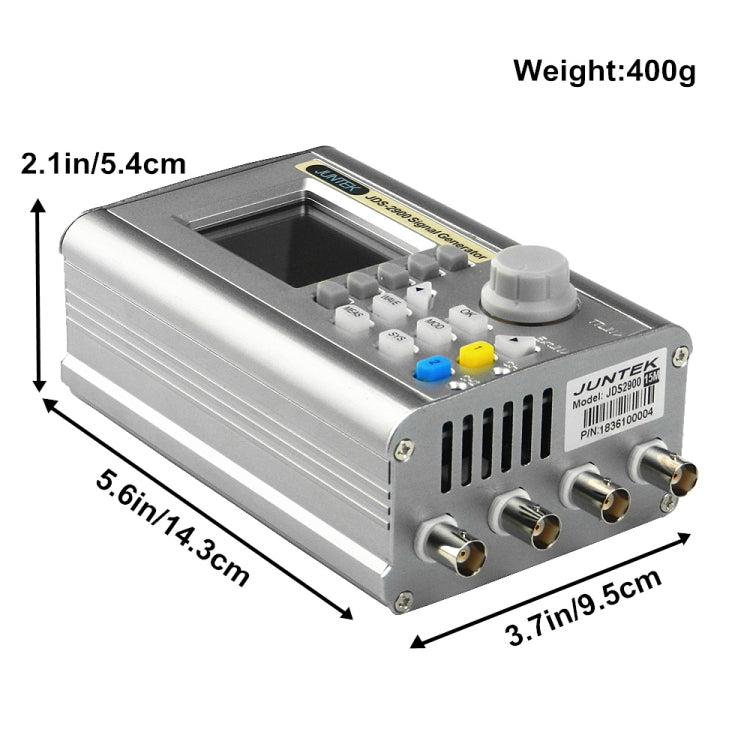

36. Dimensions: 143x95x54mm
37. Weight: 400g
