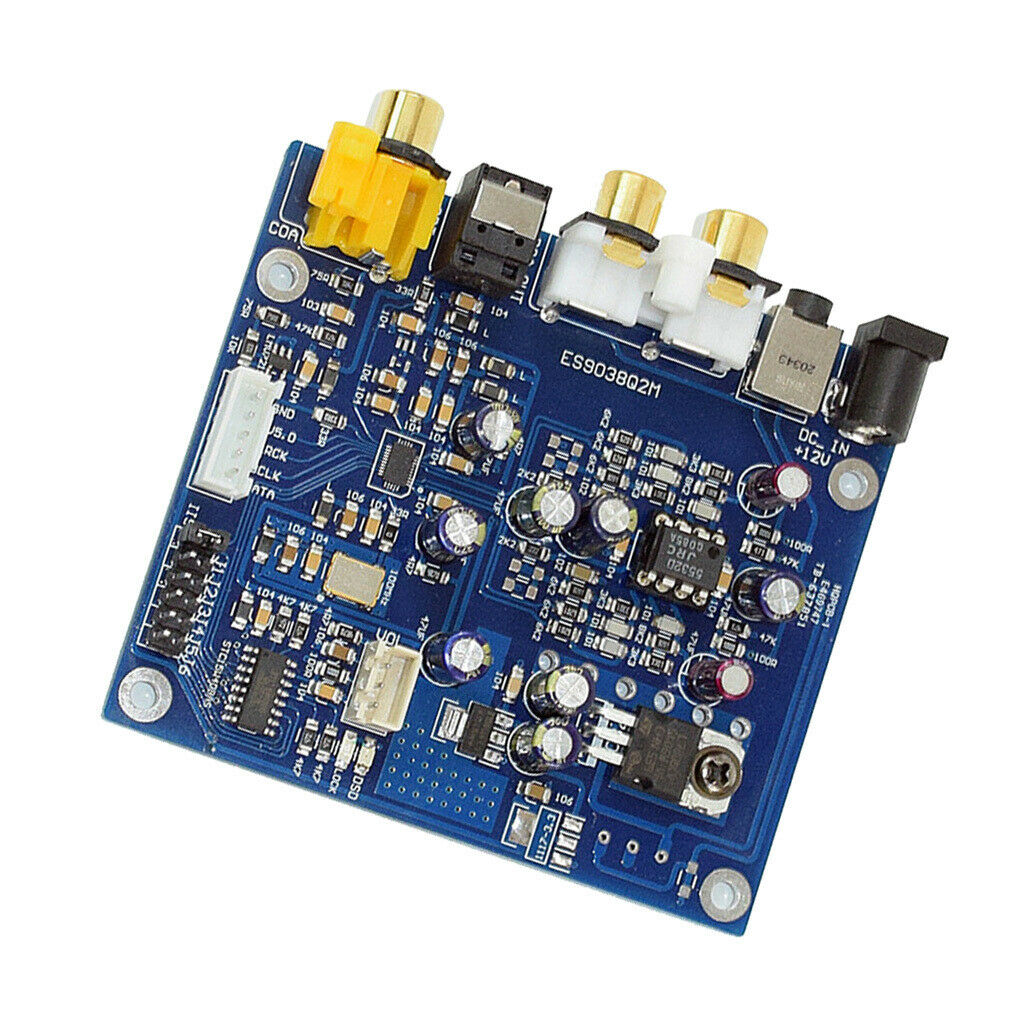

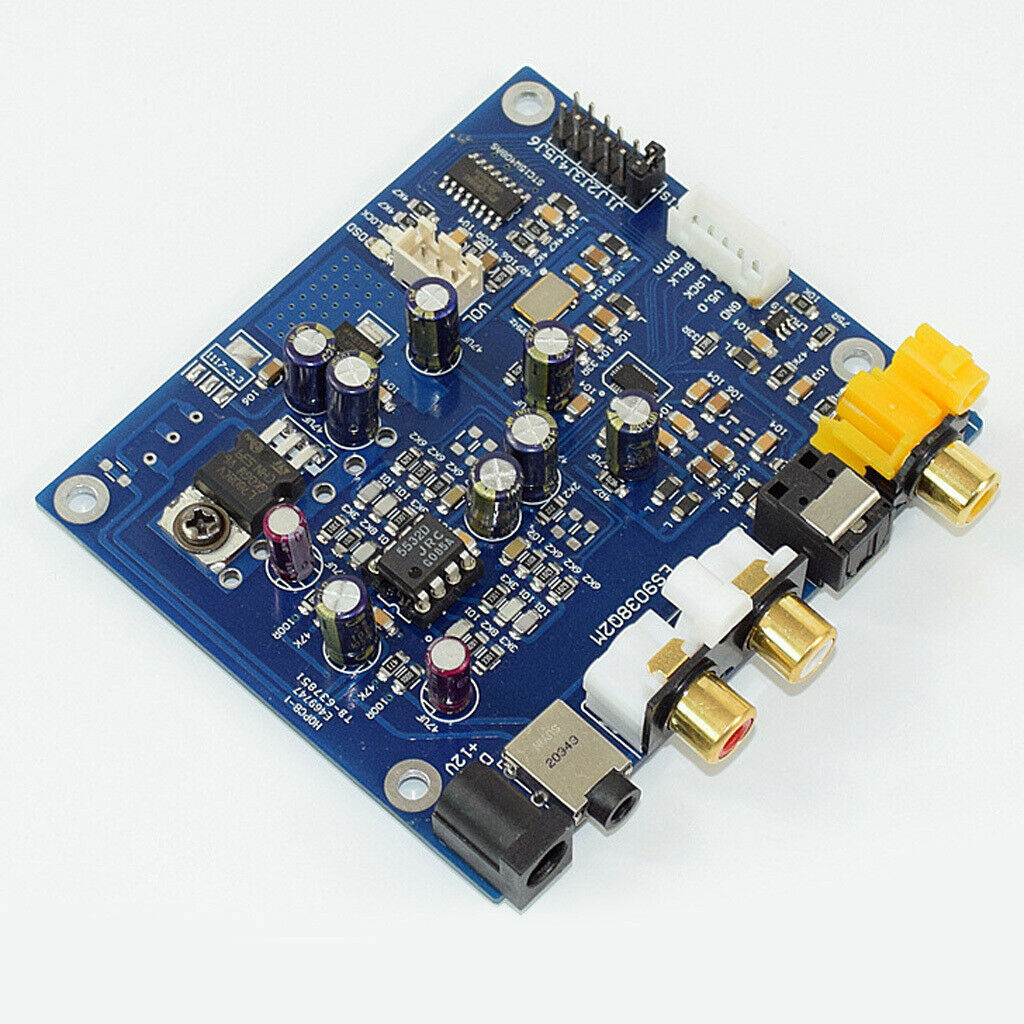

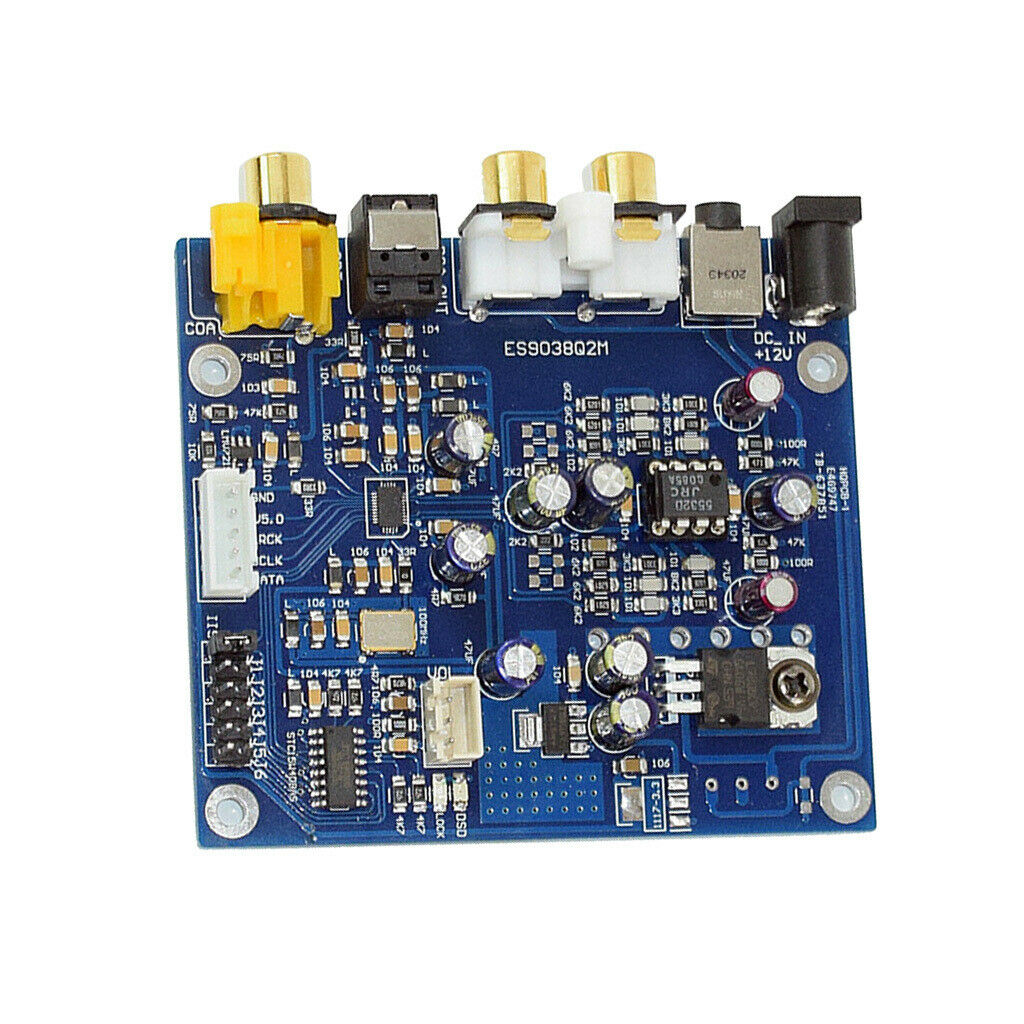

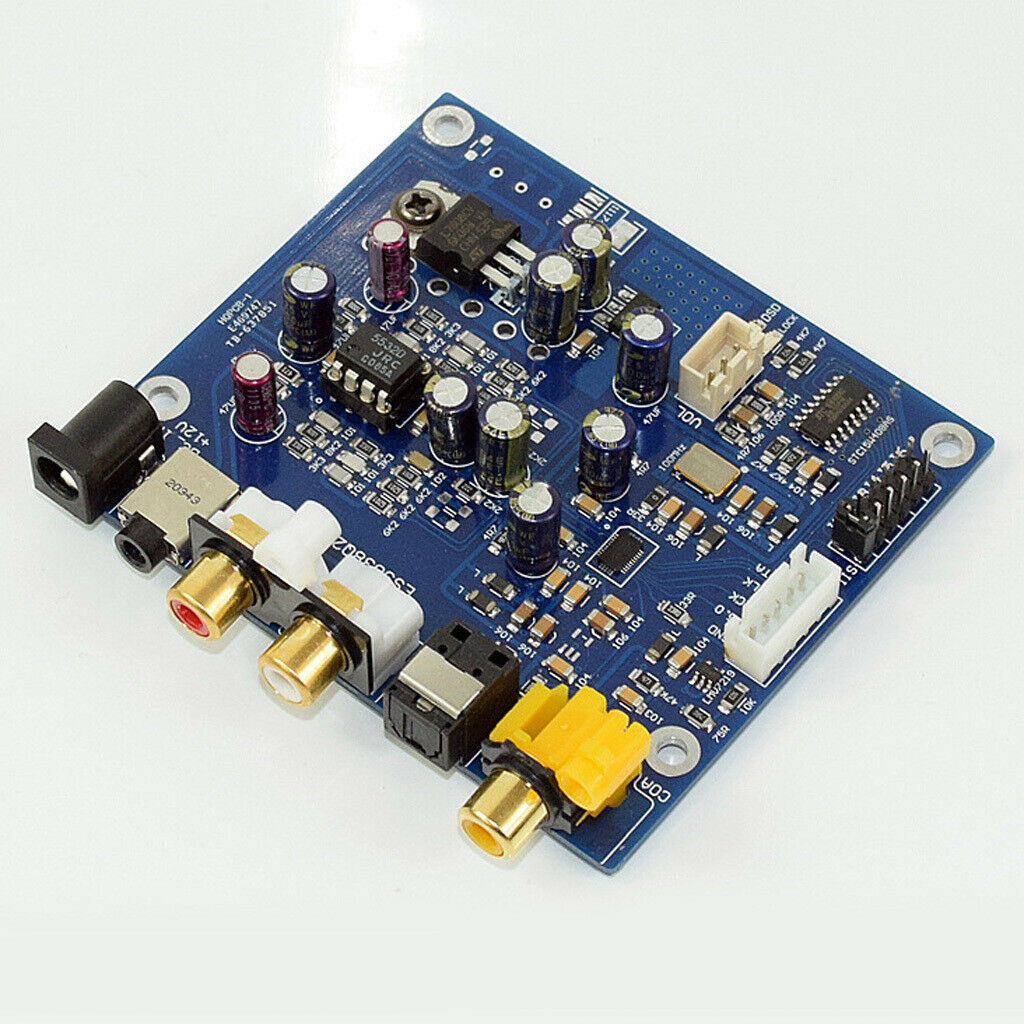

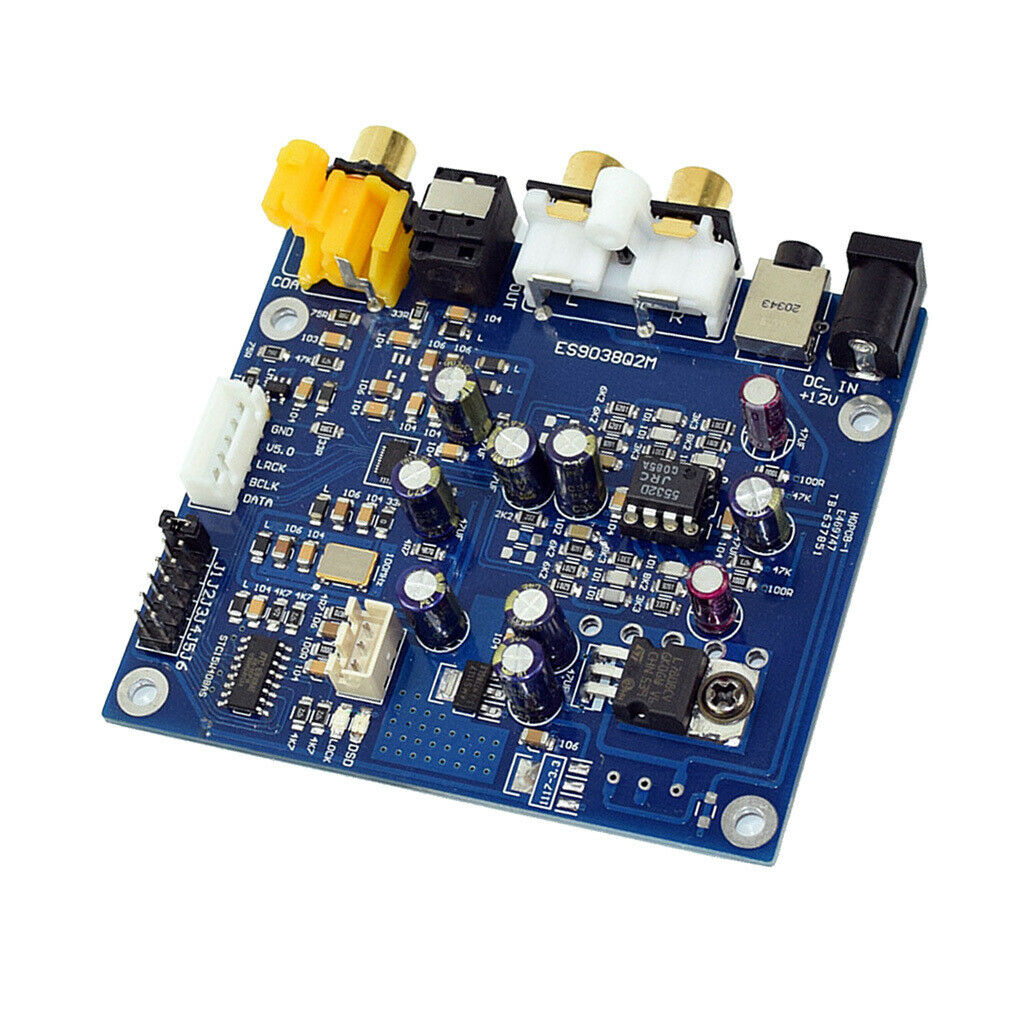

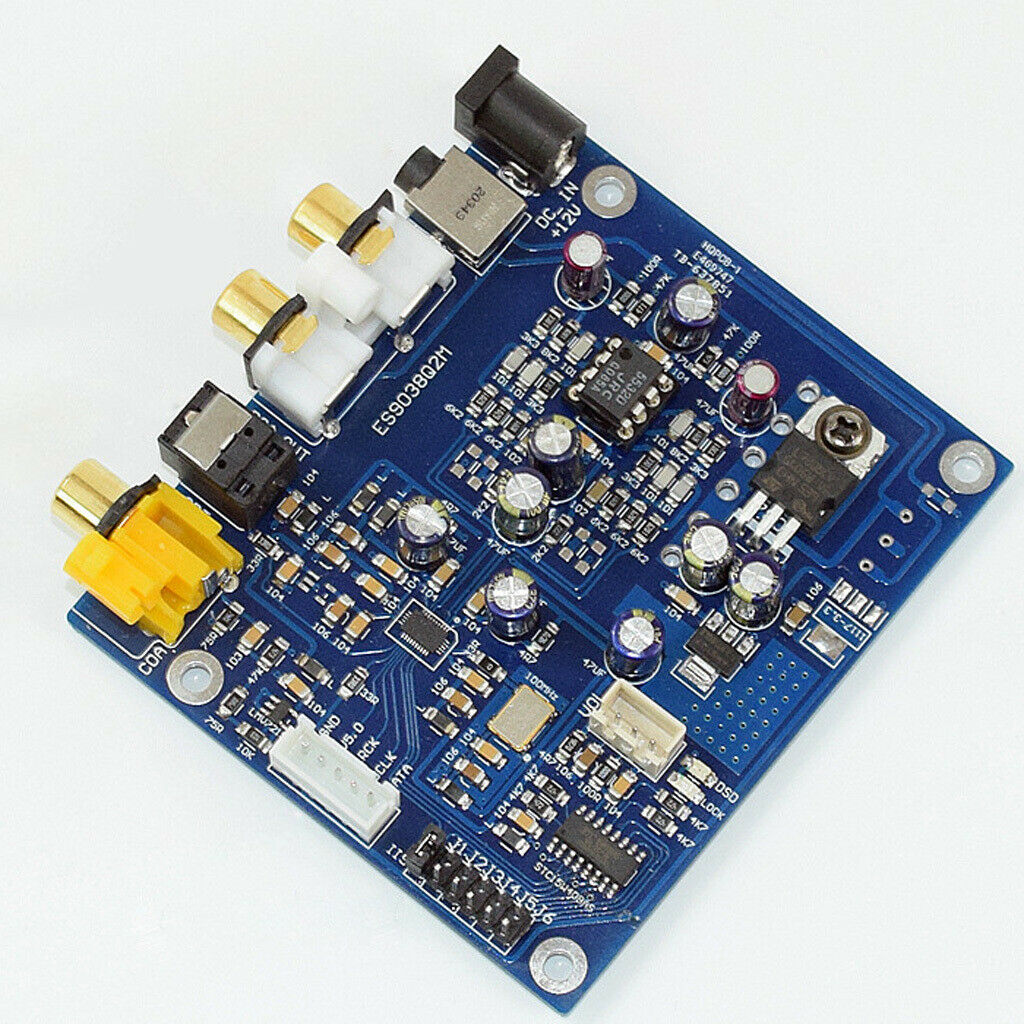

ITEM NAME:HiFi audio amplifier board module coaxial input decoder DAC Description: Perfectly seamless with the interface, PCM DSD switching is flawlessly. The ES9038Q2M parameter is relatively perfect, 129dB DNR -120dB THD+N. Easy to install. Since the MCLK of the ES9038 is an independent clock 100M, it is sufficient to input the DATA BCK LRCK only. Polished CD DVD old decoding works well. Delicate and sleek, the extension is very good. Specification: Voltage: DC 9-15V Output terminals: RCA can be connected amplifier, amp, 3.5 terminals can be connected to headphones Input support: Coaxial: PCM44.1k~192k 24bit/DOP DSD64 Fiber: PCM44.1k~192k 24bit/DOP DSD64 I2S/DSD:PCM44.1k~384k 32bit/DSD64, DSD128, DSD256 I2S/DSD pin definition: PCM_BCLK-DSD_CLK, PCM_LRCK-DSD_L, PCM_DATA-DSD_R Audio input settings: Short J1, coaxial input Short J2, optical fiber input Neither J1 nor J2 are shorted, I2S input Filter settings: J3, J4, J5, J6 are not shorted, filter=apodizing fast roll-off filter J3 is not shorted: Short J4, filter=brick wall filter J5 shorted, filter=corrected minimum phase fast roll-off filter Short J6, filter=minimum phase slow roll-off filter Short J3: J4 short, filter=minimum phase fast roll-off filter J5 short, filter=linear phase slow roll-off filter Short J6, filter=linear phase fast roll-off filter volume control: VOL: 1-2 short to mute, 2-3 short to maximum volume Can be connected to a single potentiometer, potentiometer handle to jump the direction of the needle, followed by corresponding wiring, increase the volume from left to right Package Includes: 1 Piece Coaxial Decoder Board.Coaxial: PCM44.1k~192k 24bit/DOP DSD64. 1 Piece Coaxial Decoder Board. Short J1, coaxial input. Perfectly seamless with the interface, PCM DSD switching is flawlessly. Audio input settings Since the MCLK of the ES9038 is an independent clock 100M, it is sufficient to input the DATA BCK LRCK only.
