HECHEN CA10B Heat-resistant 1.5L Automatic Small Intelligent Single Head Liquid Induction Multifunctional Quantitative Filling Machine

1. Input voltage: AC 110-220V 50/60Hz
2. Output voltage: DC12V
3. Ambient temperature: 10 - 40 degrees Celsius
4. Medium temperature: 3.0L model: 5 - 50 degrees Celsius; 1.5L model: 5 - 100 degrees Celsius
5. Minimum flow rate: 3.0L model: 10ml; 1.5L model: 5ml
6. Maximum flow rate: 3.0L model: 3000ml/min; 1.5L model: 1500ml/min
7. 1s flow rate: 3.0L model: 50ml; 1.5L model: 25ml
8. Water pump flow rate: adjustable
9. Speed ??range: 01-99 PWM digital display speed regulation
10. Filling capacity setting range: 1-9999
11. Counter: Supported, counting range 1-9999
12. Pump head material: 3.0L: PBT plastic; 1.5L: PC plastic
13. Corrosion resistance: 3.0L: supports weak corrosion; 1.5L: not corrosion resistant
14. Scope of application: liquids with good fluidity, no particles
15. Power-off memory: supported
16. Adjustable range of filling bracket: 0-200mm adjustable
17. Check valve: yes
18. Suitable for bottle mouth inner diameter: greater than 12mm
19. Filling capacity range: 3.0L: 10-3000ml1.5L: 5-1500ml (note: the specific filling capacity depends on the bottle shape and specifications)
20. Conveyor belt interface: supports 12V conveyor belt expansion to realize automatic conveyor belt filling linkage
21. Sensor interface: with foot switch, and supports DC12V NPN three-wire sensor
22. Six working modes:
- Inching: press and hold to release water, release to stop
- Manual: press once to fill once
- Automatic: automatic cycle intermittent filling
- Foot switch: step once to fill once
- Induction: fill once when the bottle is sensed
- Conveyor belt: automatic conveyor belt induction filling
23. 3L large flow diaphragm pump: suitable for non-corrosive, non-particle-free liquids at room temperature with good fluidity, the recommended filling range is 10-100ml, such as beverages, liquor, vinegar, soy sauce, fruit juice, etc.
24. 1.5L heat-resistant diaphragm pump: suitable for non-corrosive, non-particle-free liquids with good fluidity within 100 degrees Celsius, the recommended filling range is 5-500ml, such as soy milk, milk, goat milk, plum juice, etc.
25. Size: about 18 x 13 x 10cm

Features:
1. Efficient: intelligent induction, making filling operations handy and freeing your feet
2. Accurate: microcomputer control system, just enter the capacity directly
3. Safety: the host is powered by low-voltage DC, which is more secure
4. Convenient: small size, easy to store, and saves space
5. Durable: the body is made of stainless steel, and the inlet and outlet pipes can be replaced by yourself
6. Intelligence: humanized design, multiple filling modes, suitable for different working scenes

Filling machine suitable requirements:
1. Applicable liquid must be pure liquid, free of impurities, and non-viscous
2. Pastes, honey, diesel, engine oil, gasoline, and kerosene are not applicable

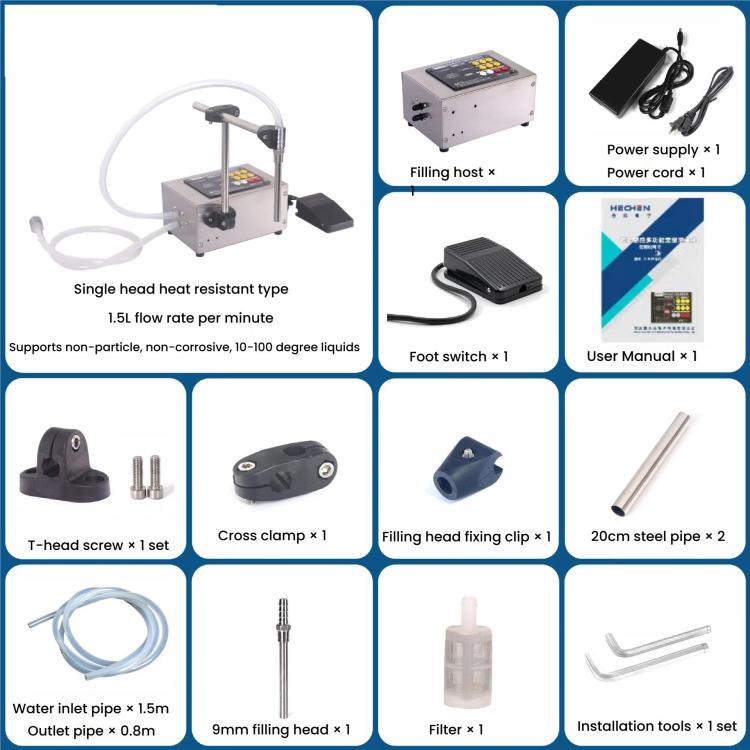

Packing list:
- Filling host x 1
- Power supply x 1
- Power cord x 1
- Foot switch x 1
- Instruction manual x 1
- T-head x 1
- Screws x 2
- Cross clamp x 1
- Filling head fixing clamp x 1
- 20cm steel pipe x 2
- 1.5m water inlet pipe x 1
- 0.8m water outlet pipe x 1
- 9mm filling head x 1
- Filter x 1
- Installation tool x 2
