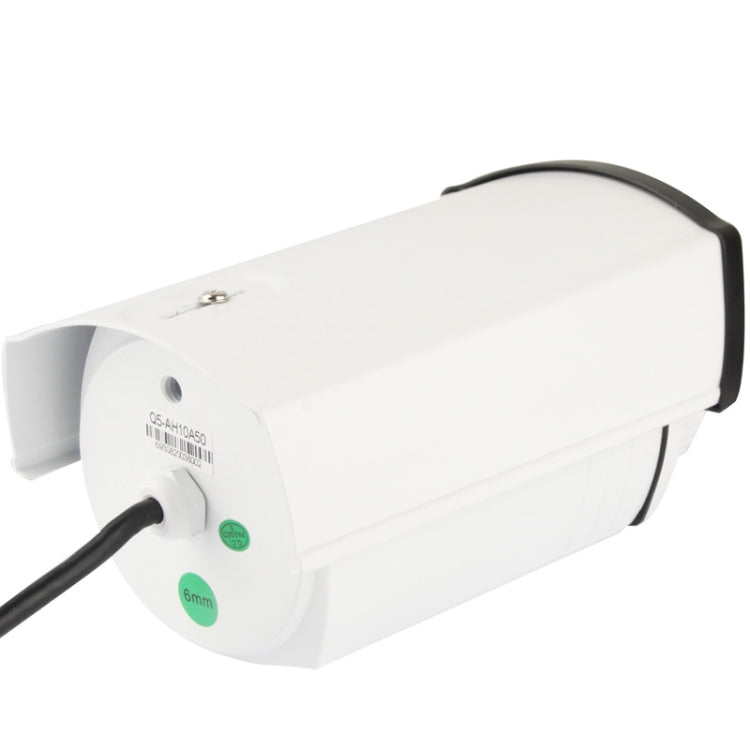

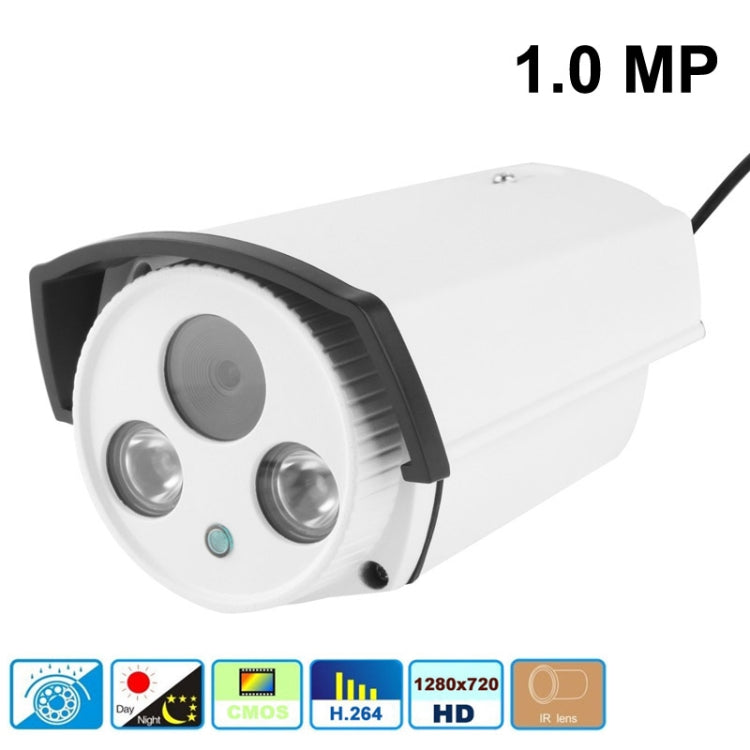

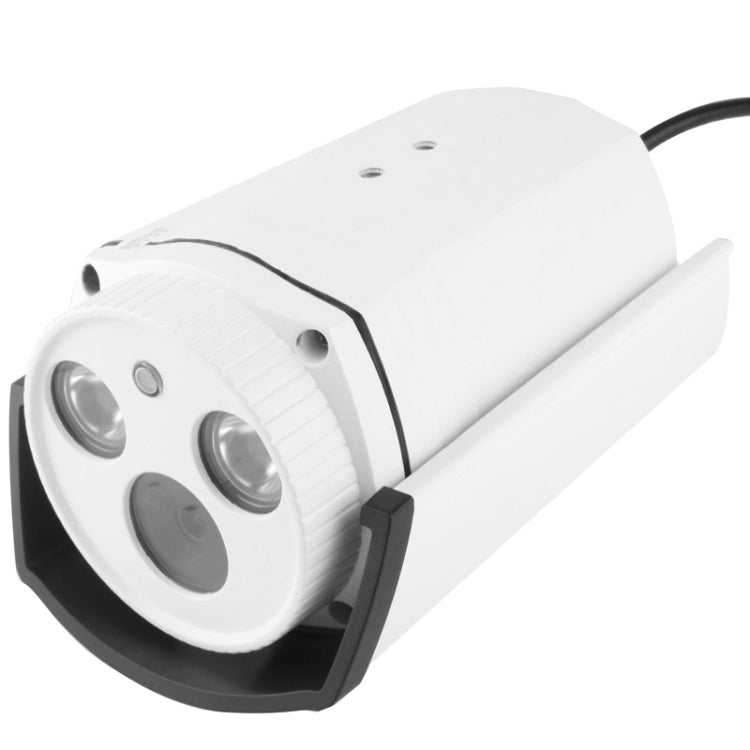

H.264 Wired Array LED Infrared 720P Bullet IP Camera, 1.0 Mega Pixels 6mm Fixed Focal Lens, Motion Detection / Privacy Mask and 30m IR Night Vision, Compliant to Onvif 2.1 (With CE & Rohs Certificate)

1) Varifocal HD Megapixel Lens:

6mm Fixed Lens Optional

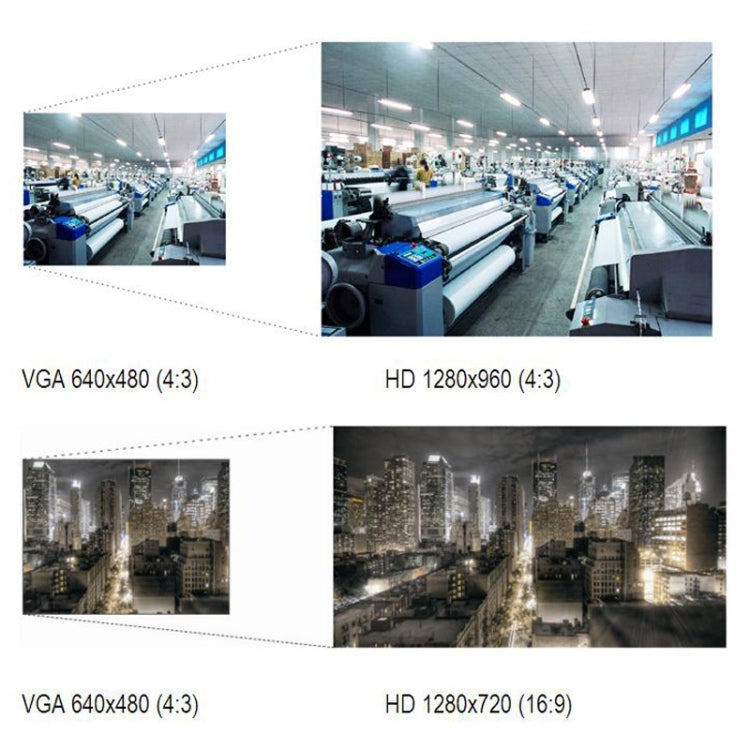

2) High Definition:

The newly developed DSP&CMOS enables HD resolution image (1280 x 720 pixels) output with 25fps video. The camera is based on standalone Linux operation system and built with advanced H.264 encoding compression, which is leading the technology in the industrial field domestically. Triple streams, 2-way audio communication, and various alarm modes are supported. It is good at delivering superior quality image with low code stream.

3) Support Mobile Viewer:

Free apps of camera viewer for smart phone of iOS and Android OS

4) Easy Connection with SCC NVR:

Working perfectly with SCC standalone NVR (Plug & Play)

5) Outdoor-Ready Water Resistant Design

6) Multi-function, More intelligent monitoring:

Motion Detection

Alarm Event

Manual and automatic tracking White Balance

2-way audio (Optional)

Privacy Mask

Compliant to ONVIF

DDNS, RTSP, SMTP

12VDC / P.o.E (Optional) Dual Power input.

7) Realtime Full Frames：

The powerful processor delivering max. 25fps realtime for all primary, secondary and mobile stream so as to catch every valuable picture frames with high quality.

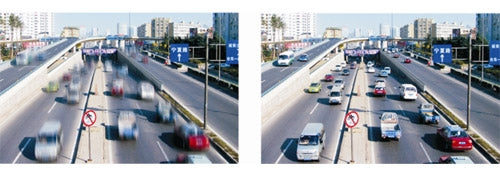

8) Progressive Scan Sensor:

The progressive scan CMOS sensor makes the images of moving objects to be seen much more clearly without image tail.

9) Support Standard ONVIF V2.1

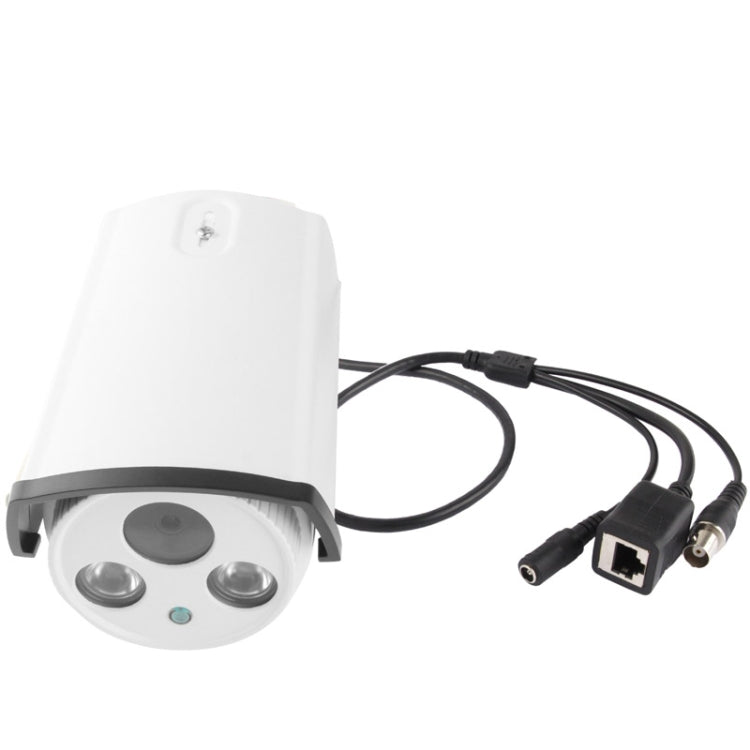

10) Integrated Cable:

Integrated cable consisting of power input (DC12V), RJ45 (Network & P.o.E.) and 1CH Audio In & Out.

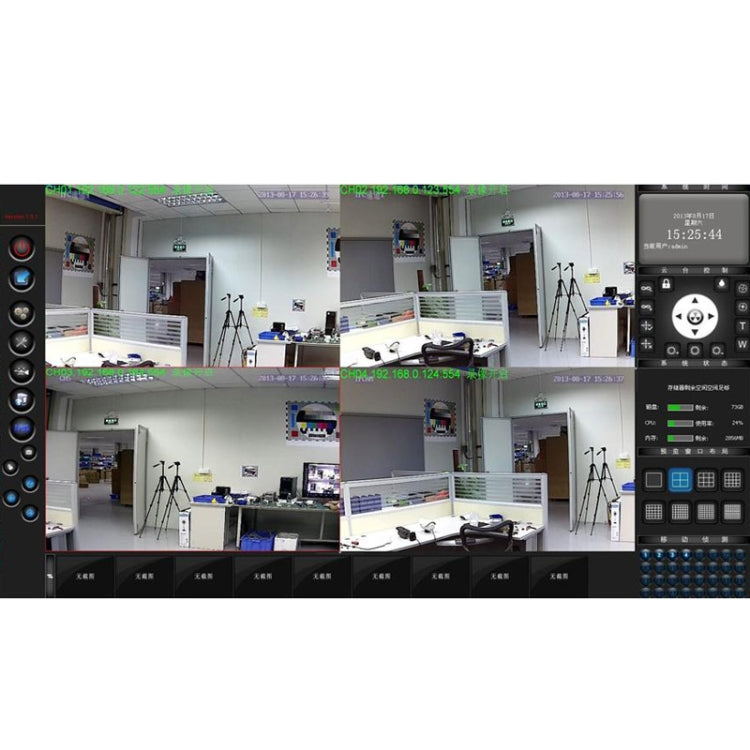

10) Free IPC Management Software (for PC)

The IPC Platform Software is self-contained network management software. It can be run independently to manage all IPC connected, view monitoring images. Control PTZ etc. It is a perfect choice for small or medium sized (64CH HD IPC Max.) standalone IPC management system.

Specifications

1) Signal System: Progressive image scan

2) Scanning System: 16: 9 Progressive

3) Image Sensor: 1/3", 1.0-Megapixels CMOS

4) Sync. System: Internal

5) Effective Pixels No. : 1280 (H) x 720 (W)

6) Video Output Level: 1.0Vp-p (BNC 75Ω composite)

7) Lens: Fixed Megapixel Lens (f=6mm, F1.4)

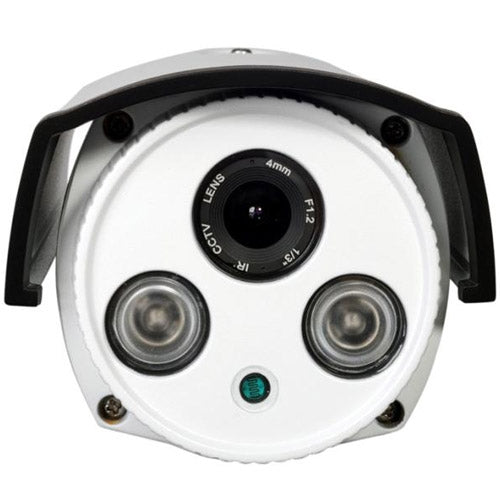

8) IR LED & Visible Range: IR Array LED 2pcs Φ22mm (850nm/60 °), Max. 30m

9) Day & Night System: Mechanical ICR

10) Min. Illumination: 0.5Lux (Color) / 0 Lux IR On

11) Brightness: Auto/Manual

12) Contrast: Auto/Manual

13) Mirror: Yes

14) Heatbeat Message: Yes

15) Compression: H.264/MJPEG

16) Frame Rate: 1280 x 720 25fps, 640 x 360 25fps

17) Resolution: 1280 x 720, 640 x 360, 320 x 240

18) Code Stream: 128Kbps~8Mbps, VBR/CBR

19) Audio : Two ways, G.711a/u

20) Protocol: HTTP, TCP/IP, UDP, SMTP, DDNS, DNS, SNTP, DHCP, FTP, RTP, RTSP, UPNP, ONVIF

21) DDNS: Yes

22) LAN Interface: Ethernet 10/100 base-T, RJ45 x1

23) Support P.o.E.: Yes (Optional)

24) WIFI (802.11b/g/n): No

25) User Access Setup: Yes

26) After Event Process: Upload JPEG via FTP, Email or specified alarm center

27) ONVIF Standard Access: ONVIF V2.1

28) Motion Detection: Yes, Support Multiple Setting Areas

29) Browser: Internet Explorer 6.0 or Above

30) System Upgrade: Yes, Firmware upgrades

31) PTZ Control: Not Applicable for Fixed Cameras

32) WEB Configuration: Yes

33) IP Rating: IP66

34) Operation Temperature: -10℃-45℃(14℉-113℉);

35) Operation Humidity: 10–90% (No condensation)

36) Power: DC12V, P.o.E. (Optional)

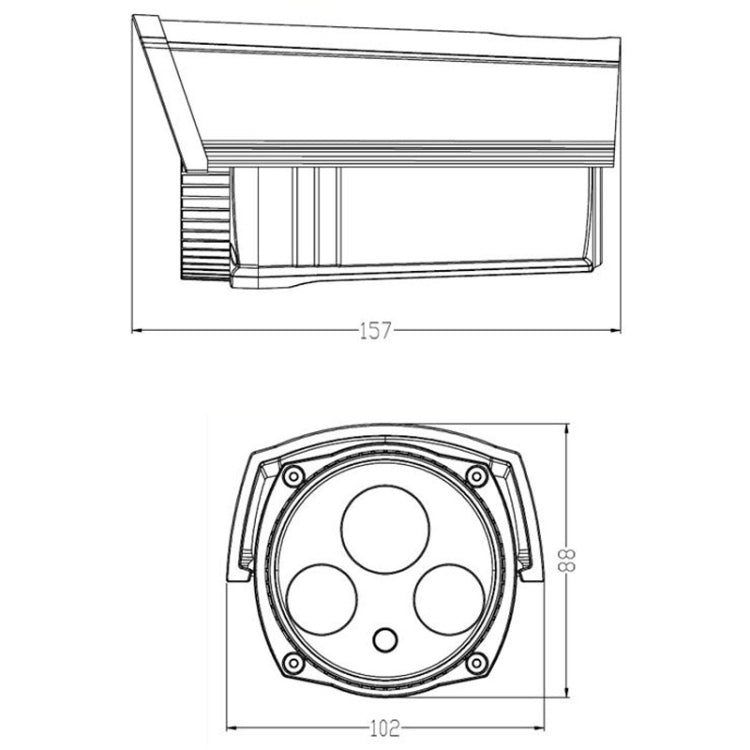

37) Dimensions: 157 (L) x 102 (W) x 88 (H) mm

38) Net weight : 0.8kg
