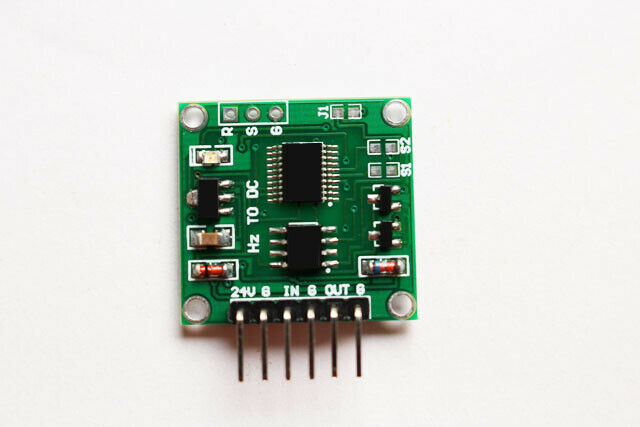

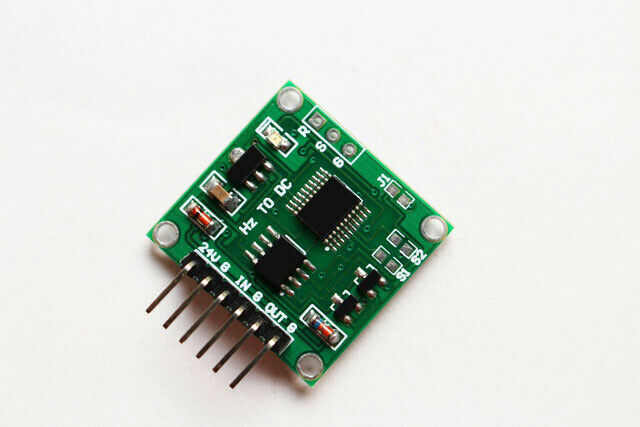

ITEM NAME:Frequency to Voltage Module 0-10Khz to 0-5V 0-10V Linear Conversion Transmitter Product Overview Frequency to Voltage Module 0-10Khz to 0-5V 0-10V Linear Conversion Transmitter Detail This is a linear transformation module, processing by the internal chip, input frequency signal is converted to the standard voltage signal. There are two output voltage ranges to choose from. Module parameters 1, the working voltage : 9V ~ 24V 2, the input voltage range : 4 ~ 24V 3, the input frequency range : 0Hz ~ 10KHz 4, the input duty cycle range : 5 to 95% 5 , the output voltage : 0.00V ~ 5.00V/0.00V ~ 10.00V 6, the input mode : S1 pad on the board : open ( 0 ~ 10KHz ):shorted ( 0 ~ 1KHz ) , the default is open. 7 , output : S2 pads on the circuit board : open ( output 0.00V ~ 5.00V); shorted ( output 0.00V ~ 10.00V), the default is open. 8 , Applications: Remote data acquisition and control equipment ; 9 , Size: (L ) 26mm * ( W ) 23mm * ( height ) 10mm Module interfaces: 24V: power supply positive interfaces (9V ~ 24V). G: Power to the ground interface . IN: positive signal input interface. G: negative signal input interface. OUT: Signal output interface (0.00V ~ 5.00V/0.00V ~ 10.00V). G: Power to the ground interface . Note : When the output 0.00V ~ 10.00V, power supply voltage to 15 volts . Output (0.00V ~ 5.00V) Resolution : 0.0005V / D ( V / per hertz ) Output (0.00V ~ 10.00V) Resolution : 0.0010V / D ( V / per hertz ) Measured frequency ratio calculation formula: ( output voltage (V) / resolution ) = Frequency ( Hz ) . For example: output (0.00V ~ 5.00V) 2.5V output (2.5 (V) / 0.05) = 5000 (Hz). Package include: 1 x Frequency to Voltage Module.Find many great new & used options and get the best deals for Frequency to Voltage Module 0-10Khz to 0-5V 0-10V Linear Conversion Transmitter at the best online prices at Order2india Shopping! Free shipping for many products!
