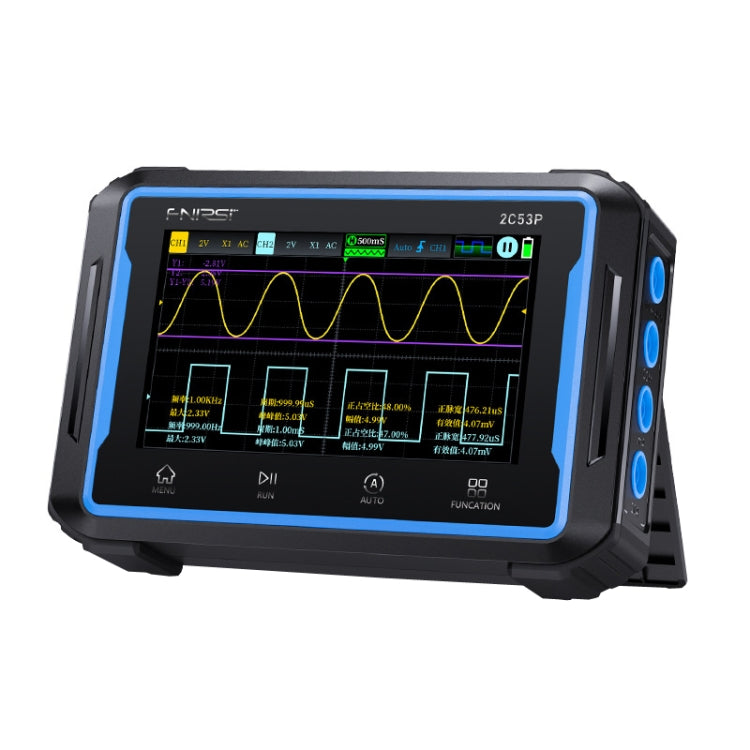

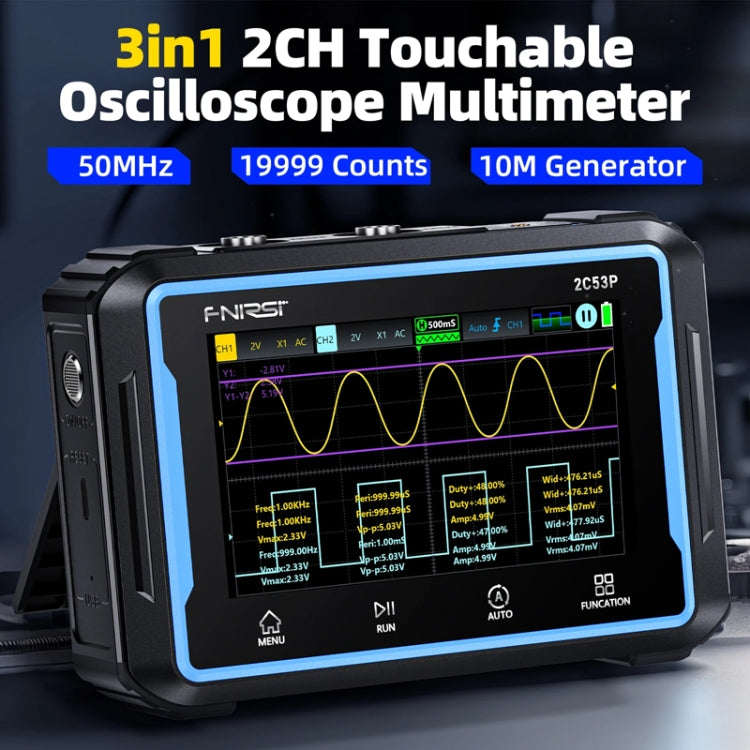

Name: FNIRSI 2C53P Dual Channel Flat Panel Digital Oscilloscope Multimeter Signal Generator 3 In 1 - Black
Brand: O2I24
SKU: TBD0604844501A
Price: 26129.0 INR
Availability: InStock

FNIRSI 2C53P Dual Channel Flat Panel Digital Oscilloscope Multimeter Signal Generator 3 In 1 - Black

Roll over image to zoom in Click on image to zoom

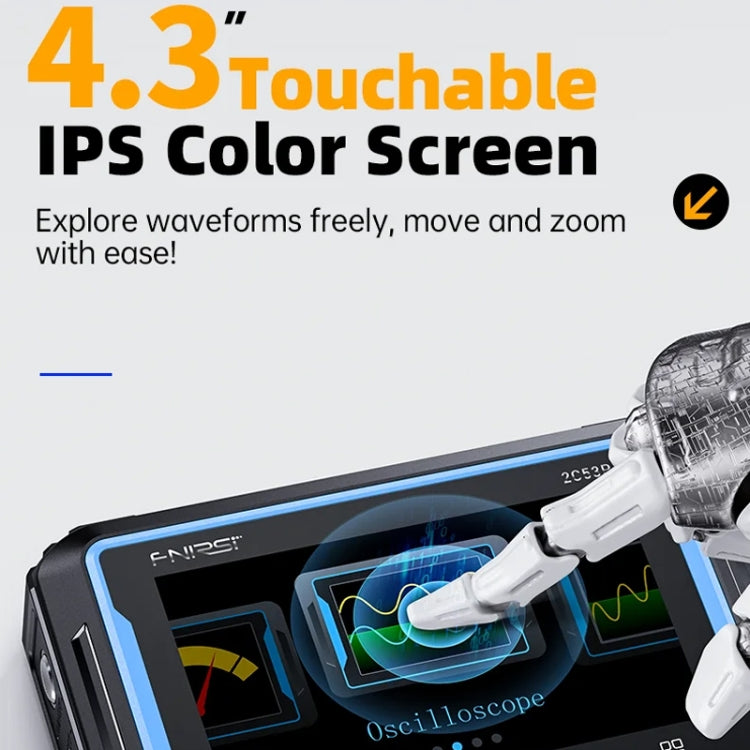

1. 4.3-inch IPS ultra-high definition screen, easy to use
2. Built-in high-capacity lithium battery, long battery life
3. Using the core of a powerful FPGA + MCU + high-speed ADC hardware architecture system waveforms smooth and clear
4. Measurement of millivolt level of weak signals, support for 20M bandwidth limits

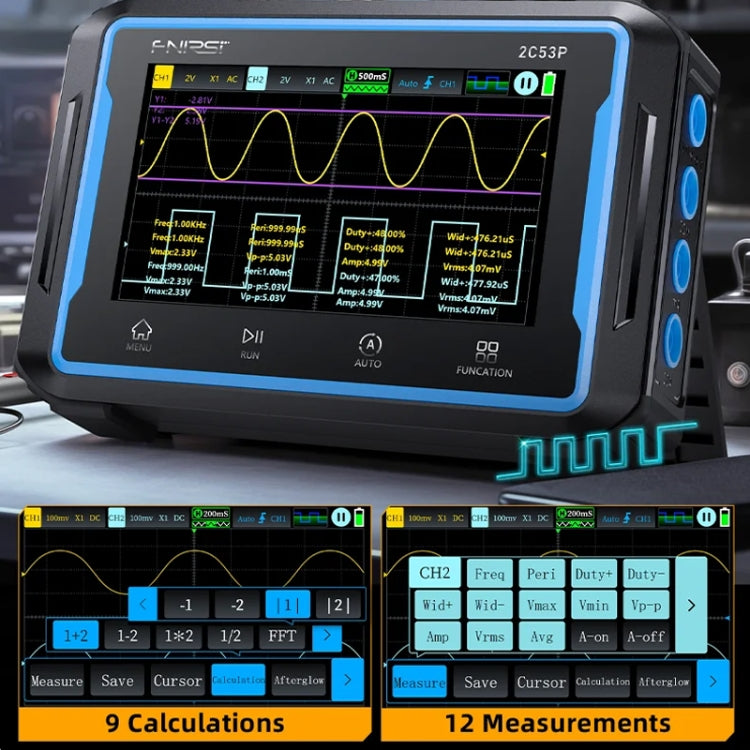

5. Powerful waveform computing capabilities, real-time addition, subtraction, multiplication and division operations, in-depth analysis and processing of complex signals

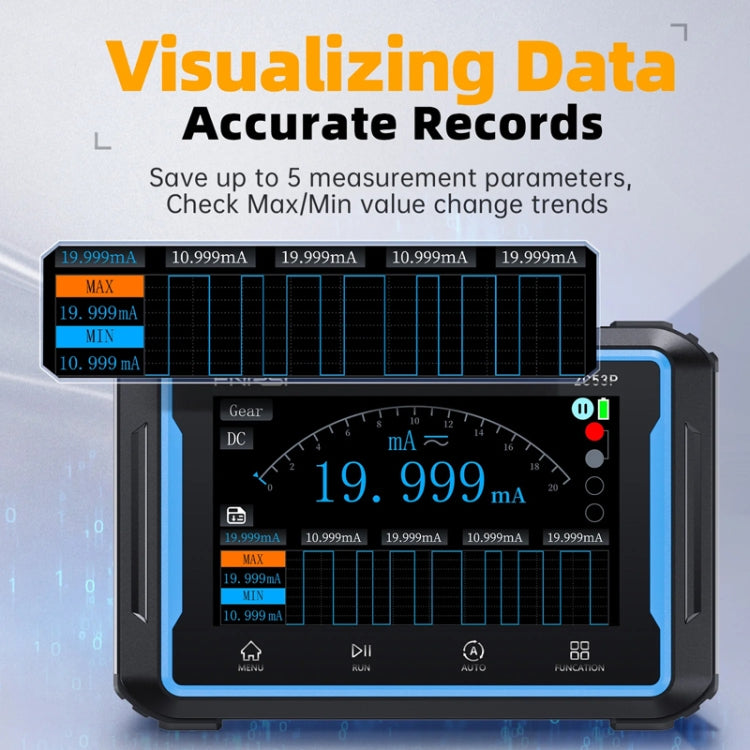

6. Real-time capture and display the changes in a variety of measurement parameters, forming a clear and concise data trend graph, but also has the ability to retain up to 5 groups of measurement data, at a glance
7. Double current fuse, to prevent burning the meter more safely
8. Easy to manage oscillometric images, can be connected to a computer via USB cable for secondary analysis
9. Lightweight, one-handed, easy to put into a pocket or toolkit, convenient to carry

Basic parameters:

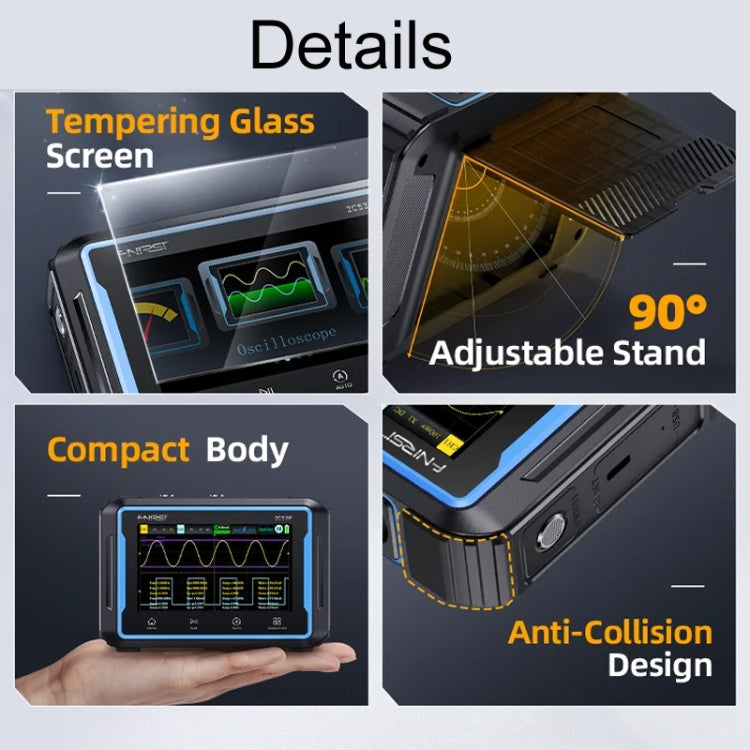

1. Screen material: surface tempered glass + glass GLASS material touch screen + IPS color screen
2. Backlight: backlight brightness can be set
3. Power supply: Type-C (5V/2A)
4. Battery: 4000mAh li-ion battery

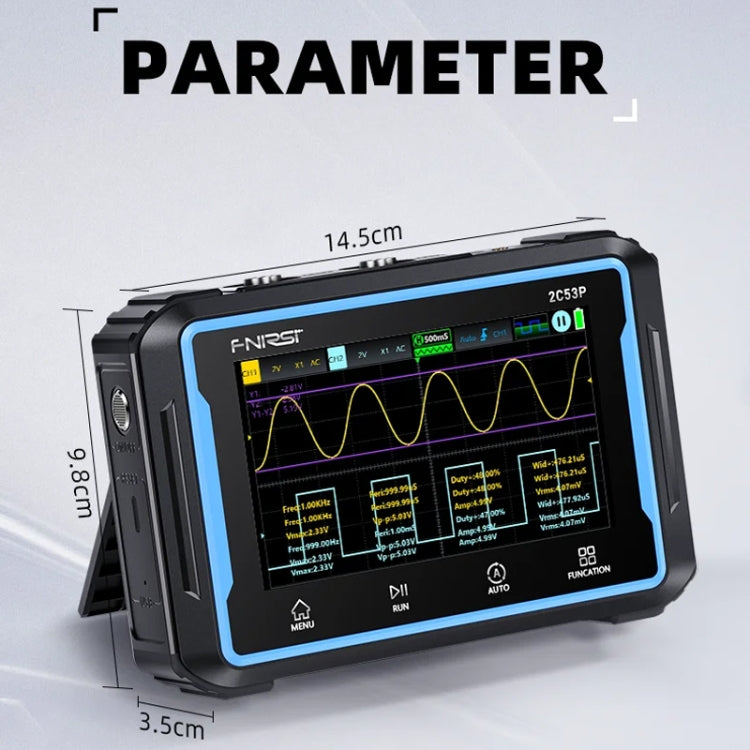

5. Size: 145 x 98 x 35mm
6. Weight: 360g

Oscilloscope parameters:
1. Channel: dual-channel
2. Bandwidth: 50MHz
3. Real-time sampling rate: 250MSa / s
4. Memory depth: up to 64kByte
5. Time base range: 10ns/div-10s/div
6. Vertical sensitivity: 10mv/div-10v/div

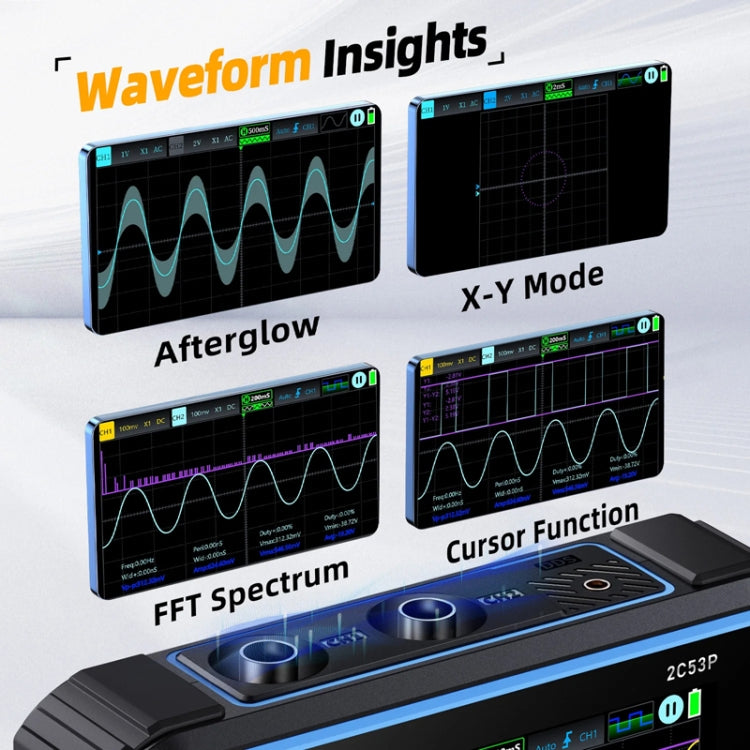

7. Waveform display mode: YT / XY / scrolling
8. Vertical resolution: 8 bits
9. Input impedance: ΙΜΩ
10. Bandwidth limitation: support 20MHz limitation
11. Probe attenuation factor: 1x/10x
12. Input coupling: AC/DC
13. Trigger type: rising edge/falling edge
14. Maximum voltage: +/-400V
15. Trigger level range: 8 cells (positive and negative)

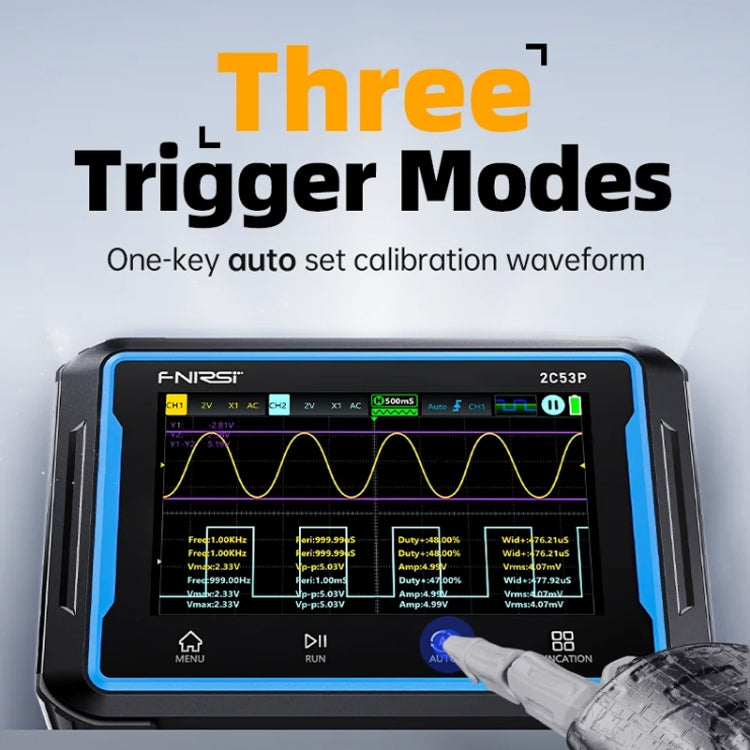

16. Trigger mode: automatic / normal / single
17. Memory space: 13M
18. Measurement data: period, frequency, peak-to-peak value, maximum value, minimum value, average value, RMS value, amplitude, duty cycle and pulse width

Signal generator parameters:
1. Different waveform output frequency: sine wave: 10MHz, other waveforms: 5MHz
2. Waveform frequency: 0-10ΜΗz
3. Waveform amplitude: 0.1V-3.0V
4. Duty cycle of square wave: 0-100 percent

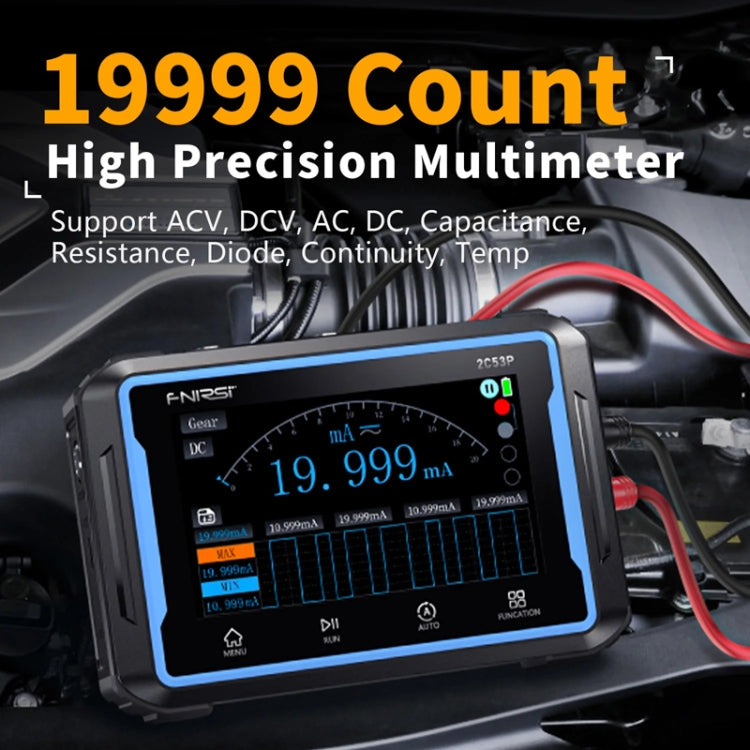

Multimeter parameters:
1. DC voltage: 1.9999V/19.999V/199.99V/1000.0V
2. AC voltage: 1.9999V/19.999V/199.99V/760.0V
3. DC current: 19.999mA/199.99mA/1.9999A/9.999A
4. AC current: 19.999mA/199.99mA/1.9999A/9.999A
5. Resistance: 19.999ΜΩ/1.9999ΜΩ/199.99ΚΩ/19.999ΚΩ/1.9999ΚΩ/199.99Ω
6. Capacitance: 999.9uF/99.99uF/9.999uF/999.9nF/99.99nF/9.999nF9.999mF/99.99mF
7. Temperature: -55-1300 degrees celsius/-67-2372 degrees fahrenheit
