Description

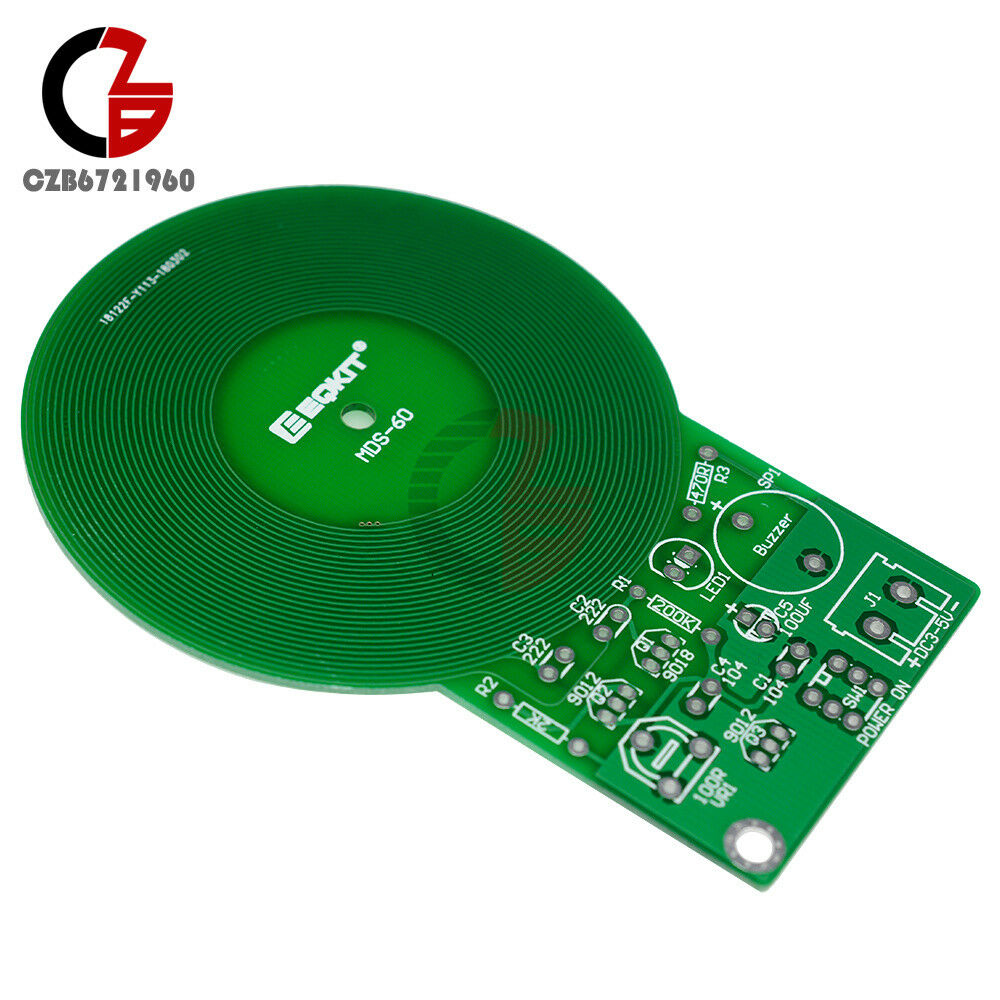

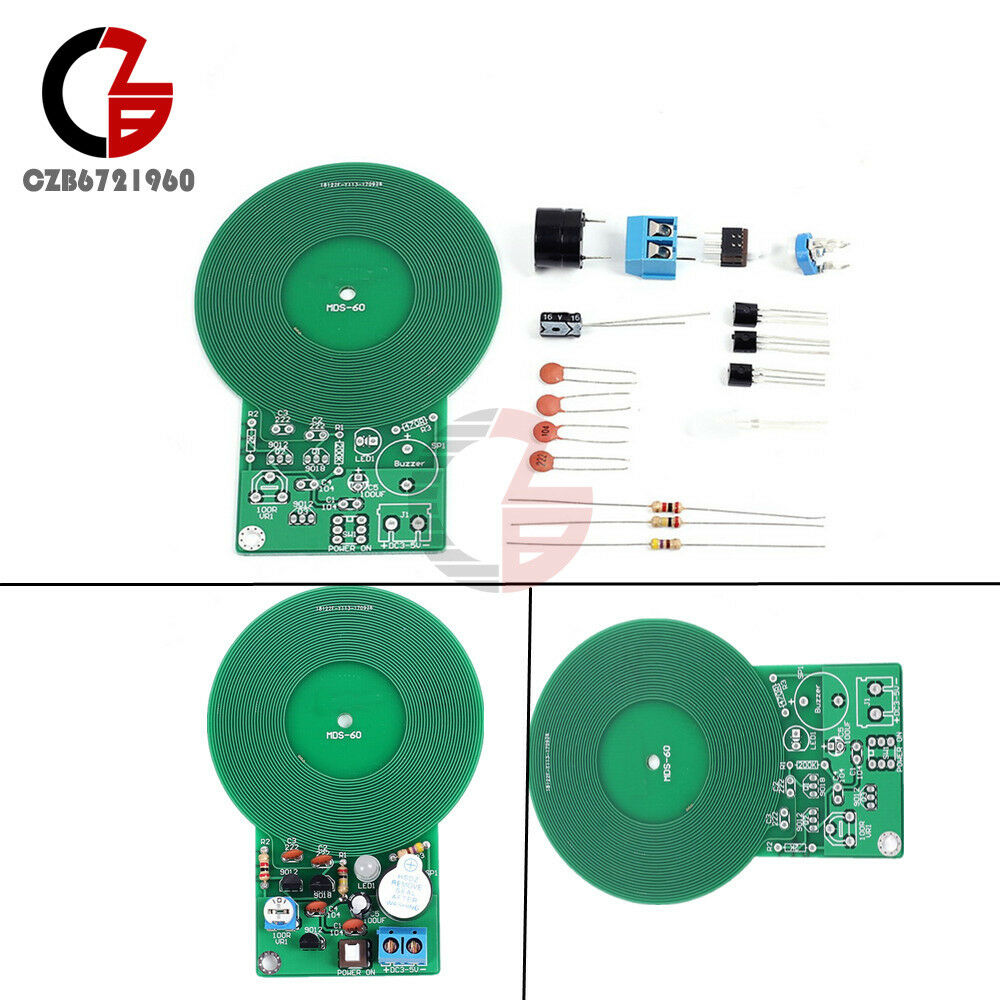

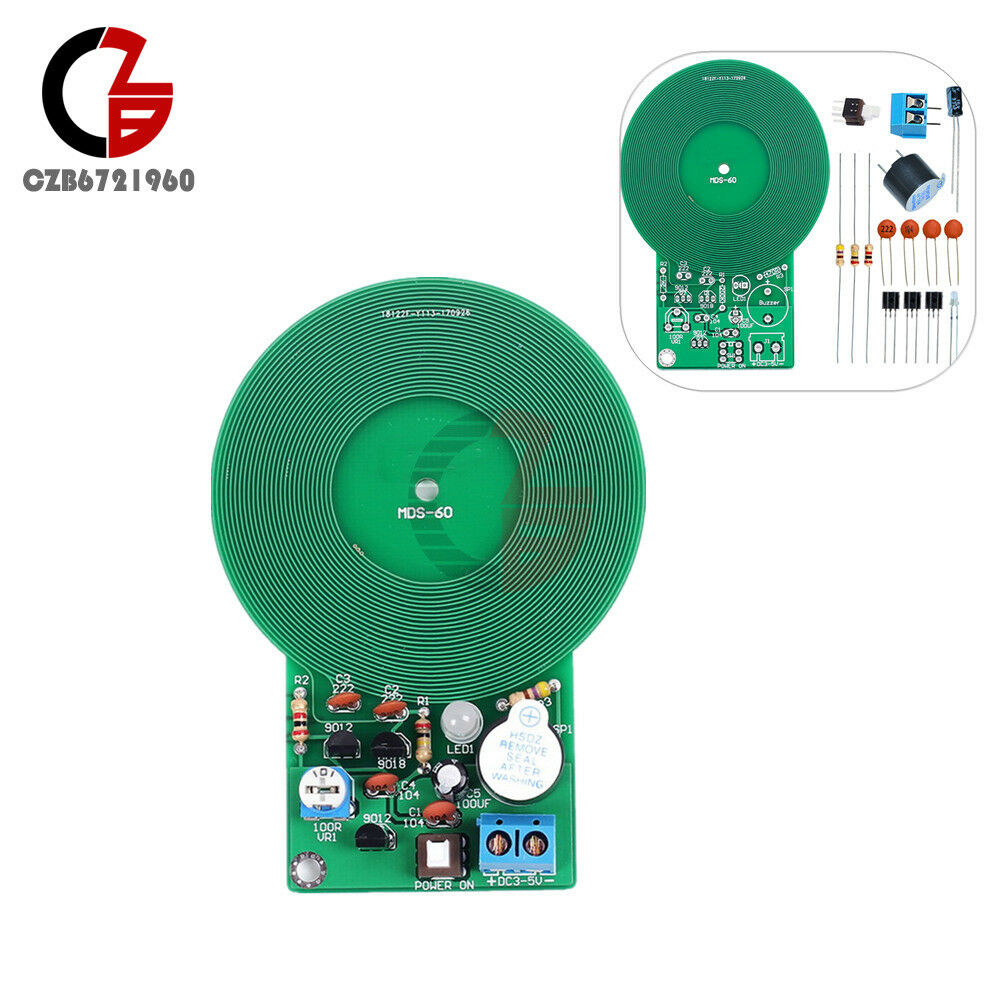

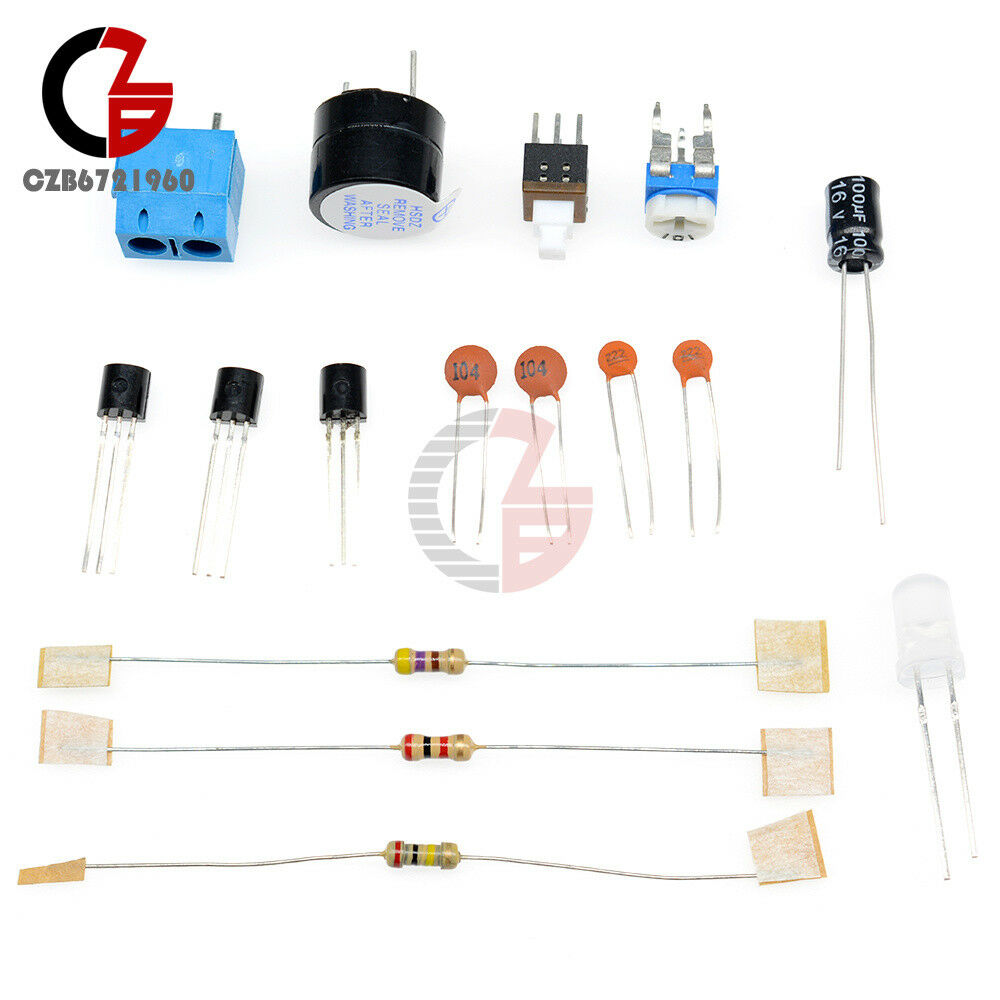

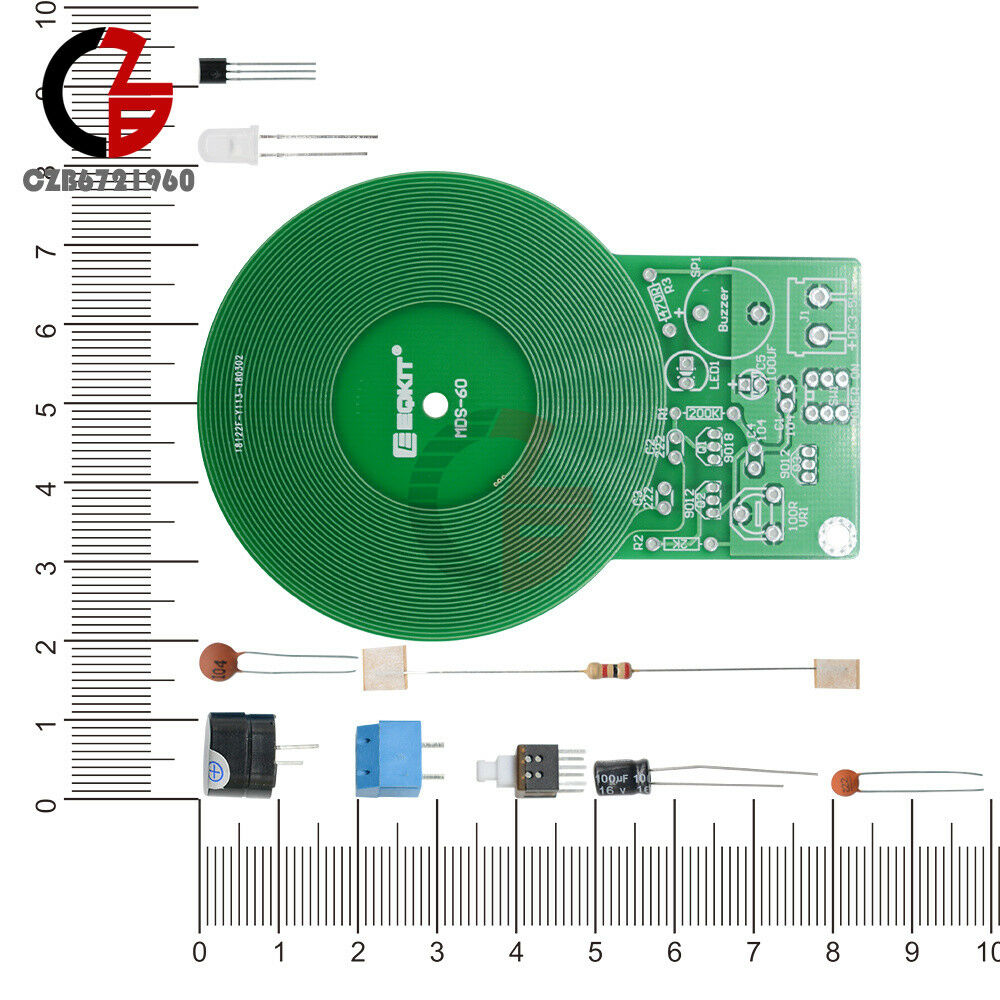

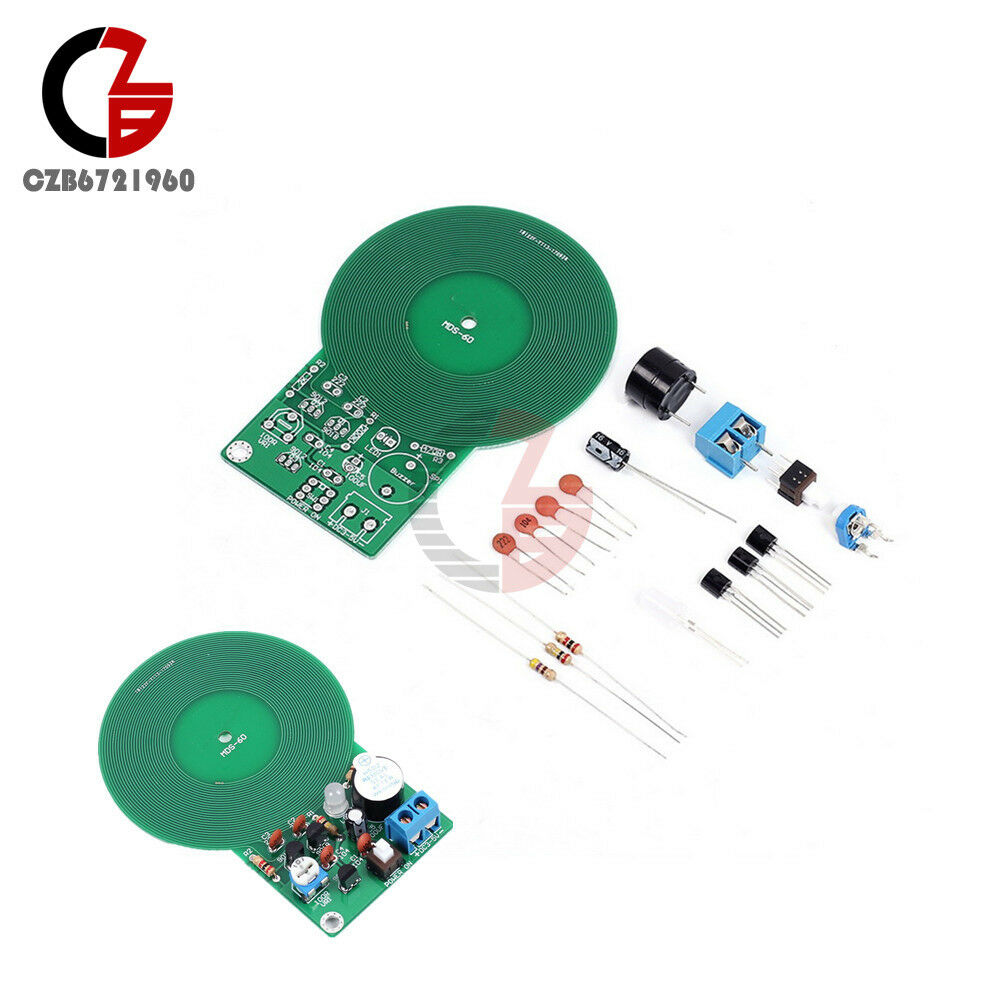

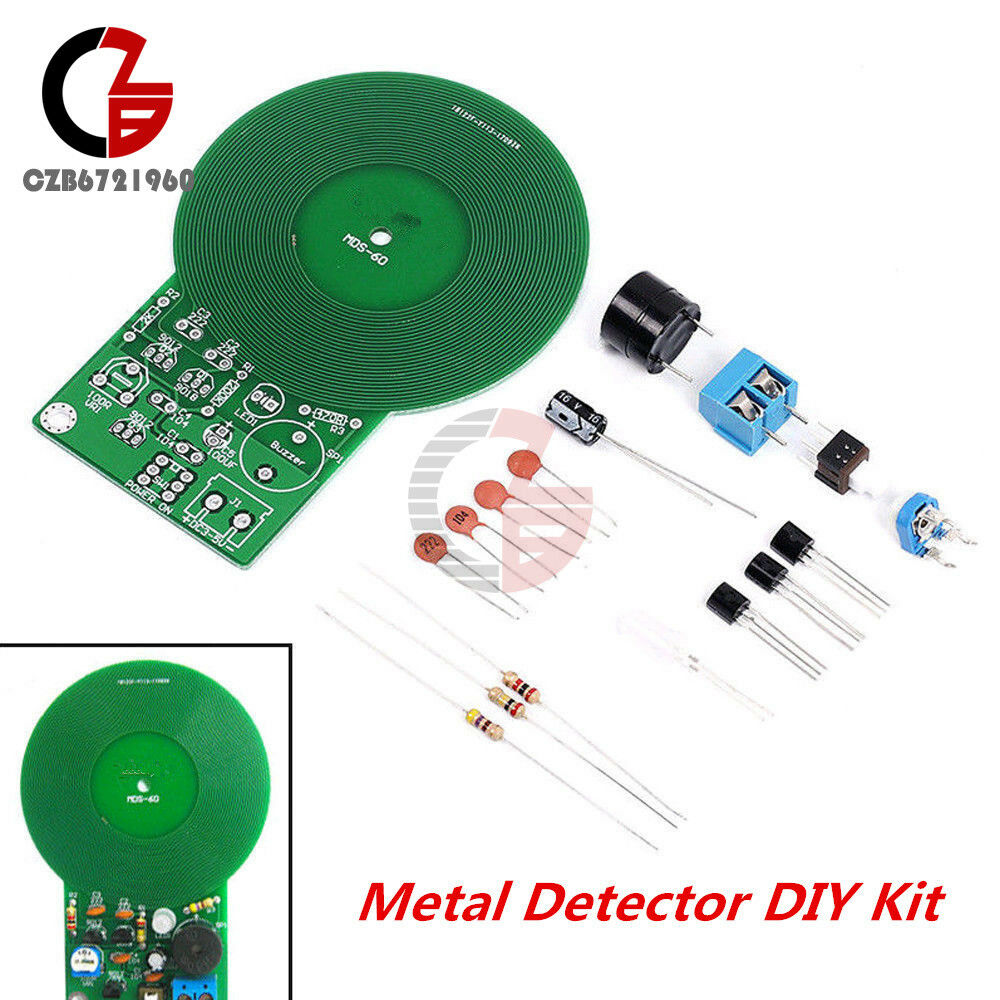

ITEM NAME:Electronic Kit Metal Detector Kit DC 3V-5V 60mm Non-contact Sensor DIY Kit Home Electronic Component Chips Sensor Arduino Module Raspberry Pi Electronic Kit Metal Detector Kit DC 3V-5V 60mm Non-contact Sensor DIY Kit Popular Popular Product Introduction 1. Introduction Metal Detector is a high performance metal detector designed for security. 2.Parameter NO. Parameter Value 1 Name Metal Detector 2 Operating Voltage DC 3-5V 3 Operating Current 40mA 4 Standby Current 5mA 5 Detection Distance 60mm 6 Alarm mode Sound/Light 7 Difficulty Easy 8 PCB Size 86*61mm NO. Parameter Value 3.Application 1>. Game entertainment 2>. Security check 3>. Search for metal products 5>. Car detection 5>. Traffic Statistics 6>. Elevator floor control 7>. Production equipment position detection 8>. Production equipment development and design 9>. Electronic Product Design 10>. Play equipment development 11>. Metal proximity switch 12>. Metal detection in human body4.Schematic 4.Schematic 5.Component listing NO. Component Name PCB Marker Parameter QTY 1 Metal Film Resistor R3 470ohm 1 2 Metal Film Resistor R2 2K 1 3 Metal Film Resistor R1 200K 1 4 Potentiometer VR1 100R 1 5 Ceramic Capacitor C2,C3 0.022uf 2 6 Ceramic Capacitor C1,C4 0.1uf 2 7 Electrolytic Cap ac itor C5 100uf 1 8 Red LED LED1 5mm 1 9 S9012 Q2.Q3 TO-92 2 10 S9018 Q1 TO-92 1 11 Power Switch SW1 6*5mm 1 12 Buzzer SP1 9*12mm 1 13 Power Socket J1 KF301-2P 1 14 PCB MDS-60 1 NOTE:Users can complete the installation by PCB silk screen and component listing 6.Installation Steps Step 1:Install Metal Film Resistor R1=200K;R2=2K;R3=470ohm. Step 2: Install Capacitor:C1,C4=104pF;C2,C3=222pF;C5=100uF Step 3:Install 2pcs S9012 on Q2,Q3;1pcs S9018 on Q1;1pcs potentiometer on VR1. Step 5:Install Buzzer and Power socket. Finished picture: Package included: 1*DC 3V-5V 60mm Metal Detector Kit Electronic Kit Non-contact Sensor DIY Kit.Find many great new & used options and get the best deals for Electronic Kit Metal Detector Kit DC 3V-5V 60mm Non-contact Sensor DIY Kit at the best online prices at Order2india Shopping! Free shipping for many products!
