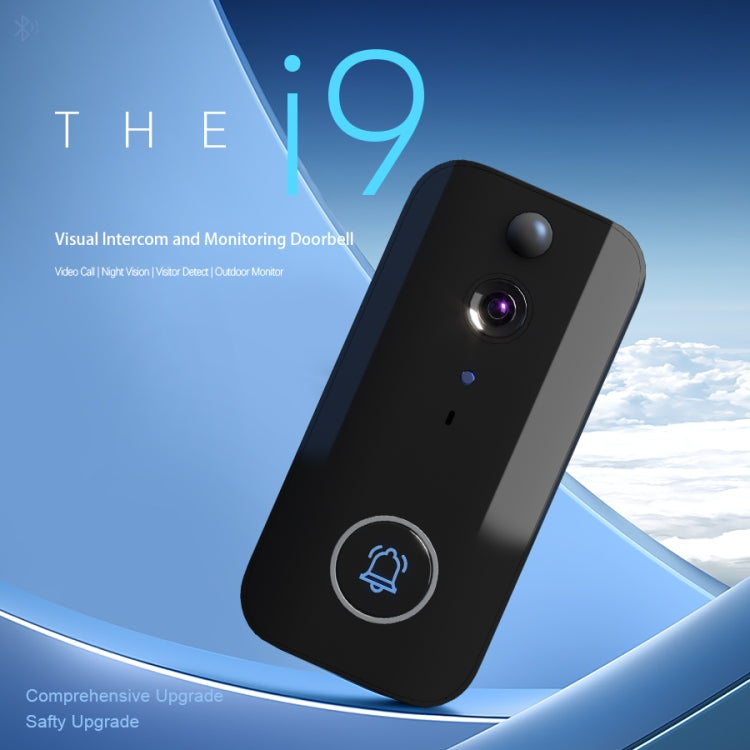

DoorBell i9 Wireless Doorbell Camera, Night vision, Motion Detection, Two-way Intercom - Black

About The Protuct
DoorBell i9 is a remotely operated 1-megapixel sensor and low-power VGA network visualization smart doorbell product. It uses a highly integrated WiFi+Bluetooth SOC processor, which is smaller in size and more cost-effective. Through the APP, users can realize a variety of smart doorbell application scenarios such as ringing visit records, remote wake-up, real-time monitoring of the door situation, door stay records, real-time live broadcast and visualized two-way intercom.

Features:
1. Quick start and quick connection: The processor supports quick start and quick connection, and the fastest time from triggering to receiving APP push on the mobile phone is 3S.
2. Low-power long connection mode: The device supports free switching between low-power long connection mode and power saving mode. In low-power long connection mode, customers can remotely check the door situation anytime and anywhere. It is both a doorbell and a monitor, meeting more application scenarios for customers.
3. Motion detection: Multi-level sensitivity can be freely set to meet the needs of customers in different scenarios; Motion detection alarm (snapshot picture upload)

Specifications
System:
1. Product category: low-power VGA smart doorbell
2. Product model: DoorBell_i9
3. Main control: WiFi+BLE SOC single chip
4. Number of online users: Support sharing up to 9 people, and 1 person can watch online at the same time
Collection:
1. Sensor: UXGA CMOS Image Sensor GC2145 megapixel sensor
2. Viewing angle: 90 degrees
3. Night vision function: 850nm infrared fill light, effective distance 3m (laboratory environment)
4. PIR sensor: passive infrared motion detection probe
Video:
1. Video encoding standard: MJEPG
2. Imaging color: color
3. Video frame rate: VGA 20fps
4. Video transmission: AES encryption
Audio:
1. Input: high-sensitivity microphone
2. Output: built-in speaker
3. Intercom: two-way voice intercom, built-in echo cancellation
4. Voice change intercom: support
5. Audio encoding standard/bit rate: G711.A/64Kbps
Network:
1. Network protocol: TCP/IP, HTTP, TCP, UDP, DHCP, DNS, P2P, etc.
2. Wireless network: WiFi802.11b/g/n wireless network
3. WiFi: Wi-Fi6, 2.4G Frequency band
Video connection method:
1. Passive viewing: Image: triggered by ringing; triggered by motion detection;
2. Remote real-time: Support remote wake-up and real-time viewing in low-power long connection mode

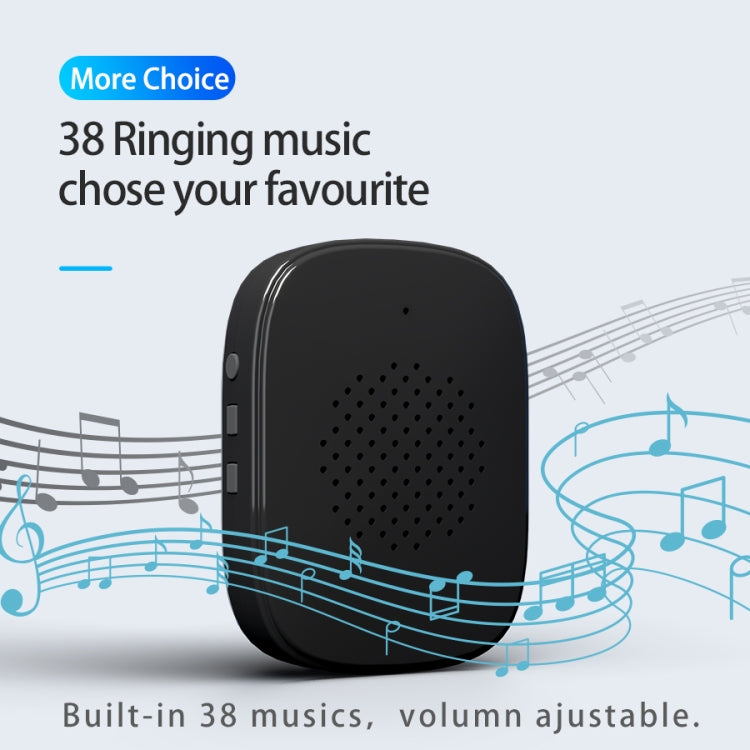

Indoor receiver: 433 Dingdong machine: Doorbell linked to Dingdong machine, ring the bell outside the door, and the indoor stand will ring
Storage: Cloud storage: Three days of rolling storage is given by default
Others:
1. APP: X SmartHome
2. Network configuration: Bluetooth network configuration
3. MicroSD card holder: Not supported
4. Buttons: 2: doorbell button, reset button
5. Indicator light: 2: charging indicator light, button indicator light
6. Dingdong code: private code
7. Power supply: Standard two 18650 lithium batteries, 4000mAh
8. Charging power supply: DC 5V1A
9. Type-C interface
10. Call push notification: Support (about 3s)
11. Sleep in power saving mode: enter sleep mode after 30S of no operation in power saving mode
12. Battery level detection: supported, 3.4V-4.2V
13. Firmware upgrade: remote OTA
14. Infrared light control: automatic, adjustable sensitivity level
15. Working temperature: -20???45 degrees Celsius
16. Working humidity: less than or equal to 95%
17. Standby time: (only calculate standby power consumption) 4000mAh: Power saving mode: about 6-12 months (depending on the frequency of use); real-time viewing mode: 1-3 months (depending on the frequency of use)

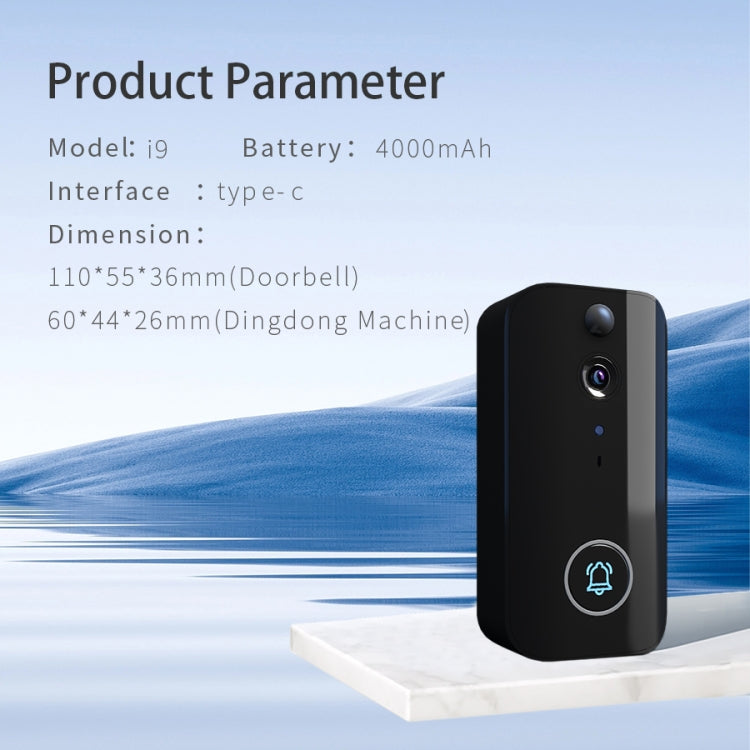

18. Doorbell machine size: 110 x 55x 36mm
19. Dingdong machine size: 60x 44x 26mm

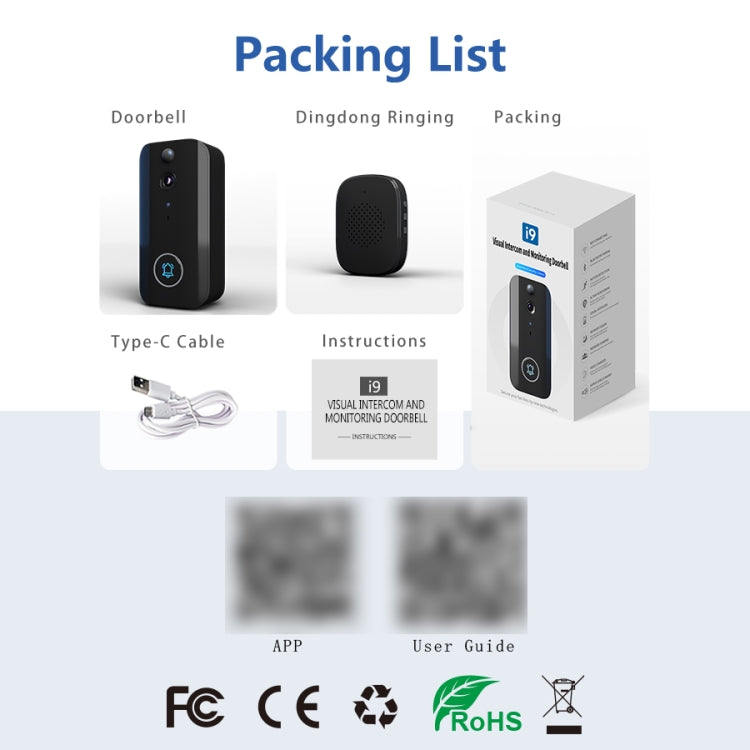

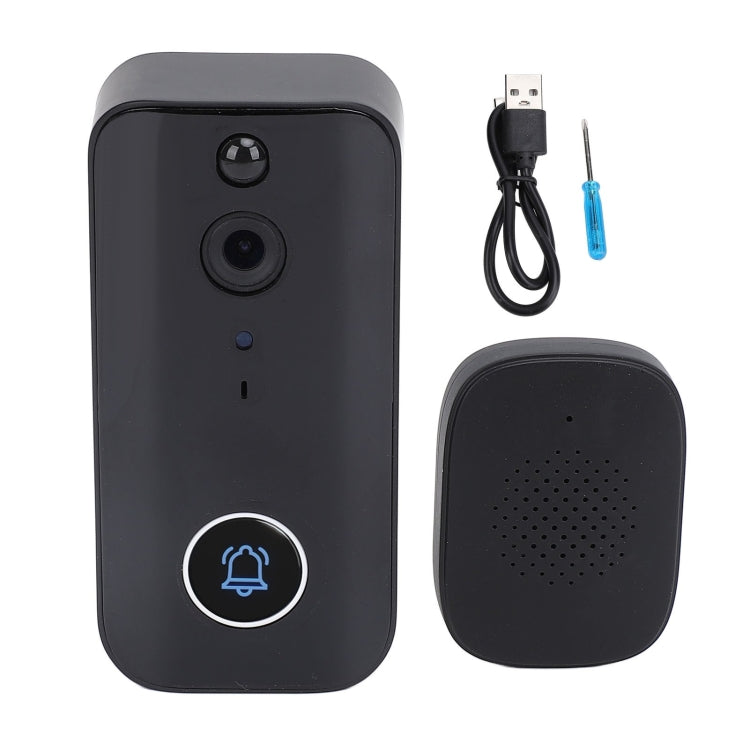

Package List
1. WiFi doorbell x 1
2. USB plug Ding Dong x 1
3. Type-C charging cable x 1
4. Installation sticker x 1
5. English manual x 1
6. Screwdriver x 1
