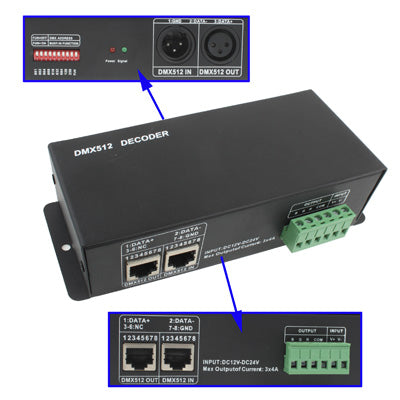

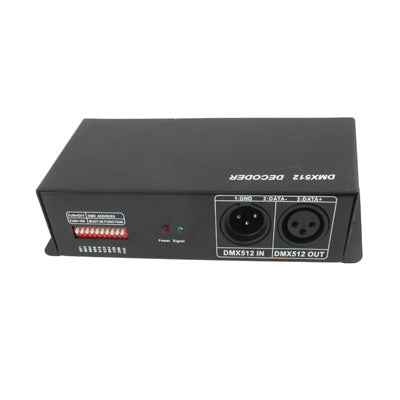

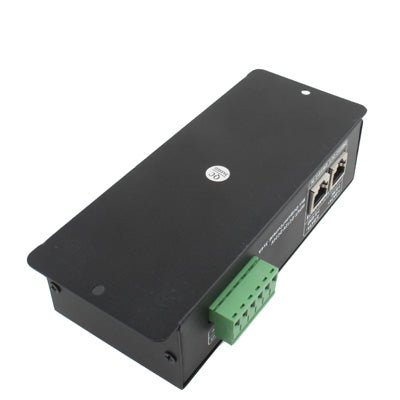

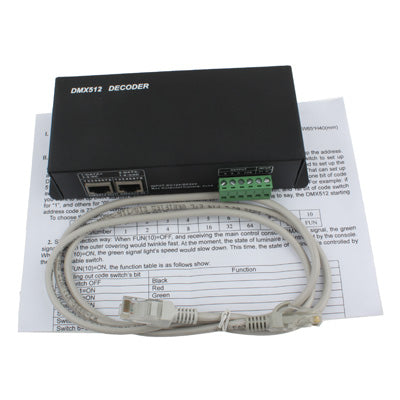

DMX-512 Common Controller Dimmer for RGB LED Light Lamp(Black)

* This DMX common controller adopts the advaned micro control unit, it receives standard DMX-512 digital control singal and transformed it into PWM signal for driving LED; You could connect DMX module with DMX digital console to achieve dimming or various changes in procedures.

* Specification:

-Working temperature: -20- 60 DegC

-Supply voltage: DC12V-24V

-Output: 3 Channels

-Connection mode: Common Anode

-Product size: L165 x W68 x H40mm

-Package Size: L180 x W95 x H60mm

-Static Power Consumption: <1W

-Output current: each channel <4A

-Output power: 5V:<60W. 12V:<144W, 24V:<288W

* Directon for use:

1) DMX address code settings:

Each DMX common controller occupied 3 DMX addresses, adopt coding switch set address, it is a Binary numerical code switch which is setting DMX original address code from 1 to 9, 1 is the lowest, and 9 is the highest, 511 address codes could be setted in all. DMX original address code equal aggregate value of the coding switch value from 1 to 9, dial the coding switch upwards (ON is setted 1), the value of bit can be gotten, on the contrary, the value of bit is 0.

DMX signal can be received when coding switch FUN(10)-OFF(ON is setted 0).

2) Other functions direction for use:

-Testing function:

The tenth bit of coding switch is FUN, that is a built-in function button. FUN=OFF shows the DMX decoder function, DMX signal can be received.

The default coding switch 1-9 is off: black

Switch1=ON: red

Switch2=ON: green

Switch3=ON: blue

Switch4=ON: yellow

Switch5=ON: purple

Switch6=ON: cyan

Switch7=ON: white

Switch8=ON: seven-color jumpy changing(8 steps speed)

Switch9=ON: seven-color gradual changing(8 steps speed)

-The speed choice of jumpy changing, gradual changing effect

When test the function, switch 8=ON shows the seven-color jumpy changing effect, switch 9=ON shows the seven-color gradual changing effect, every effect has 8 steps speed:

Off switch from 1 to 7: 0 steps

Switch1=ON: 1 steps

Switch2=ON: 2 steps

Switch3=ON: 3 steps

Switch4=ON: 4 steps

Switch5=ON: 5 steps

Switch6=ON: 6 steps

Switch7=ON: 7 steps

There are several switches=ON at the same time, the great value is standard. All dial code switches=ON, the state of the decoder shows: to test the functional effects of gradual changing, the speed of change is 7.

-Typical applications:

The connection of low-power LED lamps

The connection of high-power LED lamps
