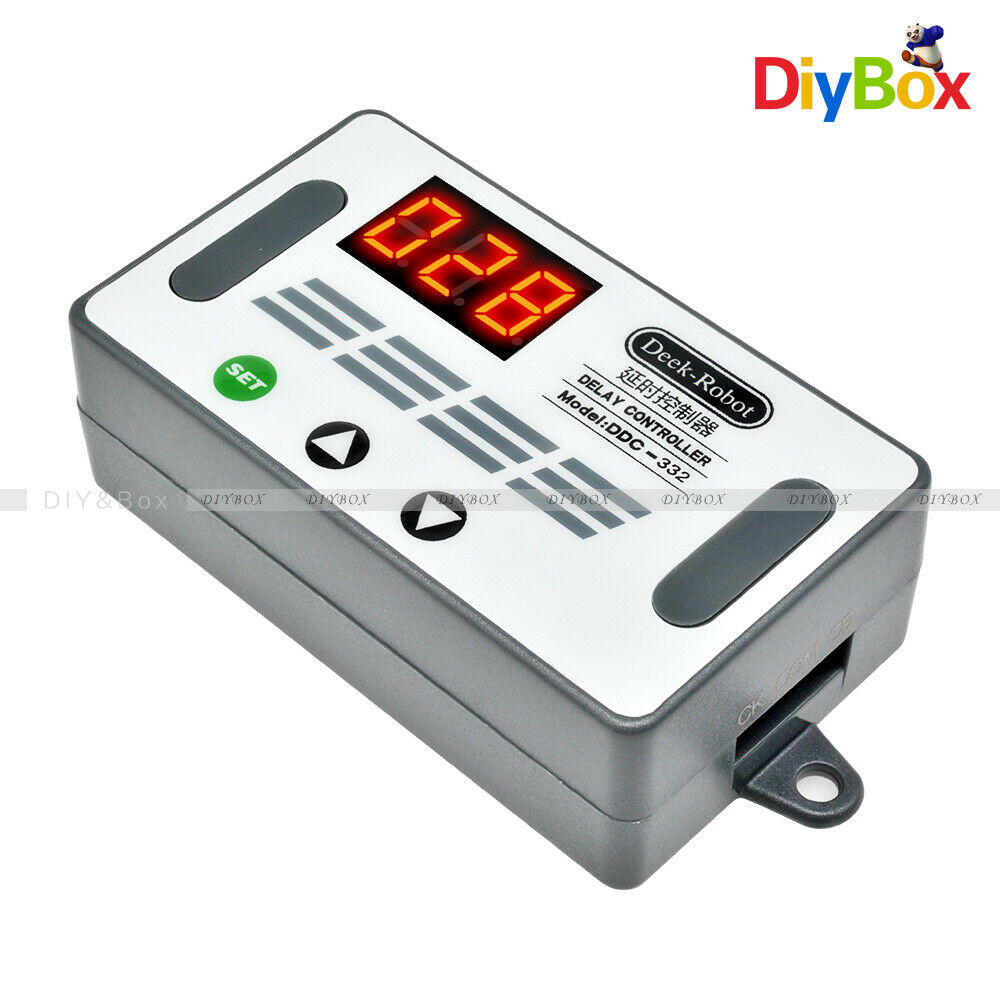

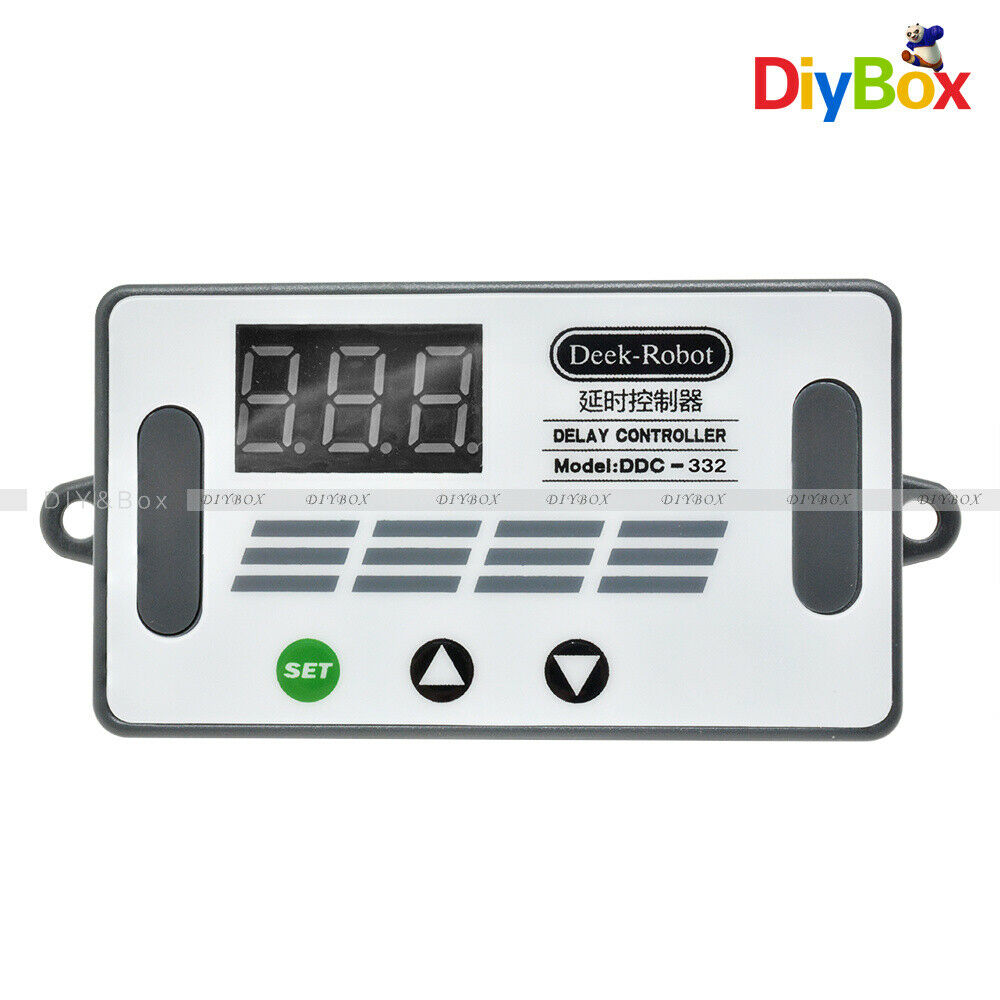

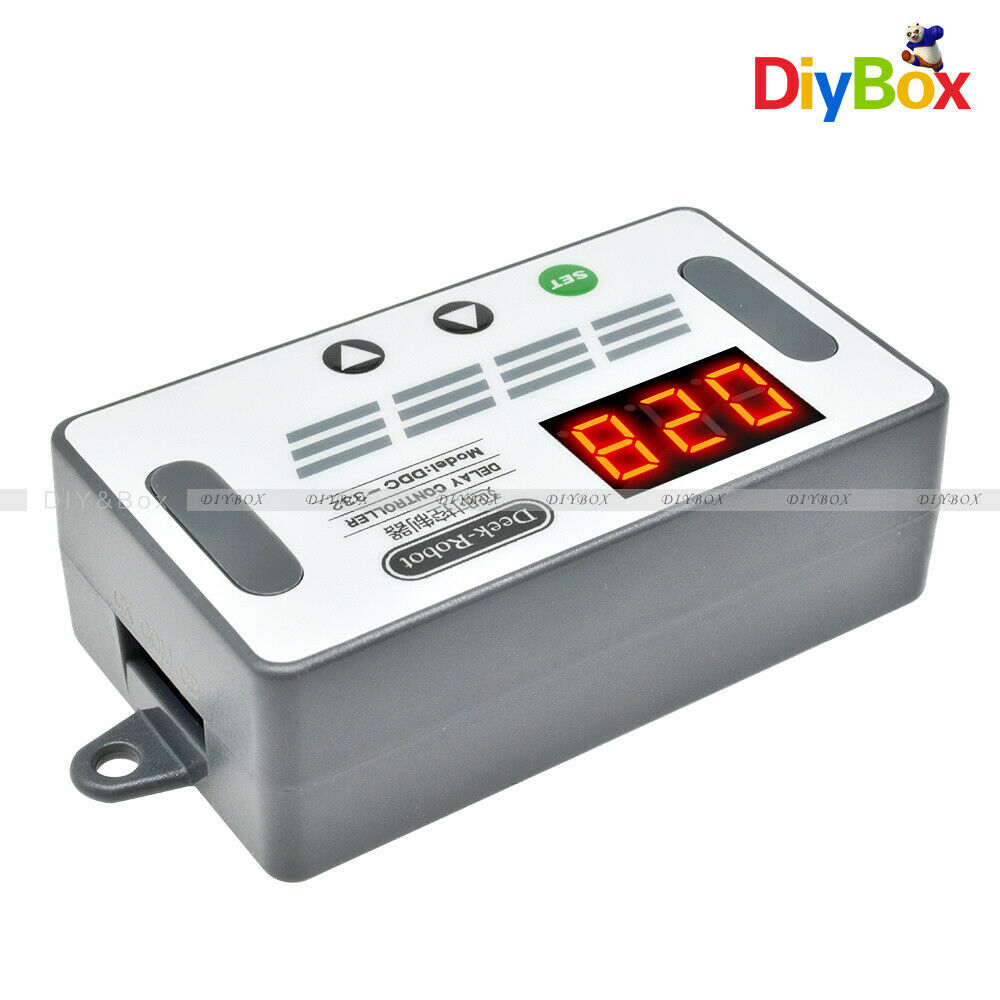

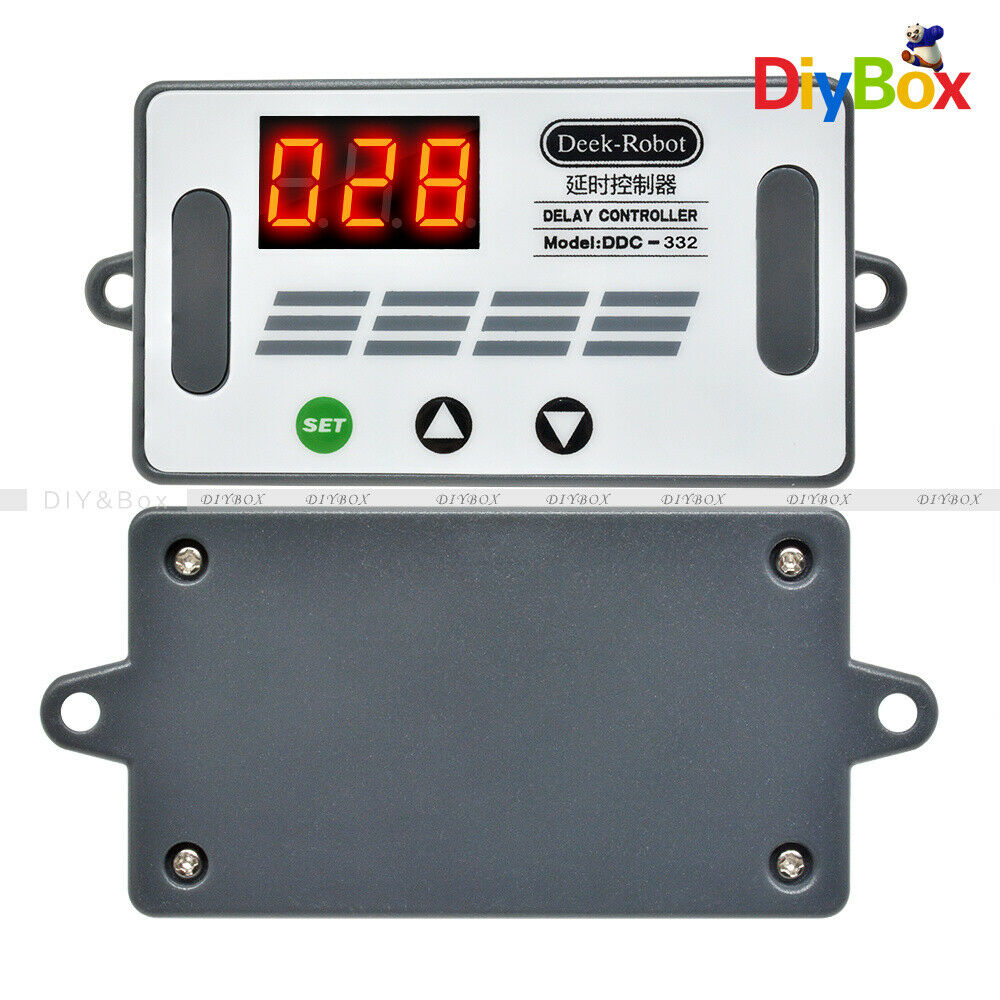

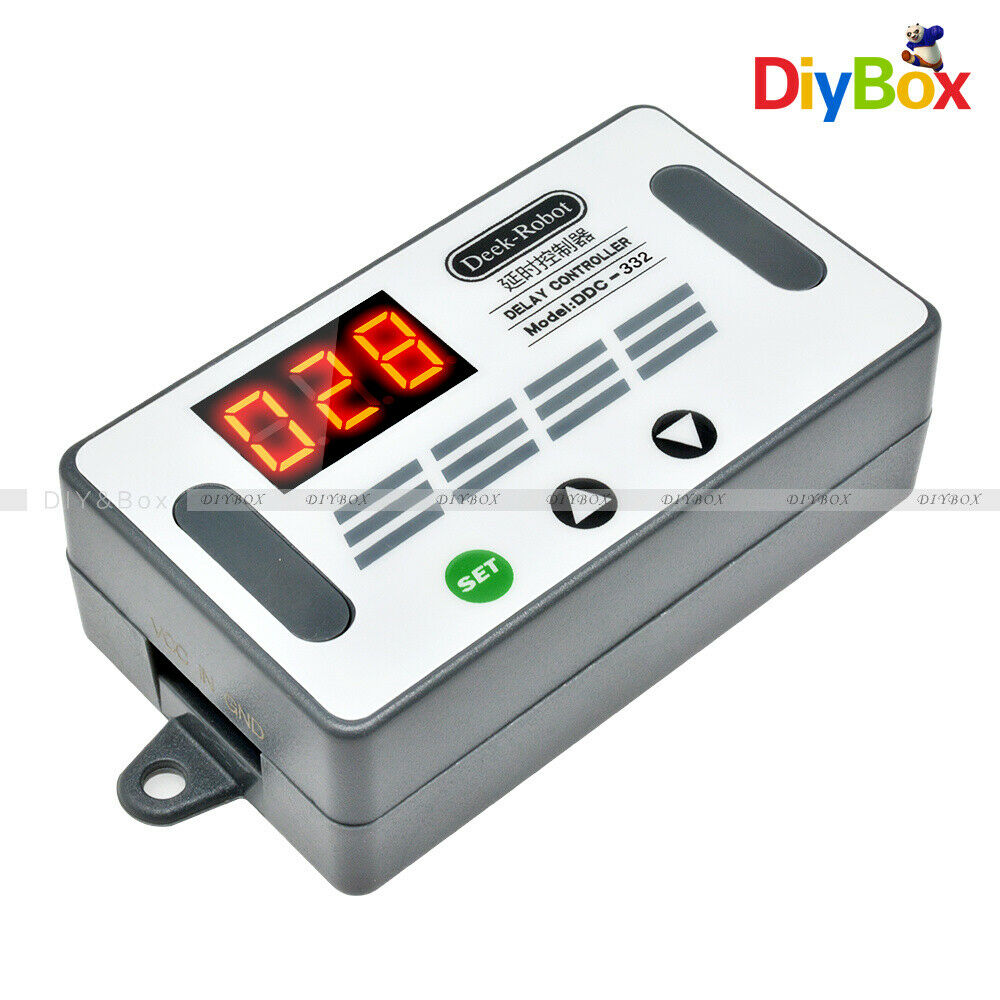

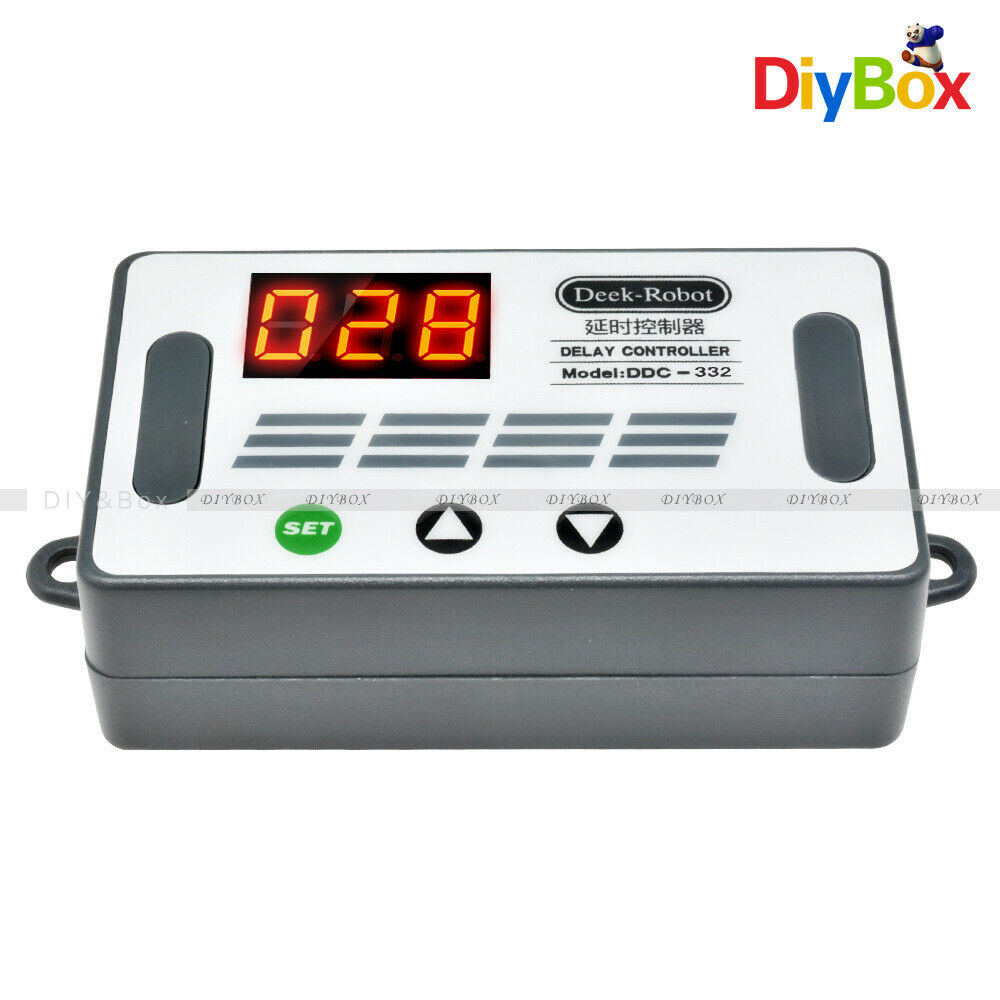

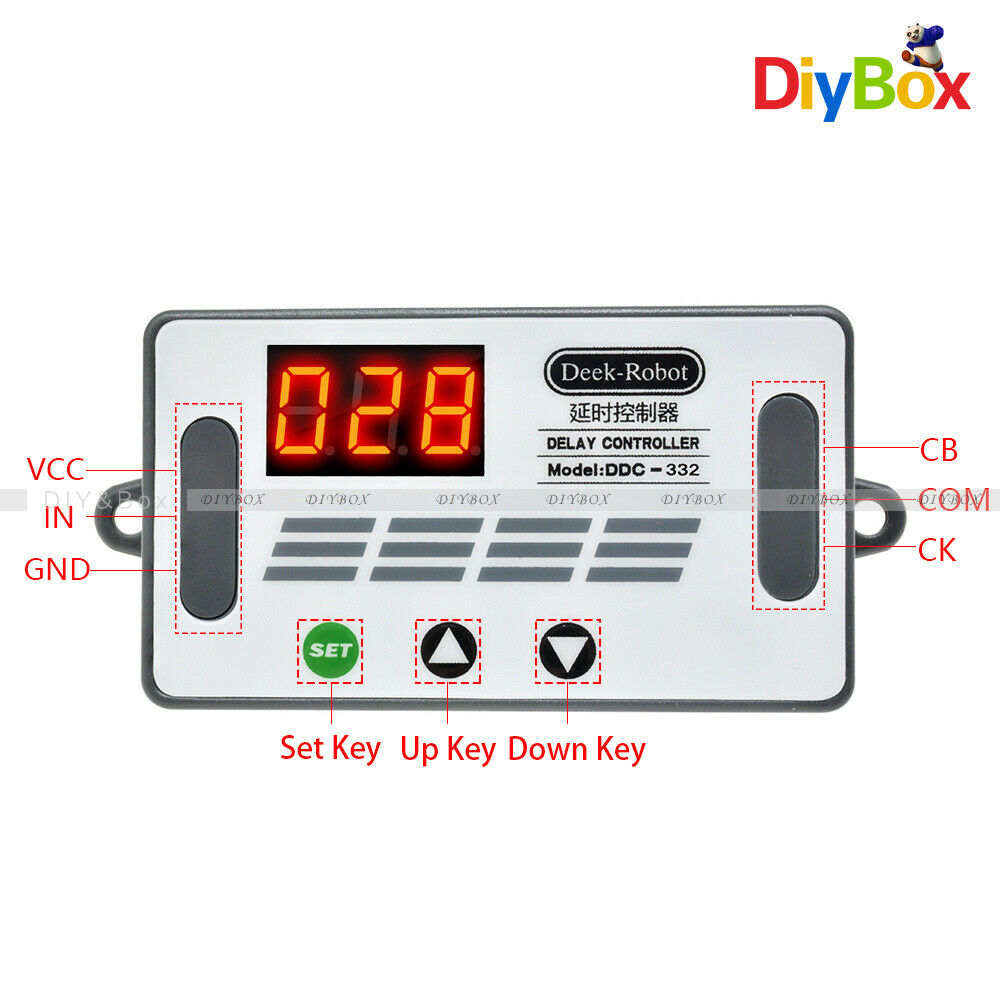

ITEM NAME:Digital Relay Delay Controller DDC-332 DC 12V Display MOS Switch Sensor +Buzzer Digital Relay Delay Controller DDC-332 DC 12V Display MOS Switch Sensor +Buzzer Type: DDC-332 (With Buzzer ) Description: Product parameters Working voltage: DC12V (normal working voltage DC10V-16V) Source: DC4V~20V (usual power supply positive trigger, button, PNP sensor, PLC signal, etc.) Output capability: It can control devices within 30v5A or within 220v5A Quiescent current: 20mA, working current: 50mA Service life: more than 100,000 times; Working temperature: -40~85 °C; Net weight: about 26g Size: 64.2mm*34.8mm*18.5mm Features Power input flash-coupled, strong-interference ability. Power of flash MCU online programming function, according to user needs can contact the manufacturer to customize the Required functions. Wiring diagram Function introduction P-1: The trigger signal is received, the relay is turned on, the timer expires, and the relay is turned off. A1: Invalid again during delayed trigger A2: Trigger again during retiming delay A3: During the delay trigger, the trigger signal is received again to terminate the current delay. P-2: Receive trigger signal, X start time, relay off, Y start time, relay open P-3: Cycle switching mode A1: After the power relay is turned on, the timing is turned off and the loop is infinite. A2: After the power relay is turned off, the timing ends and the loop is infinite. Instructions : Press the button for 2 seconds to enter the mode selection menu, press the button to select P-1~P-4 mode. After entering the mode selection menu for 2 seconds, press the key to enter the menu or adjust the blinking position of the digital tube, which digital tube flashes, and the button adjusts the flashing value of the digital tube. The digital display, the button adjusts the decimal point position, the decimal point in the single digit indicates 0-999 seconds, the decimal point in the Ten digits indicates 0-99.9 seconds, and the decimal point indic.Find many great new & used options and get the best deals for Digital Relay Delay Controller DDC-332 DC 12V Display MOS Switch Sensor +Buzzer at the best online prices at Order2india Shopping! Free shipping for many products!
