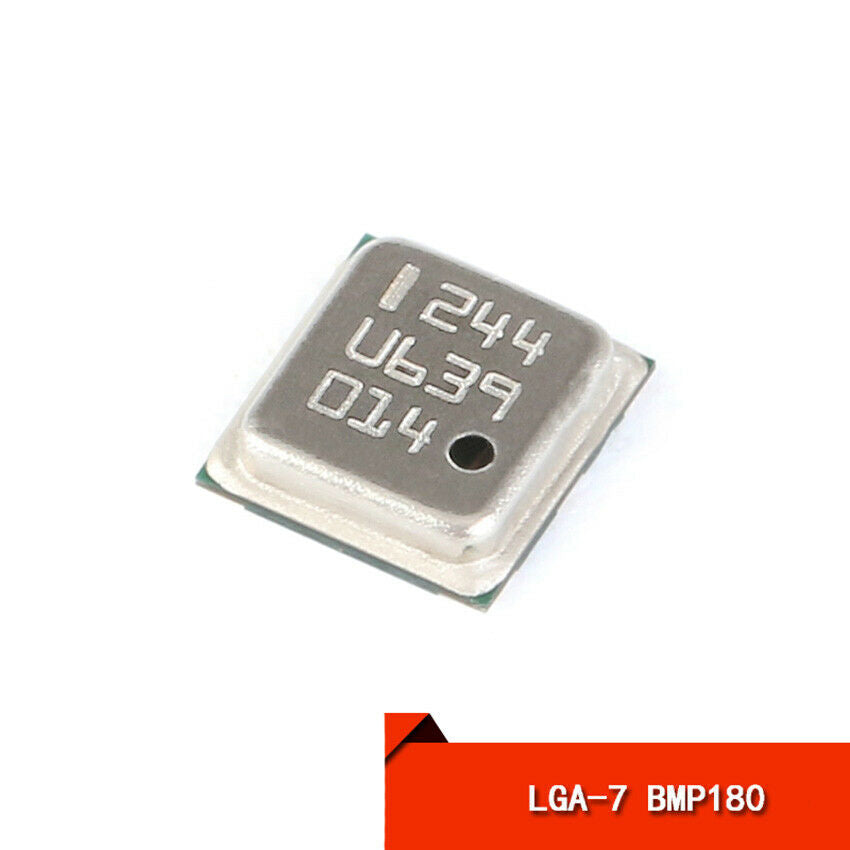

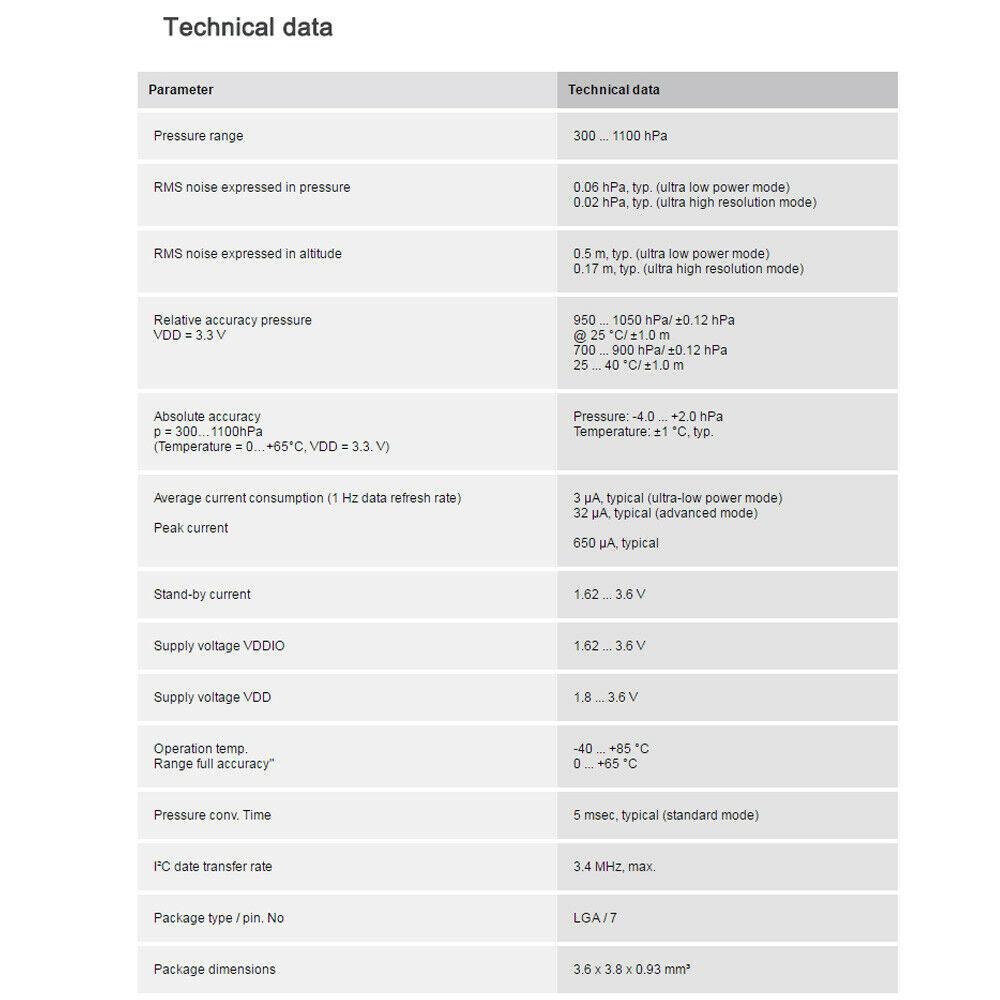

ITEM NAME:Digital Barometric Pressure Sensor Chip 300~1100hPa BMP180 LGA-7 Ultra-low Power Digital Barometric Pressure Sensor Chip 300~1100hPa BMP180 LGA-7 Ultra-low Power Description: The BMP180 is the new digital barometric pressure sensor, with a very high performance, which enables applications in advanced mobile devices, such as smartphones, tablet PCs and sports devices. It follows the BMP085 and brings many improvements, like the smaller size and the expansion of digital interfaces. The ultra-low power consumption down to 3 μA makes the BMP180 the leader in power saving for your mobile devices. BMP180 is also distinguished by its very stable behavior (performance) with regard to the independency of the supply voltage. Parameter Technical data Pressure range 300 ... 1100 hPa RMS noise expressed in pressure 0.06 hPa, typ. (ultra low power mode) 0.02 hPa, typ. (ultra high resolution mode) RMS noise expressed in altitude 0.5 m, typ. (ultra low power mode) 0.17 m, typ. (ultra high resolution mode) Relative accuracy pressure VDD = 3.3 V 950 ... 1050 hPa/ ±0.12 hPa @ 25 °C/ ±1.0 m 700 ... 900 hPa/ ±0.12 hPa 25 ... 40 °C/ ±1.0 m Absolute accuracy p = 300…1100hPa (Temperature = 0…+65°C, VDD = 3.3. V) Pressure: -4.0 ... +2.0 hPa Temperature: ±1 °C, typ. Average current consumption (1 Hz data refresh rate) Peak current 3 μA, typical (ultra-low power mode) 32 μA, typical (advanced mode) 650 μA, typical Stand-by current 1.62 ... 3.6 V Supply voltage VDDIO 1.62 ... 3.6 V Supply voltage VDD 1.8 ... 3.6 V Operation temp. Range full accuracy" -40 ... +85 °C 0 ... +65 °C Pressure conv. Time 5 msec, typical (standard mode) I²C date transfer rate 3.4 MHz, max. Package type / pin. No LGA / 7 Package dimensions 3.6 x 3.8 x 0.93 mm³ Package included: 1Pcs x Sensor (According to your choice).P = 300…1100hPa. Relative accuracy pressure. 0.02 hPa, typ. (ultra high resolution mode). 0.17 m, typ. 0.06 hPa, typ. (ultra low power mode). 0.5 m, typ.
