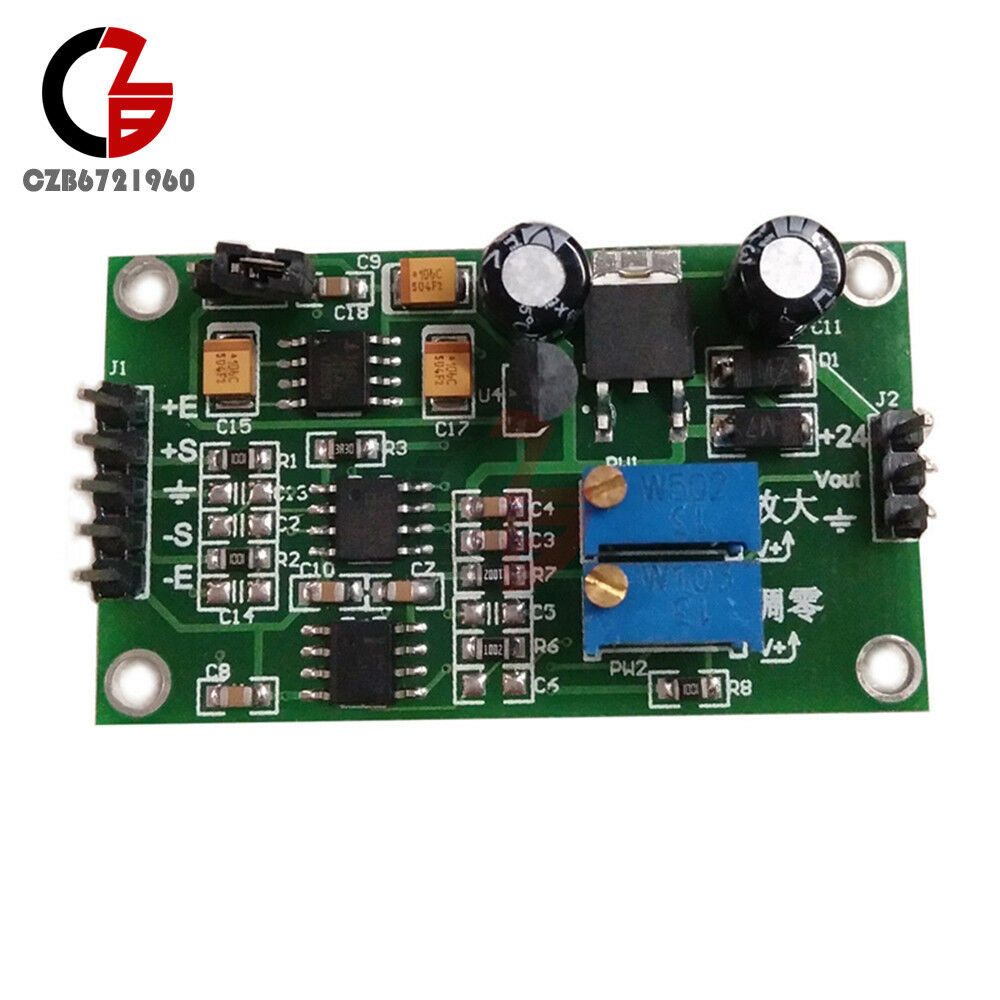

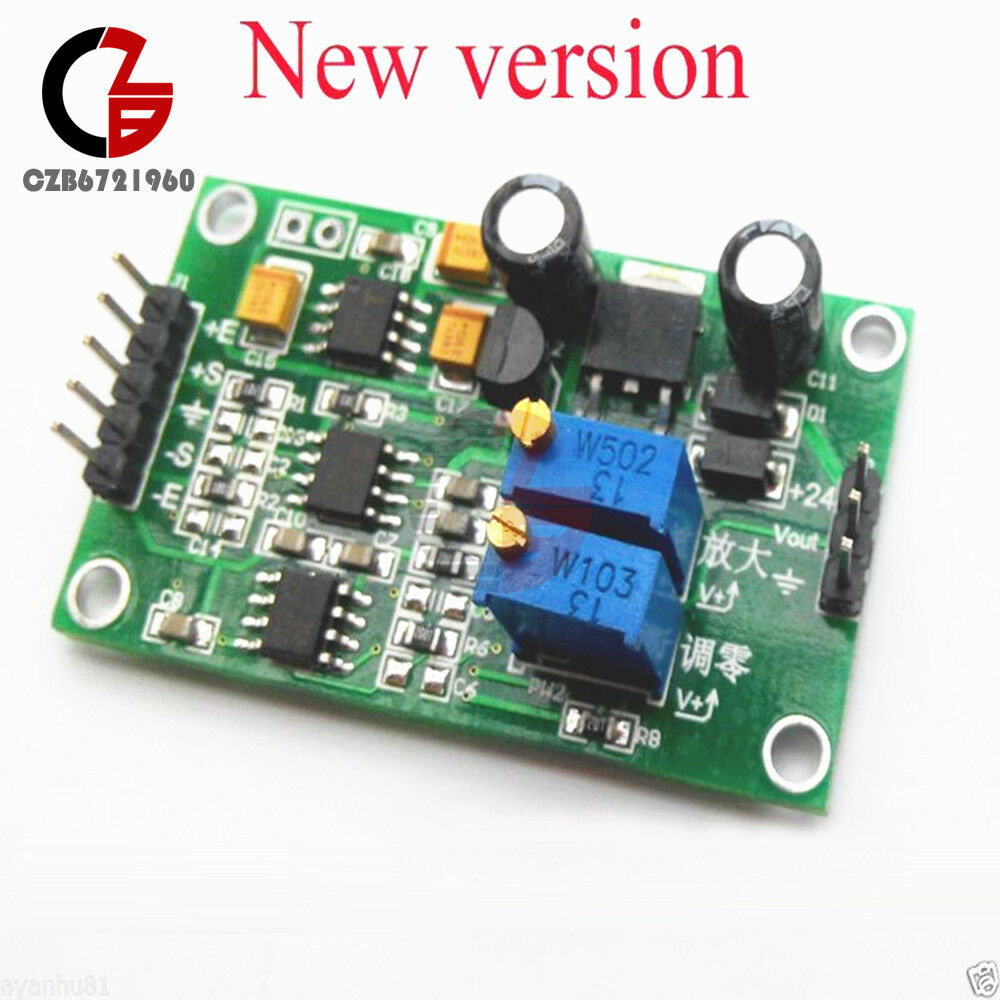

ITEM NAME:DC Microvolt/ Milivolt Voltage Amplifier Board AD620 Signal Adjustable Amplifier Home Electronic Component Chips Sensor Arduino Module Raspberry Pi DC Microvolt/ Milivolt Voltage Amplifier Board AD620 Signal Adjustable Amplifier Popular Popular Product Introduction Features: 1, Wide amplification Range: This product used AD620 chip amplification, you can zoom to microvolts millivolt, more accurate than the market LM358 amplification, linearity better. 2, Large magnification: Amplifying input signal using a potentiometer, magnification up to 1000 times, it can be adjusted only through a potentiometer. 3, Wide power supply Range: Input DC 7-24V power supply. Performance: Wide power voltage Range: DC 7-24V input Ultra-low input offset Voltage: 50μV (Max) Ultra Low Input Bias Current: 1.0nA (Max) CMRR: 100dB Ultra-low input offset voltage Drift: 0.6μV / ℃ (Max) Ultra-stable, time: 2μV / month (Max) Wiring: Input power supply positive should be based on the input power supply voltage range to select the input voltage positive: 1) When input power supply voltage is 13-24V, connect to 24V port, then +E output 12V voltage, it can as power supply for sensor; 2) When input power supply voltage is 7-13V, connect to +E port. GND: Power supply negative +S: Positive signal input -S: Negative signal input (can connected to GND) OUT: Signal output -E: Output -5V voltage (can as power supply for sensor) NOTE: Signal input, Signal output, power input, three signals must connect to ground together. Amplification Multiples: 1-1000 times (theoretical value) multiples more smaller , the greater the bandwidth Signal Input Voltage: 100uV - 300mV Output Voltage: +7.5V Max Magnification adjustment Way: by potentiometer on the board Zero calibration: + S and -S short circuit, adjust the zero potentiometer allows the output to 0V, To improve module accuracy. Wiring Diagram: The following wiring diagrams are 13-24V power supply wiring diagram. Buyers do not need to connect the black w.Find many great new & used options and get the best deals for DC Microvolt/ Milivolt Voltage Amplifier Board AD620 Signal Adjustable Amplifier at the best online prices at Order2india Shopping! Free shipping for many products!
