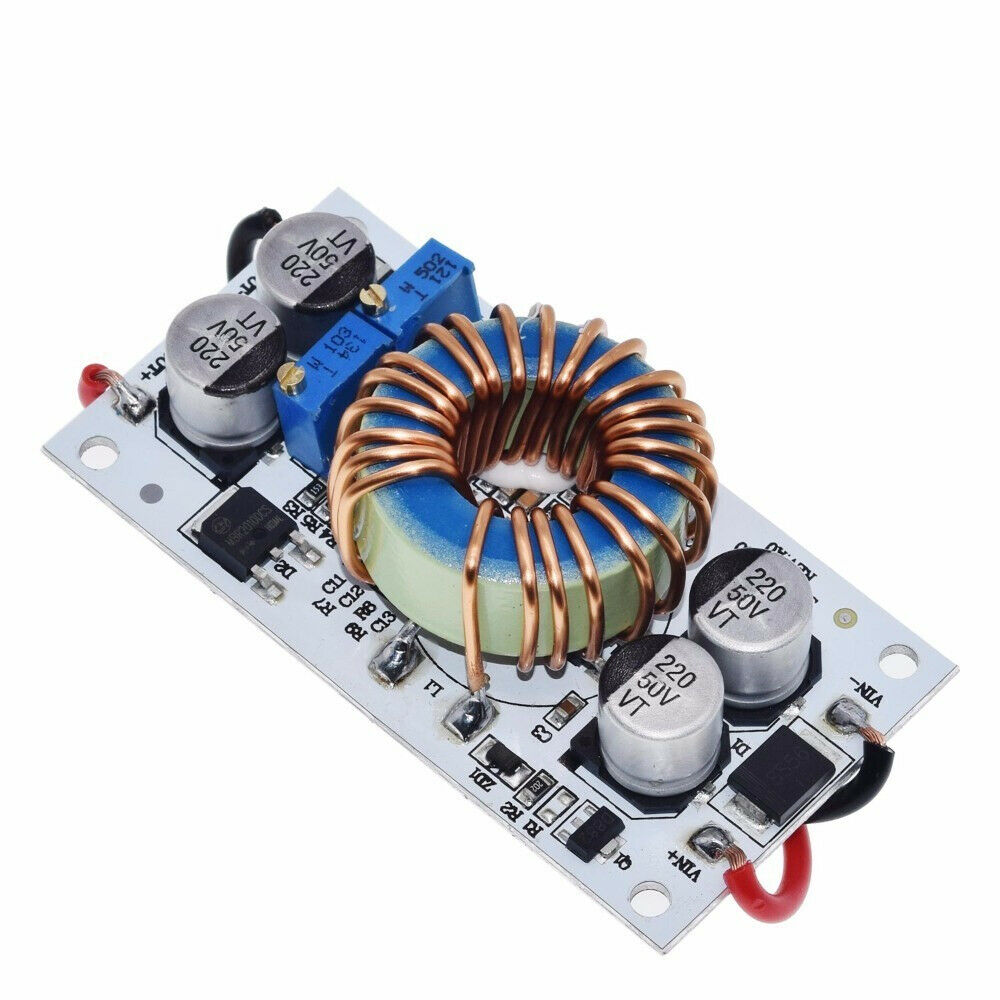

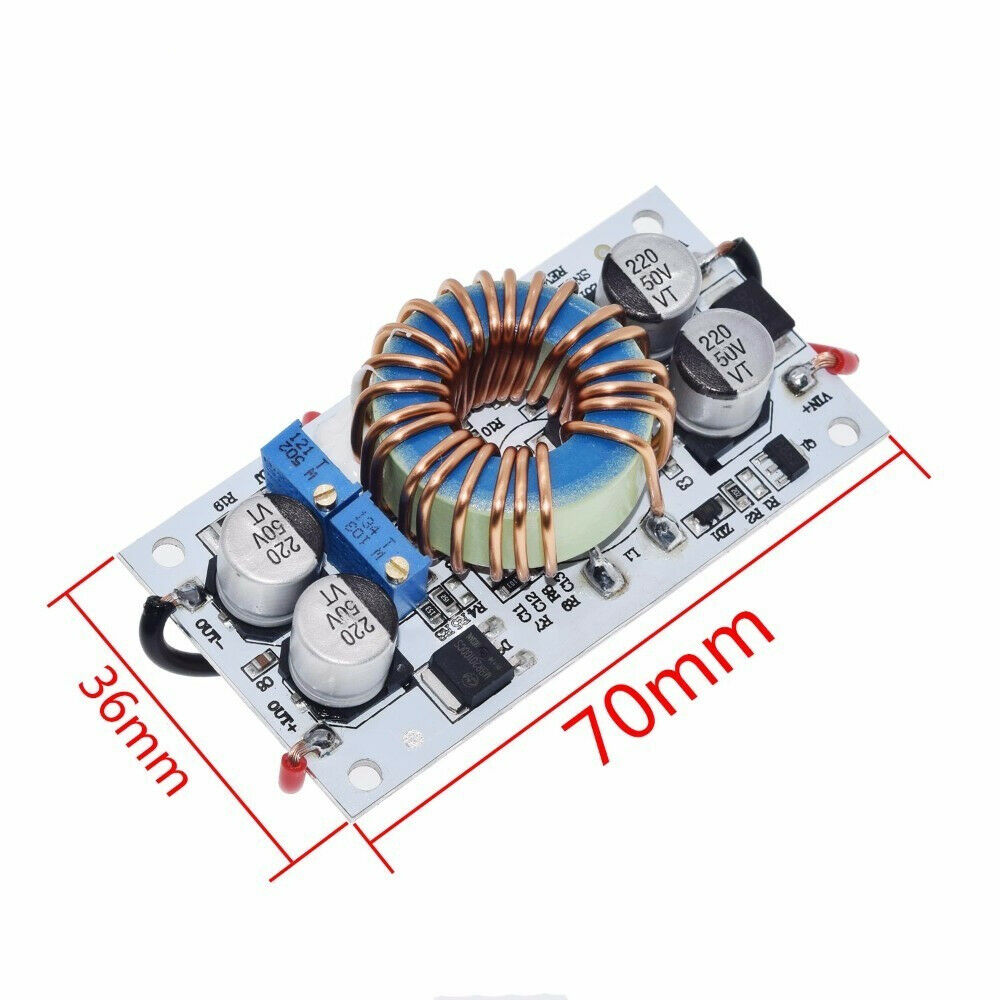

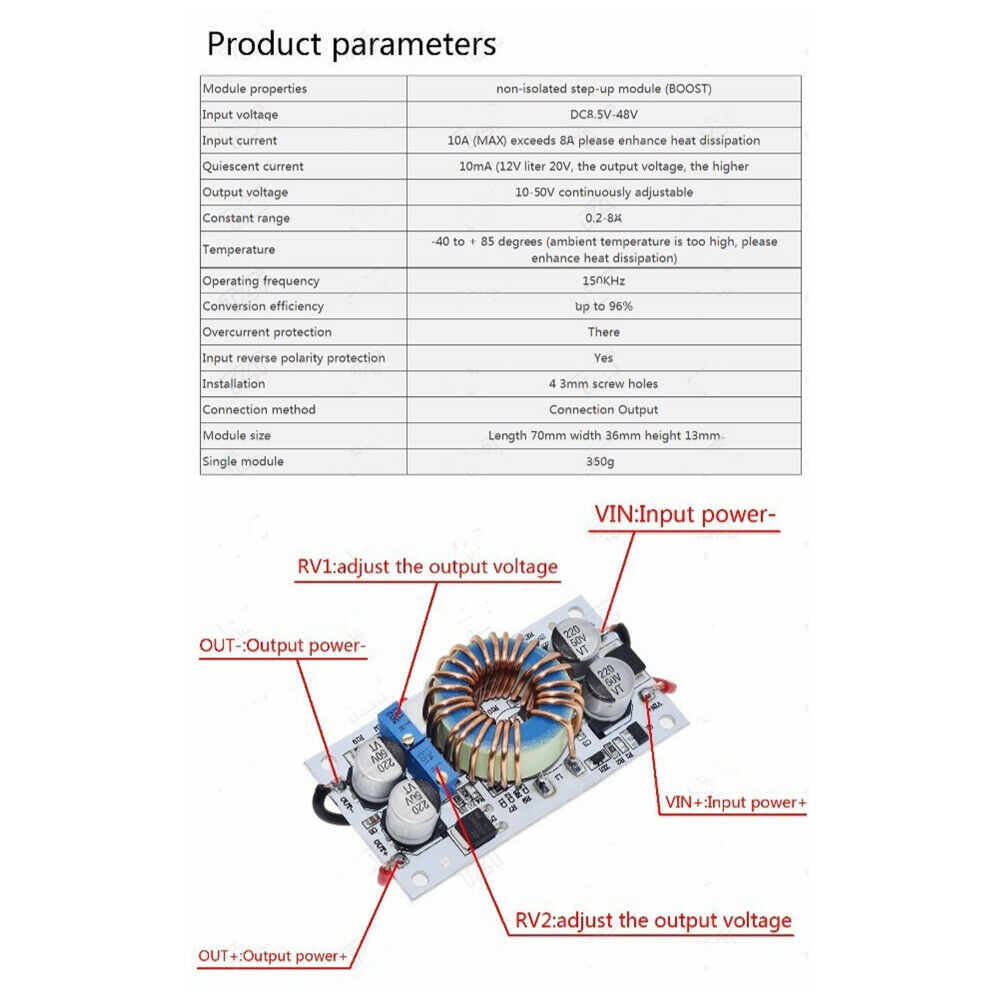

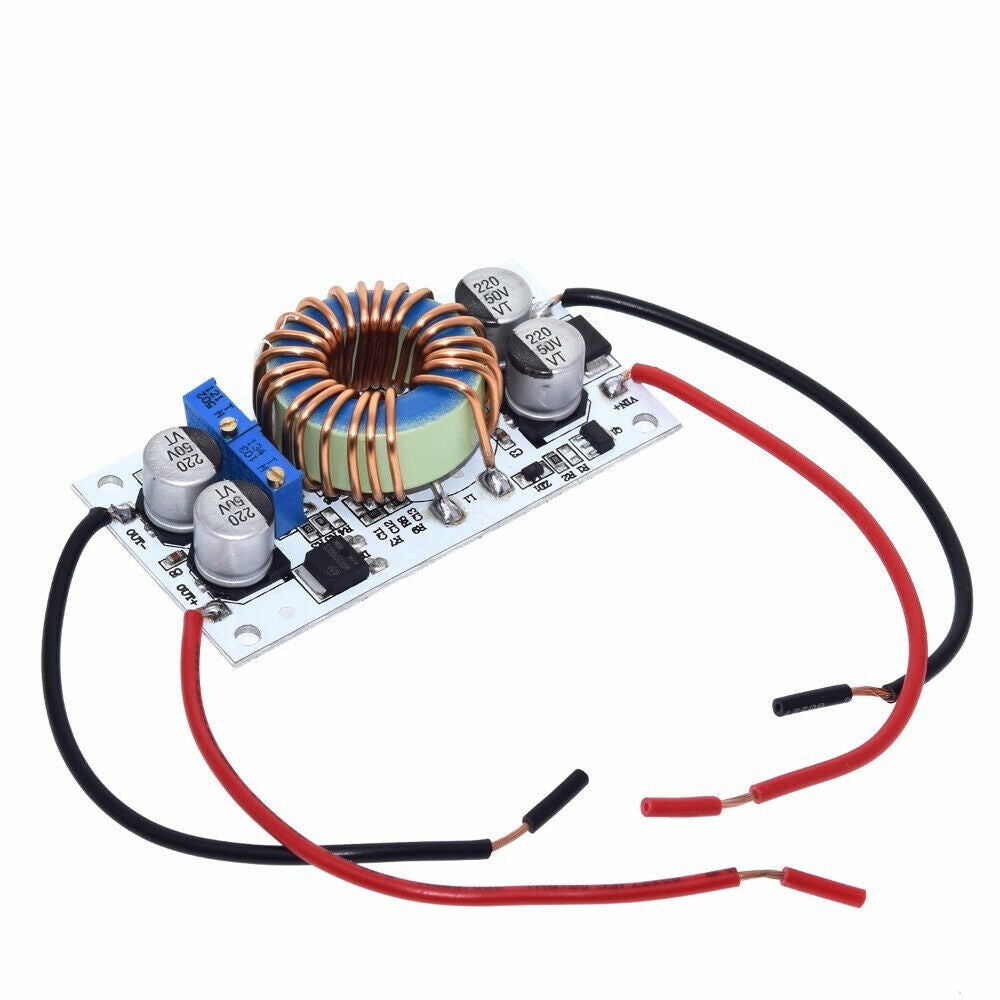

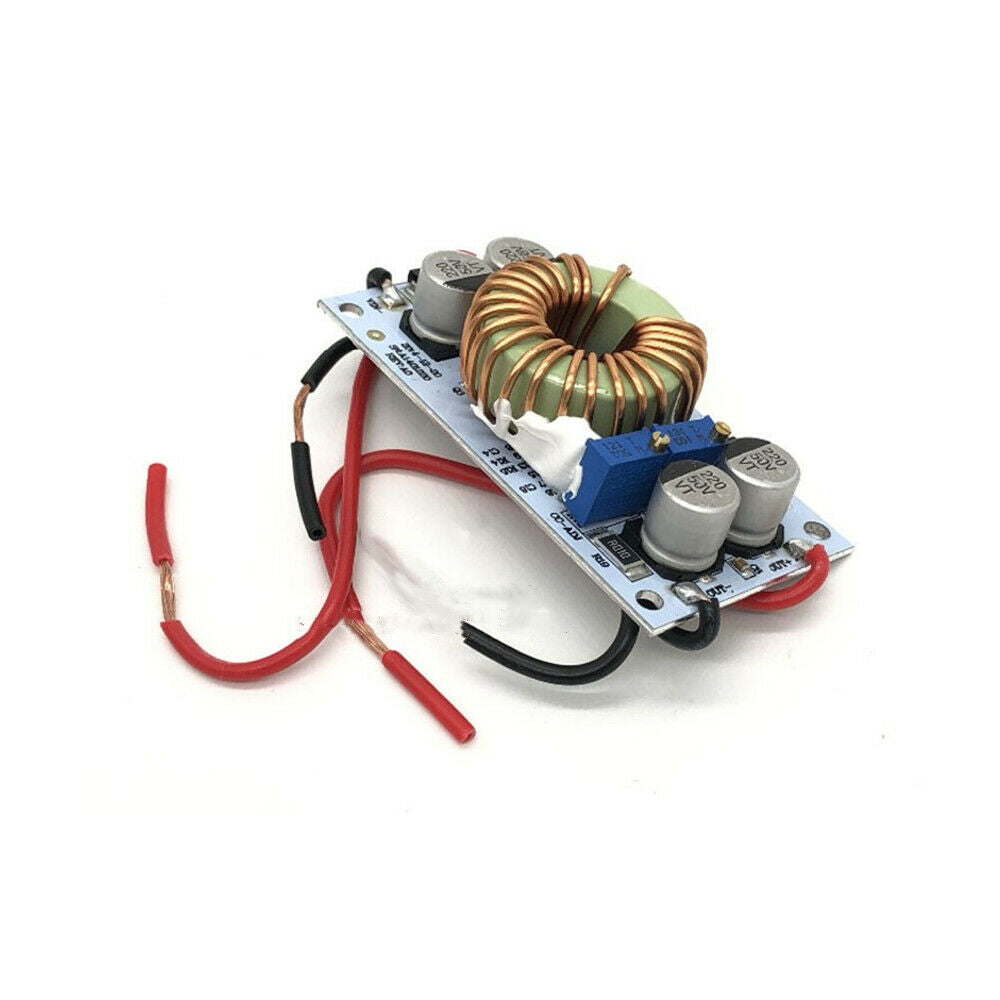

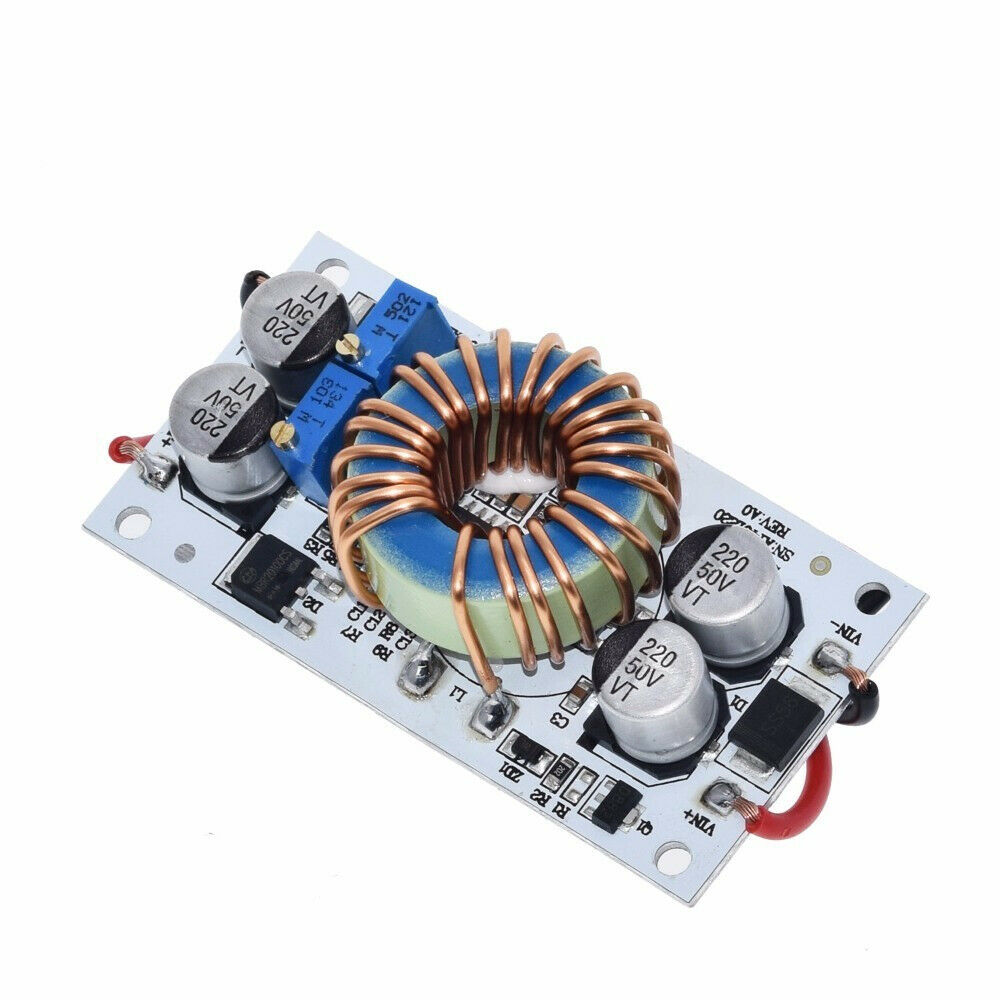

ITEM NAME:DC-DC boost converter Constant Current Power 10A 250W LED Driver Step Up Module Product Description 1. product description The entire network's unique aluminum substrate DC-DC high-power boost constant voltage constant current power module The power supply adopts imported power management chip design, which has high reliability, small surge current, small size (length 70MM * width 42MM * height 13MM), the efficiency is as high as 96%, and the maximum power is 250W. At the same time, the aluminum base plate is designed for easy installation, and the back of the plate can be directly attached to the metal shell to dissipate heat. Reduce equipment space. Product parameter description [Module name] 250W boost constant current module [Module nature]: Non-isolated boost module (BOOST) ã€Input voltage】: DC8.5V-48V [Input current]: 10A (MAX) over 8A, please strengthen heat dissipation [Static working current]: 10mA (when 12V rises to 20V, the higher the output voltage, the static current will increase) [Output voltage]: 10-50V continuously adjustable 12-80V fixed output (for batch customers) [Output current]: 10A MAX, if more than 6A, please strengthen heat dissipation (related to the input and output pressure difference, the greater the pressure difference, the smaller the output current) [Constant current range]: 0.2-8A [Output power]: = input voltage*10A, such as: input 12V*5A=60W, input 24V*5A=120W, Input 36V*5A=180W, input 48V*5A=240W, If you need more power, you can use two modules in parallel. For example, if the output is 10A, you can use two modules in parallel and adjust the current of each module to 5A. [Working temperature]: -40~+85 degrees (please strengthen heat dissipation when the ambient temperature is too high) [Working frequency]: 150KHz [Conversion efficiency]: up to 96% (efficiency is related to input, output voltage, current, and pressure difference) [Overcurrent protection]: Yes (when the input exceeds 13A, the output voltage will be automati.Find many great new & used options and get the best deals for DC-DC boost converter Constant Current Power 10A 250W LED Driver Step Up Module at the best online prices at Order2india Shopping! Free shipping for many products!
